UHW9130001Microwave Oven

Model: D90N30ASLRII-T4 Microwave Oven User's manual 1. READ these instructions carefully before installing and operating the oven. Keep them for further reference. 2. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO.: P P R R E E C C A A U U T T I I O O N N S S T T O O A A V V O O I I D D P P O O S S S S I I B B L L E E E E X X P P O O S S U U R R E E T T O O E E X X C C E E S S S S I I V V E E M M I I C C R R O O W W A A V V E E E E N N E E R R G G Y Y 1. Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. 3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces. 4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENT PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY........................................................................................................................1 IMPORTANT SAFETY INSTRUCTIONS........................................................................2 INSTALLATION GUIDE..................................................................................................3 GROUNDING INSTRUCTIONS.....................................................................................3 UTENSILS GUIDE.........................................................................................................4 COOKING TECHNIQUES..............................................................................................5 SPECIFICATIONS..........................................................................................................6 PART NAMES.................................................................................................................6 CONTROL PANEL.........................................................................................................7 HOW TO SET THE OVEN CONTROLS........................................................................8 CLEANING AND CARE................................................................................................11 1 I I M M P P O O R R T T A A N N T T S S A A F F E E T T Y Y I I N N S S T T R R U U C C T T I I O O N N S S When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS " on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. To reduce the risk of fire in the oven cavity: a) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 9. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THEIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person: a) Do not overheat the liquid. b) Stir the liquid both before and halfway through heating it. c) Do not use straight-sided containers with narrow necks. d) After heating, allow the container to stand in the microwave oven for a short time before removing the container. e) Use extreme care when inserting a spoon or other utensil into the container. 10. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven. 11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. 12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. 13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. 14. Do not cover or block any openings on the appliance. 15. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 16. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly …

Text truncated - open the document above for the full version.

DATE 2007-09-30 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Company Name: Guangdong foshan Shunde Anzheng Appliance service Ltd, Address: 205# Yingfeng Building Guangzhu Rd Rongui Shunde Foshan Guangdong China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Applicant name: Guangdong Galanz Enterprises Co., Ltd, Address: Ronggui, Shunde, Foshan( applicant name and address). Dated this / Day of 09/30/2007 / Agency agreement expiration date: 12/30/2008 By: Valley.Wang Signature Printed Title: Vice director /CTSC On behalf of : Guangdong Galanz Enterprises Co.,Ltd Telephone: 86-757-23612785

DATE 2007-09-30 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ UHW9130001 Product Name:_ Microwave Oven Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Parts List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 09/30/2007 20 / By: Valley.Wang Signature Printed Title: Vice director/CTSC On behalf of : Guangdong galanz Enterprises Co.,Ltd Telephone: 86-757-23612785

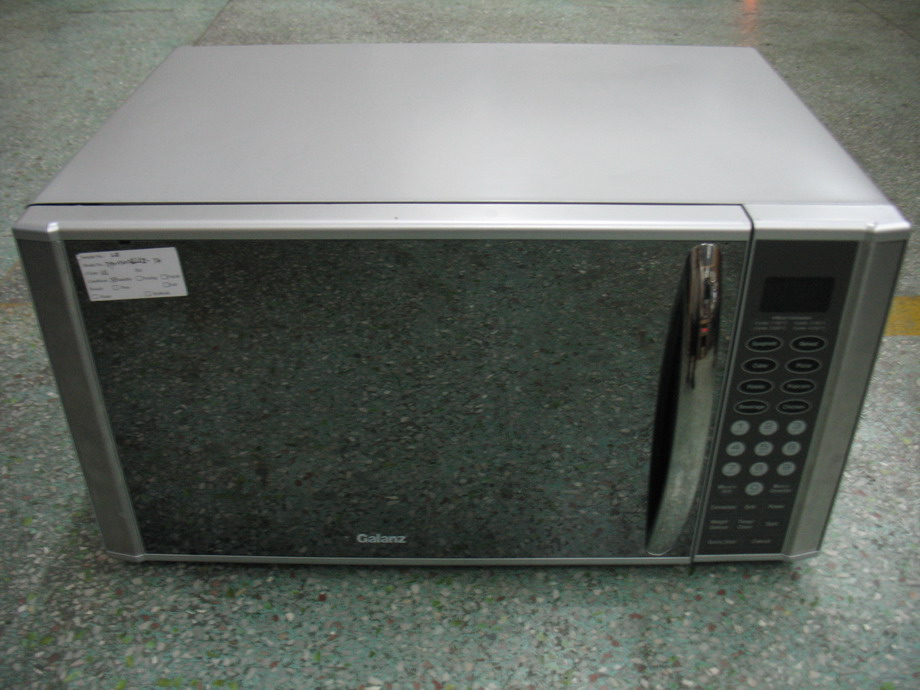

EUT Sample Photos for model ____________ Front and top view Door open view EMC LABORATORY REPORT NO: 07A1754-1 Page 9 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab.

Label & Location Proposed FCC Label Format: Dimension ：Length x width = 170mm x 30mm Specifications: Text is white or black in color and is left justified ,Labels are printed in indelible ink on permanent adhesive backing or sile-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed FCC Label Location: FCC Warning Statement: The Device complies with part 18 of the FCC rules, Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received. including interference that may cause undesired operation . FCC ID: UHW9130001 D90N30ASLRII-T4 VAC: 120 Hz : 60 PHASE:1 WIRE:3 WATTS:1500 AMPS:12.0 OPERATION FREQUENCY: 2450MHz HOUSEHOLD MICROWAVE OVEN SERIAL: MANUFACTURED: September ,2007 MADE IN CHINA Location

Rear View of EUT Door Opened View Uncovered View from right side EMC LABORATORY REPORT NO: 07A1754-1 Page 10 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Front view of Mainboard Back view of Mainboard EMC LABORATORY REPORT NO: 07A1754-1 Page 11 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Front View of AC power filter board EMC LABORATORY REPORT NO: 07A1754-1 Page 12 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab.

Circuit description: Microwave oven connects to the power, when the door is closed, the interlock system work, and the electronic control system get power. It controls the power inverter work and provides the power to Magnetron, then magnetron will work and produce 2450MHZ microwave to cavity of microwave oven. At the same time, electronic control system will control the cavity lamp, turntable motor and cooling fan motor and convection motor according program. Fuse: over current protection. Resistance, capacitor, and inductance: Work together to perform the filter function. Control circuit: including interlock system and controlling relay to control the power of the high voltage transformer, fan motor, turntable motor and so on. High voltage Transformer circuit: to raise the voltage from 120V to around 2500V. High voltage diode, high voltage capacitor: work together to perform the rectification circuit. Magnetron: generate microwave energy.

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR MICROWAVE OVEN Model : D90N30(X)RII(Y) Series (Testing case : D90N30ASLRII-T4) Magnetron Model: Galanz, M24FB-610A Brand Name: Galanz Test Report No: 07A1754-1 FCC ID: UHW9130001 Prepared for GUANGDONG GALANZ ENTERPRISE(GROUP)CO.,LTD. 25 RONGGUI NAN ROAD , RONGGUI SHUNDE, GUANGDONG P.R.C.528305 ACCORDING TO FCC PART 18 INDUSTRIAL , SCIENTIFIC AND MEDICAL EQUIPMENT & FCC/0ST MP-5(1986) FCC METHODS OF MEASUREMENTS OF RADIO NOISE EMISSION FROM INDUSTRIAL ,SCIENTIFIC AND MEDICAL EQUIPMENT Prepared By: Xiaoming Xu Reviewed By: yanhan Lu QC Manager: Valley.Wang Test Report Released By _____________________ _09/30/2007_________________ Name Date EMC LABORATORY REPORT NO: 07A1754-1 Page 1 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. List Attached Files Exhibit Typy File Description File Name Te s t re p o r t Te s t re p o r t UHW9130001 -Test report .pdf Operation Description Operation Description UHW9130001 -operationdescription .pdf External Photos External Photos UHW9130001 -external photos Internal Photos Internal Photos UHW9130001 -Internal photos Block Diagram Block Diagram UHW9130001 -block diagram.pdf Schematics Schematics UHW9130001 -schematics.pdf ID Label/ Location ID Label/ Location UHW9130001 -label & location.pdf User Manual User Manual UHW9130001 -user manual .pdf Test setup Photos Test setup Photos UHW9130001 -test setup photos EMC LABORATORY REPORT NO: 07A1754-1 Page 2 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Test Location Tests performed at Galanz in a certified Ansi Semi-Anechoic Chamber and shielded Roon. Test Site Location EMC Laboratory Guangdong Galanz Enterprises Co.,Ltd 25 South Ronggui Rd., Shunde , Foshan , Guangdong , China. Tel: 86-757-23612785 Fax:86-757-23612537 In compliance with the site registration requirements of section 2.948 of the FCC rules to perform EMI measurements for the general public . FCC Registration Number: 580210 EMC LABORATORY REPORT NO: 07A1754-1 Page 3 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Table of Contents GOVERNMENT DISCLAIMER NOTICE-----------------------------------------------1 REPRODUCTION CAUSE------------------------------------------------------------------1 OPINIONS AND INTERPRETATIONS---------------------------------------------------1 STATEMENT OF MEASUREMENT UNCERTAINTY--------------------------------1 ADMINISTRATIVE DATA------------------------------------------------------------------2 EUT DESCRIPTION--------------------------------------------------------------------------2 TYPE OF DERIVER---------------------------------------------------------------------------3 TEST SUMMARY------------------------------------------------------------------------------4 LORD FOR MWO-----------------------------------------------------------------------------5 EQUIPMENT MODIFICATION-----------------------------------------------------------5 EUT SAMPLE PHOTOS FOR MODEL__________-----------------------------------6 TEST SYSTEM DETAILS------------------------------------------------------------------10 CONFIGURATION OF TESTED SYSTEM--------------------------------------------11 ATTACHMENT 1- RADIATION HAZARD TEST------------------------------------12 ATTACHMENT 2-INPUT POWER MEASUREMENT------------------------------14 ATTACHMENT 3-RF OUTPUT POWER MEASUREMENT----------------------16 ATTACHMENT 4- OPERATING FREQUENCY MEASUREMENT-------------18 ATTACHMENT 5-CONDUCTED EMISSION TEST RESULTS------------------21 ATTACHMENT 6-RADIATED EMISSION TEST RESULTS----------------------25 EMC LABORATORY REPORT NO: 07A1754-1 Page 4 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. GOVERNMENT DISCLAIMER NOTICE When government drawing specification or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States government thereby incurs no responsibility nor any obligation whatsoever, and the fact that the Government might have formulated, furnished or in any way supplied the said drawing, specification or other data, is not to be regarded implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights to permission to manufacture, use or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of the document must be done in full. No single part of the document may be reproduced without permission from ATC-Lab Guangdong Group. 205# Yingfeng Building , Ronggui China . Opinions and Interpretations This test report relates to the above mentioned equipment under test(EUT). Without permission of ATC-Lab Guangdong Group. this report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the e…

Text truncated - open the document above for the full version.

Operating Frequency Test Set-up EMC LABORATORY REPORT NO: 07A1754-1 Page 25 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Conducted Emission Test Set-up EMC LABORATORY REPORT NO: 07A1754-1 Page 30 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab. Radiated Emission Test Set-up(30-1000MHz) Radiated Emission Test Set-up(1-25GHz) The End EMC LABORATORY REPORT NO: 07A1754-1 Page 34 of 34 GUANGDONG ATC-LAB CO.,LTD. 528305 205# YINGFENG BUILDING RONGGUI RD RONGGUI SHUNDE FOSHAN GUANGDONG CHINA TEL:86-757-28375537, FAX: 86-757-28375535 This report shall not be reproduced except in full , without the written approval of ATC-Lab.
