FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060505_Cert_X3 APPENDIX G USER MANUAL Citation Management AutoCITE Reference Guide AutoCITE X3 Handheld Training Reference AutoCITE X3 Training (2).doc Page 1 o f 33 Date/Time Printed: 8/15 /2006 10:28 AM AutoCITE Series X3 Automated Citation Issuance System Training Reference Citation Management AutoCITE Reference Guide AutoCITE X3 Handheld Training Reference AutoCITE X3 Training (2).doc Page 2 o f 33 Date/Time Printed: 8/15 /2006 10:28 AM Table of Contents AutoCITE X3 Handheld...................................................................................................................3 FCC Compliance Statements.................................................................................4 General Overview.............................................................................................................................5 Handheld Features............................................................................................................................5 Basic Concepts/Functions.................................................................................................................6 Module Overview..............................................................................................................................7 Handheld Operation.........................................................................................................................7 Field Entry & General Navigation................................................................................................11 Logging on the X3 Handheld.........................................................................................................13 Main Menu......................................................................................................................................13 Issuing Application.........................................................................................................................15 Issuing a New Parking Ticket........................................................................................................15 Header Screen.................................................................................................................................16 Location Screen...............................................................................................................................17 Violation Screen..............................................................................................................................18 Vehicle Screen.................................................................................................................................19 Hotsheet Considerations.................................................................................................................20 Remarks Screen..............................................................................................................................21 Finish Screen...................................................................................................................................22 Marking Vehicles............................................................................................................................26 Host PC Operation..........................................................................................................................30 System Overview Diagram.............................................................................................................33 Citation Management AutoCITE Reference Guide AutoCITE X3 Handheld Training Reference AutoCITE X3 Training (2).doc Page 3 o f 33 Date/Time Printed: 8/15 /2006 10:28 AM AutoCITE X3 Handheld Citation Management AutoCITE Reference Guide AutoCITE X3 Handheld Training Reference AutoCITE X3 Training (2).doc Page 4 o f 33 Date/Time Printed: 8/15 /2006 10:28 AM FCC Compliance Statements: ∑ Warning: Any changes or modifications not expressively approved by Duncan Technologies could void the user’s authority to operate this equipment. ∑ Use only the supplied antenna. Unauthorized antennas, modifications or attachments could impair quality and/or damage device or result in violation of FCC regulations. ∑ SAR compliance for body-worn operations is restricted to belt-clips, holsters and accessories that have no metallic component in the asse mbly. ∑ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against har mful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help Citation Management AutoCITE Reference Guide AutoCITE X3 Handheld Training Reference AutoCITE X…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO ENGINEERING INC. Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 20 th August 2006 EMC Ref: M060505_Cert_X3 Subject: FCC APPROVAL - FCC ID: UIB-X3 Please receive EMC Technologies’ Report M060505_Cert_X3 for review. The EUT is an Autocite Handheld Device fitted with GSM/GPRS Radio Modem, Model: X3. The test sample is an intentional radiator (transmitter) and testing was performed in accordance with FCC Part 24 Subpart E – Broadband PCS and FCC Part 22 Subpart H – Cellular Radiotelephone Service. This device was previously certified by Reino Enforcement Technology Inc under the FCC ID: MIVGSM0108. Test results are recorded as follows: EMC Technologies Report : M060505_Cert_X3 Test results - FCC Part 24 Subpart E and FCC Part 22 Subpart H Documents submitted: Report Number: M060505_Cert_X3 and all Appendices. Required FCC Forms: Agent Authority, Confidentiality Request, Form 731. EMC Technologies Pty Ltd is acting as agent for Duncan Technologies during this product approval. Their corresponding FRN is 0015375306 The FCC ID for this application is UIB-X3. Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Duncan Technologies requests that prior to the equipment authorization grant for the Autocite X3 the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Duncan Technologies and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Duncan Technologies, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Duncan Technologies requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operational Description, Parts List Sincerely Yours,

FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060505_Cert_X3 APPENDIX B1 TEST SAMPLE EXTERNAL PHOTOGRAPHS FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host

FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060505_Cert_X3 APPENDIX F LABEL DETAILS FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au (Calipers are nominal values.) Facestock Adhesive Liner 3.3 mil (84 micron) 0.8 mil (20 micron)6.7 mil (170 micron) Matte silver polyester#300 Acrylic90# Densified kraft 3 Sheet Polyester Label Material 7983 Features • Matte coating is compatible with screen printing and resists degradation from scuffing, chemicals, moisture, and wide temperature fluctuations. Variable information can be added by the end user, as the material is dot matrix printable and hand writeable. • #300 adhesive bonds well to a variety of substrates including metals, high surface energy (HSE) plastics, and low surface energy (LSE) plastics. It is ideal for applications requiring high initial adhesion to LSE plastic surfaces. • 90# lay-flat polycoated kraft liner provides easy sheet processing. • 3M™ Label Material 7983 is UL recognized (File MH11410) and CSA accepted (File 99316). See the UL and CSA listings for details. Technical DataMarch 1, 1999 Application Ideas• Barcode labels and rating plates. • Property identification and asset labeling. • Warning, instruction, and service labels for durable goods. • Nameplates for durable goods. • Substitutes for stamped metal, riveted plates. Construction FOD# 1673 page 1 of 5 Supersedes July 2, 1998 3M ™ Sheet Polyester Label Material 7983 Typical Physical Properties Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes. Adhesion: 180°peel test procedure is ASTM D 3330. 90°peel test procedure is ASTM D 3330 modified for the angle change. InitialConditioned for 3 Days at Room (10 Minute Dwell/RT)Temperature 72°F (22°C) 180°Peel90°Peel180°Peel90°Peel SurfaceOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mm Stainless Steel5661424667734650 Polycarbonate5967444861674650 Polypropylene5358384256613842 Glass6066424671784852 HD Polyethylene3538283140442831 LD Polyethylene3235252742463437 Conditioned for 3 Days at Conditioned for 24 hours at 90°F 120°F (49°C)(32°C) at 90% Relative Humidity 180°Peel90°Peel180°Peel90°Peel SurfaceOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mmOz./In.N/100 mm Stainless Steel7077505568745358 Polycarbonate3033171955603639 Polypropylene5459424666724448 Glass7077505567734448 HD Polyethylene4044293245493235 LD Polyethylene910101136393033 Liner Release: 180°Removal of Liner from Facestock Rate of RemovalGrams/Inch WidthN/100 mm 90 inches/minute220.85 FOD#1673 page 2 of 5 3M ™ Sheet Polyester Label Material 7983 Environmental Performance The properties defined are based on four hour immersions at room temperature (72°F/22°C) unless otherwise noted. Samples were applied to stainless steel panels 24 hours prior to immersion and were evaluated one hour after removal from the solution for peel adhesion. Adhesion measured at 180°peel angle (ASTM D 3330) at 12 inches/minute. Chemical Resistance: Adhesion to Stainless Steel AppearanceEdge Penetration ChemicalOz./in.N/100 mmVisualMillimeters Isopropyl Alcohol6066No change0.8 Detergent (1% Alconox ® *)6470No change0 Engine Oil (10W30) @ 250°F (121°C)6470No change1 Water for 48 hours6672No change0 pH 46571No change0 pH 106470No change0 409 ® * Cleaning solution6470No change0 Toluene3336Topcoat damaged6.5 Acetone4751Topcoat damaged 4.3 or gone Brake Fluid7481No change0 Gasoline3639No change5.8 Diesel Fuel6268No change1 Mineral Spirits5459No change2.4 Hydraulic Fluid6672No change0 Temperature Resistance: 300°F (149°C) for 24 hours: no significant visual change -40°F (-40°C) for 10 days: no significant visual change Humidity Resistance: 24 hours at 100°F (38°C) and 100% relative humidity: no significant changes in appearance or adhesion Accelerated Aging: ASTM D 3611: 96 hours at 150°F (65°C) and 80% relative humidity Rate of RemovalOz./In. WidthN/100 mm 180°Peel Adhesion 12 inches/minute5459 from Stainless Steel FOD#1673 page 3 of 5 Special ConsiderationsFor maximum bond strength, the surface should be clean and dry. Typical cleaning solvents are heptane and isopropyl alcohol. ** ** NOTE: When using solvents, read and follow the manufacturer’s precautions and directions for use. For best bonding conditions, application surface should be at room temperature or higher. Low temperature surfaces, below 50°F (10°C), can cause the adhesive to become so firm that it will not develop maximum contact with the substrate. Higher initial bonds can be achieved through increased rubdown pressure. ProcessingPrinting: Material has a topcoating which is receptive to many inks including UV and conventional ink systems. The converter should verify that their ink systems are compatible with the topcoating on the polyester film by testing beforehand. The topcoating is also receptive to other forms of printing including hot stamping and dot matrix printing. The converter should verify that the method of printing is compatible with the topcoating by testing beforehand. *The following dot matrix ribbons are recommended for use with this material. • CGL-79™from Mid City Columbia, 800-462-2336 or 800-996-4656 • Ranger 288 from Herbert Dehinton & Co., 847-998-8150 3M does not recommend the Ranger 288 ribbon for bar code printing. Die Cutting: Die cut with steel rule or flatbed dies. The 90# lay-flat liner also allows kiss cutting and back splitting. The converter can cut through the polyester facestock without cutting through the liner. Sheet label materials are not recommended for rotary die cutting and stripping operations. Packaging: Finished labels should be stored in plastic bags. 3M ™ Sheet Polyester Label Material 7983 FOD#1673 page 4 of 5 Shelf LifeTwo years from date of manufacture of prod…

Text truncated - open the document above for the full version.

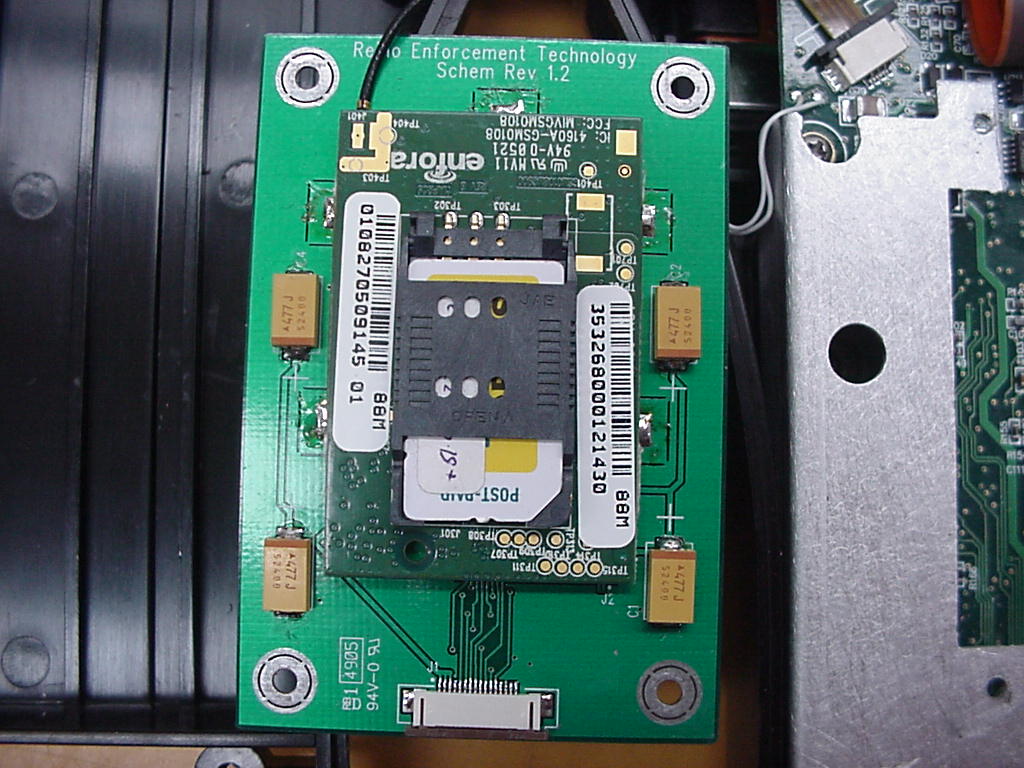

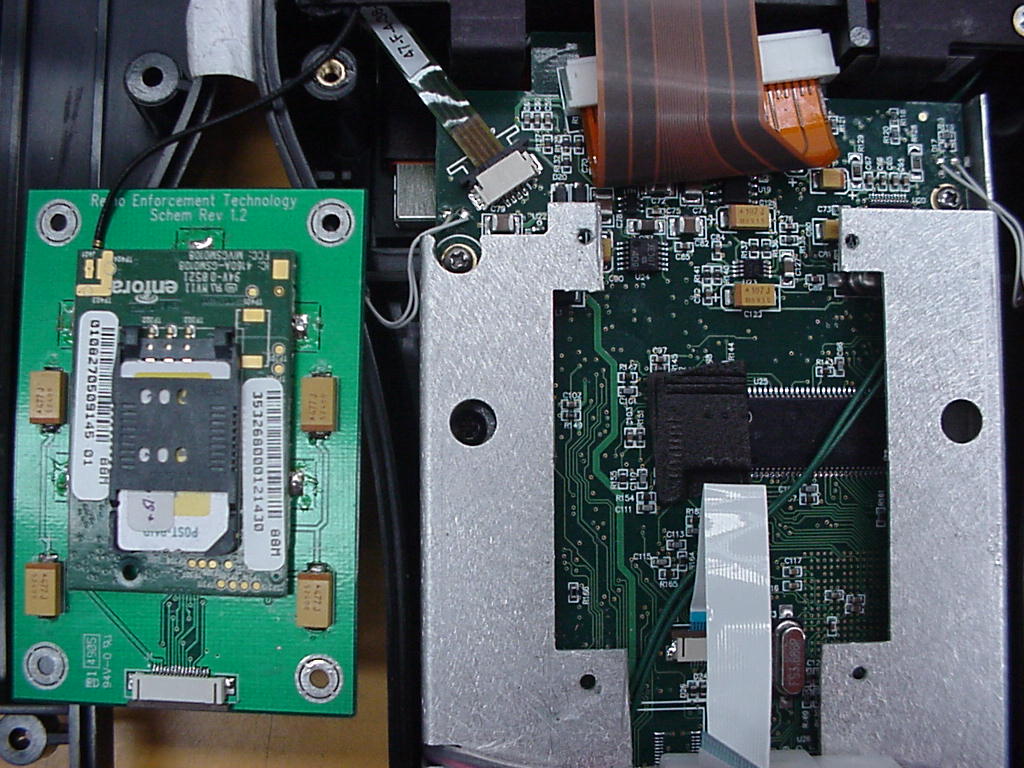

FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060505_Cert_X3 APPENDIX B3 TEST SAMPLE INTERNAL PHOTOGRAPHS FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: UIB-X3 Report No. M060505_Cert_X3 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

Page 1 of 37 SAR Test Report Report Number: M060507 Test Sample: Duncan Technologies GPRS Handheld Transmitter Model Number: AutoCite X3CIW Tested For: Duncan Technologies International Date of Issue: 29 th August 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements, which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 2 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: UIB-X3 Report No.: M060507 Page 2 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION...........................................................................................................3 2.0 DESCRIPTION OF DEVICE..........................................................................................................4 2.1 Description of Test Sample............................................................................................... 4 2.2 Test sample Accessories .................................................................................................. 4 2.2.1 Battery Types ....................................................................................................................4 2.3 Test Signal, Frequency and Output Power ....................................................................... 4 2.4 Conducted Power Measurements..................................................................................... 5 2.5 Battery Status ................................................................................................................... 5 2.6 Details of Test Laboratory................................................................................................. 6 2.6.1 Location .............................................................................................................................6 2.6.2 Accreditations ....................................................................................................................6 2.6.3 Environmental Factors.......................................................................................................6 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ...................................................................7 3.1 Probe Positioning System................................................................................................. 7 3.2 E-Field Probe Type and Performance............................................................................... 7 3.3 Data Acquisition Electronics ............................................................................................. 7 3.4 Calibration and Validation Procedures and Data .............................................................. 7 3.4.1 Validation Results (900MHz and 1800 MHz) .....................................................................7 3.4.2 Deviation from reference validation values ........................................................................8 3.4.3 Liquid Depth 15cm.............................................................................................................8 3.5 Phantom Properties (Size, Shape, Shell Thickness, Tissue Material Properties) ............. 9 3.5.1 Temperature and Humidity ..............................................................................................10 3.6 Simulated Tissue Composition Used for SAR Test......................................................... 11 3.7 Device Holder for DASY4 ............................................................................................... 11 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ...............................................................12 5.0 MEASUREMENT UNCERTAINTY..............................................................................................13 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS ....................................................................15 7.0 SAR TEST METHOD ..................................................................................................................16 7.1 Description of the Test Positions .................................................................................... 16 7.1.1 “Body-Worn Back Position”..............................................................................................16 7.1.2 “Edge-On Position” ..........................................................................................................16 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes etc)................... 16 7.3 FCC and RSS-102 RF Exposure Limits for Occupational/ Controlled Exposure ............. 16 7.4 FCC and RSS-102 RF Exposure Limits for Un-controlled/Non–occupational ................. 16 8.0 SAR EVALUATION RESULTS...................................................................................................17 8.1 SAR Measurement Results for 850 MHz ......................................................................…

Text truncated - open the document above for the full version.

FCC ID: UIB-X3 Report No.: M060507 Page 21 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au APPENDIX B Plots Of The SAR Measurements Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table: 850 MHz SAR Plots Test Position Plot Number Test Channel Body Worn 1 128 Back Position 2 190 3 251 Z-Axis Graphs Z-Axis for Plots 1- 2 Z-Axis Graphs Z-Axis for Plots 3- 4 Edge-On Position 4 190 Table: 1900 MHz SAR Plots Test Position Plot Number Test Channel Body Worn 5 512 Back Position 6 661 7 810 Z-Axis Graphs Z-Axis for Plots 5- 6 Z-Axis Graphs Z-Axis for Plots 7- 8 Edge-On Position 8 661 Table: SAR Validation Plots Date Plot Number Frequency 15 th June 2006 9 1800 MHz 16 th June 2006 10 900 MHz FCC ID: UIB-X3 Report No.: M060507 Page 22 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 16 June 2006 File Name: Body Worn Back 850 MHz GPRS Class 10 (DAE442 Probe1380) 16-06-06.da4 DUT: Duncan Technologies GPRS Handheld Transmitter; Type: AutoCite X3CIW; Serial: 75503 * Communication System: 850 MHz GPRS Class 10; Frequency: 824 MHz; Duty Cycle: 1:4.15 * Medium parameters used: σ = 0.986078 mho/m, ε r = 52.824; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.99, 5.99, 5.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 128 Test/Area Scan (81x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.12 mW/g Channel 128 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.7 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 1.58 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.660 mW/g Maximum value of SAR (measured) = 1.14 mW/g 0 dB = 1.14mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.1 Degrees Celsius Liquid Temperature 19.9 Degrees Celsius Humidity 43.0 % FCC ID: UIB-X3 Report No.: M060507 Page 23 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 16 June 2006 File Name: Body Worn Back 850 MHz GPRS Class 10 (DAE442 Probe1380) 16-06-06.da4 DUT: Duncan Technologies GPRS Handheld Transmitter; Type: AutoCite X3CIW; Serial: 75503 * Communication System: 850 MHz GPRS Class 10; Frequency: 836 MHz; Duty Cycle: 1:4.15 * Medium parameters used: σ = 0.998318 mho/m, ε r = 52.74; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.99, 5.99, 5.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 190 Test/Area Scan (81x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.18 mW/g Channel 190 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.0 V/m; Power Drift = 0.025 dB Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.684 mW/g Maximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.1 Degrees Celsius Liquid Temperature 19.9 Degrees Celsius Humidity 43.0 % FCC ID: UIB-X3 Report No.: M060507 Page 24 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 16 June 2006 File Name: Body Worn Back 850 MHz GPRS Class 10 (DAE442 Probe1380) 16-06-06.da4 DUT: Duncan Technologies GPRS Handheld Transmitter; Type: AutoCite X3CIW; Serial: 75503 * Communication System: 850 MHz GPRS Class 10; Frequency: 849 MHz; Duty Cycle: 1:4.15 * Medium parameters used: σ = 1.00985 mho/m, ε r = 52.5909; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.99, 5.99, 5.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 251 Test/Area Scan (81x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.09 mW/g Channel 251 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.6 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.662 mW/g Maximum value of SAR (measured) = 1.17 mW/g 0 dB = 1.17mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 20.1 Degrees Celsius Liquid Temperature 19.9 Degrees Celsius Humidity 43.0 % FCC ID: UIB-X3 Report No.: M060507 Page 25 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 16 June 2006 File Name: Body Worn Edge On 850 MHz GPRS Class 10 (DAE442 Probe1380) 16-06-06.da4 DUT: Duncan Technologies GPRS Handheld Transmitter; Type: AutoCite X3CIW; Serial: 75503 * Communication System: 850 MHz GPRS Class 10; Frequency: 836 MHz; Duty Cycle: 1:4.15 * Medium parameters used: σ = 0.998318 mho/m, ε r = 52.74; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.99, 5.99, 5.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 190 Test/Area Scan (101x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.180 mW/g Channel 190 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.3 V/m; Power Drift = -0.064 dB Peak SAR (extrapolated) = 0.238 W/kg SAR(1 g) = 0.167 mW/g; SAR(10 g) = 0.117 mW/g Maximum value of SAR (me…

Text truncated - open the document above for the full version.

FCC ID: UIB-X3 Report No.: M060507 Page 28 of 37 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 15 June 2006 File Name: Body Worn Back 1900 MHz GPRS Class 10 (DAE442 Probe1380) 15-06-06.da4 DUT: Duncan Technologies GPRS Handheld Transmitter; Type: AutoCite X3CIW; Serial: 75503 * Communication System: 1900 MHz GPRS Class 10; Frequency: 1850.2 MHz; Duty Cycle: 1:4.15 * Medium parameters used: σ = 1.52259 mho/m, ε r = 50.9552; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.33, 4.33, 4.33) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 512 Test/Area Scan (81x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.268 mW/g Channel 512 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.13 V/m; Power Drift = -0.176 dB Pe…
