UID-G36DOCSIS 3.1 Wireless Cable Modem

QUICK START GUIDE Wi-Fi cable modem G34 G36 23 What’s in the box Wi-Fi cable modem G34 G36 Software License & Warranty card Quick Start Guide G34 G36 Introduction Status indicators Get started Set up your Wi-Fi network connection 3.1 Connect using your mobile device Web Manager 4 4 7 14 19 1 3 2 4 Power adapter 45 Status indicators 1 Front panel LEDs Note: Detailed LED status information is available online in the G34/G36 User Guide on the ARRIS Support website, www.arris.com/selfhelp. Amber (Solid) - Power is connected Green (Blinking) - Acquiring downstream/ upstream connection Green (Solid) - Online status in DOCSIS 3.0 mode Blue (Solid) - Online status in DOCSIS 3.1 mode Amber (Blink ing) - Firmware download 67 Get started 2 This SURFboard device is a combination of DOCSIS 3.1 cable modem and four-port Ethernet router with Wi-Fi. It uses DOCSIS 3.1 technology to provide ultra high-speed Internet access on your Wi-Fi home or small business network. Using the connection capabilities of the Wi-Fi cable modem, you can connect your computer and other network-enabled devices via the four Ethernet ports or the 2.4 GHz and 5 Ghz Wi-Fi connections. The Wi-Fi cable modem connects to the existing coaxial cable connection in your home. Note: For Internet connections, you need a cable service connection (coaxial cable line) with a cable Internet Service Provider. The G34/G36 will not operate with a Digital Subscriber Line service (DSL) or Satellite Internet service. 89 Connect the coaxial cable (not included) from the cable wall outlet or RF splitter (not included) to the Cable connector on the rear of your Wi-Fi cable modem. A Tighten the connector by hand. Connect an Ethernet cable (not included) to any Ethernet port on the rear of your Wi-Fi cable modem and the Ethernet port on your PC or laptop. B 1011 Connect the power adapter to the Power port on the rear of your Wi-Fi cable modem, then plug it into an electrical wall outlet that is not controlled by a wall switch to power on your Wi-Fi cable modem. C Your Wi-Fi cable modem will automatically power ON when the power adapter is connected. Check the front panel LED on your Wi-Fi cable modem. After a brief pause, the LED should light up SOLID green or SOLID blue. D 1213 The model name (G34/G36), HFC MAC ID, and the serial number (S/N) are listed on the Wi-Fi cable modem label. Activate your new Wi-Fi cable modem; choose one of the following options: • Call your cable service provider. • Connect to your cable operator’s activation web site using your computer or laptop: Power ON your computer or laptop and log in. Enter your service provider’s web browser URL: F Verify your Wi-Fi cable modem connectivity by accessing the Internet using the connected PC or laptop. Note: If you have any trouble accessing the URL, please contact your service provider. Visit any public web page such as www.surfboard.com. If the website fails to open, please contact your service provider to set up your Internet service or activate your Wi-Fi cable modem. • Comcast/Xfinity: www.xfinity.com/activate • Co x: www.cox.com/activate • Spectrum: spectrum.net/selfinstall E 1415 3 Set Up Your Wi-Fi Network Connection 3.1 Connect using your mobile device 3.1 Connect using your mobile device Some of the selections used in this procedure may vary slightly depending on your mobile device and operating system. Please make sure to select the most applicable selections on your mobile device. ! 1617 A Access the Settings screen on your mobile device and then select: Wi-Fi, Wireless, or Connections. Check that Wi-Fi or Wireless is set to ON. For Apple devices, you may have to enter a password and then select JOIN. B Select the G34 or G36 Wi-Fi network from the list of available Wi-Fi networks. 1819 C Enter your Wi-Fi network password in the Password field and select Join or Connect. Note: If you are setting up the Wi-Fi connection for the first time, use the default Wi-Fi password listed on the Wi-Fi cable modem label. Web Manager 4 2021 A Manage your G34 or G36 using the Web Manager. Open a web browser (e.g., Internet Explorer, Google Chrome, etc.) on your connected computer or laptop and then type 192.168.0.1 in the address bar. The default login is case-sensitive. Username: admin Password: password Change the default Web Manager password located on the Gateway > Login screen and then click LOGIN to update your password. Customize the default Wi-Fi network name or SSID (ARRIS-####) for your Wi-Fi home network after installing your Wi-Fi cable modem and setting up your network connection(s). Note: You have the option to either keep the default Wi-Fi network name or create a new network name to help you to easily identify your Wi-Fi home network. B For additional assistance with your Wi-Fi cable modem, ARRIS is available to help. Choose one of the following: • Visit www.arris.com/selfhelp for Self Help, FAQs, Product Manuals, Live Chat, and Email support. • Call us at 1-877-466-8646. 2223 Wi-Fi cable modem label If the label is not attached, please check the bottom of your Wi-Fi cable modem. 24 ARSVD01801-b © 2020 CommScope, Inc. All rights reserved. ARRIS and the ARRIS Logo are trademarks of CommScope, Inc. and/or its affiliates. All other trademarks are the property of their respective owners. No part of this content may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from CommScope, Inc. and/or its affiliates (“CommScope”). CommScope reserves the right to revise or change this content from time to time without obligation on the part of CommScope to provide notification of such revision or change. CommScope provides this content without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. CommScope may make improvements or changes in the products or services described in thi…

Text truncated - open the document above for the full version.

3871 LAKEFIELD DRIVE, SUWANEE, GA 30024 January 8, 2021 To the attention of: Federal Communications Commission Authorization and Evaluation Division FCC ID: UID-G36 Confidentiality Request Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), ARRIS hereby requests the Commission to withhold the following attachments as confidential documents from public disclosure indefinitely. • Schematics / Block Diagram • Operation Description • Software Operational Description Above mentioned documents contain detailed system and equipment information that is considered as proprietary information. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Short-Term Confidentiality In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, ARRIS hereby requests the commission to grant short-term confidentiality on the following attachments for 180 days after the grant. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential and will be available for public review once the grant of equipment authorization is issued. Sincerely, Thomas Kelleher, Compliance Engineer ARRIS Tel: (215) 323-2257 E-mail: [email protected]

3871 LAKEFIELD DRIVE, SUWANEE, GA 30024 January 8, 2021 To the attention of: Federal Communications Commission Authorization and Evaluation Division FCC ID: UID-G36 AGENT AUTHORIZATION To Whom It May Concern: ARRIS hereby authorizes Debby Lin of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (FCC) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin of BV CPS Taoyuan on ARRIS’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely, Thomas Kelleher, Compliance Engineer ARRIS Tel: (215) 323-2257 E-mail: [email protected]

3871 LAKEFIELD DRIVE, SUWANEE, GA 30024 January 8, 2021 To the attention of: Federal Communications Commission Authorization and Evaluation Division FCC ID: UID-G36 Channel Declaration To Whom It May Concern: ARRIS hereby declares that this device does not support channel 12 - 13 in the 2.4GHz band and any non-US channels in all the operational modes. If you should have any questions regarding this declaration, please don’t hesitate to contact us. Thank you! Sincerely, Thomas Kelleher, Product Compliance Engineer ARRIS Tel: +1 215 323-2257 E-mail: [email protected] [email protected]

Date: May 16, 2018 AUTHORIZATION LETTER To whom it may concern: I hereby authorize Thomas Kelleher, Compliance Engineer of ARRIS, to act on behalf of ARRIS in all matters relating to the FCC application for equipment authorization in connection with FCC grantee code UID, including signing of all documents relating to these matters. If you have any questions regarding this authorization, please don’t hesitate to contact me. Sincerely yours, --------------------------------------- Antonio Figueiredo ARRIS 3871 Lakefield Drive, Suwanee, GA 30024 Tel: (678) 473-5067 E-mail: [email protected]

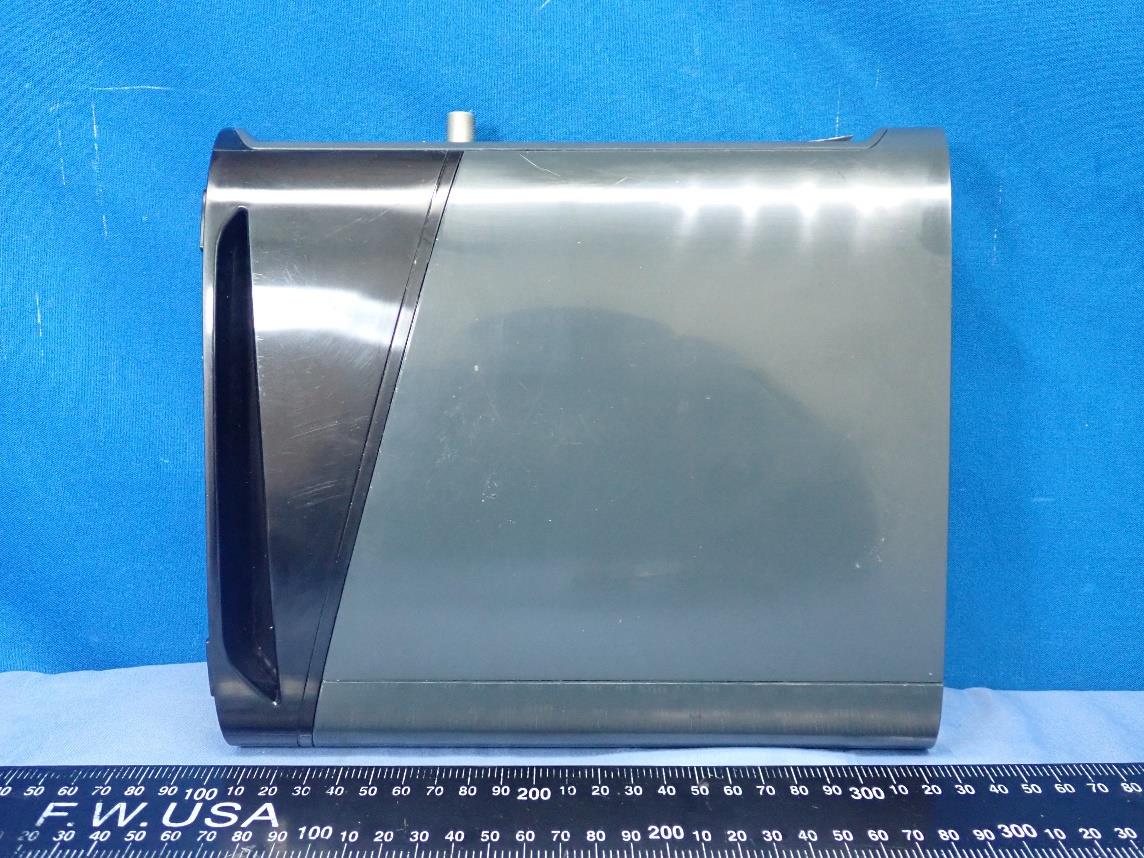

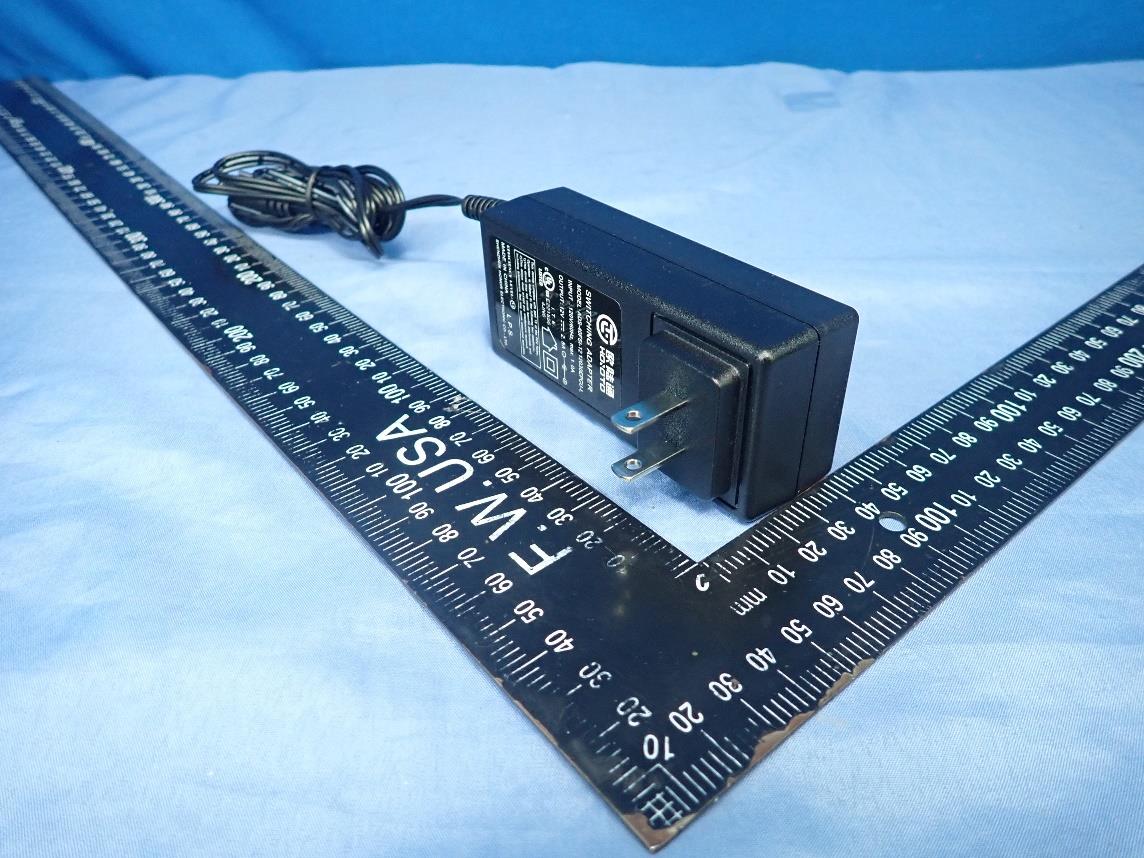

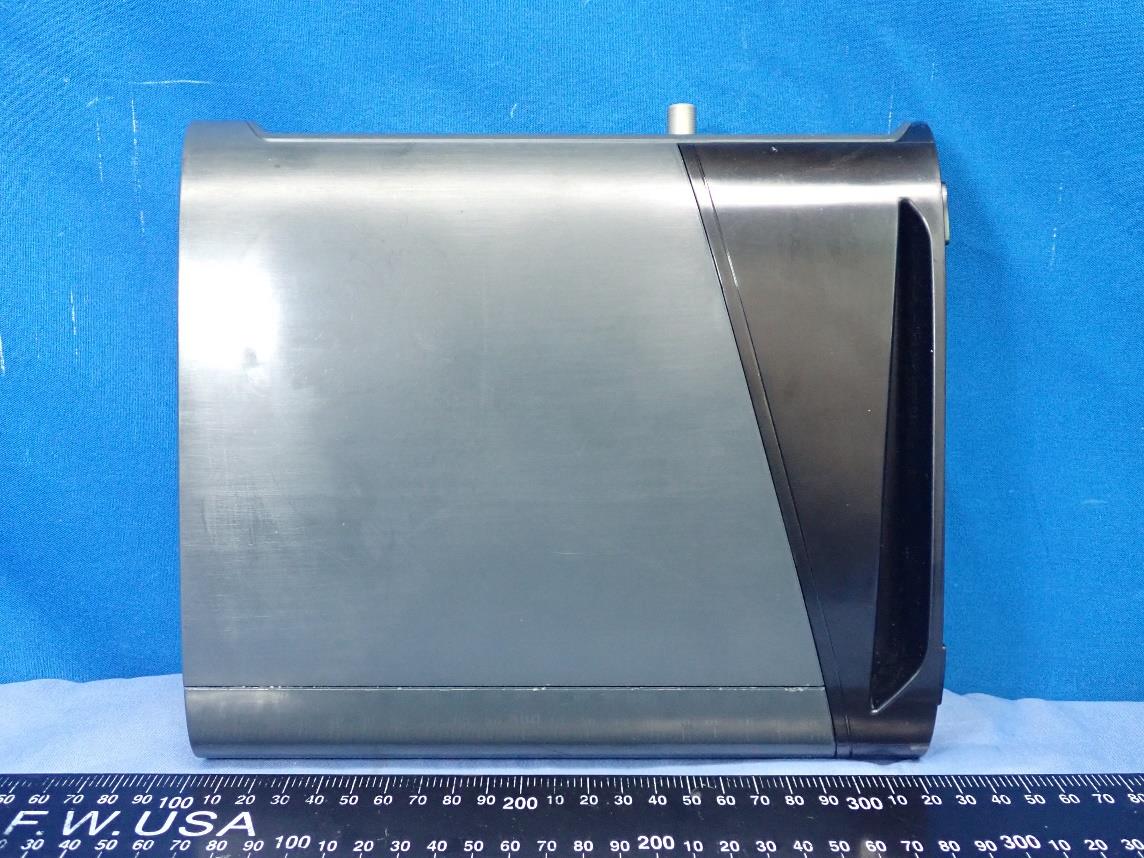

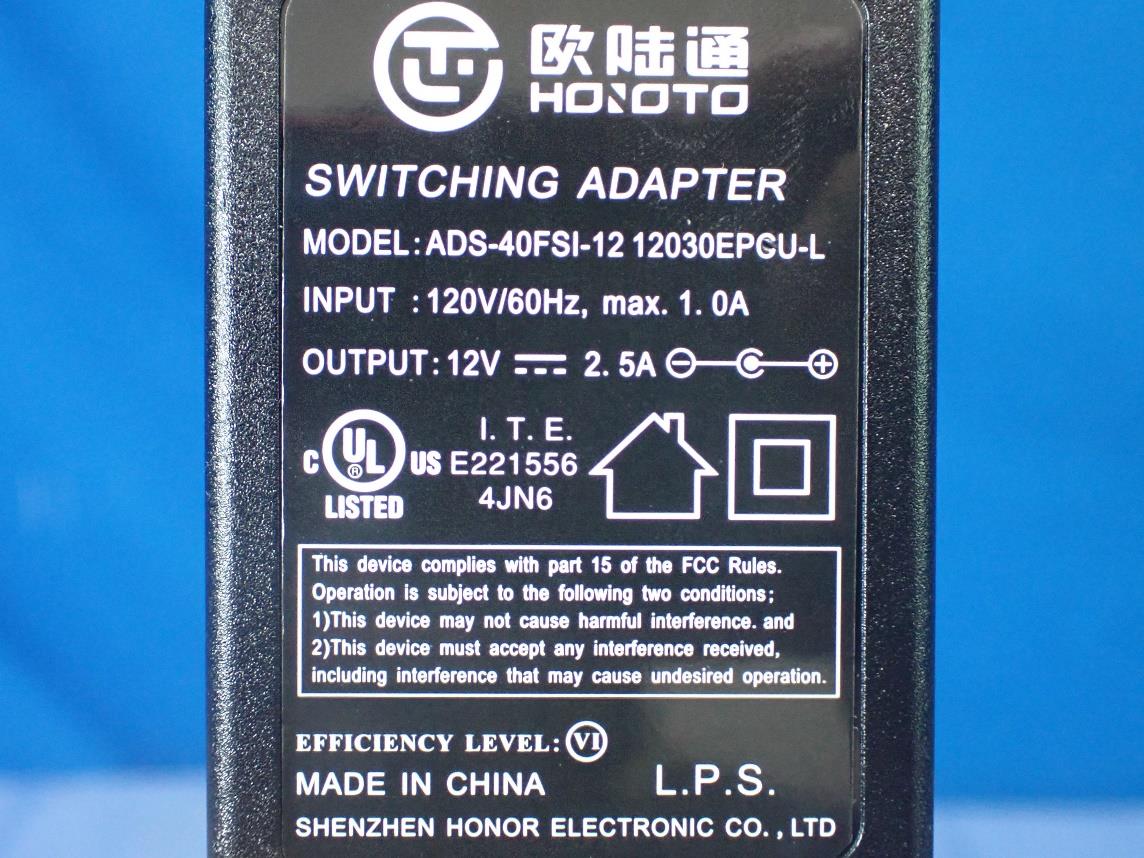

Reference No.: BHQC-WTW-P20110629 Page 1/8 CONSTRUCTION PHOTOS OF EUT Model: G36 Reference No.: BHQC-WTW-P20110629 Page 2/8 Reference No.: BHQC-WTW-P20110629 Page 3/8 Reference No.: BHQC-WTW-P20110629 Page 4/8 Reference No.: BHQC-WTW-P20110629 Page 5/8 Adapter Model: ADS-40FSI-12 12030EPCU-L Reference No.: BHQC-WTW-P20110629 Page 6/8 Reference No.: BHQC-WTW-P20110629 Page 7/8 Adapter Model: KSAS0361200250HU Reference No.: BHQC-WTW-P20110629 Page 8/8

Label plan/U62C089.00/R05/ 3 OF 7 Unit Label/QSG label PN: 500.02525.025/500.02535.025 504.01825.025/504.01826.025 Pre-printed view Suppier print Model: G36 P/N: 1001370 70.00 mm 44.00 mm HFC MAC: XXXXXXXXXXXX SN: XXXX XXXX XXXX XXX Made in China HW Version: XXX Foxconn print DD33..11 ROUND OUTER CORNERS ( 1MM RADIUS) Barcode Type: Code 128 format Barcode height: ~5mm as shown; use a minimum height of 0.150 inches Text font: 6 point arial or per graphic file Factory printed text is shown in blue color Print factory printed text in black color Pre-printed section: black background color with white graphics Reference print rules of ARMP10893 Apply position 1: Rule for the SN please follow the MPD Follow the MPD Follow the MPD, retain one space after every 4 digits Refer to the table Refer to the table 2.4GHz SSID: G36 DIAG-XXXX 5GHz SSID: G36 DIAG-XXXX-5G IP Address: http://192.168.0.1 Input Voltage: +12VDC; 2.5A Need Help: www.arris.com/consumer FCC ID: UID-G36 WAN MAC: XXXXXXXXXXXX Follow the MPD Depends on the build stage, for example, ER1, ER2, PR or MP Wi-Fi Security Key:XXXXXXXXXXXX Reference information Column A Ordering Number 1001370 1001373 1001364 Model Name G36 DIAG G34 G34 DIAG 1001369 Column B G36 Column 1 2.4G Field Column 2 5G Field Network Name(SSID) <Model name>-<last 4 digits of CM mac> XXXXXXXXXXXX (12 random digital numbers) WI-FI Security Key Column 3 <Model name>-<last 4 digits of CM mac>-5G Apply position 2: QSG 22 Wi-Fi cable modem label your Wi-Fi cable modem. *No standard tags. PLM decision is not to include standard tags for joining the default Wi-Fi network. *Includes custom tags for 2.4 SSID , 5GHz SSID, Mode, Passphrase , Family ID, Model ID, DOCSIS MAC, Gateway MAC, and Serial Number. *The hidden SSID is set to blank For example: SSID:G36 DIAG-2759; SSID5:G36 DIAG-2759-5G; MODE:WPA2-PSK(AES); PA:335233102437; FA:SURFboard; MO:G36; HFCMAC: D40AA9032758; WANMAC:D40AA9032759; SN:1234567890 Model: G36 P/N: 1001370 HFC MAC: XXXXXXXXXXXX SN: XXXX XXXX XXXX XXX Made in China HW Version: XXX DD33..11 2.4GHz SSID: G36 DIAG-XXXX 5GHz SSID: G36 DIAG-XXXX-5G IP Address: http://192.168.0.1 Input Voltage: +12VDC; 2.5A Need Help: www.arris.com/consumer FCC ID: UID-G36 WAN MAC: XXXXXXXXXXXX Wi-Fi Security Key:XXXXXXXXXXXX

Reference No.: BHQC-WTW-P20110629 Page 1/17 CONSTRUCTION PHOTOS OF EUT Model: G36 Reference No.: BHQC-WTW-P20110629 Page 2/17 Reference No.: BHQC-WTW-P20110629 Page 3/17 Reference No.: BHQC-WTW-P20110629 Page 4/17 Reference No.: BHQC-WTW-P20110629 Page 5/17 Reference No.: BHQC-WTW-P20110629 Page 6/17 Reference No.: BHQC-WTW-P20110629 Page 7/17 Reference No.: BHQC-WTW-P20110629 Page 8/17 Reference No.: BHQC-WTW-P20110629 Page 9/17 Reference No.: BHQC-WTW-P20110629 Page 10/17 Reference No.: BHQC-WTW-P20110629 Page 11/17 Reference No.: BHQC-WTW-P20110629 Page 12/17 Reference No.: BHQC-WTW-P20110629 Page 13/17 Reference No.: BHQC-WTW-P20110629 Page 14/17 Model: G36 Reference No.: BHQC-WTW-P20110629 Page 15/17 Reference No.: BHQC-WTW-P20110629 Page 16/17 Antenna 1 Reference No.: BHQC-WTW-P20110629 Page 17/17 Antenna 2

Report No.: SABHQC-WTW-P20110629 Page No. 1 / 7 Report Format Version: 6.1.1 RF Exposure Report Report No.: SABHQC-WTW-P20110629 FCC ID: UID-G36 Test Model: G36 Series Model: G34 Received Date: Nov. 19, 2020 Test Date: Dec. 07, 2020 Issued Date: Jan. 13, 2021 Applicant: ARRIS Address: 3871 Lakefield Drive Suite 300 SUWANEE, GA 30024 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABHQC-WTW-P20110629 Page No. 2 / 7 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result ............................................................................................................................... 7 Report No.: SABHQC-WTW-P20110629 Page No. 3 / 7 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SABHQC-WTW-P20110629 Original release. Jan. 13, 2021 Report No.: SABHQC-WTW-P20110629 Page No. 4 / 7 Report Format Version: 6.1.1 1 Certificate of Conformity Product: DOCSIS 3.1 Wireless Cable Modem Brand: ARRIS Test Model: G36 Series Model: G34 Sample Status: Engineering sample Applicant: ARRIS Test Date: Dec. 07, 2020 Standards: FCC Part 2 (Section 2.1091) IEEE C95.3 -2002 References Test Guidance KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: Jan. 13, 2021 Joyce Kuo / Specialist Approved by : , Date: Jan. 13, 2021 Clark Lin / Technical Manager Report No.: SABHQC-WTW-P20110629 Page No. 5 / 7 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 28cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABHQC-WTW-P20110629 Page No. 6 / 7 Report Format Version: 6.1.1 2.4 Antenna Gain Antenna NO. RF Chain NO Brand Antenna Net Gain(dBi) Frequency range Antenna Type Connector Type Cable Length ANT1 Chain0 2G 2.82 2.4~2.4835GHz Dipole i-pex(MHF) 40mm 5G 3.88 5.15~5.25GHz 3.88 5.25~5.35GHz 4.3 5.47~5.725GHz 4.42 5.725~5.85GHz ANT2 Chain1 2G 2.84 2.4~2.4835GHz Dipole i-pex(MHF) 130mm 5G 3.85 5.15~5.25GHz 4.33 5.25~5.35GHz 4.3 5.47~5.725GHz 4.38 5.725~5.85GHz *The above Antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. Report No.: SABHQC-WTW-P201106…
