Touchstone ® TG852 Telephony Gateway User’s Guide Get ready to experience the Internet’s express lane! Whether you’re checking out streaming media, downloading new software, checking your email, or talking with friends on the phone, the Touchstone TG852 Telephony Gateway brings it all to you faster and more reliably. All while providing toll quality Voice over IP telephone ser - vice and both wired and wireless connectivity. It also provides a Lithi um-Ion bat- tery backup to provide continued telephone service during power outages. The Touchstone Telephony Gateway provides four Ethernet connections for use as the hub of your home/office Local Area Network (LAN). The Touchstone Telephony Gateway also provides 802.11b/g/n wireless connectivity for enhanced mobility and versatility. In addition, the Touchstone Telephony Gateway provides for up to two separate lines of telephone service. Installation is simple and your cable company will provide assistance to you for any special requirements. The links below provide more detailed instructions. Safety Requirements Getting Started Battery Installation and Removal Installing and Connecting Your Telephony Gateway Configuring Your Ethernet Connection Using the Telephony Gateway Troubleshooting Glossary Export Regulations This product may not be exported outside the U.S. and Canada without U.S. Department of Commerce, Bureau of Export Admin istration au- thorization. Any export or re-export by the purchaser, directly or indirectly, in contravention of U.S. Export Adminis tration Regulation is prohib- ited. Copyright © 2010 ARRIS. All rights reserved. The information in this document is subject to change without notice. The statements, configurations, technical data, and recom mendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsi- bility for their applications of any products specified in this document. The information in this docu ment is proprietary to ARRIS. ARRIS, Touchstone, and the ARRIS logo are trademarks or registered trademarks of ARRIS Group. All other trademarks and reg istered trade- marks are the property of their respective holders. Protected under one or more of the following U.S. patents: 7,031,435; 7,100,011. Other patents pending. ARSVD01310 Release 8 Standard 1.1 May 2010 Safety Requirements ARRIS Telephony Gateways comply with the applicable requirements for perform- ance, construction, labeling, and information when used as outlined below: CAUTION Risk of shock Mains voltages inside this unit. No user serviceable parts inside. Refer service to qualified personnel only! CAUTION Potential equipment damage Potential loss of service Connecting the Telephony Gateway to existing telephone wiring should only be performed by a professional installer. Physical connections to the previous telephone provider must be removed and the wiring must be checked; there must not be any voltages. Cancellation of telephone service is not adequate. Failure to do so may result in loss of service and/or permanent damage to the Telephony Gateway. CAUTION Risk of explosion Replacing the battery with an incorrect type, heating a battery above 75°C, or incinerating a battery, can cause product failure and a risk of fire or battery explosion. Dispose of used batteries according to the instructions. • The Telephony Gateway is designed to be connected directly to a telephone. • Connecting the Telephony Gateway to the home’s existing tele phone wiring should only be performed by a professional in staller. • Do not use product near water (i.e. wet basement, bathtub, sink or near a swimming pool, etc.), to avoid risk of electrocu tion. Touchstone TG852 Telephony Gateway User’s Guide Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGlossary 3 • Do not use spray cleaners or aerosols on the Telephony Gateway. • Avoid using and/or connecting the equipment during an electri cal storm, to avoid risk of electrocution. • Do not use the telephone to report a gas leak in the vicinity of the leak. • Do not locate the equipment within 6 feet (1.9 m) of a flame or ignition source (i.e. heat registers, space heaters, fireplaces, etc.). • Use only power supply and power cord included with the equip ment. • Equipment should be installed near the power outlet and should be easily accessible. • The shield of the coaxial cable must be connected to earth (grounded) at the entrance to the building in accordance with applicable national electrical in- stallation codes. In the U.S., this is required by NFPA 70 (National Electrical Code) Article 820. In the European Union and in certain other countries, CATV instal lation equipotential bonding requirements are specified in IEC 60728-11, Cable networks for television signals, sound signals and interac- tive services, Part 11: Safety. This equipment is in tended to be installed in accordance with the requirements of IEC 60728-11 for safe operation. If the equipment is to be installed in an area serviced by an IT power line network, as is found in many areas of Norway, spe cial attention should be given that the installation is in accor dance with IEC 60728-11, in particular Annex B and Figure B.4. • In areas of high surge events or poor grounding situations and areas prone to lightning strikes, additional surge protection may be required (i.e. PF11VNT3 from American Power Conver sion) on the AC, RF, Ethernet and Phone lines. • When the Telephony Gateway is connected to a local computer through Eth- ernet cables, the computer must be proper ly grounded to the building/res- idence AC ground network. All plug-in cards within the computer must be properly installed and grounded to the computer frame per the manufac- turer’s specifications. Touchstone TG852 Telephony Gateway User’s Guide Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGloss…

Text truncated - open the document above for the full version.

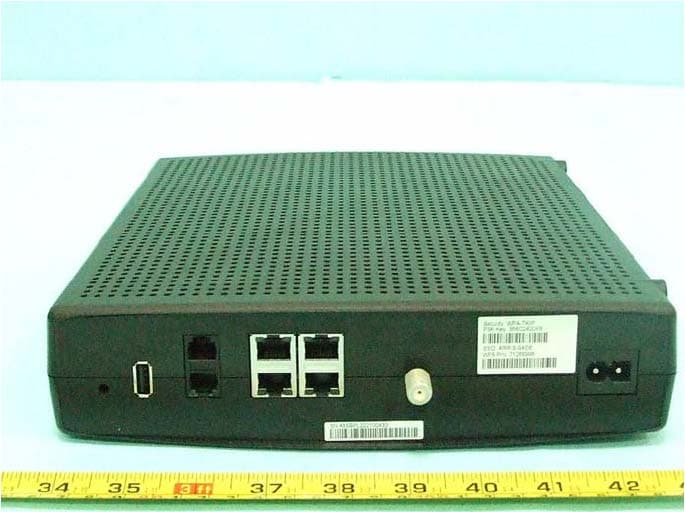

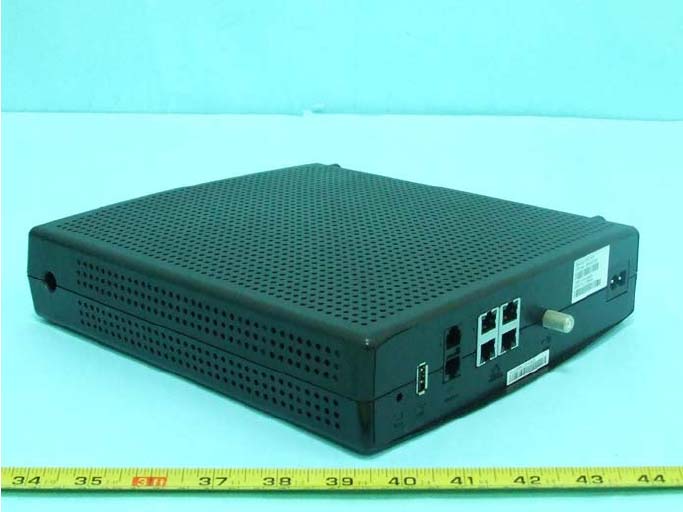

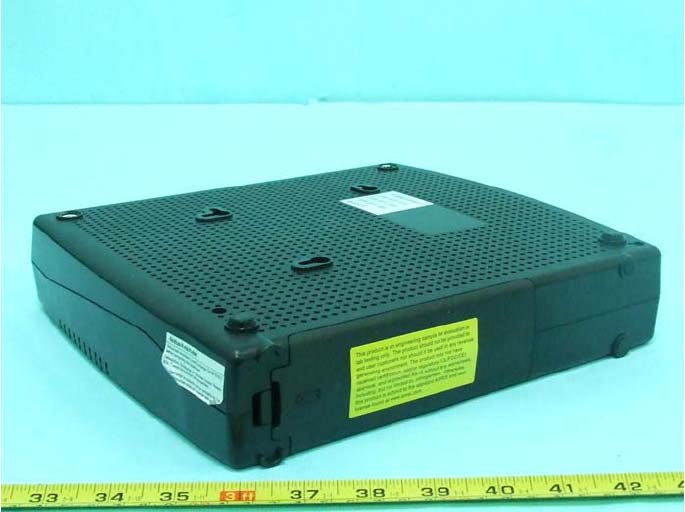

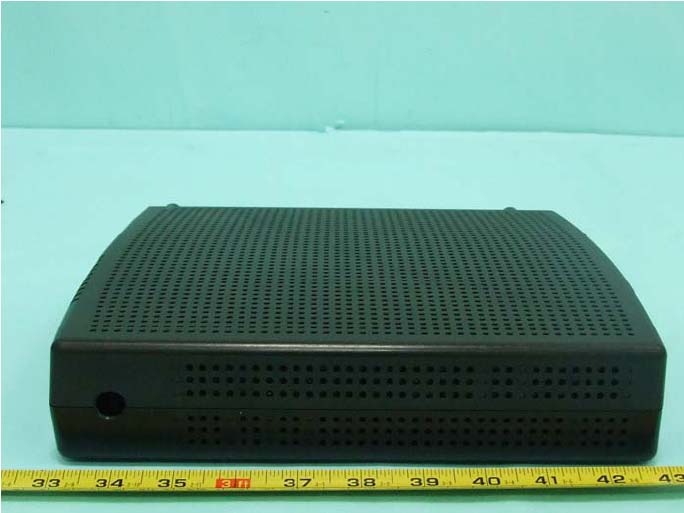

Cable Ethernet 10/100/1000 TelephoneReset USB 1/2 22 1 4 3 A CB D FE H G TG852 Power Ethernet DS US Online WiFi Secure Tel 1 Battery Tel 2 B ECA DFHJ GI 19 Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGlossary Touchstone TG852 Telephony Gateway User’s Guide Front Panel The front of the Telephony Gateway has the following indicators: A Battery: indicates the battery status. B Tel 2: indicates the status of telephone line 2. C Tel 1:indicates the status of telephone line 1. D Secure: indicates Wireless Protected Setup (WPS) is active. E WiFi: indicates the status of the wireless LAN. F Ethernet: indicates Ethernet connectivity between the Telephony Gateway and computers. G Online: indicates internet data transmission status. H US: indicates upstream connectivity. I DS: indicates downstream connectivity. J Power: indicates whether AC power is available to the unit. Rear Panel The rear of the Telephony Gateway has the following connectors and controls: A WPS button: begins associating the Telephony Gateway with a wireless de- vice. B Resetbutton: resets the Telephony Gateway as if you power cycled the unit. Use a pointed non-metallic object to press this button. C USB:USB host connector - future support for external USB devices D Telephone 1/2: connector for the first phone line (or both lines of a 2-line phone). E Telephone 2: connector for the second phone line. F Ethernet (1 - 4): connectors for use with a computer LAN port. G Cable: connector for the coaxial cable. H Power: connector for the power cord. Selecting an Installation Location There are a number of factors to consider when choosing a location to install your Telephony Gateway: • Is an AC outlet available nearby? For best results, the outlet should not be switched and should be close enough to the Telephony Gateway that exten- sion cords are not required. • Is a cable jack available? For best performance, keep the number of split- ters between the jack and cable drop to a minimum. Each splitter attenuates (re duces) the signal available to the Telephony Gateway. A large number of split ters can slow down the Internet connection and even affect your tele- phone service. • Can you easily run cables between the Telephony Gateway’s location and the phones? • If you are connecting devices to the Ethernet ports, can you easily run ca- bles between the Telephony Gateway’s location and those devices? • If you want to mount the Telephony Gateway on a wall, does the location pro vide a solid surface for secure attachment? For best results when mount- ing the Telephony Gateway on drywall, position the Telephony Gateway so at least one of the screws are fastened to a stud. This may prevent the Tele- phony Gateway from pulling out of the wall in the future. • If you want to install the Telephony Gateway on a desktop, is there enough space on either side to keep the vents clear? Blocking the vents may cause overheating. • How close are your wireless devices? The Telephony Gateway wireless con- nection range is typically 100–200 feet (30m–65m). A number of factors can affect connection range, as described below. Touchstone TG852 Telephony Gateway User’s Guide Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGlossary 20 Factors Affecting Wireless Range A number of factors can affect the usable range for wireless connections. Note:Note that decreasing the range of your wireless network may be bene- ficial, as long as the decreased range is sufficient for your needs. By lim- iting your network’s range, you reduce interference with other networks and make it harder for unwant ed users to find and connect to your net- work. Note:Setting the trasmit power level to High increases the range. Setting it to Medium or Low decreases the range proportionately. Increases range:• Raising the unit above the devices (for example, in- stalling the Telephony Gateway in the upper floor of a multi-story dwelling) • Adding wireless hubs in a bridge (WDS) network Decreases range:• Lowering the unit below the devices (for example, in- stalling the Telephony Gateway in a basement) • Metal or concrete walls between the Telephony Gate- way and other devices • Large metal appliances, aquariums, or metal cabinets between the Telephony Gateway and other devices • Interference and RF noise (2.4 GHz wireless phones, microwave ovens, or other wireless networks) Touchstone TG852 Telephony Gateway User’s Guide Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGlossary 21 Step 1 Step 2 Step 3 Step 4 22 Safety Getting Started Battery Installation Installation Ethernet Configuration UsageTroubleshootingGlossary Touchstone TG852 Telephony Gateway User’s Guide Mounting the Telephony Gateway You can either mount the Telephony Gateway on a wall or place it on a desktop. For wall-mount applications, you can mount the Telephony Gateway with the indi- cators facing upward (vertical) or to the side (horizontal). Tools and Materials For wall-mounted installations, make sure you have the following tools and mate- rials before proceeding: • for mounting on drywall: Two 1/4” (6mm) drywall anchors and a drill with 1/4” (6mm) bit (not included) • for mounting on plywood or studs: two #6 x 1.5” (38.1 mm) self tapping screws (not included) • screwdriver (flat-blade or Phillips, depending on what kind of screws you use) • wall-mount template (included) • transparent tape: for temporarily securing the mounting template to the wall (not included) Location Always position the Telephony Gateway: • within reach of an AC outlet. The power cord must reach the outlet without stretching and without adding extension cords. • near a cable outlet (to avoid long cable runs). Instructions Wall-mounting instructions Note:When mounting the Telephony Gateway on drywall, try to position the Telephony Gateway so at least one of the screws is fastened to a stud. …

Text truncated - open the document above for the full version.

5015 B. U. Bowman Dr. Buford, GA 30518 August 5, 2010 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: UIDGWM To Whom It May Concern: The following application is submitted on behalf of our client, Arris International, Inc., for evaluation of models TG852G/CT and TG852G for certification under FCC Part Part 15.247. The TG852G/CT and TG852G are Touchstone Wireless Telephony Gateways which include 802.11b/g/n 2.4GHz MIMO 2x3 wireless networking. Models TG852G/CT and TG852G are identical in electrical construction and design and differ only in slight modifications to the enclosure for end user mounting. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

3871 Lakefield Drive • Suwanee, GA 30024 • phone: 678-473-8400 www.arrisi.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: UIDGWM to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Edward R. Champion, Jr. Manager, Regulatory/Compliance ARRIS Group, Inc. 3871 Lakefield Dr Suite 300 Suwanee, GA 30024

3871 Lakefield Drive • Suwanee, GA 30024 • phone: 678-473-8400 www.arrisi.com Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: ARRIS Group, Inc. respectfully requests confidentiality of certain materials provided with the submission of the TG852 under FCC ID: UIDGWM in accordance with FCC Regulations 0.459. The confidentiality request applies to the (1) schematic diagrams, (2) detailed block diagrams, and (3) detailed operational descriptions contained in this filing and included in the following files. System Block Diagram.pdf Schematics.pdf Theory of Operation.pdf The TG852 has been developed at considerable effort and expense by ARRIS Group, Inc.. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Edward R. Champion, Jr. Signature: Title: Manager, Regulatory/Compliance Date: 08/03/2010

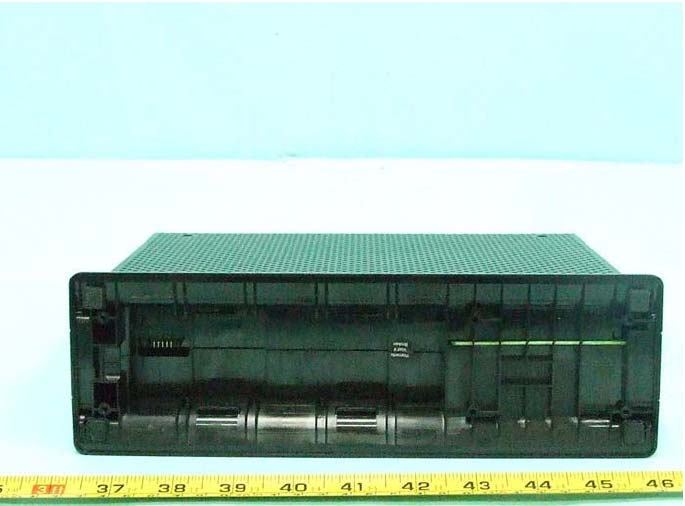

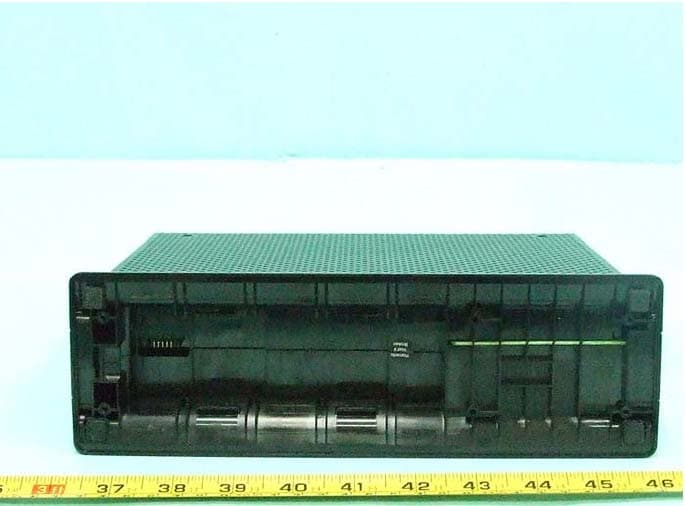

Model TG852G/CT Model TG852G

Model TG852G Figure 1: Sample Label 1 Figure 2: Sample Label 2 Label 1 Figure 3: Label 1 Location Label 2 Figure 4: Label 2 Location Model TG852G/CT Figure 5: Sample Label Label Figure 6: Label Location

General Information: Applicant: Arris International, Inc. Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Printed PCB Antenna Gain: 2.5 dBi Maximum Transmitter Conducted Power: 27.90 Maximum System EIRP: 30.4 dBm, 1096 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 243727.91.00616.602.51.778 200.218 Power De nsity (mW/cm^2) Dista nce (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Ante nna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

RADIO TEST REPORT Report No.: FR/CR071311AC SPORTON International Inc. Report Format Version: a RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 IC RSS-210 Annex 8 Equipment : Touchstone Wireless Telephony Gateway Model No. : TG852G/CT & TG852G Brand Name : ARRIS Group, Inc. Filing Type : New Application Applicant : ARRIS Group, Inc. 3871 Lakefield Drive, suite 300, Suwanee, GA30024. FCC ID : UIDGWM IC ID : 6670A-GWM Manufacturer : ARRIS Group, Inc. 3871 Lakefield Drive, suite 300, Suwanee, GA30024. Received Date : Jul. 06, 2010 Final Test Date : Jul. 22, 2010 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C / IC RSS-210 issue 7. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. RADIO TEST REPORT Report No.: FR/CR071311AC SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jul. 26, 2010 FAX : 886-2-2696-2255 FCC ID : UIDGWM IC ID : 6670A-GWM Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Accessories ............................................................................................................................................................................................. 3 2.3 Table for Filed Antenna ........................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.5 Table for Test Modes .............................................................................................................................................................................. 4 2.6 Table for Testing Locations ..................................................................................................................................................................... 4 2.7 Table for Supporting Units ....................................................................................................................................................................... 4 2.8 Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.9 EUT Operation during Test ..................................................................................................................................................................... 5 2.10 Test Configuration ................................................................................................................................................................................... 6 3 TEST RESULT ........................................................................................................................................................ 8 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 8 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 12 3.3 Power Spectral Density Measurement .................................................................................................................................................. 14 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 20 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 26 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 44 3.7 Antenna Requirements .......................................................................................................................................................................... 49 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 50 5 TEST LOCATION .................................................................................................................................................. 52 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 53 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS .............................................................................................…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No.: FR/CR071311AI SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 IC RSS-210 Annex 8 Equipment : Touchstone Wireless Telephony Gateway Model No. : TG852G/CT & TG852G Brand Name : ARRIS Grou p, Inc. Filin g Type : New Application Applicant : ARRIS Group, Inc. 3871 Lakefield Drive, suite 300, Suwanee, GA30024. FCC ID : UIDGWM IC ID : 6670A-GWM Manufacturer : ARRIS Group, Inc. 3871 Lakefield Drive, suite 300, Suwanee, GA30024. Received Date : Jul. 06, 2010 Final Test Date : Jul. 23, 2010 Statement Test result included is only for the 802.11n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C / IC RSS-210 issue 7. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. RADIO TEST REPORT Report No.: FR/CR071311AI SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jul. 26, 2010 FAX : 886-2-2696-2255 FCC ID : UIDGWM IC ID : 6670A-GWM Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Accessories ............................................................................................................................................................................................. 3 2.3 Table for Filed Antenna ........................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.5 Table for Test Modes .............................................................................................................................................................................. 5 2.6 Table for Testing Locations ..................................................................................................................................................................... 5 2.7 Table for Supporting Units ....................................................................................................................................................................... 5 2.8 Table for Parameters of Test Software Setting ....................................................................................................................................... 6 2.9 EUT Operation during Test ..................................................................................................................................................................... 6 2.10 Test Configuration ................................................................................................................................................................................... 7 3 TEST RESULT ........................................................................................................................................................ 9 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 9 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 13 3.3 Power Spectral Density Measurement .................................................................................................................................................. 20 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 30 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 41 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 77 3.7 Antenna Requirements .......................................................................................................................................................................... 86 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 87 5 TEST LOCATION .................................................................................................................................................. 89 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 90 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS .........................................................................................…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No.: FR/CR071311AI Page No. : B2 of B7 FCC ID : UIDGWM IC ID : 6670A-GWM 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW RADIO TEST REPORT Report No.: FR/CR071311AI Page No. : B3 of B7 FCC ID : UIDGWM IC ID : 6670A-GWM SIDE VIEW RADIO TEST REPORT Report No.: FR/CR071311AI Page No. : B4 of B7 FCC ID : UIDGWM IC ID : 6670A-GWM 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW RADIO TEST REPORT Report No.: FR/CR071311AI Page No. : B5 of B7 FCC ID : UIDGWM IC ID : 6670A-GWM For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW RADIO TEST REPORT Report No.: FR/CR071311AI Page No. : B6 of B7 FCC ID : UIDGWM IC ID : 6670A-GWM For radiated emissions above 1GHz FRONT VIEW REAR VIEW
