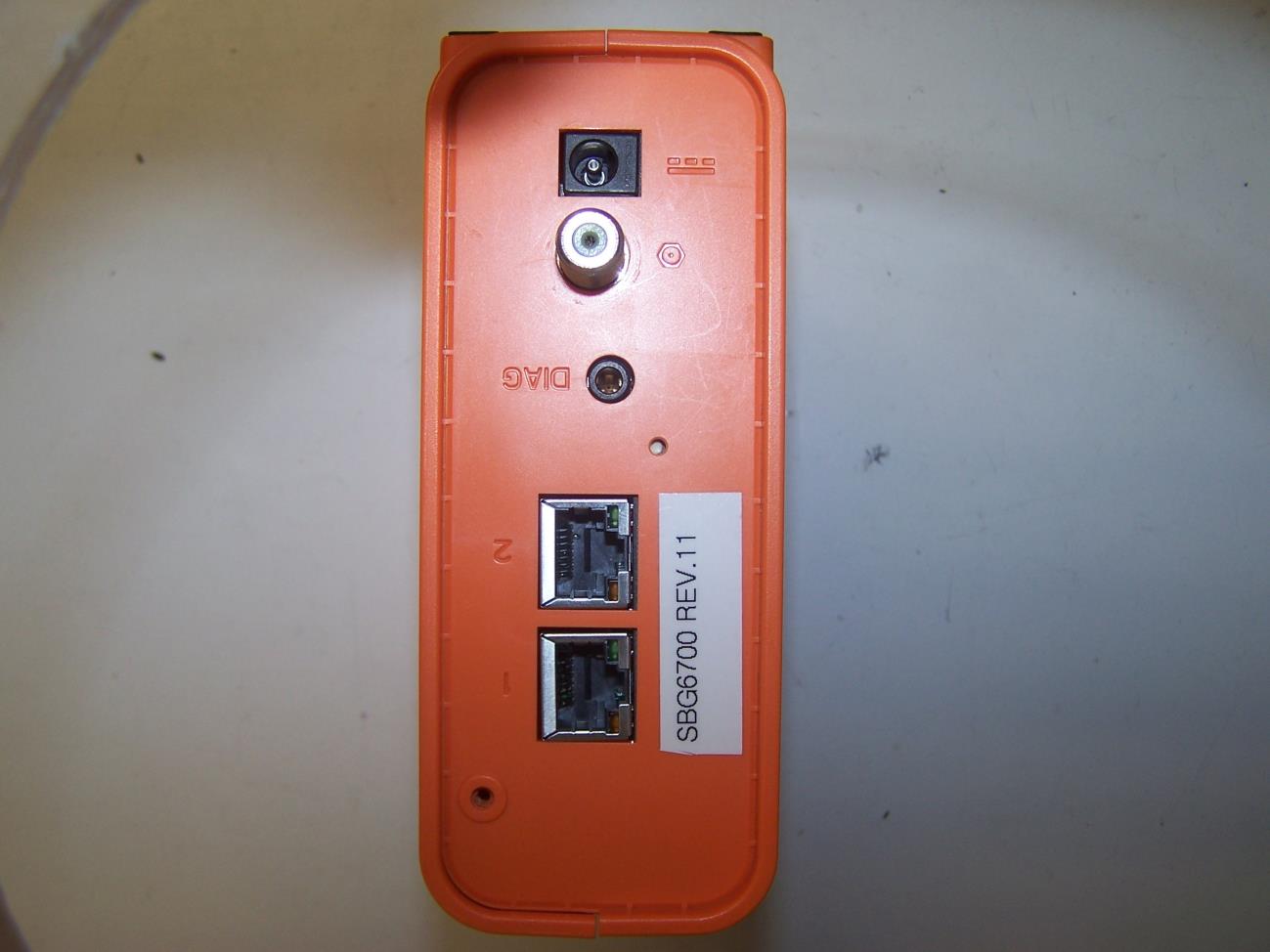

UIDSBG6700Dual band Access Point

Quick Start Guide Touchstone® SBG6700-AC Wireless Cable Modem Gateway Place Label Here LED Status In the Box SBG6700-AC Wireless Cable Modem Gateway Power Supply Ethernet Cable Software License & Warranty Card Quick Start Guide What You Should Know ON - Power is properly connected ON - Downstream channel is connected ON - Upstream channel is connected ON - Gateway is connected to the network FLASH - 2.4 GHz wireless connection between the gateway and a Wi-Fi enabled device During normal operation, the Power, Receive, Send, and Online LEDs on the SBG6700-AC front panel should always be lit SOLID green or blue. Note: During startup, the first four LEDs will FLASH and then light up SOLID in sequential order. If the Power LED does not light, please first check the gateway power connection before contacting ARRIS. If the other LEDs do not light up correctly, please contact your service provider for assistance. The gateway label is located on the bottom of the SBG6700-AC Gateway. To receive high-speed Internet service, your service provider may request the Media Access Control (MAC) address (see HFC MAC ID) and serial number (see S/N) located on the gateway label. IMPORTANT! During the installation or gateway activation, you may need to contact your service provider for assistance. To save time, make sure you have the Gateway model number (SBG6700-AC), HFC MAC ID, and Serial Number (S/N) located on the label on the bottom of the gateway. © 2014 ARRIS Enterprises, Inc. All rights reserved. ARRIS and the ARRIS logo are all trademarks of ARRIS Enterprises, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and the names of their products. ARRIS disclaims proprietary interest in the marks and names of others. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from ARRIS Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide notification of such revision or change. 592761-001-b 03/2014 4 FLASH - 5 GHz wireless connection between the gateway and a Wi-Fi enabled device The SBG6700-AC is a combination wireless cable modem and router that provides wirelesshigh-speed Internet access. The SBG6700-AC connects to the existing coaxial cable connection in your home and does not require any new wiring. This quick start guide will help you install the SBG6700-AC Wireless Gateway and set up a secure wireless network connection. To customize your wireless network configurations and other advanced gateway settings, see the SBG6700-AC User Guide which is available online at the ARRIS Support website, www.arrisi.com/consumer. FAQs and additional product documentation are also available. Set Up a Wireless Network Connection Choose one of the following two options to set up your wireless network connection. When done, continue with “Test Your Wireless Network Connection.” • Computer Wireless Network Options • WPS Pairing Button Gateway Label Front Panel LEDs 3 Use the WPS Pairing Button B To use WPS, your computer must support WPS and also have WPA security compatibility. The WPS option automatically assigns a random SSID wireless network name and Wi-Fi Security Key to connect the SBG6700-AC and other WPS-enabled devices to your wireless network. 1. Power ON the SBG6700-AC and other WPS-enabled devices that you want to connect to your wireless network. 2. Press the WPS button located on the top of the SBG6700-AC. 3. Press and hold the WPS button on your WPS-enabled computer or other device for five or more seconds, then release. 4. Repeat steps 2 and 3 for each additional WPS-enabled device. 1. Connect the coaxial cable to the cable wall outlet or RF splitter (optional) and the Cable connector on the SBG6700-AC. Use your hand to tighten each connector. 2. Connect the Ethernet cable to the Ethernet port on your computer and an Ethernet port on the SBG6700-AC. 3. Connect the power cord to the Power port on the SBG6700-AC and then plug it into an electrical wall outlet. This automatically powers ON the SBG6700-AC. Check the front panel LEDs. During the initial startup, the Power, Receive, Send, and Online LEDs on the SBG6700-AC will FLASH. Afterwards, check that all four LEDs are lit SOLID. The Wireless LEDs will light up only when wiresless devices are connected. See Front Panel LEDs on page 4 for more information. 1. Power ON your computer and log in. 2. Contact your service provider to activate (provision) the SBG6700-AC. Note: Your service provider may allow for automatic activation which will automatically launch a special website when you open a web browser. 3. Open a web browser on your computer, such as Internet Explorer, Firefox, Google Chrome, or Safari. 4. Type a valid URL (for example, www. arris.com) in the address bar and then click or press Enter. The ARRIS website should open. If the web page did not open, please contact your service provider for assistance. Note: The steps for setting up a wireless network may differ slightly depending on the operating system installed on your computer. The followng steps apply to Windows ® 7. 1. From the Windows taskbar, click the following in sequential order: • Start button • Control Panel • Network and Sharing Center • Set up a new connection or network • Manually connect to a wireless network The Wireless Network Connection window should open. 2. Type the ARRIS wireless network name or a different name to identify your wireless network in the Network name field. For the ARRIS network name, see SSID number listed on the gateway label. 3. Select the network security type from the Security type drop-down list. 4. Select the Encryption type from the drop-down list. 5. Type your wireless network password in the Security Key field. You can creat…

Text truncated - open the document above for the full version.

SURFboard ® SBG6700-AC Wireless Cable Modem Gateway © 2014 ARRIS Enterprises, Inc. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without written permission from ARRIS Enterprises, Inc. ARRIS, SURFboard, and the ARRIS logo are all trademarks or registered trademarks of ARRIS Enterprises, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and the names of their products. ARRIS disclaims proprietary interest in the marks and names of others. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used by ARRIS under license. All other product or service names are the property of their respective owners. No part of the contents of this document may be reproduced or transmitted in any form or by any means without the written permission of the publisher. 594737-001-a 03/2014 Place Label Here 4 BEFORE RETURNING THIS PRODUCT TO THE STORE for any reason, please call ARRIS Technical Support for assistance: 1-877-466-8646 The gateway label is located on the bottom of your SBG6700-AC Gateway. To receive high-speed Internet service, your service provider may request the Media Access Control (MAC) address (see HFC MAC ID) and serial number (see S/N) located on the gateway label. IMPORTANT! During the installation or gateway activation, you may need to contact your service provider for assistance. To save time, make sure you have the Gateway model number (SBG6700-AC), HFC MAC ID, and Serial Number (S/N) located on the gateway label on the bottom of your SBG6700-AC gateway. In the Box SBG6700-AC Wireless Cable Modem Gateway Power Supply Ethernet Cable Software License & Warranty Card Quick Start Guide What You Should Know The SBG6700-AC is a combination wireless cable modem and router that uses DOCSIS 3.0 technology to provide wireless high-speed Internet access to the wireless devices on your home network. The SBG6700-AC connects to the existing coaxial cable connection in your home and does not require any new wiring. This quick start guide will help you install the SBG6700-AC gateway and set up a secure wireless network connection. To take advantage of the 802.11ac wireless performance or beamforming capabilities, your wireless connected devices must also support 802.11ac. For optimal performance with 802.11ac, you should connect any wireless devices using older protocols to the 2.4 GHz wireless network (not the 802.11ac 5 GHz network). To customize your wireless network connection and other advanced gateway settings, see the SURFboard SBG6700‑AC User Guide for more information. It is available online at the ARRIS Support website: www.arrisi.com/consumer. FAQs and additional product documentation are also available on the support website. Notes Write your additional wireless network names and passwords here for future reference: SSID #1: Wi-Fi Security Key #1: SSID #2: Wi-Fi Security Key #2: SSID #3: Wi-Fi Security Key #3: SSID #4: Wi-Fi Security Key #4: Additional SSID: Add’l Wi-Fi Security Key: You may need the following gateway label information to activate your gateway and set up a wireless network connection: • Model - Gateway model number • SSID - Default name of your wireless network. Recommended that you change the network name or add additional wireless networks. • WI-FI SECURITY KEY - Needed to access a wireless network using a secure gateway. Recommended that you change the network name which is needed to add additional wireless devices to your wireless network. • S/N - Gateway serial number. Your service provider may require this number to activate your gateway. • HFC MAC ID - Your service provider may require the Media Access Control (MAC) number to activate your gateway. Gateway Label Quick Start Guide 23 1. Connect the coaxial cable from the cable wall outlet or RF splitter (optional) to the Cable connector on the rear of your SBG6700-AC. Use your hand to tighten each connector. 2. Connect the Ethernet cable to the Ethernet port on your computer and to an Ethernet port on the rear of your SBG6700-AC. 3. Connect the power cord to the Power port on the rear of your SBG6700-AC and then plug it into an electrical wall outlet. This automatically powers ON your SBG6700-AC. Check the front panel LEDs on your SBG6700-AC. During the initial startup, the Power, Receive, Send, and Online LEDs will FLASH. Afterwards, check that all four LEDs are lit SOLID green or blue. Both Wireless LEDs will light up only when wireless devices are connected. See Front Panel LEDs for more information. 1. Power ON your computer and log in. 2. Contact your service provider to activate (provision) your SBG6700-AC. 3. Open a web browser on your computer, such as Internet Explorer, Firefox, Google Chrome, or Safari. 4. Type a valid URL (for example, www.arrisi.com) in the address bar and then click or press Enter. The website should open. If it did not open, please contact your service provider to set up your Internet service or activate your gateway. Note: The steps for setting up a wireless network may differ slightly depending on the operating system installed on your computer. The following steps apply to Windows © 7. 1. From the Windows taskbar, click the following in sequential order: • Start button • Control Panel • Network and Sharing Center • Set up a new connection or network • Manually connect to a wireless network The Wireless Network Connection window should open. 2. Type the ARRIS wireless network name or a different name to identify your wireless network in the Network name field. For the ARRIS network name, see SSID number listed on the gateway label). 3. Select the network security type from the Security type drop-down list. 4. Select the Encryption type from the drop-down list. 5. Type your wireless network password in the Security Key field. You can create your own password or use the Wi-Fi Security Key listed …

Text truncated - open the document above for the full version.

Software License, Warranty, Safety, and Regulatory Information Wireless Gateway-SBG6700-AC 1 Safety and Regulatory Information IMPORTANT SAFETY INSTRUCTIONS Read This Before You Begin — When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Read all of the instructions listed here and/or in the user manual before you operate this device. Give particular attention to all safety precautions. Retain the instructions for future reference. • This device must be installed and used in strict accordance with manufacturer’s instructions, as described in the user documentation that is included with the device. • Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols that are affixed to this device. • To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the device. • This device was qualified under test conditions that included the use of the supplied cables between system components. To ensure regulatory and safety compliance, use only the provided power and interface cables and install them properly. • Different types of cord sets may be used for connections to the main POWER supply circuit. Use only a main line cord that complies with all applicable device safety requirements of the country of use. • Installation of this device must be in accordance with national wiring codes and conform to local regulations. • Operate this device only from the type of power source indicated on the device’s marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. • Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. • Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords where they are attached to plugs and convenience receptacles, and examine the point where they exit from the device. • Place this device in a location that is close enough to an electrical outlet to accommodate the length of the power cord. • Place the device to allow for easy access when disconnecting the power cord of the device from the AC wall outlet. • Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be fully inserted with no part of the blades exposed. • Place this device on a stable surface. Software License, Warranty, Safety, and Regulatory Information Wireless Gateway-SBG6700-AC 2 • Avoid damaging the cable modem with static by touching the coaxial cable when it is attached to the earth-grounded coaxial cable-TV wall outlet. • Always first touch the coaxial cable connector on the cable modem when disconnecting or reconnecting the Ethernet cable from the cable modem or user’s PC. • It is recommended that the customer install an AC surge protector in the AC outlet to which this device is connected. This is to avoid damaging the device by local lightning strikes and other electrical surges. • Postpone installation until there is no risk of thunderstorm or lightning activity in the area. • Do not use this product near water: for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. • Do not cover the device or block the airflow to the device with any other objects. Keep the device away from excessive heat and humidity and keep the device free from vibration and dust. • Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the device or use forced air to remove dust. • For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this device due to lightning and power surges. • Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the device is in safe operating condition. • Do not open the device. Do not perform any servicing other than that contained in the installation and troubleshooting instructions. Refer all servicing to qualified service personnel. • This device should not be used in an environment that exceeds 104º F (40º C). SAVE THESE INSTRUCTIONS Note to CATV System Installer — This reminder is provided to call the CATV system installer’s attention to Article 820.93 and 820.100 of the National Electric Code, which provides guidelines for proper grounding and, in particular, specifies that the Coaxial cable shield shall be connected to the grounding system of the building, as close to the point of cable entry as practical. CARING FOR THE ENVIRONMENT BY RECYCLING When you see this symbol on an ARRIS device, do not dispose of the product with residential or commercial waste. Recycling your ARRIS Equipment Please do not dispose of this product with your residential or commercial waste. Some countries or regions, such as the European Union, have set up systems to collect and recycle electrical and electronic waste items. Contact your local authorities for information about practices established for your region. Software License, Warranty, Safety, and Regulatory Information Wireless Gateway-SBG6700-AC 3 FCC STATEMENTS FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if …

Text truncated - open the document above for the full version.

3871 Lakefield Drive • Suwanee, GA 30024 • phone: 678-473-8400 www.arrisi.com February 20, 2014 Federal Communications Commission Date: Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: ARRIS Group, Inc. respectfully requests confidentiality of certain materials provided with the submission of the SBG6700 under FCC ID: UIDSBG6700 i n accordance with FCC Regulations 0.459. The confidentiality request applies to the (1) schematic diagrams, (2) detailed block diagrams, and (3) detailed operational descriptions contained in this filing and included in the following files. 11-0038 - System Block Diagram.pdf 11-0038 - Schematics.pdf 11-0038 - Theory of Operation.pdf The SBG6700 has been developed at considerable effort and expense by ARRIS Group, Inc.. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Edward R. Champion, Jr. Signature: Title: Manager, Regulatory/Compliance Date: February 20, 2014

REVISION STATUS REVDATEDESIGNDESCRIPTION 18/12/13M. TaylorENGINEERING RELEASE PER ECN C457306 A1/14/14M. TAYLORMODIFIED MODEL NAME, ADDED REGULATORY PER EB-09137 ARTWORK, LABEL, ID, REG, RETAIL, SBG6700-AC A SHEET 1 OF 2 SCALE: 1:1 DRAWING NO: REV PROJECT SIZE A TITLE SBG6700-AC FILE: 590945-010-a.cdr 590945-010 TM 40.01 mm 110.05 mm FIXED IMAGE VIEW SCALE: 1/1 SEE PAGE 2 FOR VARIABLE FIELDS DETAILS AND NOTES P/N: 591330-011-00 DOCSIS 3.0 FCI: WI-FI SECURITY KEY: SSID-5: SSID-2.4: S/N: HFC MAC ID: GATEWAY MGMT MAC ID: Model: SBG6700-AC Input Voltage: +12VDC - - - ; 2A ASSEMBLED IN CHINA I.T.E. E315754 ® ® CAN ICES-3 (B)/NMB-3(B) IC: 6670A-S B G6700 FCC ID: UIDS B G6700 8 9 9 654 10 7 A SCALE: NONE DRAWING NO: REV SIZE A SURFBOARD FILE: 590945-010-a.cdr SHEET 2 OF 2 DRAWING NO: REV PROJECT SIZE A SURFBOARD VARIABLE FIELDS PRINTING DETAIL FOR REFERENCE ONLY ALL FIXED IMAGE INFORMATION SHALL BE TAKEN FROM PAGE 1 SCALE: NONE 590945-010 NOTES: UNLESS OTHERWISE INDICATED 1. DIMENSIONS ARE METRIC (MILLIMETERS). INTERPRET PER ANSI Y14.5M. 2. COLOR: BACKGROUND = WHITE FOREGROUND = PMS BLACK 3. ALL VARIABLE INFORMATION, INCLUDING BAR CODES AND TEXT RELATED TO BAR CODES, SHALL BE CONSTRUCTED AND PRINTED IN ACCORDANCE WITH THE LATEST REVISION OF ARRIS SPECS 475830-001 & 576980-009, UNLESS OTHERWISE INDICATED. 4 THE ARRIS SERIAL NUMBER: BAR CODE AND RELATED TEXT SHALL BE CONSTRUCTED AND PRINTED IN ACCORDANCE WITH THE LATEST REVISION OF ARRIS SPECIFICATION 475824-001. HUMAN READABLE CHARACTERS SHALL FOLLOW THE ‘S/N:’ VERBIAGE, WITH A UNIFORM CHARACTER HEIGHT, AND THE BAR CODE SHALL BE PRINTED DIRECTLY UNDERNEATH THAT. THERE SHALL BE A BLANK SPACE ADDED AFTER EVERY FOURTH DIGIT OF THE HUMAN READABLE CHARACTERS, FOR EASIER READABILITY. THE BAR CODE SHALL NOT CONTAIN THE SPACES. EXAMPLE: S/N: PPPP MMYJ JJSS SSSC AABB CCCC 5 THE HFC MAC ID ADDRESS: HUMAN READABLE CHARACTERS SHALL FOLLOW THE ‘HFC MAC ID:’ VERBIAGE, WITH A UNIFORM CHARACTER HEIGHT, AND THE BAR CODE SHALL BE PRINTED DIRECTLY UNDERNEATH THAT. THERE SHALL BE A BLANK SPACE ADDED AFTER EVERY SECOND DIGIT OF THE HUMAN READABLE CHARACTERS, FOR EASIER READABILITY. THE BAR CODE SHALL NOT CONTAIN THE SPACES. EXAMPLE: HFC MAC ID: AB CD EF 01 23 45 6 THE GATEWAY MANAGEMENT MAC ID: HUMAN READABLE CHARACTERS SHALL FOLLOW THE ‘GATEWAY MGMT MAC ID:’ VERBIAGE, WITH A UNIFORM CHARACTER HEIGHT, AND THE BAR CODE SHALL BE PRINTED DIRECTLY UNDERNEATH THAT. 7 THE COUNTRY OF MANUFACTURE: SHALL INCLUDE THE NAME OF THE COUNTRY WHERE THE PRODUCT IS ASSEMBLED, FOLLOWING THE ‘ASSEMBLED IN’ VERBIAGE, WITH A UNIFORM CHARACTER HEIGHT. 8 THE FCI NUMBER: SHALL BE OBTAINED FROM THE CURRENT REVISION OF FINISHED GOOD DRAWING 591331, AND SHALL FOLLOW THE ‘FCI:’ VERBIAGE, WITH A UNIFORM CHARACTER HEIGHT. THE CORRECT FCI NUMBER IS DEFINED BY THE WHERE USED FINISHED GOOD ASSEMBLY. 9 THE SSID NUMBER: SHALL FOLLOW EITHER THE ‘SSID 2.4GHz’ OR ‘SSID 5GHz:’ VERBIAGE, WITH UNIFORM CHARACTER HEIGHT. TEXT CASE (UPPER OR LOWER) SHALL BE PRINTED EXACTLY AS IT APPEARS IN ASSOCIATED MIB VARIABLE. 10 THE WI-FI SECURITY KEY: SHALL BE PRINTED DIRECTLY UNDERNEATH THE LINE THAT READS ‘WI-FI SECURITY KEY:, WITH UNIFORM CHARACTER HEIGHT. TEXT CASE (UPPER OR LOWER) SHALL BE PRINTED EXACTLY AS IT APPEARS IN ASSOCIATED MIB VARIABLE. 11. THIS DOCUMENT IS THE PROPERTY OF ARRIS GROUP, INC. THIS DOCUMENT MAY ONLY BE DISTRIBUTED TO: (I) AN ARRIS PARTY HAVING A LEGITIMATE BUSINESS NEED FOR THE INFORMATION CONTAINED HEREIN, OR (II) A NON-ARRIS PARTY HAVING A LEGITIMATE BUSINESS NEED FOR THE INFORMATION CONTAINED HEREIN. NO LICENSE, EXPRESSED OR IMPLIED, UNDER ANY PATENT, COPYRIGHT OR TRADE SECRET RIGHT IS GRANTED OR IMPLIED BY THE CONVEYANCE OF THIS DOCUMENT. NO PART OF THIS DOCUMENT MAY BE REPRODUCED, TRANSMITTED, TRANSCRIBED, STORED IN A RETRIEVAL SYSTEM, TRANSLATED INTO ANY LANGUAGE OR COMPUTER LANGUAGE, IN ANY FORM OR BY ANY MEANS, ELECTRONIC, MECHANICAL, MAGNETIC, OPTICAL, CHEMICAL, MANUAL, OR OTHERWISE WITHOUT THE PRIOR WRITTEN PERMISSION OF ARRIS GROUP, INC. (SEE DOCUMENT SECURITY STANDARD, 320190-000 FOR DETAILS.) THE ARRIS LOGO AND ALL OTHER TRADEMARKS INDICATED AS SUCH HEREIN ARE TRADEMARKS OF ARRIS GROUP, INC. ALL OTHER PRODUCT OR SERVICE NAMES ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. COPYRIGHT ARRIS GROUP INC. 2013 ALL RIGHTS RESERVED. 12. ARRIS CONTROLLED AND REPORTABLE MATERIALS DISCLOSURE PRIOR TO PART QUALIFICATION, SUPPLIER MUST PROVIDE ALL REQUIRED INFORMATION TO MEET THE APPROPRIATE ACCEPTANCE CRITERIA IN ACCORDANCE WITH ENVIRONMENTAL REGULATIONS FOR BANNED AND CONTROLLED SUBSTANCES AS OUTLINED IN THE ARRIS CORPORATE SUPPLY AGREEMENT AND PURCHASE ORDER TERMS AND CONDITIONS. P/N: 591330-011-00 DOCSIS 3.0 FCI: WI-FI SECURITY KEY: SSID-5: SSID-2.4: S/N: HFC MAC ID: GATEWAY MGMT MAC ID: Input Voltage: +12VDC - - - ; 2A ASSEMBLED IN CHINA I.T.E. E315754 ® Model: SBG6700-AC ® XXX ABCDEF012345 AB CD EF 01 23 45 PPPP MMYJ JJSS SSSC AABB CCCC CAN ICES-3 (B)/NMB-3(B) IC: 6670A-S B G6700 FCC ID: UIDS B G6700

ARRIS GROUP, INC. STANDARD A1 FORMAT v4.0 - MAY 2013 CAD SYSTEM: Pro/ENGINEER format created by cmu ARRIS GROUP, INC. TABLE I PART NUMBER PRODUCT CODE MODEL NAME MODEL DESCRIPTION PWA ASSY P/N PWA PRODUCT CODE 591330-001 3859SBG6382N.A. GENERIC591284-0013856 591330-0043864SBG6482U DIAG589843-0023798 591330-0053865SBG6482U589843-0033894 591330-0063866SBG6482N.A. GENERIC589843-0013797 591330-0083910SBG6482W/ARRIS589843-0013797 591330-0093911SBG6482 DIAGW/ARRIS589843-0023798 591330-0103912SBG6482-ACW/ARRIS589843-0043973 591330-0113913SBG6482-AC RETAILW/ARRIS589843-0043973 591330-0123914SBG6482-AC DIAGW/ARRIS589843-0053974 1 M. TAYLORENGINEERING RELEASE ECN C453911 3/04/13 2 M. TAYLOR MODIFIED PRODUCT CODES FOR -005 & -006 ECN C454654 3/28/13 3 M. TAYLOR RELEASED -008 THRU -012 REMOVED SBG6382 DRAWING VIEWS ECN C457306 8/12/13 4 M. TAYLOR ADDED ITEMs 4, 26 & 27 TO DRAWING VIEW ECN C458094 9/23/13 1 OF 3SBG64821.000 4591330N/AA1 SBG6482, CABLE MODEM, FINAL ASSEMBLY M. TAYLOR T. JUNG COPYRIGHT 2010 ARRIS GROUP, INC. INFORMATION CONTAINED ON ALL SHEETS OF THIS PRINT CANNOT BE REPRODUCED OR USED, IN WHOLE OR IN PART, WITHOUT THE CONSENT OF ARRIS. THIS NOTICE DOES NOT IMPLY PUBLICATION. NOTES: UNLESS OTHERWISE SPECIFIED 1. WORKMANSHIP SHALL BE IN ACCORDANCE WITH THE LATEST REVISION OF ARRIS SPEC 475497-003. 2. FOR NEXT ASSEMBLY AND USED ON APPLICATION, REFER TO LATEST APPROPRIATE ARRIS DATA BASE. 3. SEE TABLE I FOR PRODUCT CODE. TORQUE ITEM TO 4-6 IN-LBS. TORQUE ITEM TO 10-12 IN-LBS. 6. THIS DOCUMENT IS THE PROPERTY OF ARRIS GROUP, INC. THIS DOCUMENT MAY ONLY BE DISTRIBUTED TO: (I) AN ARRIS PARTY HAVING A LEGITIMATE BUSINESS NEED FOR THE INFORMATION CONTAINED HEREIN, OR (II) A NON-ARRIS PARTY HAVING A LEGITIMATE BUSINESS NEED FOR THE INFORMATION CONTAINED HEREIN. NO LICENSE, EXPRESSED OR IMPLIED, UNDER ANY PATENT, COPYRIGHT OR TRADE SECRET RIGHT IS GRANTED OR IMPLIED BY THE CONVEYANCE OF THIS DOCUMENT. NO PART OF THIS DOCUMENT MAY BE REPRODUCED, TRANSMITTED, TRANSCRIBED, STORED IN A RETRIEVAL SYSTEM, TRANSLATED INTO ANY LANGUAGE OR COMPUTER LANGUAGE, IN ANY FORM OR BY ANY MEANS, ELECTRONIC, MECHANICAL, MAGNETIC, OPTICAL, CHEMICAL, MANUAL, OR OTHERWISE WITHOUT THE PRIOR WRITTEN PERMISSION OF ARRIS GROUP, INC. (SEE DOCUMENT SECURITY STANDARD, 320190-000 FOR DETAILS.) THE ARRIS LOGO AND ALL OTHER TRADEMARKS INDICATED AS SUCH HEREIN ARE TRADEMARKS OF ARRIS GROUP, INC. ALL OTHER PRODUCT OR SERVICE NAMES ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. COPYRIGHT ARRIS GROUP INC. 2013 ALL RIGHTS RESERVED. 7. CONTROLLED AND REPORTABLE MATERIALS DISCLOSURE (GLOBAL COMPLIANCE) PRIOR TO PART QUALIFICATION, SUPPLIER MUST PROVIDE ALL REQUIRED INFORMATION TO MEET THE APPROPRIATE ACCEPTANCE CRITERIA OUTLINED IN APPENDIX C OF ARRIS (FORMER HOME) CONTROLLED AND REPORTABLE MATERIALS DISCLOSURE 1202897W18-MD-HOME. REPORTING TOOLS CAN BE DOWNLOADED FROM: http://responsibility.motorola.com/index.php/suppliers/materialdisclose 4 5 2 OF 3SBG64822.000 4591330N/AA1 25 SBG6482-AC VARIANTS NOT REPRESENTED BY THESE VIEWS -004 SHOWN ALL CONFIGURATIONS THE SAME EXCEPT AS INDICATED IN BILL OF MATERIALS SCALE 2.000 7 3 5 6 8 2 SEE VIEW B 26 4 27 VIEW B -004 SHOWN ALL CONFIGURATIONS THE SAME EXCEPT AS INDICATED IN BILL OF MATERIALS SCALE 2.000 10 11 12 13 15 1 14 4 27 3 OF 3SBG64822.000 4591330N/AA1 SBG6482-AC VARIANTS NOT REPRESENTED BY THESE VIEWS WI-FI RADIO AND ANTENNA ASSEMBLY -004 SHOWN ALL CONFIGURATIONS THE SAME EXCEPT AS INDICATED IN BILL OF MATERIALS SCALE 2.000 13 12 15 10 11 1 14

SBG6700AC Unit Configuration Illustrated SBG6700AC Unit Configuration Illustrated Loop Height 16.7mm

LevePart NumberSubClass DescriptionDesign Authority Part TypeLifecycle PhaseRevisionRev Release DateThumbnailEffectivity DateSites BOM.ThumbnailBOM.PS Prd IDBOM.HW/FW ReBOM.Doc Rev#BOM.Line Num BOM.Bubble NumberBOM.Item DescriptionBOM.RevBOM.Qty BOM.Ref DesBOM.NotesBOM.U/M BOM.RoHSBOM.Lifecycle PhaseBOM.BOM MultiText30BOM.BOM MultiText31BOM.Effective DateBOM.MFG CMBOM.old - Bubble NumberManufacturers.Mfr. NameManufacturers.Mfr. Part NumberManufacturers.Mfr. Part DescriptionManufacturers.Mfr. Part Lifecycle PhaseManufacturers.Preferred Status 0591330-011 PartBASE UNIT,DOCSIS 3.0,SBG6700-AC,802.11AC/2-ENET,RETAILBroadbandSub-AssemblyProduction PrototypeA EB-0913402/19/2014 03:16:14 PM EST02/18/2014 12:00:00 AM ESTPEGATRON CORPORATIONDG00DAX6482ACActivePreferred 1ARCT03622 PartASSY,MB,MN,SBG6700-AC,BCM3383GBroadbandSub-AssemblyProduction PrototypeA EB-09208 02/26/2014 12:08:37 PM EST02/25/2014 12:00:00 AM EST1ASSY,MB,MN,SBG6700-AC,BCM3383GA EB-09208 1EAYProduction Prototype02/25/2014 12:00:00 AM ESTPegatronPER SPECIFICATIONARCT03622ActivePreferred 2592440-002 PartPCB,MB,MN,SBG6700AC,BCM33843DBroadbandPrinted Circuit BoardProduction Prototype01 EB-09208 02/26/2014 12:08:37 PM EST02/25/2014 12:00:00 AM EST0PCB,MB,MN,SBG6700AC,BCM33843D01 EB-09208 1PWB1EAProduction Prototype02/25/2014 12:00:00 AM ESTPegatronPER SPECIFICATION592440-002ActivePreferred 2AREC05340PartCAP,MLC,0.1UF,10%,16V,X5R/X7R,0402BroadbandComponentProduction ReleasedMA-0080410/22/2012 12:30:46 PM EST7677611CAP,MLC,0.1UF,10%,16V,X5R/X7R,0402MA-00804125 C1,C2,C3,C4,C5,C6,C7,C10,C17,C22,C24,C25,C30,C33,C115,C127,C131,C134,C135,C138,C139,C142,C143,C146, C147,C150,C152,C155,C158,C161,C163,C165,C167,C169,C170,C171,C172,C173,C174,C175,C177,C178,C180,C183 ,C186,C188,C191,C192,C194,C196,C197,C198,C200,C201,C203,C204,C207,C208,C209,C210,C211,C212,C213,C21 4,C216,C217,C218,C219,C225,C227,C229,C231,C232,C245,C246,C247,C248,C251,C252,C253,C254,C255,C259,C2 60,C500,C501,C502,C503,C504,C508,C509,C510,C511,C512,C513,C514,C515,C516,C520,C529,C821,C823,C849,C 852,C855,C904,C908,C910,C912,C954,C958,C962,C1002,C1010,C1012,C1014,C1018,C1023,C1027,C1034,C1036,C 1038,C1042,C1047,C1048EARoHS 6Production ReleasedN/AX5R/X7RHITANO ENTERPRISE CORP. (HEC)0402B104K160…
