UJFBDSYC001BodySound Home Entertainment Chair

1 Home Entertainment Chair INCLUDING The SOUNDNUMBER™ System Operators Manual Please read this entire manual before using the BodySound chair. 2 Copyright © 2006 by BodySound Technologies, Inc. All rights reserved, which includes the right to reproduce this manual or portions thereof in any form whatsoever except as provided by U.S. Copyright Law. For information please contact BodySound Technologies, Inc., 10230 West 70 th Street, Eden Prairie, MN, 55344. 1-952-943- 4041, 1-952-944-6355 (fax). Patents pending. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. BodySound remote control: FCC ID:UJFBDSYR001. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and, 2) This device must accept any interference received including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by BodySound Technologies could void the user's authority to operate the equipment. Warnings – Please also read the Precautions section of this manual Never place power cables beneath the base of the chair. Sound levels above 85 decibels may cause hearing loss. Never place speaker wires directly beneath the base of the chair. Do not walk, step on, or jump on the BodySound Chair. Use only the DC power supply provided. Do not sit in the BodySound chair with sharp objects in your pocket or sit on arms. Avoid excess pressure on the speakers located on the back or seat. Only one person should sit in the BodySound chair at a time. The BodySound chair has a weight restriction of 300 lbs. If you have a pacemaker, please consult your physician before use. 3 Table of Contents BodySound Chairs p.4 Assembly p.5 Back to seat frame p.6 Right arm to seat frame p.8 Seat pad to seat frame p.10 Left arm to seat frame p.12 Power supply and power supply cabling p.14 BodySound Chair Internal Cabling p.15 Chair Operation p.15 Recline p.15 Leg rest p.16 Maintenance p.16 BodySound Amplifier Operation p.17 Connections to Peripheral Equipment p.17 BodySound Distribution Amplifier p.21 Remote Control Functions (basic settings) plus p.24 Unique identifier between remote control and chair p.24 Choosing Your SoundNumber™ Setting p.28 Preamp Calibration Procedure p.31 Precautions p.32 Troubleshooting p.34 Warranty information p.38 4 BodySound Chairs Introduction The BodySound chair is an ultra-comfortable chair with a seamlessly embedded sound system. Six speakers strategically placed within a continuous steel frame create a resonating cocoon of full spectrum sound throughout and around the chair and also directly infuse sound into your body. This creates the BodySound effect, which is the fusion of hearing and feeling, allowing you to feel what you hear. We are used to hearing sound, but are not accustomed to feeling full spectrum sound. Our sense of feeling provides much more intimacy than our sense of hearing. As a result, the BodySound effect creates more physical and emotional engagement as we watch a movie, listen to music, or play games. BodySound chairs also allow for the ultimate customization of your immediate sound space because you sit where the sound originates and you’re in control of your settings. Set the volume of your existing home entertainment equipment at comfortable ambient levels and then add the sound from your BodySound chair the way that you like it. If you have multiple chairs, each may be adjusted to the user’s preferred volume setting without the worry of invading another listener’s sound space. Please take a moment to read through this manual, as there are several new technology concepts which allow you to personalize your sound environment in addition to experiencing the BodySound sensation. This technology adds another dimension to movie watching, listening to music, and gaming that words can’t adequately describe. Experience and enjoy it. Before You Begin What’s included with the BodySound home entertainment chair: The BodySound home entertainment chair is available in two models. For a more complete description of the various components comprising these models, please refer to the Consumer Warranty section of this manual. Additional components that are included with all BodySound chairs: • DC power supply and power cord With Deluxe models of the Home Entertainment chair, Theater, and Executive chairs: • RF (radio frequency) Remote control unit. ModelAmplifierSpeakersReclineColor/Custom Premium Deluxe --- Included 6 6 Power Power Colors Color/Options 5 • Theater cable—twenty-five foot input cable with a ten pin connector on one end and eight phono plugs on the other end to connect your home entertainment equipment to the BodySound chair. • Portable audio cable—audio input cable (a four foot cable with a 3.5mm stereo male jack on each end)—this accessory cable is for devices such as portable CD disc players, MP3 players, and laptops to make connections wi…

Text truncated - open the document above for the full version.

BodySound Technologies Inc. Entertainment Chair Frequency Block Diagram Audio Amplifier PCB SILICON LABS C8051F310 25MHz RF MONOLITHICS TR3000 TRANCIEVER 433MHz 1/4-Wave whip antenna 25MHz digital control signals 433MHz RF

TÜV America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. TÜV AMERICA INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of BodySound Technologies Inc. BodySound Home Entertainment Chair Model No: BDSYC001 FCC ID: UJFBDSYC001 FRN: 0015247554 I am an Electromagnetic Compatibility Engineer for TÜV AMERICA INC., located in Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV AMERICA INC. has been authorized to make Certification measurements of the equipment mentioned above by Dan Cohen, the CEO of BodySound Technologies Inc. I attest that all testing done under my supervision was done in accordance with, and that the EUT fulfills the requirements of, the Federal Communications Commission's CFR 47 Part 15. Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV America Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 24 August 2006

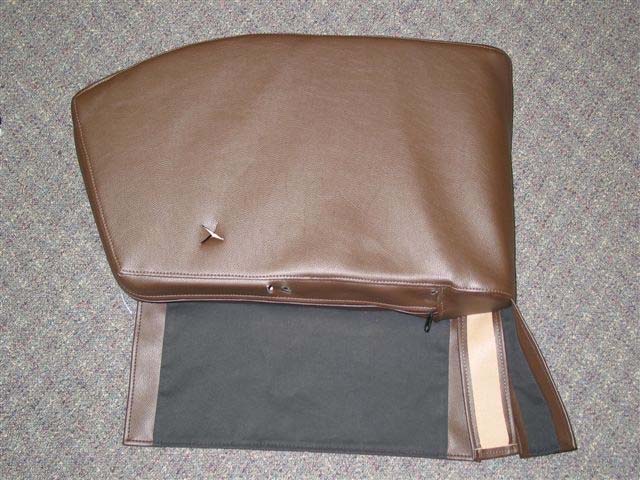

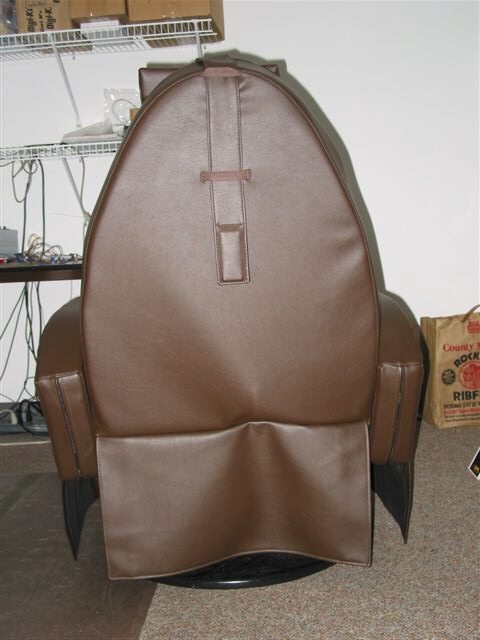

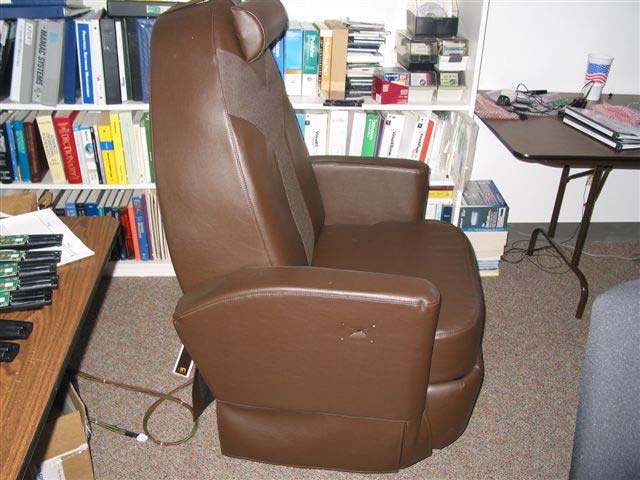

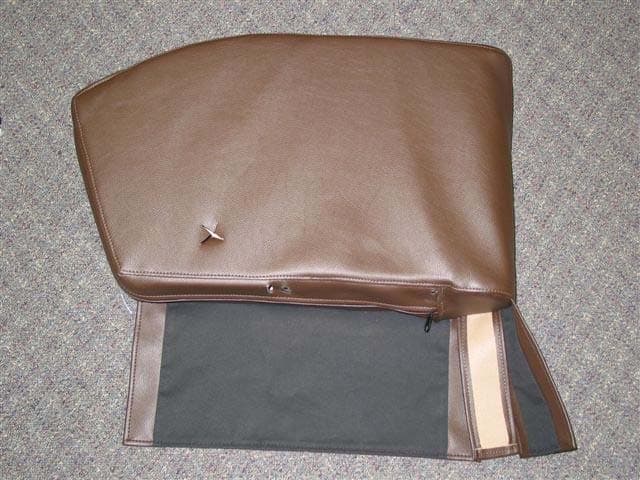

Chair Top Chair Bottom Chair Left Chair Right Chair Front Chair Back Chair Left Arm 1 side Chair Left Arm 2 nd side Chair Left Arm No Fabric

FCC Label. Placed on chair frame, under fabric. BodySound Chair FCC Compliance Label Placement BodySound Technologies Inc. 10230 West 70th Street Eden Prairie, MN 55344 1-952-943-4041/1-952-944- 6355 BodySound Chair FCC ID: UJF BDSYC001 This device complies with Part 15 of the FCC rules. Operation is subject tothe following two conditions: 1) This device may not cause harmfulinterference, and, 2) This device must accept any interfe rence receivedincluding interference that may cause undesired operation. 3.00 1.50 SIZE Drawn By: A Don Hanson SCALE: Not to scale SHEET 1 OF 1 THIS DRAWING MAY CONTAINPROPRIETARY AND CONFIDENTIALINFORMATION OF DSI INC. IT ISLOANED FOR LIMITED PURPOSESONLY, AND REMAINS THEPROPERTY OF DSI INC. IT MAYNOT BE REPRODUCED IN WHOLEOR IN PART WITHOUT WRITT ENCONSENT, AND IS TO BERETURNED UPON REQUEST. DATE 8/21/2006 BodySound Technologies 081706001-01 FCC Compliance label Design Solutions Inc. REV A BY DATE REV TAB DESCRIPTION REVISIONS INITIAL RE LEASE 8-21-06 DH 01 A Re f . Qt y. M an u f act u r e r Par t Nu m b e r De s cr ip t io n A 1 Tyco HW-762381-2.5-9 Label, Polyester, White, Permanent adhesive 3.0"x1.5"

Chair Left Arm Internal Amp Amp PCB in Enclosure Amp PCB with Heat Sink Amp PCB Top Amp PCB and Antenna Amp PCB Bottom Amp PCB View 1 Amp PCB View 2 Amp PCB View 3 Amp PCB View 4 Amp PCB View 5 Amp PCB View 6

The BodySound Inc. Entertainment chair system has audio amplifier, located in the left arm of the chair, that is used to drive speakers installed in the back and seat cushions of the chair. A hand held wireless remote control uses a RF transceiver to communicate to the amplifier. The battery powered remote control uses an antenna integrated on the printed circuit board; the amplifier uses a 1/4- wave whip antenna fastened to the printed circuit board. An external power supply supplies power to the chair. The power supply connects to the mains supply and uses a protective earth ground.

TÜV America Inc 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 TEST RESULT SUMMARY FCC Part 15 Subpart C Section 15.231 IC RSS-210 Issue 6 MANUFACTURER BodySound Technologies NAME OF EQUIPMENT BodySound Home Entertainment chair. MODEL NUMBER BDSYC001 MANUFACTURER'S ADDRESS 10230 West 70th Street Eden Prairie, MN., 55344 TEST REPORT NUMBER WC603155 TEST DATE 1 June 2006 According to testing performed at TÜV America Inc, the above-mentioned unit is in compliance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 15 Subpart C Section 15.231 and Industry Canada RSS-210 Issue 6 Section 2 It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 15 Subpart C Section 15.231 “Periodic operation in the band 40.66–40.70 MHz and above 70 MHz” and Industry Canada RSS-210 Issue 6 “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment”. Date: 05 July 2006 Location: Taylors Falls MN JC Sausen JT Schneider USA EMC Technician Senior EMC Engineer Not Transferable File No. WC603155, Page 1 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 EMC Emission - T E S T R E P O R T Test Report File No. : WC603155 Date of issue: 05 July 2006 Model / Serial nos. : BDSYC001 / --- Product Name : BodySound Home Entertainment chair Product Type : Home entertainment chair with audio amplifier. Applicant : BodySound Technologies Manufacturer : BodySound Technologies License Holder : BodySound Technologies Address : 10230 West 70th Street Eden Prairie, MN., 55344 Test Result : „ Positive † Negative Test Project Number : Reference(s) WC603155 Total pages including Appendices 26 TÜV America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC603155, Page 2 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 D I R E C T O R Y Documentation Page(s) Test Regulations, RF Exposure Statement 3 Test setup drawings and photos 7 - 9 Test Operation Mode 10 Deviations from standard, General Remarks, Summary 11 Test Results FCC IC RSS-210 Deactivation time 15.231(a)(2) A1.1.1 4 Field strength of emissions 15.231(b) A1.1.2 5 Bandwidth 15.231(c) A1.1.3 6 Appendix A Test data A1 - A5 Appendix B Constructional data form and block diagram B1 - B8 Appendix C Measurement Protocol C1 - C2 Sign Explanations: † - not applicable „ - applicable File No. WC603155, Page 3 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: † - EN 50081-1 / 1991 † - EN 55011 / 1991 † - Group 1 † - Group 2 † - Class A † - Class B † - EN 55013 / 1990 † - EN 55014 / 1987 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55014 / A2:1990 † - EN 55014 / 1993 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55015 / 1987 † - EN 55015 / A1:1990 † - EN 55015 / 1993 † - EN 55022 / 1987 † - Class A † - Class B † - EN 55022 / 1991 † - Class A † - Class B † - BS † - VCCI † - Class A † - Class B † - FCC Part 15 Subpart B † - Class A † - Class B „ - FCC Part 15 Subpart C † - CISPR 11 (1990) † - Group 1 † - Group 2 † - Class A † - Class B † - CISPR 22 (1993) † - Class A † - Class B „ - IC RSS-210 Issue 6 RF Exposure Statement The model BDSYC001 complies with RF exposure limits for humans as called out in FCC 2.1091 and IC RSS-102 2.5.2 (mobile >20 cm) or FCC 2.1093 and IC RSS-102 2.5.1 (portable <20 cm). Based on the highest field strength measured using a peak detector. The device is exempt from RF Evaluation because of it’s operating frequency of 433.9 MHz and ERP of 38.5 μW peak based on; ERP = E (dBuV/m) – 106.92 + 20 log D (km) = 83.23 dBμV/m pk – 106.92 + 20 log .003 = -74.15 dBk = 38.5 μW peak. This is less than the 1.5 W requirement for a mobile device, or the 200 mW requirement for a portable device. File No. WC603155, Page 4 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 Deactivation time, FCC 15.231(a)(2), IC RSS-210 A1.1.1 Test summary The requirements are: „ - MET † - NOT MET The device deactivates the transmitter 5 seconds after a keypad button is released Test limit 5 seconds Manufacturer’s statement The BodySound chair complies with paragraph (a) of FCC 15.231. The system now deactivates the transmitter 5 seconds after a keypad button is released. Don Hanson, Bod…

Text truncated - open the document above for the full version.

File No. WC603155, Page 7 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA File No. WC603155, Page 8 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 Test setup photo, radiated emissions File No. WC603155, Page 9 of 11 TÜV AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev 062906 Test setup photo, radiated emissions
