UJRMIFCMV210RFID reader module

Idesco Oy

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 14, 2020
Application Purpose: Original Equipment
Date of Application: Apr 14, 2020
Equipment Note: RFID reader module
Frequency Range: 13.56000000 - 13.56000000
Company: Idesco Oy
Country: Finland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Department MIFCM – User manual Version 1.00 Internal 1 (8) Idesco Oy | Teknologiantie 9, FIN-90590 OULU | Tel +358 20 743 4175 | [email protected] | www.idesco.fi User manual MIFCM Version Date Author Description V1.00 11.03.2020 Tpa First version Department MIFCM – User manual Version 1.00 Internal 2 (8) Idesco Oy | Teknologiantie 9, FIN-90590 OULU | Tel +358 20 743 4175 | [email protected] | www.idesco.fi Contents 1. Introduction .................................................................................................................................. 3 2. Technical Specification ................................................................................................................. 3 2.1. Operating voltage, power, electrical interfaces............................................................................................ 3 2.2. Functions and properties ...................................................................................................................................... 3 Product description ........................................................................................................................................ 3 Led ........................................................................................................................................................................ 3 Buzzer .................................................................................................................................................................. 3 Housing ............................................................................................................................................................... 3 2.3. Interfaces ..................................................................................................................................................................... 3 Reader Interface .............................................................................................................................................. 3 Interface output ............................................................................................................................................... 3 Cable .................................................................................................................................................................... 3 2.4. Performance ............................................................................................................................................................... 3 Reading distance ............................................................................................................................................. 3 Communication speed .................................................................................................................................. 4 Used commands .............................................................................................................................................. 4 2.5. Connector for power and serial communication: ........................................................................................ 4 2.6. Antenna ........................................................................................................................................................................ 4 2.7. Host Device................................................................................................................................................................. 5 2.8. Antenna grounding ................................................................................................................................................. 5 2.9. Installation................................................................................................................................................................... 8 3. FCC Statement............................................................................................................................... 8 Department MIFCM – User manual Version 1.00 Internal 3 (8) Idesco Oy | Teknologiantie 9, FIN-90590 OULU | Tel +358 20 743 4175 | [email protected] | www.idesco.fi 1. Introduction MIFCM is a Radio Frequency Identification (RFID) -reader to automatically and uniquely identify and track inventory and assets. Transponders can be read without line of sight. Read range can be up to a several centimeters depending on transponder size and shape. 2. Technical Specification 2.1. Operating voltage, power, electrical interfaces Current consumption is 300 mA max. Operating voltage range are 11,4 – 12,6 VDC. 2.2. Functions and properties Product description Reader supports Mifare Classic 13,56 MHz technology. The reader is controlled with serial communi- cation commands or depending on software it can function independently. Led LED and its controls can be connected to I/O interfaces. Buzzer Buzzer is optional. Its controls can be connected to I/O interfaces. Housing The reader has mounting holes in the corners of the PCB. 2.3. Interfaces Reader Interface The reader can be equipped with RS232 and optional RS485. Wiegand is an option. Interface output The reader uses Idesco serial communication protocol. Cable The reader’s serial communication and power are connected to separate connectors. 2.4. Performance Reading distance Reading distance with IA013CM antenna is minimum 9 mm. Department MIFCM – User manual Version 1.00 Internal 4 (8) Idesco Oy | Teknologiantie 9, FIN-90590 OULU | Tel +358 20 743 4175 | [email protected] | www.idesco.fi Communication speed Baud rates 9600, 19200, 57600, 115200 can be selected. Default is 19200 bauds. Used commands Command Description Mifare® low level ‘Q’ Version Query ‘s’ Select Select ‘l’ Login [sector, keytype, key] Authentication ‘r’ Read [block] Read ‘w’ Write [block] Write ‘wv’ Write value [block] ‘wm’ Write master keys ‘-’ Decrement Decrement ‘+’ Increment Increment ‘=’ Copy block Restore ‘a1’ Read all 1K byte…

Text truncated - open the document above for the full version.

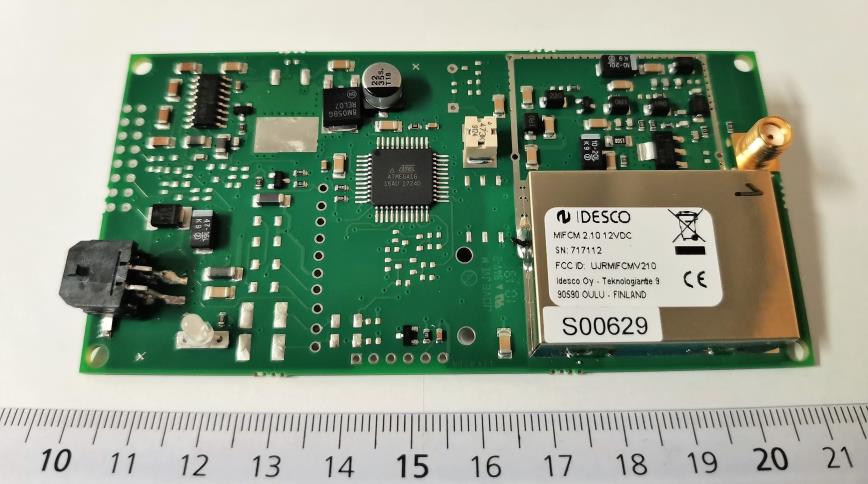

External Photos

ID Label/Location Info

IDESCO Manufacturing 1 (1) MIFCM V2.10 T03428E Internal Type label Version 1.02 Author: Tpa Approved: Hea Date: 8.4.2020 ©IDESCO Oy File: T03428E Material: Metallized or plastic sticker Size: Approximately 25mm x 15mm Font: Arial, size 4

ID Label/Location Info

1/1 Teknologiantie 9 | FIN-90590 Oulu | Tel. +358 20 743 4175 | www.idesco.fi | e-mail [email protected] SAMPLE LABELS AND LOCATIONS Picture 1. Label of MIFCM 2.10 and its location Picture 2. Label of IA013CM antenna and its location
