UJV-LEIT01Radio Remote Control Controller

DIG Corporation
Radio Remote Control Controller - FCC ID UJV-LEIT01 - DIG Corporation
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Nov 16, 2006
Application Purpose
Original Equipment
Date of Application
Nov 16, 2006
Equipment Note

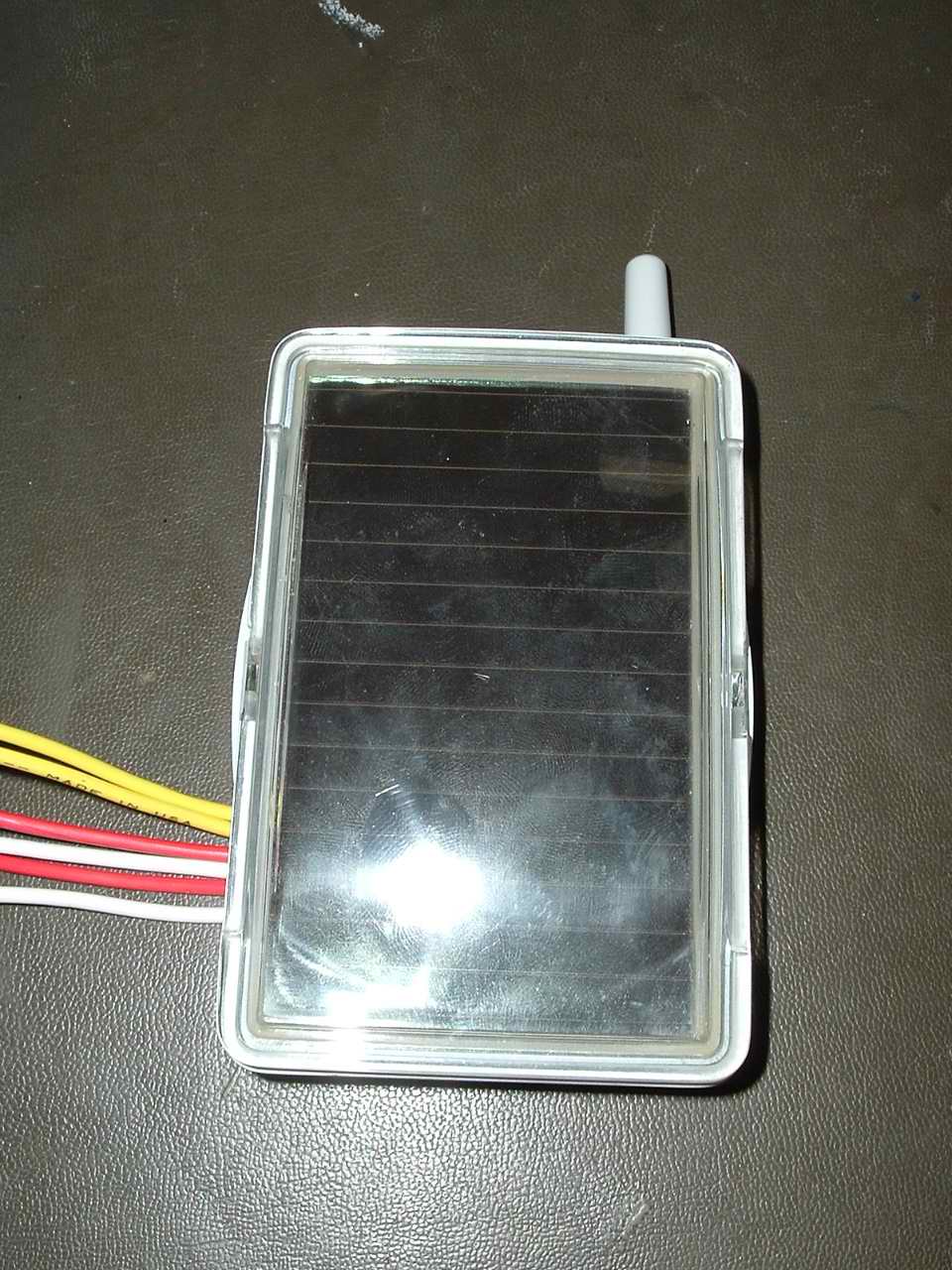

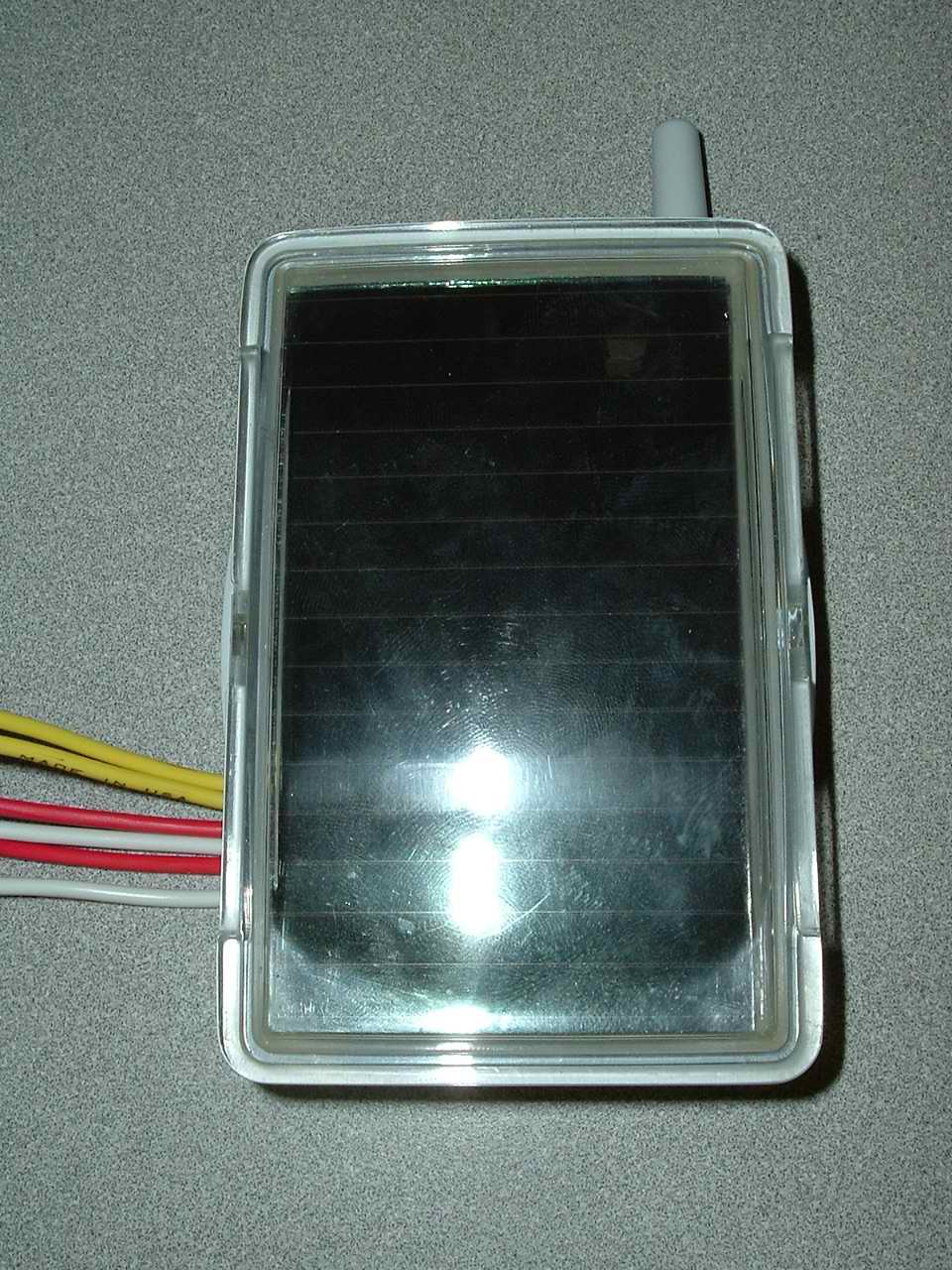

Radio Remote Control Controller
Frequency Range
920.00000000 - 920.00000000
Company
DIG Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DRAFT Page 1 LEIT RC 2, 2-Way Radio Remote Control Handset Instruction Manual HANDSET & CONTROLLER FEATURES: • LEIT RC2 handset can perform many functions, such as review status, check history reports, adjust budgeting from 10-200% in 10% increments, program rain delays and perform manual run • All power is provided by an internal photovoltaic module and microelectronic energy management system fueled by ambient light • Upload and change programs for up to 99 controllers • Multilingual software in English, Spanish, Italian, French, German and Portuguese • Large liquid crystal display with user friendly icons for easy programming • Both handset and controllers have a two-way radio with operating range of up to 350 ft (100 meters) line of sight. • Radio frequency is in the ISM band 902-928 MHz (868 international). CE and FCC certified • Can reconnect via 99 saved addresses using the Find icon • Default program if controller is not programmed: defaults to 5 minutes per day • When programs are changed the user can review the changes, identifying the handset that made the changes • Manual run, to test or skip any valve • Provides controller status on connection • Client ID enables the user to have a unique identity code for their handset and controllers; This is a security feature, which locks out unauthorized users • Diagnostic setting alerts the user when communicating with a controller that has a short or open valve and continues operating the second valve • Program stacking feature prevents hydraulic overload • Reports the controller’s power level, alerts the user to low power via the status report • The LEIT2 controller operates up to 2 Unimax S-305 solenoids that can be installed on most brand name valves using valve adaptors • Dedicated sensor input allows for a sensor connection promoting better water efficiency • Electrical protection for up to 50 volts; resistant to damage from lightning and currents from power lines • Non-volatile memory retains program and controller integrity forever (excludes time) • Built from tough, rugged material - resistant to harsh environmental conditions • Environmentally friendly: Certified lead free, uses light as a source of energy • Waterproof controller housing (not the handset) • 3 mounting configurations include valve mounting, valve box mounting and column mounting PROGRAMMING FEATURES: • 2 programs with 4 start times per program • Run times from 1 minute and up to 5:59 hours in 1 minute increments • 365 day calendar with leap year • Custom programming with 7 day calendar or intervals of 1-30 days in odd/even or every day rotation • Individual monthly water budgeting from 10-200% in 10% increments • Programmable rain delay up to 99 days with auto restart • Status report provides various function information on the controller • History report for each valve verifies operating time for past and current month • Monthly Off feature allows any month of the year to be inactive • Permanent Events Off feature allows any 3 days of the year to be inactive, will override any programs that enter that time frame • Global Stop command will turn off all valves within radio range Page 2 Copyright Copyright 2006-2007 DIG Corporation. All rights reserved. LEIT and LEIT Link are registered trademarks. LEIT RC2 and LEIT2 are each trademarks of DIG Corporation. Patent pending FCC compliance Important Note: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter is installed to provide a separation distance of at least 8 inches (20 cm) from all persons (not including hands, wrist, feet and ankles) and must not be co- located or operating in conjunction with any other antenna or transmitter. This device is required to comply with FCC RF exposure requirements for mobile and fixed transmitting devices. This model transceiver generates and uses radio frequency energy. If not installed and used in accordance with the manufacturer’s instruction, it may cause interference to radio and television reception. HANDSET FCC ID: UJV-LEIT02 IC: 6694A-LEIT02 CONTROLLER FCC ID: UJV-LEIT01 IC: 6694A-LEIT01 This device has been tested and found to comply with the specification in part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received including interference that may cause undesired operation. CAUTION: the user should make no field changes or modifications to the LEIT RC2 Handset or the LEIT2 Controller. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult DIG or an experienced radio/TV technician for help. All adjustments and changes must be made at DIG’s facility under the specific guidelines set forth in our manufacturing process. Any change or modification to the equipment will void the users authority to operate the unit, and r…

Text truncated - open the document above for the full version.

Cover Letter(s)

8/28/06 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko USA, Inc., 802 N. Kealy, Lewisville, TX 75057, (Name and address). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with DIG Corp., 1210 Activity Dr, San Diego, CA 92081 ( applicant name and address). Dated this 28 Day of August 20 06 Agency agreement expiration date: Usually Give 8 - 12 Months By: Erik Holindrake Signature Printed Title: Electrical Engineer On behalf of : DIG Corp. Telephone: 760-727-0914

Cover Letter(s)

8/28/06 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UJV-LEIT01 Product Name: LEIT 2 Controller Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagrams • BOMs These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 24 Day of August 20 06 By: Erik Holindrake Signature Printed Title: Electrical Engineer On behalf of : DIG Corp Telephone: 760-727-0914

Operational Description

LEIT 2 Operational Description The following document is a brief description of the circuit functions of the LEIT 2. The LEIT 2 is a solar power, radio controller irrigation controller. Its job is to actuate a solenoid to turn on/off irrigation valves. All power comes from the sun. The energy collected by the PVM (photo voltaic module – the solar cell) is stored in super capacitors. The controller is controlled via a wireless handset. All functions of the controller are set with this. RF modulation is FSK, modulated in position/phase, intended for data transmission. The following is a breakdown of the circuits. Please refer to the LEIT 2 schematics for reference. Microcontroller schematic: The MSP430F1232 microcontroller is used to control the device. All logic function takes place here. Some of the functions of the microcontroller: monitor available power, actuate the solenoid, and interface with the radio. Charging schematic: All power is stored in super capacitors. This provides a constant source of power from the fluctuating power of the PVM. The capacitors are placed in series. Cell balancing circuitry ensures no cell will achieve an over voltage condition. Power schematic: The system runs at 2.5V. A linear regulator regulates the power from the super caps to provide a constant voltage of 2.5V. However, a 9V pulse is needed to actuate the solenoid. A step up regulator boosts the voltage from 2.5V to 9V before actuating a valve. Output schematic: Once the step up regulator boosts the voltage to 9V, the output circuit provides a path for the voltage to the solenoid. There are two lines on the solenoid (RED and WHITE). To turn on the solenoid, a 9V pulse is applied to RED and white is pulled to ground. To turn off the solenoid, the polarity is reversed. Radio schematic: The Chipcon CC1100 chipset is used for the radio. A few external components are needed (decoupling caps, and balancing). The microcontroller sets up the radio to work at the desired frequency and power, and enables/disables communication.

Test Report

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 FCC Part 15 Subpart C, 15.249 : 15/11/2006 Test Report: 2006 090699 CONTROLLER EMC Project number: 26-699-DIG R2 Applicant: DIG Corp 1210 Activity Dr. Vista, CA 92081 Equipment Under Test (EUT): Controller Model: LEIT 2 FCC ID: UJV-LEIT01 In Accordance With: FCC Part 15 Subpart C, 15.249 CANADA, IC RSS-Gen, IC RSS 210 Tested By: Nemko USA Inc. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121 Authorized By: Michael T. Krumweide, EMC Supervisor Date: October 27, 2006 Total Number of Pages: 24 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 Report Number: 2006 090699 Controller EMC FCC ID: FCC ID # UJV-LEIT01 Specification: FCC Part 15 Subpart C, 15.249 Page 2 of 24 Section 1. Summary of Test Results General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15; Subpart C. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. This Radio Standards Specification (RSS) sets out the requirements for license exempt low-power intentional radiators. The applicable standard for low-power intentional radiators in Canada, corresponding to FCC Part 15 Subpart C, is RSS-210. The two are very closely harmonized in terms of permitted frequencies, types of operation, and other technical requirements. The test results reported in this report are deemed satisfactory evidence of compliance with Industry Canada Standard RSS-210. The assessment summary is as follows: Apparatus Assessed: LEIT 2 Controller Specification: FCC Part 15 Subpart C, 15.249 IC RSS-Gen, IC RSS 210 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: REVISION DATE COMMENTS - 10-27-2006 Prepared By: Ferdinand S. Custodio - 10-27-2006 Initial Release: Mike T. Krumweide Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 Report Number: 2006 090699 Controller EMC FCC ID: FCC ID # UJV-LEIT01 Specification: FCC Part 15 Subpart C, 15.249 Page 3 of 24 Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. TESTED BY: ___________________________________ Date: October 27, 2006 Ferdinand S. Custodio, EMC Test Engineer Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 Report Number: 2006 090699 Controller EMC FCC ID: FCC ID # UJV-LEIT01 Specification: FCC Part 15 Subpart C, 15.249 Page 4 of 24 TABLE OF CONTENTS Section 1. Summary of Test Results...............................................................................2 Section 2: Equipment Under Test..........................................................................................5 2.1 Product Identification..........................................................................................................5 2.2 Samples Submitted for Assessment.....................................................................................6 2.3 Theory of Operation............................................................................................................7 2.4 Technical Specifications of the EUT.....................................................................................7 Section 3: Test Conditions......................................................................................................8 3.1 Specifications.....................................................................................................................8 3.2 Deviations From Laboratory Test Procedures.......................................................................8 3.3 Test Environment...............................................................................................................8 3.4 Test Equipment..................................................................................................................9 Section 4: Observations.........................................................................................................10 4.1 Modifications Performed During Assessment......................................................................10 4.2 Record Of Technical Judgements......................................................................................10 4.3 EUT Parameters Affecting Compliance..............................................................................10 4.4 Test Deleted.....................................................................................................................10 4.5 Additional Observations....................................................................................................10 Section 5: Results Summary.................................................................................................11 5.1 FCC Part 15 Subpart C and IC RSS-210 Equivalent: Test Results.......................................11 Appendix A: Test Results......................................................................................................12 Clause 15.…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emissions Spurious Emissions

Contact Information

Applicant

Jonathan Levy(Project Manager)
[email protected]760-727-0914Fax: 760-727-0282

Technical Contact

Nemko USAAbe Cox
[email protected]972 436-9600

802 N. Kealy Ave · Lewisville, Texas · United States

Non-Technical Contact

Nemko USAChristine Taylor
[email protected]972 436-9600

Test Firm

Nemko USA, Inc.Tom Tidwell
[email protected]9724369600Fax: 9724362667
