UL2AT555Remote Control

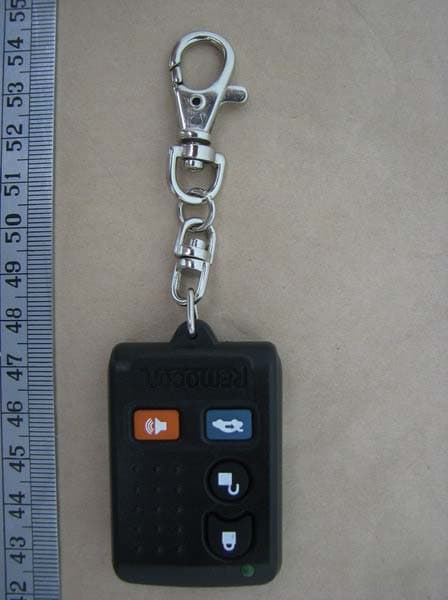

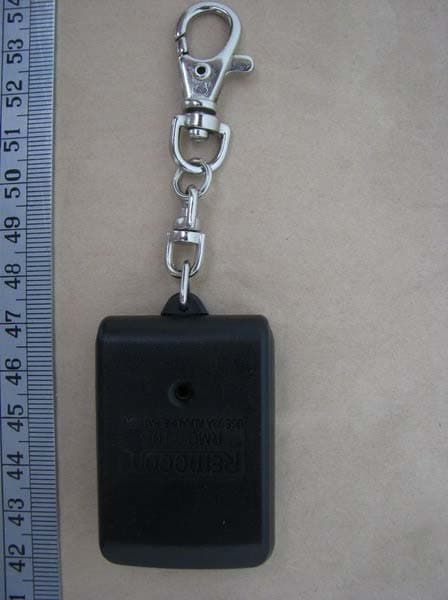

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 External photos ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd.

Remote Control Model number: AT-555 FCC ID: UL2AT555 Label format: Label Size: 22×8 mm This device complies with Part 15C of the FCC rules. Model No.: AT-555 FCC ID: UL2AT555 This device complies with Part 15C of the FCC rules. Model No.: AT-555 FCC ID: UL2AT555

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: UL2AT555 Test report no.: W6M20609-7374-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 20 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 DETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 4 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 T ECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST EQUIPMENT UTILIZED 6 2.4 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 SPURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWER LINE 19 A PPENDIX 20 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: October 11, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: October 11, 2006 Steven Chuang Date ETS Name Signature ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : Alltech Electronics, Inc Street : 3732 Grissom Lane Kissimmee, Florida 34741 Town : ./. Country : U.S.A. Telephone : +407-870-8880 Fax : +413-832-2770 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 20 1.4 Application details Date of receipt of application : September 06, 2006 Date of receipt of test item : September 07, 2006 Date of test : from September 08, 2006 to October 11, 2006 1.5 Test item Description of test item : Remote control Type identification : AT-555 Brand name : ./. Serial number : Test sample without serial number Transmitting frequency : 310 MHz Operation mode : simplex Voltage supply : 12 VDC ( battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 310 MHz Antenna type : PCB loop antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 20 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 (a) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12 VDC ( battery ) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 20 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2005/10/27 2006/10/26 ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO-LINE V-NETWORK ESH3-Z5 840731/011 R&S 2005/10/25 2006/10/24 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2005/10/21 2006/10/20 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S 2004/11/11 2006/11/10 ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-UMAA0305-009 GIANT FORCE 2006/8/17 2007/8/16 ETSTW-CE 011 P…

Text truncated - open the document above for the full version.

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 Set Up photos ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20609-7374-C-1 FCC ID: UL2AT555 ETS Dr. Genz Taiwan PS Co., Ltd.
