ULXKAP1010UUHF Portable Two-way Radio

2 of 27 3 of 27 5 6 of 27 7 of 27 8 of 27 9 of 27 10 of 27 11 of 27 12 of 27 13 of 27 14 of 27 15 of 27 16 of 27 17 of 27 18 of 27 19 of 27 20 of 27 21 of 27 22 of 27 23 of 27 24 of 27 „ User Safety, Training, and General Information z READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR PUXING PORTABLE TWO-WAY RADIO. Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Hand-held radio operation Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips. FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 90 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. FCC Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. Safety: It is important that the operator is aware of and understands hazards common to the operation of any radio. READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR PORTABLE TWO-WAY RADIO. ◇ Only qualified technicians are allowed to maintain this product. ◇ To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any place where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. When on aircraft, turn off your radio when airline crew instruct you to do so. ◇ When in vehicles with an airbag, do not place a portable radio in the area over an airbag or in the airbag deployment area. ◇ Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. ◇ To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps. ◇ Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn may result. ◇ Do not expose the radio in direct sunlight for a long time nor place it close to a heating source. ◇ When transmitting with a portable radio, hold the radio in a vertical position with its microphone about one to two inches (2.5 to 5 cm) away from your mouth. ◇ If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters from your body when transmitting.

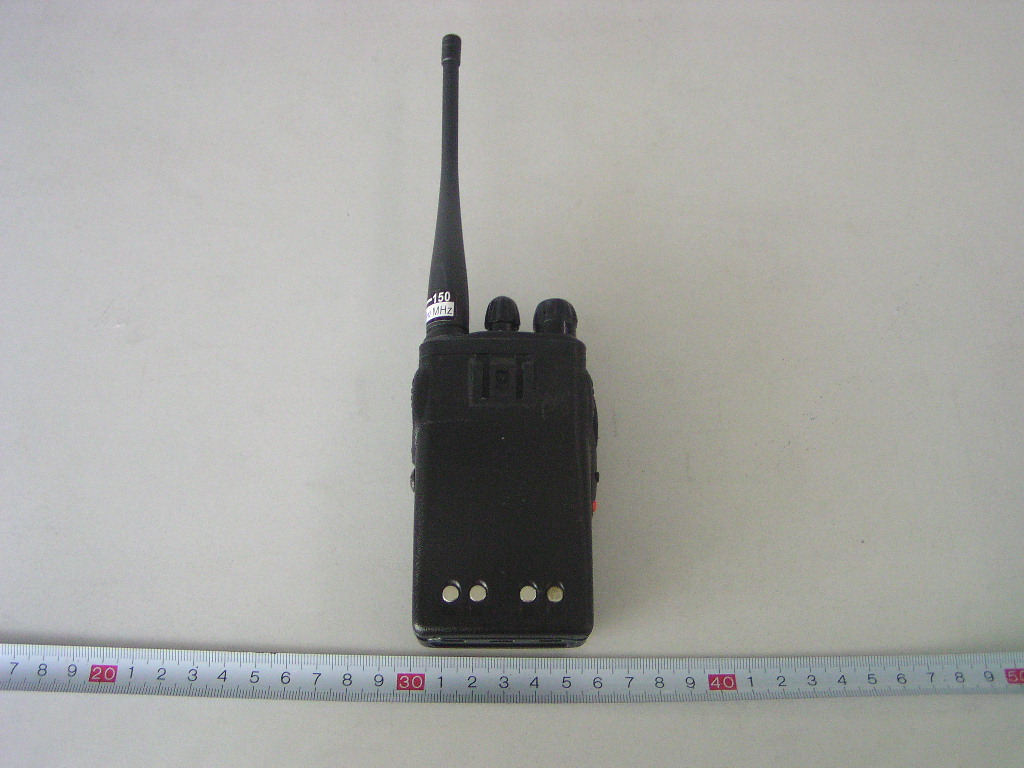

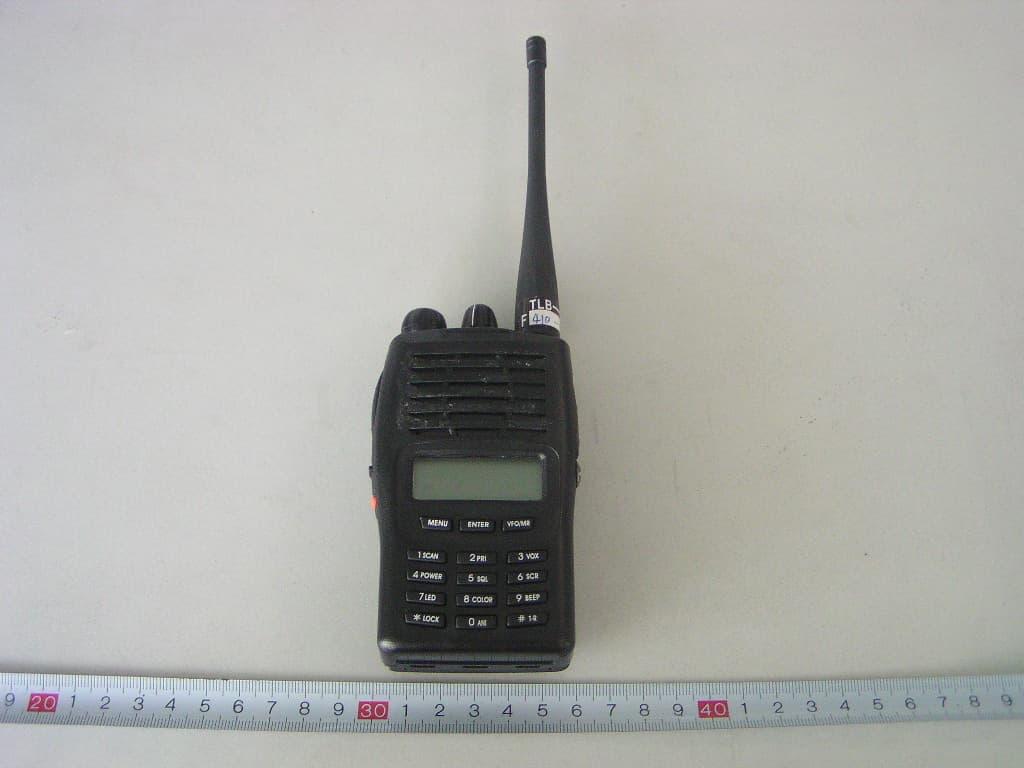

External Photos EUT- Front View EUT- Back View

ID Label/Location FCC IC Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label: ID Label Location: FCC ID: ULXKAP1010U

1 Internal Photos 2 EUT- Antenna off view EUT- Battery off view 3 EUT- Cover off view-1 EUT- Cover off view-2 4 EUT- Display view EUT- Keyboard view-1 5 EUT- Keyboard view-2 EUT- LCD Board Top View 6 EUT- LCD Board Bottom View EUT- Main board PCB Top View 7 EUT- Main board PCB Bottom View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government ( SAR EVALUATION REPORT For Kirmuss & Associates/ Infinity Advanced Technologies 13401 West 43 rd Drive, Unit 11, Golden, Co., USA 80403 FCC ID: ULXKAP1010U This Report Concerns: Original Report Equipment Type: UHF Two-way Radio Test Engineer: Eric Hong Report Number: R0704265-SAR Report Date: 2007-04-30 Reviewed By: Engineering Manager: Samuil Lisinker Prepared By: Bay Area Compliance Laboratories Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Kirmuss & Associates/Infinity Advanced Technologies FCC ID: ULXKAP1010U Report No.: R0704265-SAR SAR Evaluation Report Page 2 of 62 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): IEEE C95.1, CFR 47 §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C IEEE 1528-2003 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: Two Way Radio Modulation Type: FM TX Frequency Range: 410 ~ 480 MHz Max. Conducted Power Tested: 36.20 dBm Antenna Type(s): External Antenna Body-Worn Accessories: Headset & Belt clip Face-Head Accessories: None Max. SAR Level(s) Measured: 2.09 W/Kg (Face-held) 3.61 W/Kg (Body-worn) This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Eric Hong Testing Engineer Bay Area Compliance Laboratories Corp. EUT Photo Kirmuss & Associates/Infinity Advanced Technologies FCC ID: ULXKAP1010U Report No.: R0704265-SAR SAR Evaluation Report Page 3 of 62 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 MECHANICAL DESCRIPTION.........................................................................................................................................6 FACILITIES AND ACCREDITATION .....................................................................................................................7 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................8 MEASUREMENT SYSTEM DIAGRAM...........................................................................................................................10 SYSTEM COMPONENTS...............................................................................................................................................11 EQUIPMENT LIST AND CALIBRATION .............................................................................................................19 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................19 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................20 SYSTEM ACCURACY VERIFICATION...........................................................................................................................20 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................21 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................21 CHEEK/TOUCH POSITION...........................................................................................................................................22 EAR/TILT POSITION....................................................................................................................................................22 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................23 SAR EVALUATION PROCEDURE.................................................................................................................................24 DASY4 SAR EVALUATION PROCEDURE...................................................................................................................25 SAR MEASUREMENT RESULTS ...........................................................................................................................27 SAR TEST DATA........................................................................................................................................................27 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................28 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................30 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................39 APPENDIX D – DAE3 CALIBRATION CERTIFICATES ....................................................................................45 APPENDIX E - TEST SYSTEM VERIFICATIONS SCANS .................................................................................50 MEAS…
