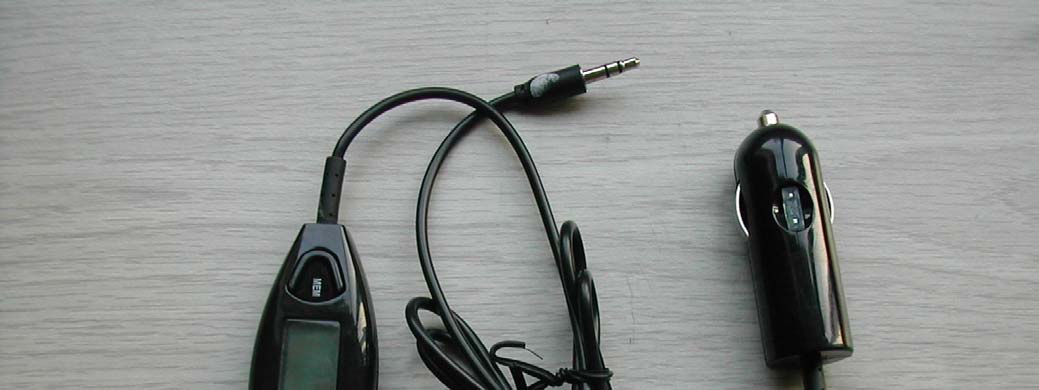

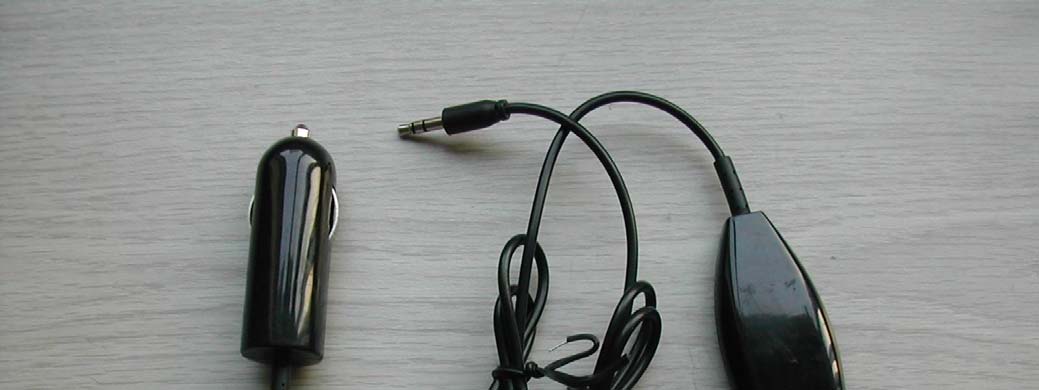

UM7FM808In-Car MP3 FM Transmitter

Specification and user instruction of FM808 1. Main features: z Frequency range 88.1～107.9MHz，0.1MHz step。 z Connect via 3.5mm audio plug. z LCD indicator。 z Black light。 z Frequency memory function，4 memory slot M1, M2, M3, M4。 z 3 buttons：Freq+、Freq-、MEM。 2、LCD display： 3、Operating instruction： After connecting to the 3.5mm audio jack and the cigarette socket： z The frequency will be as per last operation z LCD back light on z Press【＋】or【－】to adjust frequency with 0.1MHz step. z Press and hold 【+】or【－】for fast frequency adjustment. To save a frequency: z Select the suitable frequency。 z Press【MEM】for 2 second，M1will be flashing, meaning memory slot can be selected. z Press【+】or【－】to select among M1~M4. z Press【MEM】again to save the frequency to the memory slot z Press【MEM】to select with different memory slot Power by: z DC10V~14V。 Caution:The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Notes:This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation,this equipment generates, uses and can radiate harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turming the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: __Reorient or relocate the receiving antenna. __Increase the separation between the equipment and receiver. __Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. __Consult the dealer or an ecperienced radio/TV technician for help. FCC Warning: This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This device may not cause harmful interference,(2)this device must accept any interference received,including interference that may cause undesired operation. V1.0

KDB Inquiry – Permit but Ask a. Category: Permit But Ask b. Rule part under which the device authorization will be requested; 15.239 c. Description of the device including specific selection of 1 – 4 from the Permit But Ask list above (use the text description), and equipment class; FM band modulators / transmitters operating under 15.239 of the FCC rules. d. Explain the specifics of why this device is in one of the 1-4 Permit but ask categories. Category 1 - 15.239 FM transmitter e. Description of the test procedure plan. According to ANSI C63.4-2003 on a test table. f. For FM transmitters, also supply the following information; i. Describe the operation of the device. Device is in-car FM transmitter to play MP3 files on a conventional car FM tuner. User can plug an MP3 player such as an IPod via 3.5mm audio jack connector to this device and the device plays back the audio files on one of the 200 available channels from 88.1 to 107.9MHz to be received by the car FM tuner. User can change the channel in 0.1MHz steps. The list of available channels is detailed in the test report on page 6. Device is DC powered by the car battery through cigarette-lighter. For additional information user’s manual is attached. ii. Provide information on the device and its antenna. According to its specifications it has 0dBm rated output power. Its antenna is soldered on the PCB board and has a peak gain of -0.5dB. The antenna location is shown in the internal photos with a pointer. iii. How is it installed? It is connected to the cigarette lighter of the car for DC power. Music input is via 3.5mm audio jack connector. Manual is attached for more details. iv. Describe the test procedure used. Tested according to ANSI C63.4-2003 on a test table. Input volume from Ipod Nano was set to maximum. Ipod was playing an audio file. Tuning controls were adjusted to verify maximum tuning ranges. No out-of-band violation was observed. v. If tested in a car, describe how was it configured and tested. Not tested in a car. vi. At the present time, FM transmitters (subject to 15.239) tested in vehicles must also be tested on a test table. Provide both sets of data. All data must be compliant Test Report attached. vii. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Yes. Pg 6 of the test report indicates this. viii. Was the bandwidth properly tested with maximum audio input? Yes. Pg 13 of the test report indicates this. ix. Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. Pg 13 of the test report confirms that actual audio file has been used. x. Provide the test report showing compliance with the rules. Test report, operational description, manual and photos of the device are attached.

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Reply to OET Response FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Reply to an OET Inquiry Response Currently Display Inquiry Tracking Number Contact Information: Customer First Name: Yunus Customer Last Name: Faziloglu Telephone Number: 9784868880 Extension: 271 E-mail Address: [email protected] Address: Line 1:N/A Line 2: P.O. Box: City:N/A State: Zip Code: Country: Inquiry Details: First Inquiry Category: TCB Procedures Second Inquiry Category: Permit but Ask Third Inquiry Category: Please find attached KDB inquiry document for a 15.239 FM transmiiter. Following documents are attached; 1. KDB inquiry 2. Test Report 3. Manual 4. Operational Description 5. Schematics 6. Block Diagram 7. Test Setup Photos 8. Internal Photos 9. External Photos Let me know if you require more information please. Best Regards, Yunus Faziloglu TCB Review Engineer Curtis-Straus LLC Response(s): --OET response sent on Mar 19 2007 1:53PM-- Go ahead and file the grant. Ensure all submitted exhbits comply with FCC rules Submit an copy of this inquiry into the filing. Enter any additional comments below: ProceedClear Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) - Privacy Policy - Web Policies & Notices 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Fax: 202-418-0232 E-mail: [email protected] - Customer Service Standards - Freedom of Information Act

Operating Description： The FM808 FM transmitter is used to play the music of Mp3 player or Ipod through the car stero radio for drivers.It transmitte music to the car radio by FM modulator. How to use: 1. After connecting to the 3.5mm audio jack and the cigarette socket,It start to work. 2. The LCD will show the frequence at present. 3. Turn on the car radio and turn to the corresponding frequence,you can enjoy the music. 4. You can change the frequence. Press 【＋】or【－】to adjust frequency of the FM transmitter with 0.1MHz step. 5. You can save choosed 4 frequences into the memory.Press【MEM】for 2 second，M1will be flashing, meaning memory slot can be selected. Press【+】or【－】to select among M1~M4. Press 【MEM】again to save the frequency to the memory slot. Press【MEM】to select with different memory slot. Special Features: z Adopts PLL design. z Frequency memory function, 4 pre-stored frequencies. z Type of modulation:FM modulation z Frequency range: 88.1~107.9 Mhz z Frequency Number:199 z Frequency stability: ±10ppm (-10-50 °C） z Signal to noise ratio: ≥45dB z Audio frequency response:50-15000hz z Operating distance: 5-10 m z Input: F3.5mm stereo phone-jack z Power supply: DC 10~14V z Antenna Gain: -0.5dB z Type of antenna:Solderd on PCB z RF output power:0dBm

FCC ID: UM7FM808 Report No.: 070214FIA01 1 FCC TEST REPORT REPORT NO.: 070214FIA01 MODEL NO.: FM808 RECEIVED: Feb. 13, 2007 TESTED: Feb. 13 ~ Mar. 7, 2007 ISSUED: Mar. 7, 2007 APPLICANT: Minwa (China) Electronics Co., Ltd. ADDRESS: Fu Shing Au Village, Ping Hu Town, Long Gang District, Shenzhen, 518111, China ISSUED BY: ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. ADT (Shanghai) Corporation V 1.0 FCC ID: UM7FM808 Report No.: 070214FIA01 2 TABLE OF CONTENTS 1 CERTIFICATION .....................................................................................................3 2 SUMMARY OF TEST RESULTS.............................................................................4 2.1 MEASUREMENT UNCERTAINTY ..........................................................................4 3 GENERAL INFORMATION .....................................................................................5 3.1 GENERAL DESCRIPTION OF EUT........................................................................5 3.2 DESCRIPTION OF TEST MODES..........................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................7 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.....................................................8 4 TEST TYPES AND RESULTS .................................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT ..........................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................9 4.1.2 TEST RESULTS ......................................................................................................9 4.2 RADIATED EMISSION MEASUREMENT .............................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ..........................................10 4.2.2 TEST INSTRUMENT............................................................................................. 11 4.2.3 TEST PROCEDURE .............................................................................................12 4.2.4 DEVIATION FROM TEST STANDARD .................................................................12 4.2.5 TEST SETUP ........................................................................................................13 4.2.6 EUT OPERATING CONDITION ............................................................................13 4.2.1 TEST RESULT ......................................................................................................14 4.3 EMISSION BAND MEASUREMENT .....................................................................17 4.3.1 LIMITS OF EMISSION BAND MEASUREMENT ..................................................17 4.3.2 TEST INSTRUMENTS ..........................................................................................17 4.3.3 TEST PROCEDURE .............................................................................................17 4.3.4 DEVIATION FROM TEST STANDARD .................................................................17 4.3.5 TEST SETUP ........................................................................................................17 4.3.6 EUT OPERATING CONDITIONS..........................................................................17 4.3.7 TEST RESULTS ....................................................................................................18 5 APPENDIX - INFORMATION ON THE TESTING LABORATORY ........................20 FCC ID: UM7FM808 Report No.: 070214FIA01 3 1 CERTIFICATION PRODUCT: Universal FM transmitter MODEL NO.: FM808 BRAND NAME: MW APPLICANT: Minwa (China) Electronics Co., Ltd. TESTED: Feb. 13 ~ Mar. 7, 2007 TEST ITEM: Engineering Sample STANDARDS: FCC Part 15, Subpart C (Section 15.239), ANSI C63.4-2003 We, ADT (Shanghai) Corporation, declare that the equipment above has been tested in our facility and found compliance with the requirement limits of applicable standards. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate under the standards herein specified. TECHNICAL ACCEPTANCE : , DATE:MAR. 7, 2007 Bright Tong Engineering Supervisor APPROVED BY : , DATE:MAR. 7, 2007 Wallace Pan Director of Operations FCC ID: UM7FM808 Report No.: 070214FIA01 4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission TestN/A Refer to 4.1.2 15.239 Radiated Emission Test PASS Minimum passing margin is –1.43 dB at 88.10 MHz 15.239(c) Emission Bandwidth TestPASS Meet the requirements NOTE: The information of measurement uncertainty is available upon the customer’s request. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MEASUREMENT FREQUENCY UNCERTAINTY Conducted emissions 9kHz ~ 30MHz 2.44 dB 30MHz ~ 200MHz 3.73 dB 200MHz ~1000MHz 3.74 dB 1GHz ~ 18GHz 2.20 dB Radiated emissions 18GHz ~ 40GHz 1.88 dB FCC ID: UM7FM808 Report No.: 070214FIA01 5 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Universal FM transmitter MODEL NO. FM808 POWER …
