UNBRF111299Remote Controller

1 SPECIFICATIONS： FUNCTION： 1) Learning function: While AC power on initially, the Receiver's LED will flash, then pushes a button of the transmitter about 10 seconds, then the receiver put the code of the transmitter and button number in record and save them, from then on, only use the same transmitter and button number keep the same with what the receiver has been recorded, the receiver can operate remotely. 2) Remote control function: After the receivers finish recording, use the same transmitter and button number keep the same with what the receiver has been recorded, pushing " on " button, the receiver is exported as ON; Pushing " off " button, the receiver is exported as OFF. 3) Manual control function: Press the manual button on the receiver, the receiver change into OFF when the receiver is ON and change into ON when the receiver is OFF. 4) Coding function: The transmitters have 1000,000 groups of code, there is no interfere after initialize. TRANSMITTER z Channel Code 1000,000 code z Remote Frequency 315MHz z Remote Range 20 meter z Battery Type A23 12V DC Alkaline OPERATIONS: z Open the battery cover and put one battery into z Control of the polar as battery (+&-) RF1112 RF LEARNING REMOTE SWITCH Battery 2 LED Manual Button RECEIVER z Voltage 120VAC/60Hz z Installation Plug-in Type z Rating 120VAC/1800W max z Channel Code 1000,000 code z Remote Frequency 315MHz z Remote Range 20 meter z Code setting Learning automatically z ON/OFF Indicate LED OPERATIONS: z Control an number of receivers in each zone using a single transmitter z Insert the plug of the receiver on the outlet and power on, then insert the plug of the electric equipment on the socket of the receiver, from then on, users can control the electric equipment with the transmitter z Users can control the receiver use the manual button after initialization GENERAL PROBLEM AND SOLUTION: z The power of the transmitter is insufficient: Change the battery z The distance from transmitter to receiver is too far (effective distance<20m) z The time to push the button is too short (duration>1 second) z Movements of the receiver when the transmitter has not been used: restart the receiver z The receiver have three seconds loses electric memory time, users could set up again it after disconnecting power for five seconds z When the product is in a clear place，working distance is 20 meter. FEDERAL COMMUNICATION COMMISSION REQUIREMENTS Warning: ‘CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY 3 RESPONSIBLE FOR COMPLIANCE WITH THE FCC’S RULES (THE FCC’ GRANTEE’) COULD VOID THE USER’S AUER’S AUTHORITY TO OPERATE THE EQUIPMENT’。 THIS DEVICE COMPLIES WITH PARTS 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THE MAY CAUSE UNDESIRED OPERATION.

Transmitter unit block diagram(315MHZ) ANT 650HZ coding circiut Frequency 35M SAW Resonator 314.92MHZ---315.075MHZ 28 Bit code outcarrier wave out 315M singnalAmplification circiat key-press cortrol circiut IC PDF 文件以 "FinePrint pdfFactory Pro" 试用版创建 http://www.pdffactory.com

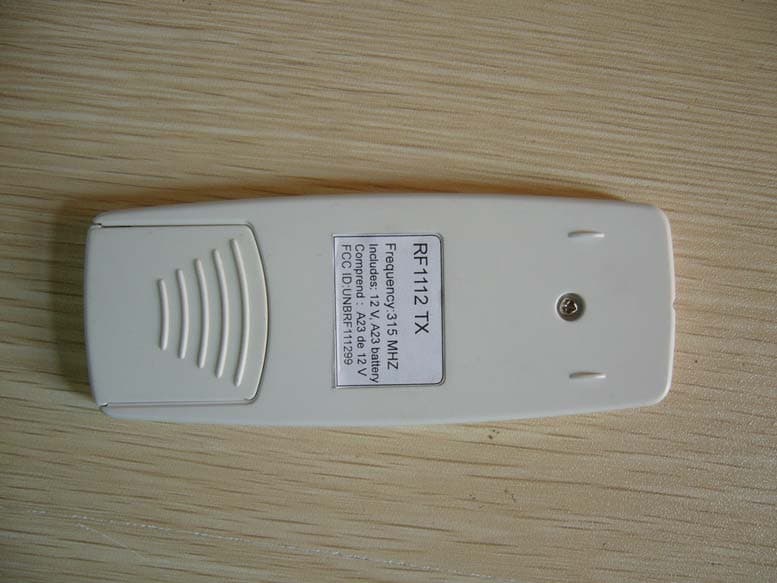

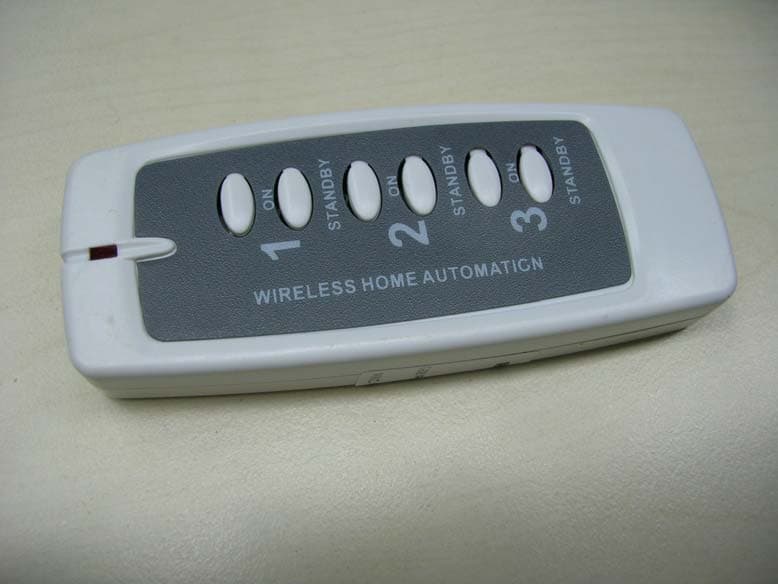

FCC ID: UNBRF111299 Page 1 of 2 External Picture FCC ID: UNBRF111299 Page 2 of 2

FCC ID: UNBRF111299 Page 1 of 2 FCC ID Label FCC ID: UNBRF111299 Page 2 of 2

FCC ID: UNBRF111299 Page 1 of 3 Internal Picture FCC ID: UNBRF111299 Page 2 of 3 FCC ID: UNBRF111299 Page 3 of 3

Theory of the Transmitter When press the button on the transmitter, control circuit supplies power to the system. According to coding, IC transmits 28 Bit coding whose frequency is 650HZ. And now SAW Resonator transmits high frequency signal whose frequency is from 314.92HZ to 315.075HZ. The above two signals join in one group. This group carries wave 315M signal with 28 Bit coding. After magnified by the amplification circuit, it carries wave 315M signal with 28 Bit coding out by the antenna.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:11-Sep-2006Sheet of File:F:\\\.DDB亚历亚历亚历Drawn By: SW2 SW1 R6 100K R10 100R X'TA1 315M Q1 9018H LED C4 103M C1 6P C2 8P 1 2 3 45 6 7 8 IC R5 270K C3 102M D5 4148 D2 4148 D1 4148 D4 4148 L1 2.2UH SW3 SW4 SW5 SW6 +12 D6 4148 D3 4148 D7 4148 D8 4148 D9 4148 RF1112-TX Schematic PDF 文件以 "FinePrint pdfFactory Pro" 试用版创建 http://www.pdffactory.com
