UOD-2006GE2002T-2Ceiling Fan R/C

Geetek Electronics Co., Ltd
Ceiling Fan R/C - FCC ID UOD-2006GE2002T-2 - Geetek Electronics Co., Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Nov 02, 2006
Application Purpose
Original Equipment
Date of Application
Nov 02, 2006
Equipment Note

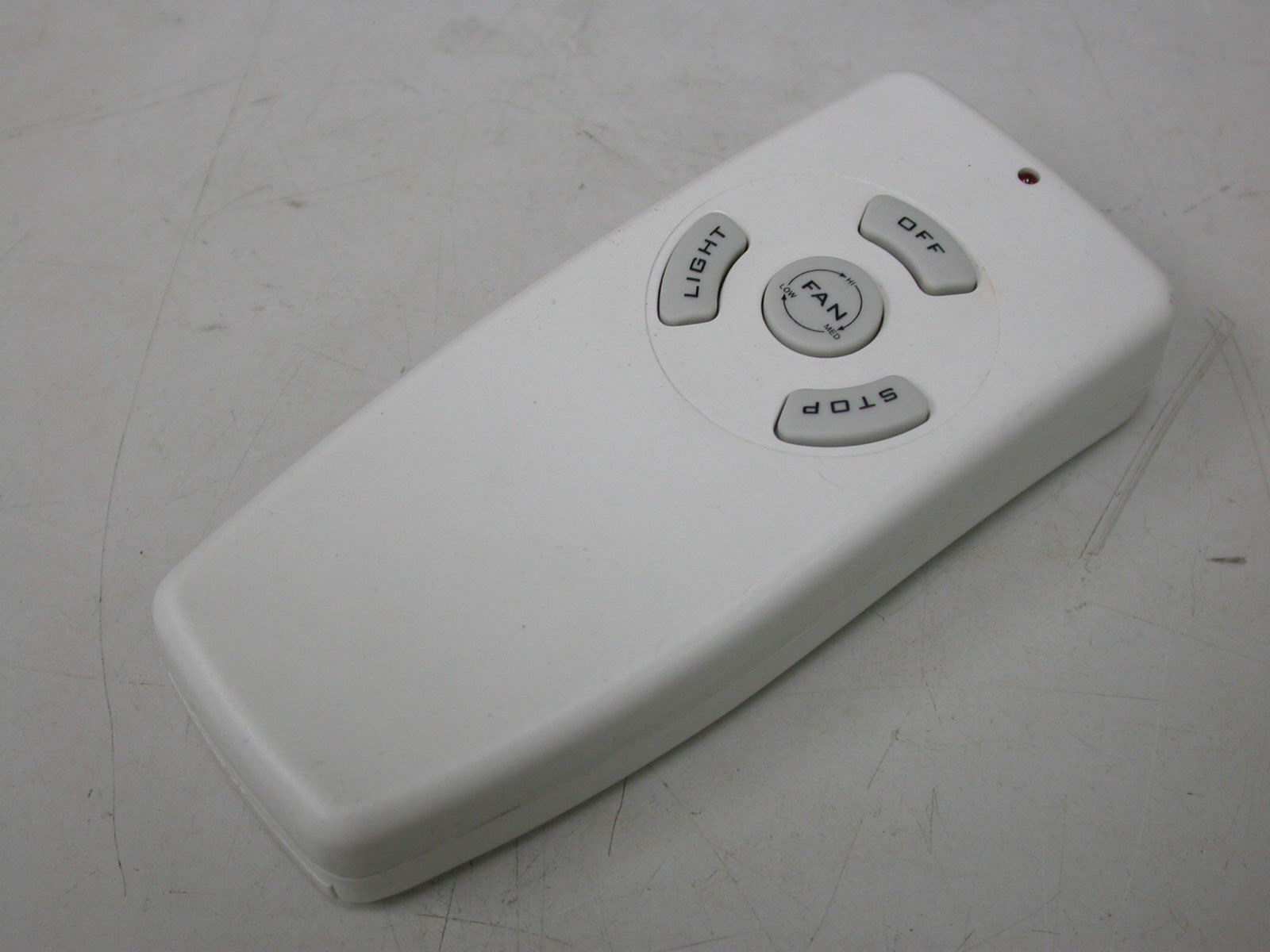

Ceiling Fan R/C
Frequency Range
433.92000000 - 433.92000000
Company
Geetek Electronics Co., Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Operational Manual of Ceiling Fan Remote (Manual of Remote Control Ceiling Fan) 1. Warning: (1) Before you connect the power, be sure to turn off the power of the ceiling fan. 2. Cautions: (1) Before operating, switchover the manual speed of the ceiling fan to the high speed position. (2) In case that the ceiling fan has the light control device, before operating, turn light to the ON position. (3) The remote controller has 4 kinds of outer code, with coding No. 14. (4) The outer code of remote controller shall be the same as the outer code of the receiver, otherwise, the inner code is unable to set. (5) The outer code and inner code of the remote controller must be completely the same as receiver’s, so that the remote can function well. (6) Battery box of the remote controller has a SET key, and when pressing down this key, one inner code will be sent to the receiver. Therefore, you may set the inner code of the receiver same as the remote controller’s. When the inner code setting is finished, the receiver can test automatically the function of the ceiling fan. (7) If the battery of the remote controller is removed away too long and reloaded again, then the remote controller will send automatically one set of inner code to the receiver, and that functions completely the same as the SET key. (8) If the outer code of your ceiling fan is the same as other’s ceiling fan, be sure to turn off the power of other’s ceiling fan before putting into the battery of the remote controller or pressing down the SET key of yours. Wait after the inner code of your ceiling fan is set, then turn on the power of other’s ceiling fan. If the outer code of other’s ceiling fan is different from your ceiling fan’s, then it is unnecessary to turn off the power of other’s ceiling fan. 2 3. WIRING DIAGRAM 4. KEY OPERATION (1) FAN STOP KEY ON STOP (2) FAN KEY STOP REMEMBER FAN SPEEDLAST STOP STATUS HI MED LOW RECEIVER AC IN L (BLACK) AC IN N (WHITE) AC POWER INPUT TO MOTOR L (RED) TO MOTOR N (WHITE) FOR LIGHT (BLUE) FOR LIGHT (ORANGE) NOTE: 1. FOR LIGHT (BLUE): DIMMER 2. FOR LIGHT (ORANGE): ON/OFF DIMMER ON/OFF 3 (3) LIGHT DIMMER KEY(LIGHT 2) (a) TOGGLE OFF ON (b) PUSH KEY AND HOLD KEY 1.2 SEC LIGHT DIMMER DARK BRIGHT STOP 0.7 SEC STOP 0.7 SEC REMARK(1) HAS SOFT START FUNCTION. (2) DIMMER FUNCTION FORWARD AND BACKWARD. (4) ALL OFF KEY (a) FAN STOP. (b) IF LIGHT ON LIGHT WILL DELAY 3 MIN OFF. (c) IN LIGHT DELAY TIME (3 MIN), THIS FUNCTION WILL BE CANCEL IF ANY KEY PRESSED. (5) SET KEY (a) REMOTE CONTROLLER WILL SEND NEW ID CODE TO RECEIVER AUTOMATIC. (b) THIS SET HAS 4 OUTSIDE ID CODE. ONLY SAME OUTSIDE CODE CAN SET NEW CODE. (c) AFTER CODE SET FAN WILL DO SELFTEST FUNCTION HI MED LOW LIGHT 1 LIGHT 2 LONG BEEP 1 TIME (d) AUTOMATIC TEST FINISH FANSTOP FAN SPEED REMEMBERHI LIGHT 2 (DIMMER)OFF LIGHT 2 REMEMBER IN BRIGHTMAX. BRIGHT LONG BEEP 1 TIME 5. WHEN TRANSMITTER LOSS POWER AND BACK AGAIN (1) REMOTE CONTROLLER SEND SET KEY AUTOMATIC. 4 6. WHEN RECEIVER LOSS POWER AND BACK AGAIN (1) FAN BACK TO ORIGINAL STATUS. (2) LIGHT 2 BACK TO ORIGINAL. 7. BUZZER (1) BEEP WHEN ANY KEY PRESSED. NOTE: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

External Photos

ETC Report No.: 06-10-MAS-018-01 Page A1 of A1 FCC ID. : UOD-2006GE2002T-2 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

Internal Photos

ETC Report No.: 06-10-MAS-018-01 Page B1 of B3 FCC ID.: UOD-2006GE2002T-2 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: 06-10-MAS-018-01 Page B2 of B3 FCC ID.: UOD-2006GE2002T-2 3. Inside View 3 of EUT 4. Front view of PCB ETC Report No.: 06-10-MAS-018-01 Page B3 of B3 FCC ID.: UOD-2006GE2002T-2 5. Rear view of PCB

Test Report

ETC Report No. : 06-10-MAS-018-01 Sheet 1 of 22 Sheets FCC ID.: UOD-2006GE2002T-2 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-10-MAS-018-01 Client: GEETEK ELECTRONICS CO.,LTD Product: CEILING FAN R/C Model: CF101 FCC ID: UOD-2006GE2002T-2 Manufacturer/supplier: GEETEK ELECTRONICS CO.,LTD Date test item received: 2006/10/03 Date test campaign completed: 2006/10/23 Date of issue: 2006/10/24 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 22 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By James James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-10-MAS-018-01 Sheet 2 of 22 Sheets FCC ID.: UOD-2006GE2002T-2 Rev. No 1.0 Client : GEETEK ELECTRONICS CO.,LTD Address : 1F,NO164~10,SEC2,CHANG PING RD,PEI TUN DIST,TAICHUNG, TAIWAN,R.O.C Manufacturer : GEETEK ELECTRONICS CO.,LTD Address : 1F,NO164~10,SEC2,CHANG PING RD,PEI TUN DIST,TAICHUNG, TAIWAN,R.O.C EUT : CEILING FAN R/C Trade name : GEETEK Model No. : CF101 Power Source : 12Vdc / Battery Regulations applied : FCC 47 CFR, Part 15 Subpart C (2006) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-10-MAS-018-01 Sheet 3 of 22 Sheets FCC ID.: UOD-2006GE2002T-2 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ......................................................................................................................................4 1.1 PRODUCT DESCRIPTION.................................................................................................................................................4 1.2 CHARACTERISTICS OF DEVICE:......................................................................................................................................4 1.3 TEST METHODOLOGY....................................................................................................................................................4 1.4 TEST FACILITY...............................................................................................................................................................4 1.5 MODIFICATION RECORD................................................................................................................................................4 2. DEFINITION AND LIMITS........................................................................................................................................5 2.1 DEFINITION....................................................................................................................................................................5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION....................................................................................................................................................................6 2.4 LABELING REQUIREMENT..............................................................................................................................................7 2.5 USER INFORMATION.......................................................................................................................................................7 3. RADIATED EMISSION MEASUREMENT..............................................................................................................8 3.1 APPLICABLE STANDARD.................................................................................................................................................8 3.2 MEASUREMENT PROCEDURE.........................................................................................................................................8 3.3 TEST DATA..................................................................................................................................................................10 3.4 FIELD STRENGTH CALCULATION..................................................................................................................................12 3.5 RADIATED TEST EQUIPMENT.......................................................................................................................................12 3.6 MEASURING INSTRUMENT SETUP.................................................................................................................................…
