UOPJLD-2Remote control for Sofa

Manual for Adjustable Power System Page 1 of 5 Adjustable Power System（JLD-2） FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Adjustable Power System can be applied on the sofa, chair and adjustable bed in the house, office, hotel and entertainment places. It is of high quality, and it realizes the automation of furniture, and provides a big market for furniture manufacturers. 1. Configuration of the adjustable system The adjustable system consists of actuator, transformer and remote controller. 1. Actuator Active ring of the actuator moves back and forth when it’s driven by spindle which rotates under the force driven by the spindle guide with power connection. When the actuator is installed on the mechanism, it can drive the mechanism to open and close. The double limit switches help increase the accuracy of the traveling stroke. The quality of actuator is consistent, and it’s safe and of high torque and high durability with Manual for Adjustable Power System Page 2 of 5 heavy load capability. Critical parameters: Max speed with no load: 11 mm/s Max load allowed: 200±10% kg Smallest installation size: 474mm Stroke: 330±1 mm Life of cycles: ≥15000 Distance range for effectiveness of remote controller ≤4.0 m 2. Transformer The transformer can be applied on the sofa, chairs and bed together with the JLDQ actuators. The transformer has a shut off function when it’s overloaded. The transformer works under the 24v DC. The frequency of transformer receiver is 433.92MHz. Main technical index: Manual for Adjustable Power System Page 3 of 5 Input voltage: 120VAC, 60HZ, Input current: 1A Output voltage: 24VDC Output current: 3A Working duration: 10％ (1 min ON, and 8 mins OFF) Frequency of receiver: 433.92MHz 3. Remote controller The remote controller consists of PCB, top and bottom cover and buttons. It activates the movement of the actuator by pressing on the buttons. Manual for Adjustable Power System Page 4 of 5 Main technical index: Sending frequency: 433.92MHz Sending power: <10mW Sending method：ASK Battery: 3 pcs of AAA X, 4.5V, 12V Working current: 3mA 2. Installation Press on the buttons of the remote controller, and the active ring on the actuator will move back and forth. Fix the actuator and transformer onto the furniture mechanism, and connect all the parts per picture above. Install the plug, and press on the button of the remote controller. Safety Points: 1. Before using the transformer, please confirm the local voltage Manual for Adjustable Power System Page 5 of 5 supplied by your utility provider is the same as the voltage requirement of the transformer. 2. Before using the system, please confirm the proper batteries are applied. 3. Shut off the power before installing or removing the plugs and wires. 4. The transformer can not be used in a humid atmosphere. 5. The transformer operates in a temperature range of 0 to 40°C.

Date: November 15, 2006 FCC ID: UOPJLD-2 1. Block diagram – it needs to indicate the frequencies generated in the transmitter and does not need to include the receiver. The schematics show four different reference oscillators so the block diagram needs to show these four plus the output frequency. The operational description should include information about how the source clocks are converted to the output frequency. Block diagram and operational description were both updated 2. Label – please explain how the label is durable and permanently affixed to the device (reference Part 15.19 (4) “The label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silkscreened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment.” The label information will be silk-screened onto the product. An attestation letter explaining this has been provided. 3. The third harmonic of all but the lowest channel falls in a restricted band. The limit in this band is 54dBuV/ average, 74dBuV/m peak. It looks like the emissions will all continue to be compliant with the lower limit. Please update the test report with the correct limits and margins. Report has been updated with the correct limits. All peak measurements have been compared to the average limit to demonstrate compliance with both peak and average limits. 4. It appears that the transmitter can control different command signals. Please explain how the duty cycle measured was for the worst case transmission. All peak measurements have been compared to the average limit to demonstrate compliance with both peak and average limits. Duty cycle correction has been removed. 5. Please confirm that the buttons on the device are not latched but only remain on while they are being pressed (i.e. the user does not push the button to activate the transmitter and then push it again to deactivate the transmitter). Additionally, please provide a plot showing that the duration of the transmission is less than 5 seconds once the button has been released. (This plot should be at least 10 seconds long to clearly show that there is only the single transmission). A plot has been provided to show the device switching off immediately after the release of the button, which is not latched.

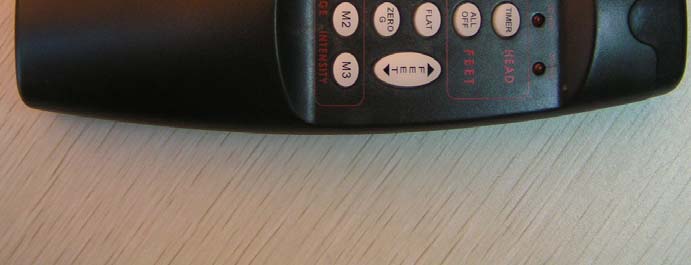

Front View Rear View

Statement We, Jiaxing ShuFuDe Adjustable Bed Co., Ltd. declare that the label will be printed onto the plastic enclosure and will contain the text and be in the location shown in the label location exhibits.

Uncovered Button View Main Board General View #1 Main Board General View #2 Main Board #1 Front View Main Board #1 Rear View Main Board #2 Front View Main Board #2 Rear View

EUT description: The transmitter is powered by 3 AAA batteries. It is manually operated and uses DSC to code signal. It has 15 buttons corresponding to the I/O port of the microchip. That is, there are 15 codes for the control signal. These 15 codes are 0000, 0001, 0011..... corresponding to number of hex. For the waveform against time, the 1/4 width stands for 1 and the 3/4 width stands for 0. The receiver is connected to motors and the motors can move according to the transmitter. How to remote control the actuator. 1. Power the transmitter, power the receiver and connect the actuator to the receiver. 2. Press the button on the transmitter. 3. The receiver can receive signal from transmitter and decode, then it can control the actuator to perform action. Frequency bands description: EUT uses 433.05MHz, 433.35MHz, 434.45MHz, 434.75MHz. Circuit description: About the circuit, there are four crystals: 72MHz, 72.1MHz, 72.2MHz, 72.3MHz, then the signal will be changed to be 433.05MHz, 433.35MHz, 434.45MHz, 434.75MHz together with the LC circuit. The signal can be coded by the microchip PIC16F57 then generated to the space through the internal antenna.

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com FCC CERTIFICATION RADIO MEASUREMENT TECHNICAL REPORT On Model Name: Remote Control -2 Model Number : JLD-2 Trademark : N/A FCC ID : UOPJLD-2 Prepared for Jiaxing ShuFuDe Adjustbale Bed Co., Ltd According to FCC Part 15 (2006), Subpart C Test Report #: JIA-0608-0676SH-FCC Prepared by: Chris Huang Reviewed by: Harry Zhao QC Manager: Paul Chen Test Report Released by: 2006, November 14 ⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 Test Location Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Jiangsu Electronic Products Supervision & Inspection Institute No 107 Ge lane ZhongQiao WuXi JiangSu, China Tel: 86-510-85140038 Fax: 86-510-85140037 Registration Number: 399439 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents DISCLAIMER NOTICE _________________________________________ 1 REPRODUCTION CLAUSE_____________________________________ 1 OPINIONS AND INTERPRETATIONS ___________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY ______________ 1 ADMINISTRATIVE DATA _____________________________________ 2 EUT DESCRIPTION ___________________________________________ 2 TEST SUMMARY _____________________________________________ 3 TEST MODE JUSTIFICATION _________________________________ 4 EUT EXERCISE SOFTWARE ___________________________________ 4 EQUIPMENT MODIFICATION _________________________________ 4 TEST SYSTEM DETAILS ______________________________________ 5 CONFIGURATION OF TESTED SYSTEM________________________ 6 EUT SAMPLE PHOTOS OF JLD-2 ______________________________ 7 ATTACHMENT 1 – ANTENNA REQUIREMENT_________________ 13 ATTACHMENT 2 – OPERATION MODE _______________________ 16 ATTACHMENT 3 – RESTRICTED BAND OF OPERATION_______ 20 ATTACHMENT 4 –FIELD STRENGTH OF FUNDAMENTAL AND SPURIOUS EMISSIONS__________________________________________________ 26 ATTACHMENT 5 – BANDWIDTH TEST ____________________ 37-41 EMC Test Report #: JIA-0608-0676SH-FCC Prepared for Jiaxing ShuFuDe Adjustable Bed Co., Ltd Prepared by EMC Compliance Management Group Page 1 of 41 Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. EMC Test Report #: JIA-0608-0676SH-FCC Prepared for Jiaxing ShuFuDe Adjustable Bed Co., Ltd Prepared by EMC Compliance Management Group Page 2 of 41 Administrative Data Test Sample : Remote Control -2 Model Number : JLD-2 Trade Mark : N/A Date Tested : 2006, September 18 & November 12 Applicant : Jiaxing ShuFuDe Adjustbale Bed Co., Ltd No.16 Xiatang East Rd, Dongzha neighborhood Committee, Jiaxing Telephone : 86-573-2281783 Fax : 86-573-2283336 Manufacturer : Jiaxing Refined Mechanics Hi-Tech Co., Ltd No.7 Henger Road, Wangjiangjing Development Zone, Jiaxing, Zhejiang, China Telephone : 86-573-2283296 Fax : 86-573-2283298 EUT Description Jiaxing ShuFuDe Adjustbale Bed Co., Ltd model number JLD-1 (referred to as the EUT in this test report) is a Remote Control -2. The transmitter is manually operated and has buttons to control the signal. The coding method is DSC. At the back of the EUT, there is a selectable button, which can set the EUT to transmit signal at 433.05MHz, 433.35MHz, 434.45MHz and 434.75MHz. The receiver is connected to motors and the motors can move according to the transmitter. EMC Test Report #: JIA-0608-0676SH-FCC Prepared for Jiaxing ShuFuDe Adjustable Bed Co., Ltd Prepared by EMC Compliance Management Group Page 3 of 41 Test Summary The Electromagnetic Compatibility requirements on JLD-2 for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. EMC …

Text truncated - open the document above for the full version.

For lying mode Field Strength Emissions Test Set-up – Front View (Below 1GHz) Field Strength Emissions Test Set-up – Rear View (Below 1GHz) Field Strength Emissions Test Set-up – Front View (Above 1GHz) For standing mode Field Strength Emissions Test Set-up – Front View (Below 1GHz) Field Strength Emissions Test Set-up – Rear View (Below 1GHz) Field Strength Emissions Test Set-up – Front View (Above 1GHz)
