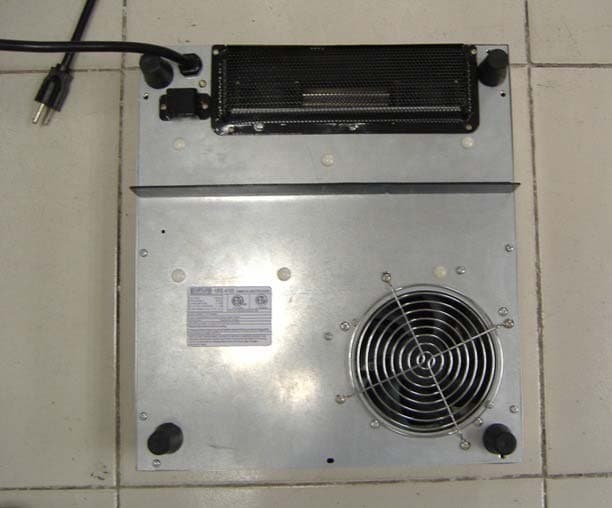

UPG200601CE1567COMMERCIAL INDUCTION COOKER, MODEL CE1567

COMMERCIAL INDUCTION COOKER, MODEL CE1567 READ THESE INSTRUCTIONS IMPORTANT INSTRUCTIONS 1. Read all instructions carefully before you use the appliance. 2. Do not touch hot surfaces, Use handles or knobs. 3. To protect against electrical shock do not immerse cord、plug or (state specific part or parts in question) in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injures. 8. Do not use outdoors (this item may be omitted if the product is specifically intended for outdoor use). 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated over. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Do not use appliance for other than intended use. 13. Save these instructions. Parts of description 1. Ceramic plate 2. Upper cover 3. Control panel 4. Power cord SAFETY 1. If they are abnormal, the power indicator will flash at the moment, the NINSTRUCTION MANUAL appliance will shut off after three minute. 2. If we didn’t press the key of “LOCK” or move the cookware on the appliance for two hours, the appliance will shut off automatically. 3. If the bottom of cookware is overheat, the appliance will stop heating or shut off automatically. 4. To avoid electric shock and fire, do not attempt to disassemble the unit yourself. 5. Do not touch surface after use as it retains heat from cookware. 6. Do not place any other articles on the plate except the cookware. 7. Do not cook with aluminium-foil. 8. Place the pot in the circle on the top plate during heating. 9. Do not cook near a faucet, the water entering the air entrance or outlet may cause damage to the cooker. 10. Do not block the air entrance or outlet, and do not insert any conductive materials into the air entrance or outlet. 11. Do not strike or damage the ceramic plate. If the plate is cracked, pull out the plug immediately. Notice 1. Use individual socket. If you use an extension, the socket or current might be overloaded. 2. Place cooker on a flat surface, but keep away from the wall or other articles. Leave at least 2 inch of side space, 6 inch of rear space. When the air entrance or the air outlet is blocked, the internal temperature of the cooker rises and may automatically shut off during cooking. It is be used at a good place of well ventilated condition 3. Never heat an empty cookware. This will cause overheat and the cooker will cease to operate and cause possible damage to the product. 4. Remember to turn off cooker after use. If not the ventilator will continue to operate, resulting in energy-loss. (When turned off, fan will remain on for 3 minutes before automatically shutting off.) 5. Keep away from gas range or coal oil stove etc combustible. If the surrounding temperature is high, cooker will stop heating. 6. Make sure to wipe off water at the bottom of the pot before heating. when the bottom of the pot is heated, the boiling water may splash over and burn somebody. 7. Pacemaker users, please consult with a physician to be sure that your pacemaker will not be influenced by the induction magnetic filed of this product before attempting to use. 8. After use, switch off induction cook-top by it’s control and do not rely on the pan detector. 9. Check the household voltage to ensure is matches the appliance’s rated specification. 10. Do not use the plug of power supply with the wet hand. 11. Must open the cover at first while heating a packed food of bottle or tin. 12. Wipe away the water of cookware before using. Operation Instruction ● The appliance can be controlled by turning buttons and pushing buttons, which could be setted on control panel. ● ON/OFF Turn the button clockwise to make the appliance operate, and set the desired digit from 1 to 15, it means the power from 100W to 1500W increase. Turn it in counter direction, the power digit will change from 15 to 1 until the appliance off. ● MODE The appliance has two modes of operation: “POWER” and “TEMP”, when the appliance is turned on, the “POWER” light will indicated. Press the button one time, the appliance will display “TEMP” mode the “TEMP” light will indicated , turn the “ON/OFF”button clockwise, the “TEMP” digit will change from 140 to 460, it means the temperature will increase from 140°F to 460°F. ● LOCK Press the button one time, the appliance will stop working, press it once more, the appliance will keep on working according to the original mode. WARNING 1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. 3. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. 4. Risk of fire and electric shock. Replace only with manufacture’s cord set, part No 14AWG. FCC information Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B ISM equipment, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and use…

Text truncated - open the document above for the full version.

AUTHORIZATION LETTER FCC ID: UPG200601CE1567 Date:2006-10-18 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by SGS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Victor Wu -------------------------------------- Name, position Applicant: Tel: 0755-33899888-1102 Fax: 0755-27642263 Email: [email protected]

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A2 Date: 25-Oct-2005 Sheet of File: D:\Work\ 艾美特 \CE15 67 .dd b Drawn By: C130805-221 BUZ115240 RT2 100K/3950 +5V R5 0805-5.1K* 12 CN6 XH-2A RT1 100K/3930 12 CN5 XH-2A R1 0805-330 Ω +5V R4 0805-10K* C2 0805-104 C1 0805-104 +5V 1234567891011 CN4 XH-11A PANINTIGBTENTMAINTIGBTVINCURPWMBUZ +5V C21 0805-104 C10 0805-101 76 1 U2BLM339 98 14 U2CLM339 R250805-3.6K* C12 0805-101 C15 0805-105 C7 2N2J/63V C25 22 2 插件 ( 兼容 08 05 ) EC7 220U/25V R350805-10K 1110 13 U2DLM339 R100805-6.2K* EC6 10U/16V R390805-4.7K EC8220U/25V EC4 22U/16V R230805-8.2K* D194148 R38 1/2W-33 Ω R410805-51K D184148 C190805-104 R340805-3.3K FUSE1 15A/125V L 250# N 250# CNR110D221 AC 1 AC 2 + 3 - 4 DB1 D15XB60/RS2506 L1 T131-52-44-1.4mm C11 6.8UF/150VAC CT1 E1930006B IGBT1 G60N100B R26 0805-51K* R201W-200K* C3 0.4UF/1000VDC C6 6.8UF/150VAC R140805-4.7K R18 1W-200K* C8 0805-104 R13 0805-680 Ω D124148D144148 D11 4148 D134148 VR1200 Ω EC5 2.2U/16V D64007 D5 4007 R91W-200K* C18 0805-104 Z2 15V/0.5W D204148 R11 1W-150K R160805-62K C24 0805-221 R120805-13K* R8 1W-820K C23 102/1200VAC R270805-10K EC10 10U/16V +5V +5V R15 1/2W-33 Ω R29 0805-10K +15V C20 0805-221 Q4 8050/EBC Q3 8550/EBC R32 0805-3.3K Q68050/EBC Q5 8050/EBC R400805-3.9K R28 0805-1K C17 10 3 插件 ( 兼容 08 05 ) +15V 54 2 312 U2ALM339 R330805-470 Ω R22 0805-3.6K* +5V R21 0805-39K* C9 0805-104 R240805-3.6K* R17 1W-200K* OUT2OUT OUT1OUT D164148 D154148 R30 0805-10K C260805-221 +15V R360805-10K +15V D224148 R44 0805-10K R47 0805-2K R460805-10K R31 0805-10K R51 0805-100Ω C16 0805-471 D174148 Q8 8050/SOT R50 0805-1K Q98050/SOT +15V R490805-1K L2 T25-13-1.4mH 1.4mm×13匝立式 电源 R3 0805-4.7K Ω +5V C5 10 4 插件 C14 0805-104 Q1D882/ECB VCC D214148 R20805-1.5K R370805-10K +5V Q78550-sot R42 0805-10K R430805-330 Ω 2.65V2.89V 0.88V C29 0805-471 R19 1W-200K* R450805-100 Ω R520805-1M D234148 A BC 备注：考虑到兼容，在 A 、 B 及 A 、 C 两点间分别用跳线连接。 R530805-62K R54 1W-330K C30 6.8UF/150VAC V01 1 艾美特 CE1567 电源板原理图 1 C401X C403 X EARTHGROUND +15V EC406 100U/16V C405 0805-104 +5V Vin 1 GND 2 Vout 3 U402 7805(ST) 电源 EC405 100U/16V R401 22 R/2W 绕线电阻 D401 IN4007 EC401 22U/450V D405 HER203/BYV26C D402 UF4007 D406 uf4007 C402 103/500V 12 8695 34 710 T401 TL-TB0408003 代用 WH T16 09 8 Q4018050/SOT C404 473/35V EC402 4.7U/16V R406 0805-390 Ω EC403 470U/25V Z401 15V/0.5W EC404 100U/16V L401 LGA0410 4R7K 接风扇地 R407 200/1/2W VCC +15V R404 0805-680K R405 0805-100 Ω D404 4148 gnd 1 vcc 2 vfb 3 ipk 4 vstr 5 drain 7 drain 8 drain 6 U401 FSD311 12 CN2 XH-2A 12 CN1 XH-2A 12 CN3XH-2A R402 100K/2W L3 T131-52-44-1.4mm C5 6.8UF/150VAC source 1 source 2 fb 3 vdd 4 dram 5 drin 6 drin 7 drin 8 U403VIPER12A R408 0805-0 Ω 注意：用 VIPE R12 方案时， R408 用 0 欧贴片电阻， Q40 1 、 R404 、 R405 、 R406 不装  环粗 肍 SD311 方案时， 不装 R408 ，其它都装。

SGS-CSTC Standards Technical Services Co., Ltd . No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GLEMR061001067HSF Page: 1 of 12 FCC ID: UPG200601CE1567 Authorized Signature: Jeff Zhao Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) FCC Test Report Application No.: GLEMR061001607HS Applicant: Airmate Electrical (shenzhen) Co,.Ltd FCC ID: UPG200601CE1567 Equipment Under Test (EUT): EUT Name: Commercial Induction Cooker Item No.: CE1567 Serial No.: Not supplied by client Standards: FCC PART 18: 2004 Date of Receipt: 13 October 2006 Date of Test: 18 to 24 October 2006 Date of Issue: 25 October 2006 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMR061001607HSF Page: 2 of 12 FCC ID: UPG200601CE1567 2 Test Summary Test Test RequirementTest Method Class / SeverityResult Radiated Emission (9KHz to 30MHz) FCC PART 18: 2004 FCC OST/ MP-5:1986 18.305 PASS Conducted Emission (9KHz to 30MHz) FCC PART 18: 2004 FCC OST/ MP-5:1986 18.307(a) PASS ① ①The EUT passed the Conducted Emission test after modification carried out by the applicant. SGS-CSTC Standards Technical Services Co., Ltd . Report No.: GLEMR061001607HSF Page: 3 of 12 FCC ID: UPG200601CE1567 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY .......................................................................................................................................2 3 CONTENTS ................................................................................................................................................3 4 GENERAL INFORMATION........................................................................................................................4 4.1 CLIENT INFORMATION................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................4 4.3 DETAILS OF E.U.T. ...................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS.............................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING......................................................................................................4 4.6 TEST LOCATION........................................................................................................................................4 4.7 TEST FACILITY..........................................................................................................................................5 4.8 DEVIATION FROM STANDARDS...................................................................................................................5 4.9 ABNORMALITIES FROM STANDARD CONDITIONS..........................................................................................5 5 EQUIPMENTS USED DURING TEST .......................................................................................................6 6 TEST RESULTS .........................................................................................................................................7 6.1 RADIATED EMISSION, 9KHZ TO 30MHZ......................................................................................................7 6.1.1 E.U.T. Operation ............................................................................................................................7 6.1.2 Test Setup......................................................................................................................................7 6.1.3 Measurement Data ........................................................................................................................8 6.2 CONDUCTED EMISSIONS, 9KHZ TO 30MHZ..............................................................................................10 6.2.1 E.U.T. Operation ..........................................................................................................................10 6.2.2 Plan View of Test Setup ..............................................................................................................10 6.2.3 Measurement Data ................................................................................................................ 11-12 SGS-CSTC Standards Technical …
