UPJCK986Bluetooth Rearview Mirror HandsFree Car Kit

Bluetooth Rear-view Mirror Car Kit User’s Guide Contents 1. Safety and General Information 18 2. Introduction 18 3. Features 22 4. Part Description 23 5. Installation 25 6. Using Your Car Kit 26 7. Box Content 33 Safty and General Information Important information on safe and efficient operation. Please read this information before using your device. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Electromagnetic interference/compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in the site where posted notices instruct you to do so. Hospitals or health care organization may be using equipment that is sensitive to external radio frequency (RF) energy. Aircraft When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance with applicable regulations per airline crew instructions. Medical devices Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other medical devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. "This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Introduction The rearview mirror handsfree car kit is a wireless device that utilises the latest Bluetooth technology to communicate with your compatible phone within a 10-metre range. This allows you to talk through its built-in high quality loudspeaker and external high sensitivity microphone without the need to hold the phone or take your hands off the steering wheel. Note: Bluetooth wireless technology is an international standard for short range wireless communication. It allows you to establish a wireless connection within a range of 10 meters between your car kit and a compatible device. Bluetooth is a register trademark of Bluetooth SIG Inc. Voice dialling function only works with mobile phones which have voice dialling capability. Features ● Connect wirelessly to all kinds of Bluetooth enabled compatible phones. ● Support Bluetooth HPF, HSP, A2DP, AVRCP profiles ● 16-digit LED display for the caller ID and the operation information. ● Full duplex communication with digital noise & echo suppression system. ● High power amplifier and speaker. ● Directional high sensitive microphone. ● Voice dialling and redialling function. ● Bluetooth stereo music play and remote control. ● Automatic switch between music and voice. ● USB firmware upgrade. ● Automatic re-connection. ● Microphone mute button. ● Powered by high capacity Li-ion battery. ● Easy set-up and simple operation. Part Description MFB: Multifunction button: answer, end, pairing (initial set-up), voice dialling function MUTE: Mute button: mute, play/pause/stop function Vol ：Volume up button Vol：Volume down button ：Track backward button: skip back to the previous music track ：Track forward button: skip forward to the next music track Green indicator：While charging, the indicator turns on. When the battery is fully charged, the indicator turns off automatically. Red indicator：Turning on at low battery condition; flashing alternately with the blue indicator while pairing. Blue indicator：Flashing at working condition (3-second interval); flashing alternately with the red indicator while pairing. EAR：External earphone jack MIC：External microphone jack USB: USB jack, firmware upgrade SPEAKER: Speaker DC12V：DC charging jack (connecting vehicle lighter adapter) ON/OFF：Power switch Installation Figure 1 Installation guide 1. There are two pairs of clips on the back of the handsfree car kit . Place the bottom pair of clips on the lower edge of the existing rearview mirror in your car. Lift the unit so that the bottom clips extend un…

Text truncated - open the document above for the full version.

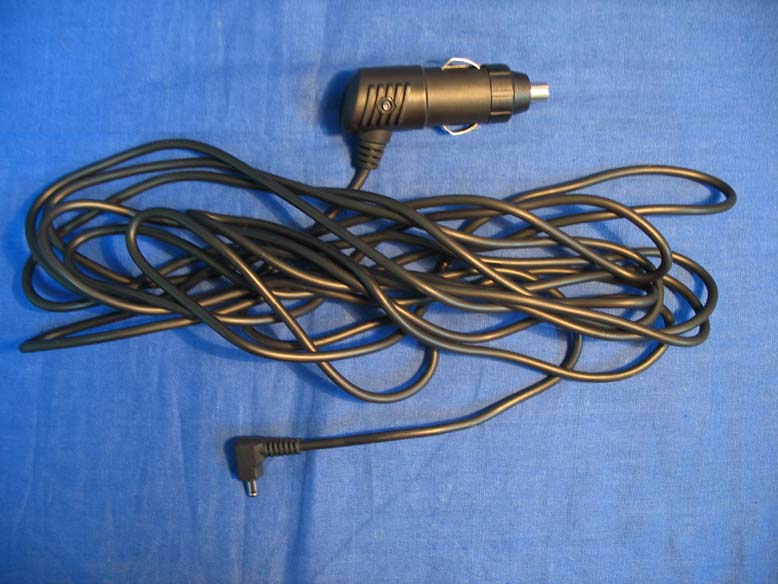

Bluetooth Rearview Mirror HandsFree Car Kit (M/N:CK986) ¾ EUT Photograph – External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

Bluetooth Rearview Mirror HandsFree Car Kit (M/N:CK986) ¾ EUT Photograph - Internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo Antenna 天線 (6) EUT Photo (7) EUT Photo (8) EUT Photo

Report No. 069S019 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Bluetooth Rearview Mirror HandsFree Car Kit Model No. : CK986 FCC ID : UPJCK986 Applicant : Zhenjiang Sapphire Electronic Industry CO., LTD. Address : The South Side of Weisan Road, Dingmao Development Zone, Zhenjiang, Jiangsu, CHINA Date of Receipt ：2006/09/20 Issued Date ：2006/10/17 Report No. ：069S019 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 069S019 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 069S019 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Bluetooth Rearview Mirror HandsFree Car Kit Test Item : RF Exposure Evaluation Test Site : AC-3 Test Mode : Transmitter Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1dBi or 0.45 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 00 2402.00 0.1019 0.000026 39 2441.00 0.0871 0.000022 78 2480.00 0.0807 0.000020 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No. 069S019-RF-US-P06V01 Page: 1 of 61 Version:1.0 Test Report Product Name : Bluetooth Rearview Mirror HandsFree Car Kit Model No. : CK986 FCC ID : UPJCK986 Applicant : Zhenjiang Sapphire Electronic Industry CO., LTD. Address : The South Side of Weisan Road, Dingmao Development Zone, Zhenjiang, Jiangsu, CHINA Date of Receipt ：2006/09/20 Issued Date ：2006/10/17 Report No. ：069S019-RF-US-P06V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 069S019-RF-US-P06V01 Page: 2 of 61 Version:1.0 Test Report Certification Issued Date: 2006/10/17 Report No.: 069S019-RF-US-P06V01 Product Name : Bluetooth Rearview Mirror HandsFree Car Kit Applicant : Zhenjiang Sapphire Electronic Industry CO., LTD. Address : The South Side of Weisan Road, Dingmao Development Zone, Zhenjiang, Jiangsu, CHINA Manufacturer : Zhenjiang Sapphire Electronic Industry CO., LTD. Model No. : CK986 FCC ID : UPJCK986 Rated Voltage : AC 120V/60Hz Working Voltage : DC 12V Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2005 ANSI C63.4: 2003 CISPR 22: 2005 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Mandy Liu ) Reviewed By : ( Dream Cao ) Approved By : (Gene Zhang) Report No. 069S019-RF-US-P06V01 Page: 3 of 61 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................6 1.3. Tested System Details..............................................................................................................................7 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................9 1.6. Test Facility ...........................................................................................................................................10 2. CONDUCTED EMISSION ................................................................................................................ 11 2.1. Test Equipment ......................................................................................................................................11 2.2. Test Setup ..............................................................................................................................................11 2.3. Limits.....................................................................................................................................................12 2.4. Test Procedure .......................................................................................................................................12 2.5. Uncertainty ............................................................................................................................................12 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................13 3.1. Test Equipment ......................................................................................................................................13 3.2. Test Setup ..............................................................................................................................................13 3.3. Limit .....................................................................................................................................................13 3.4. Uncertainty ............................................................................................................................................13 3.5. Test Result of Peak Power Output .........................................................................................................14 4. RADIATED EMISSION .....................................................................................................................15 4.1. Test Equipment ......................................................................................................................................16 4.2. Test Setup ..............................................................................................................................................16 4.3. Limits.....................................................................................................................................................17 4.4. Test Procedure .......................................................................................................................................18 4.5. Uncertainty ............................................................................................................................................18 4.6. Test Result of Radiated Emission ..........................................................................................................19 5. BAND EDGE .......................................................................................................…

Text truncated - open the document above for the full version.

Bluetooth Rearview Mirror HandsFree Car Kit (M/N:CK986) ¾ Test Setup Photographs Test Mode : Mode 1: Transmitter Description : Back View of Radiated Test for Under 1GHz Test Mode : Mode 1: Transmitter Description : Front View of Radiated Test for Under 1GHz Test Mode : Mode 1: Transmitter Description : Front View of Radiated Test for Above 1GHz Test Mode : Mode 1: Transmitter Description : Back View of Radiated Test for Above 1GHz
