UQ6DAMING-SENERGY SAVING LAMP

Cautions and Instructions Handing Never drop or strike the lamp The lamp should not be disassembled or modified Never hold the glass tube by hand when installing Fixture y Never use with dimming circuit of an emergency light fixture. y Never use with closed fixture such as the one shown below. Without ventilation Holes with Ventilation Holes Glass Globe Electric Source y Use only at the rated voltage indicated on the lamp. if the source voltage rises by 6%, the lamp life may be shortened, lf the source voltage drops by 10%,the lamp may not light up. The light output will be lower even after it can light up. y Never use with a direct current Otherwise, the lamp will stop working. Ambience y Use indoors at a room temperature ranging from 5 to 35°C y Never use where water may drop on the lamp. Never use in a humid atmosphere. This is extremely dangerous because it may cause an electric leak. y Never use in front of or over a room heater. Do not switch on and off frequently. Switching on and off may shorten the lamp service life. y Make sure that the lamp is firmly screwed into the socket. Otherwise, the lamp may drop or recuit in an electric disconnection. Notes y It takes the lamp about 1 second before it begins to light up. Output rapidly increases and the light fully lights with in 30 seconds. The color of the light stabilizes in about 20 minutes. y In a cold room below 0°C it may not light up of take even more time to light up. The light output will also be low even after the lamp performance stabilizes. y When the lamp is switched on frist, darkening and specks of mercury may be. Observed around the tubeend(the base-side and top ends).But, this is only a to normal phenomenon of the lamp. and does not indicate a malfunction. Prevent risk of a burn, never touch with bare hands of face while operation. Important y A short circuit fuse is built into this lamp. This prevents serious accidents from occurring if the lamp is used in correctly. y No internal parts are available or repair the lamp. Serious accidents may occur if a repaired lamp is installed. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz.

Block Diagram of Model: SGF series include: SGF 5W,SGF 7W, SGF 11W,SGF14W,SER15W,SER 24W. SM-1 series include: SMI 9W,SMI 11W,SMI 13W,SMI 15W,SMR 9W,SMR 11W,SMR 13W,SMR 15W. SDF52-A series include: SDF 10W,SDF 12W,SDF 14W,SDF 16W,SDF 18W,SDF 20W,SDF 22W, SDF 24W,SDF 26W. INPUT: 120V/60Hz FUNDAMENTAL OPERATION FREQUENCY IS 0.45~30 MHz

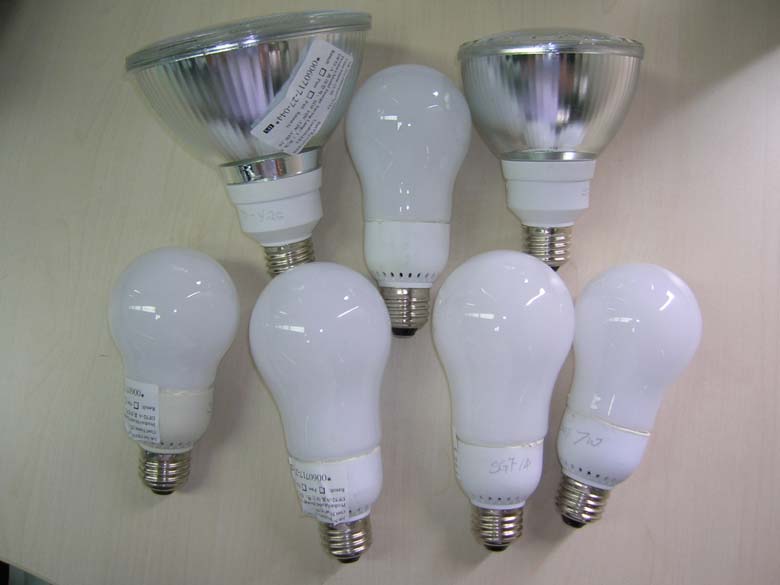

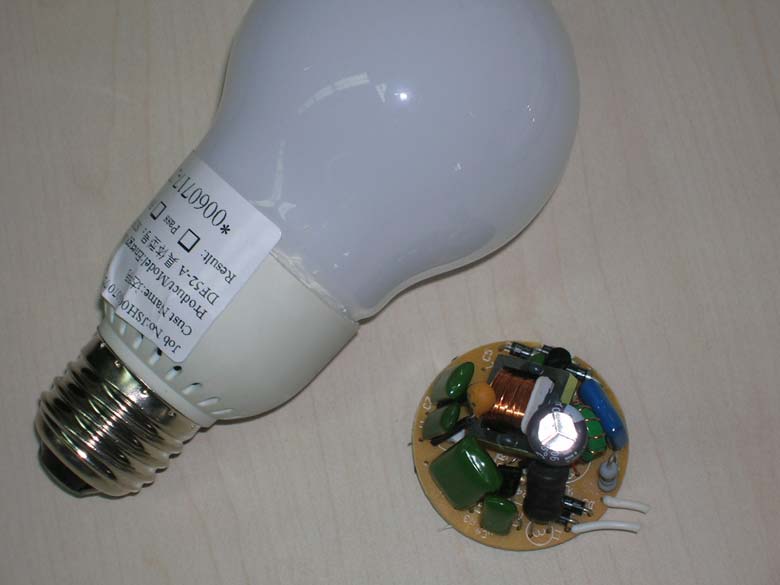

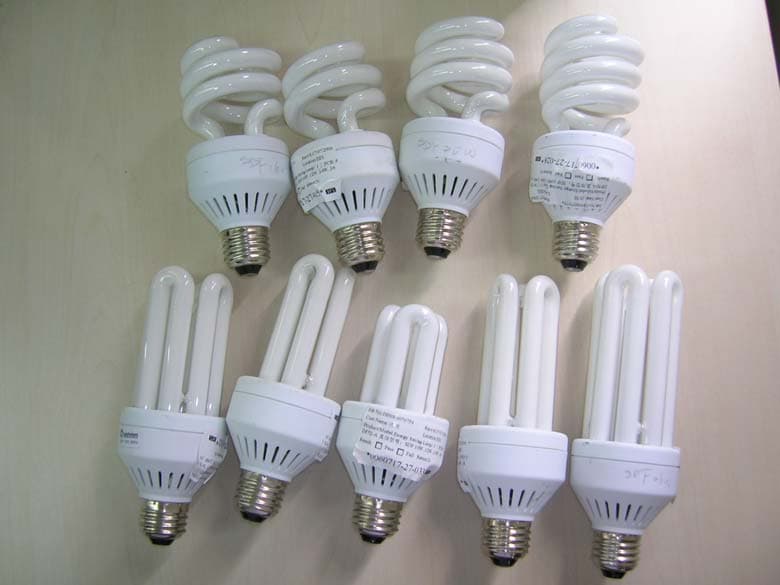

Photograph of EUT SM-1: SGF: SDF52-A: SGF:

FCCID: UQ6DAMING-S Model: SDF-24 Made in China

Report no: JSH06070754-001 Page 42 of 47 SDF52-A: SGF: Report no: JSH06070754-001 Page 43 of 47 SM-1:: Report no: JSH06070754-001 Page 44 of 47 Report no: JSH06070754-001 Page 45 of 47 SDF52-A: Report no: JSH06070754-001 Page 46 of 47 Report no: JSH06070754-001 Page 47 of 47

Report no: JSH006070754-001 Page 1 of 47 EMC Test Report for FCC On Behalf of WUHAN Lucky Partners Co., Ltd Summary The equipment comply with the requirements according to the following standard(s): 47CFR Part 18 (2004): Industrial, Scientific, and Medical Equipment FCC/OET MP-5 (1986): FCC Methods of Measurements of Radio Noise Emissions From Industrial, Scientific, and Medical Equipment ANSI C63.4 (2003): Interim Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Description The appliances were tested by Intertek Testing Services ETL SEMKO Shanghai Limited and found compliance with relevant requirements described in FCC Part 18 RF lighting Device. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report applies to tested samples only and shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. Date of Test: July 25-26, 2006 Date of Issue: Sep 15, 2006 Prepared by: Report Approved by: Ada Zou (Engineer) Steve Li (EMC Manager) Report no: JSH006070754-001 Page 2 of 47 Description of Test Facility Name Intertek Testing Service Shanghai Limited Address Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone 86 21 64956565 Telefax 86 21 64956263 Report no: JSH006070754-001 Page 3 of 47 CONTENTS SUMMARY................................................................................................................................................... 1 DESCRIPTION ............................................................................................................................................ 1 DESCRIPTION OF TEST FACILITY ...................................................................................................... 2 CONTENTS ............................................................................................................................................ 3 1.APPLICANT INFORMATION ............................................................................................................... 4 2.INFORMATION OF EQUIPMENT UNDER TEST (EUT) ................................................................. 4 2.1 IDENTIFICATION OF THE EUT ................................................................................................................ 4 2.2 A DDITIONAL INFORMATION ABOUT THE EUT ....................................................................................... 5 2.3 PERIPHERAL EQUIPMENT....................................................................................................................... 5 3. CONDUCTED POWERLINE MEASUREMENT................................................................................ 6 3.1 CONDUCTION LIMIT FOR NON-CONSUMER RF LIGHTING DEVICE.......................................................... 6 3.2 INSTRUMENTS LIST...............................................................................................................................6 3.3 TEST SETUP........................................................................................................................................... 7 3.4 TEST CONFIGURATION.......................................................................................................................... 7 3.5 TEST PROCEDURE.................................................................................................................................. 8 3.6 TEST RESULTS....................................................................................................................................... 9 3.7 MEASUREMENT UNCERTAINTY............................................................................................................39 4. PHOTOGRAPH OF TEST SETUP.......................................................................................................40 5. PHOTOGRAPH OF EUT.......................................................................................................................41 Report no: JSH006070754-001 Page 4 of 47 1.Applicant Information Applicant : WUHAN Lucky Partners Co.,Ltd 7F,East Tower Bldg,562 Int Trade New Bldg,Jianshe Ave. Hankou Wuhan Hubei 430022 Manufacturer: SUZHOU DAMING ELECTRIC Co.,Ltd Weixi Village Weitang Town Xiangcheng District ,Suzhou China Difference between models: The SGF series include: SGF 5W,SGF 7W, SGF 11W,SGF14W,SER15W,SER 24W. The SM-1 series include: SMI 9W,SMI 11W,SMI 13W,SMI 15W,SMR 9W,SMR 11W,SMR 13W,SMR 15W. The SDF52-A series include: SDF 10W,SDF 12W,SDF 14W,SDF 16W,SDF 18W,SDF 20W,SDF 22W, SDF 24W,SDF 26W. FCC ID: UQ6DAMING-S Country of origin: P.R. China Name of contact: Wu Keping Telephone: 0086-0512-65904886 Telefax: 0086-0512-65904887 2.Information of Equipment Under Test (EUT) 2.1 Identification of the EUT Equipment: Energy Saving Lamp Type of EUT: ; Production … Pre-product … Pro-type Type/model: SGF5,SGF7,SGF9,SGF11,SGF14,SGF15,SGF24 SMI9,SMI11,SMI13,SMI15,SMR9,SMR11,SMR13,SMR15 SDF10,SDF12,SDF14,SDF16,SDF18,SDF20,SDF22,SDF24, SDF26 Serial number: none Date of sample receipt 2006-07-25 Date of test 2006-07-25~26 Rating: 120v AC, 60Hz Operation frequency : none Report no: JSH006070754-001 Page 5 of 47 2.2 Additional information about the EUT none 2.3 Peripheral equipment none Report no: JSH006070754-001 Page 6 of 47 3. Conducted Powerline Measurement 3.1 Conduction Limit for non-consumer RF lighting device Maximum RF line voltage measured with a 50uH/50 ohm LISN Frequency (MHz) (μV) dB(μV) 0.45-2.51 MHz 250 47.9 2.51-3.0 MHz 3000 69.5 3.0-30 MHz 250 47.9 RF Line Voltage dB(μV) = 20 lg RF Line Voltage (μV) 3.2 Instruments List The following instruments were used during the measurement of RF voltage conducted back into the power lines. Item Equipment Manu. Type Serials no. Last Cal. Cal. …

Text truncated - open the document above for the full version.

Conducted Emission: Radiated Electromagnetic Disturbance:
