UQCTL001006Tool Lock

Date: 2006/10/26 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ------------------------------- REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

October 27, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: UQCTL001006 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------

1 Helen Zhao Subject: FW: FW: AronTek Inc. , FCC ID: UQCTL001006, Assessment NO.: AN06T6376, Notice#1 TL001 Test set up photos Revis... TL001 Test Report Revised 1219... TL001 Internal Photos Revised ... TL001 External Photos Revised ... TL001 Block Diagram Revised 12. TL001 Schamtic Revised 1221.pd... TL001 Theroy of operation Revi... TL001 Theroy of operation Revi... From: gina.lo Sent: Thursday, December 21, 2006 1:42 AM To: Helen Zhao Subject: Re:FW: AronTek Inc. , FCC ID: UQCTL001006, Assessment NO.: AN06T6376, Notice#1 Dear Helen, Please ignored the earlier mail. Sorry for any inconvenience caused. Please see my reply, thank you. Best Regards, Gina -----Original Message----- Sent: Monday, December 18, 2006 6:28 PM Subject: AronTek Inc. , FCC ID: UQCTL001006, Assessment NO.: AN06T6376, Notice#1 Question #1: The filing includes TX and RX, which is confusing. Please note only IC allows TX and the associated RX to be certified under one filing. FCC has different policy. TX will be certified under equipment class of " DSC ", and the RX will be either certified under equipment class of "CYY" or through DoC, scanning receiver is subject to certification only. Please remove RX portion from block diagram and operational description. The schematics of RX (main unit as referred in the manual) will be ignored. Ans: The Client revised the block diagram, operational description and schematics. Question #2: The test report includes power line conducted emission test data, which is for RX, not TX, please remove the test data from the 2 report. Ans: Please see page 22 of the test report . Question #3: The external photos exhibit includes a DC power supply, is it for the RX? If so, please remove the DC photos from the exhibit. Ans: Please see the revised external photos. Question #4: The operational description indicates "When an input signal is received, the variable-capacity diode to become connected in series with the surface acoustic wave (SAW) resonator, providing oscillations with two frequencies to effect FSK modulation. The output is at the collector of the transistor." Please confirm if the TX is a transceiver, does it have learning function? TCB is not allowed to approve learning transmitter. Ans:The Client revised operational description. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

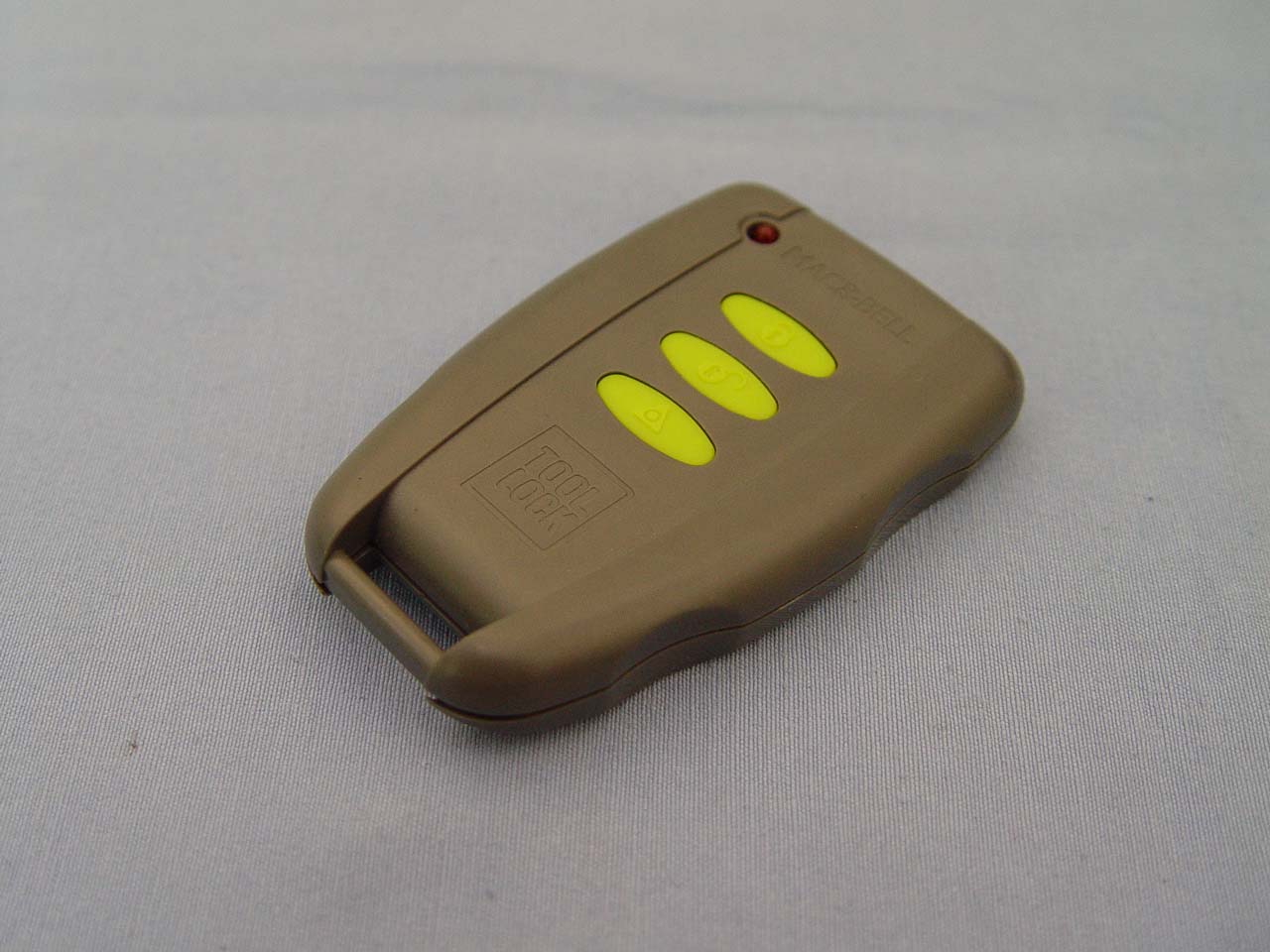

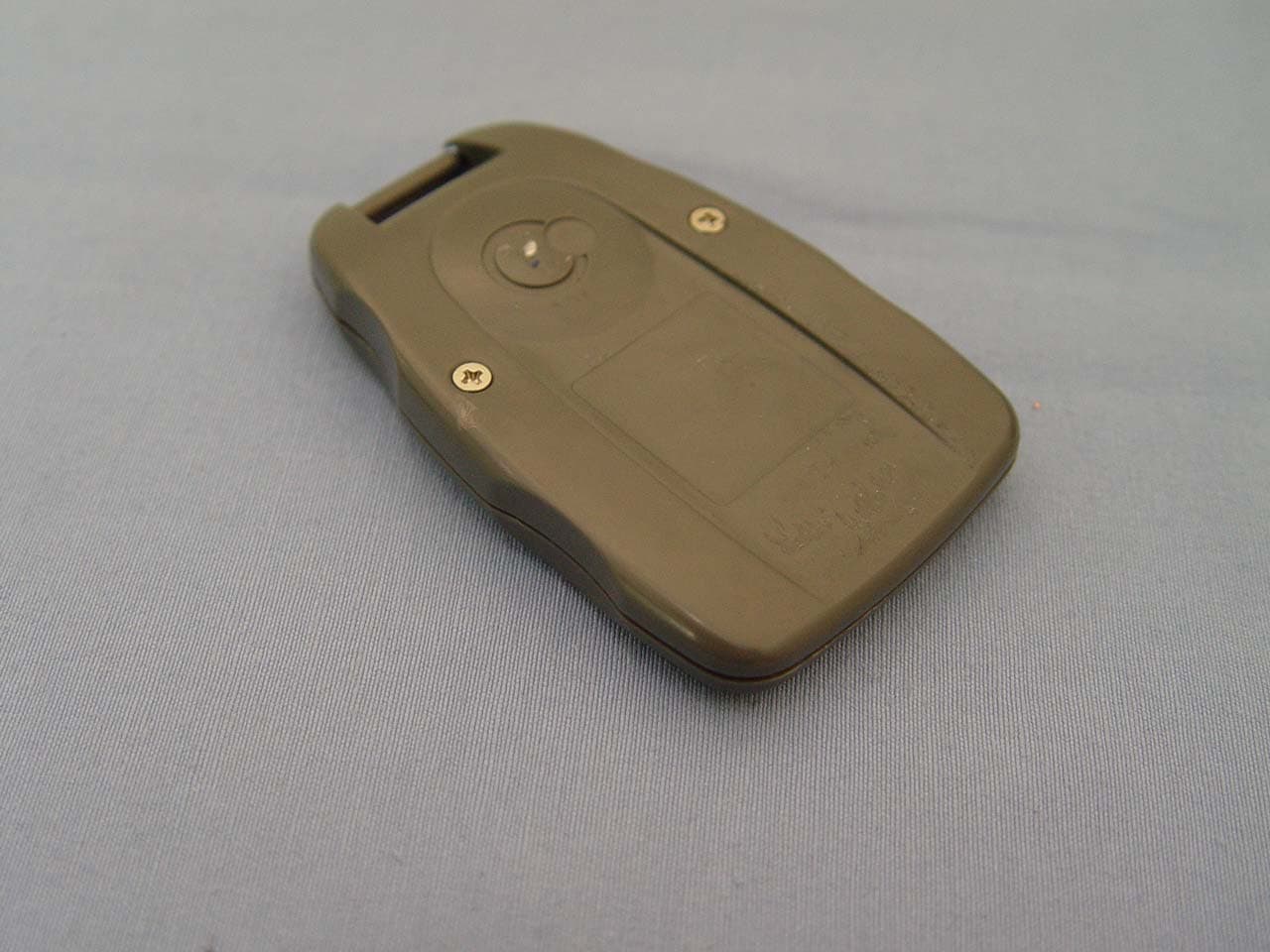

Compliance Certification Services Inc. Report No.: 60927001 Date of Issue: October 17, 2006 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: 60927001 Date of Issue: October 17, 2006 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60927001 Date of Issue: October 17, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 60927001 Date of Issue: October 17, 2006 Page 4 Rev.00

Compliance Certification Services Inc. Report No.: 60927001-RP1 FCC ID: UQCTL001006 Date of Issue: October 17, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 23 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For To o l L o c k Model: TL001 Trade Name: MAC&BELL Issued to AronTek Inc. 5 Fl, No 7 -1, Jhong - Shing Road, Tu-Cheng City, Taipei Hsieh 236, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60927001-RP1 FCC ID: UQCTL001006 Date of Issue: October 17, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 11 7.1 20DB BANDWIDTH ........................................................................................................... 11 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 13 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 15 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 23 Compliance Certification Services Inc. Report No.: 60927001-RP1 FCC ID: UQCTL001006 Date of Issue: October 17, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Tool Lock Trade Name MAC&BELL Model Number TL001 Model Difference N/A Power Supply Battery: DC 3V Frequency Range 433.92MHz Modulation Technique FSK Antenna Designation PCB Antenna / Gain: 2 dBi Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: UQCTL001006 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 60927001-RP1 FCC ID: UQCTL001006 Date of Issue: October 17, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2001) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60927001-RP1 FCC ID: UQCTL001006 Date of Issue: October 17, 2006 Page 23 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
