UQXWRDR569WRDR-L RADAR Head

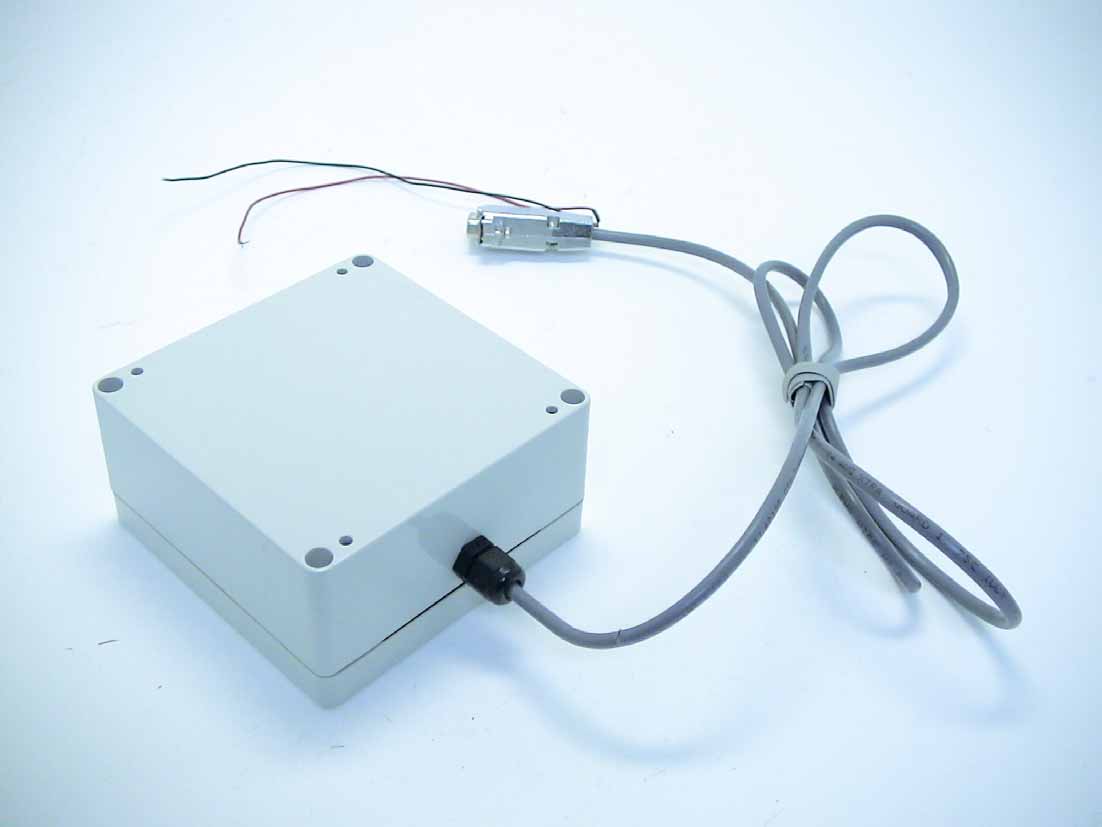

Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. OPERATIONS MANUAL WRDR-L RADAR HEAD 108569-000 Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. 2 WRDR-L RADAR HEAD THIS UNIT IS FULLY ASSEMBLED AND READY TO USE. NO CONFIGURATION IS REQUIRED. Thank you for choosing the Wanco Radar Head. Your radar is in a Polycarbonate enclosure suitable for outdoor use and is protected against access of oil, dust and water. The radar has been tested to and complies with FCC part 15 class A. The radar head uses a state of the art modern radar transceiver that offers excellent range detection without false detecting on spurious electronic signals and no configuration is required. SAFETY Do not look directly into the radar head when it is powered up. Keep any body part away from the radar beam as much as possible and at a minimum of 20 cm. Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. 3 FCC/CANADIAN INFORMATION FCC ID: UQXWRDR569 MODEL: WRDR-L IC: 6809A-WRDR569 This device complies with Part 15 of the FCC Rules and with RSS-210/Gen of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed on/inside your device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label may use wording such as the following: "Contains Transmitter Module FCC ID: UQXWRDR569" or "Contains FCC ID: UQXWRDR569." Any similar wording that expresses the same meaning may be used. Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. 4 To obtain service, contact the service department at Wanco Inc. between 7:00 AM – 5:00 PM MST. Wanco, Inc. 5870 Tennyson Street Arvada, Colorado. 80003 303-427-5700 Fax: 303-427-5725 E-Mail: [email protected] Web-Site:www.wanco.com There are no user serviceable parts in the radar enclosure. There is a solid-state fuse that will automatically reset if an over current fault occurs. The unit is polarity protected if it is connected to power incorrectly. Please do not open the enclosure as this could void the warranty. The unit is factory configured for either MPH or KPH as indicated by the label on the back of the unit. Most units are configured for MPH. Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. 5 INSTALLATION Your radar head was designed for ease of use and installation and no configuration is required. There are 4 #6 studs to facilitate mounting to a bracket or some other suitable structure. The unit should be secure as possible so that it cannot vibrate. The unit must be pointed straight down the road, with the back side pointed away from traffic as indicated on the label. If the unit is at more than a ten-degree angle to the traffic, either horizontal or vertical, it will start measuring a lesser speed than the actual speed and may not have as much range. See the following figure. The radar enclosure has a 6-foot cable attached to it to provide power and communications. Connect the flying black lead to ground and the flying red lead to +12V. Connect the male DB9 to a controller board, modem, computer etc. to provide communication. Since the radar acts like a DCE, to connect it to a PC only a gender-bender is necessary not a null modem. The output string is 8 bits no parity 1 stop bit (8n1) 1200 baud in Hexadecimal (Hex) not ASCII. Specifically, the data is (2)(84)(1)(SPEED)(1)(AA)(3). This string is output every .5 seconds. The RS232 port can be connected to a computer or some suitable controller for display of the measured speed or for some other purpose such as speed logging. There is nothing that is configurable through the communications port. The pinout of the cable on the DB9 is shown in the following figure. Rev 3/30/07 Manual P/N 108671-001 Wanco Inc. 6 Pin # Direction Color 2 Transmitted from Radar Green 3 Received to Radar Orange 5 Common Brown Flying Lead 12.6 V Nominal Red Flying Lead Gnd Blk OPERATION The radar outputs a continuous wave (CW) at 24.125 GHz. Part of the signal that is transmitted from the radar transceiver is reflected back from objects such as moving vehicles. Due to the Doppler effect, the signal received from a moving object is slightly lower or higher in frequency than what was transmitted. This frequency offset is measured to determine the speed of the vehicle. Only the speeds of vehicles that approach the radar head are measured. Vehicles traveling away from the head are ignored. Please note though that in the first minute of operation any direction of movement will display so that a tuning fork can more easily be detected to test the radar. The vehicle with the strongest signal, which is normally the closets to the radar head is displayed. The radar he…

Text truncated - open the document above for the full version.

Re: Certification for Wanco, Inc. Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 REQUEST FOR MODULAR APPROVAL The Doppler radar module used in this device has its own RF shielding, and does not accept modulation or data inputs. This device is internally regulated and the patch array antenna is a permanent component of the RF module. The WRDR has been tested in a stand-alone configuration and demonstrated both power mains and radiated emissions compliance with the FCC part 15 regulations. It is our understanding that meeting these requirements qualifies the above device for modular approval. We request that this application be processed accordingly. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. March 27, 2007 Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Wanco, Inc. requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Wanco, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Wanco, Inc. 5870 Tennyson St. Arvada,Co 80003 Michael Wanasz [email protected] Tel: 303-427-5700 x 305 Fax: 303-427-5725 It will be manufactured by: Wanco, Inc. 5870 Tennyson St Arvada,Co 80003 Michael Wanasz [email protected] Tel: 303-427-5700 x 305 Fax: 303-427-5725 Canadian Contact: Knight Safety LTD. 2800 No. 3 Road Richmond, BC V6X 2B3 Phone Number: 604 232 0052 FAX: 604 232 4402 Contact: Bill Van Esch E-mail: [email protected]

March 27, 2007 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 Please find enclosed application materials for certification of Wanco, Inc. WRDR-L Field Dist. Sensor. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist March 27, 2007 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Wanco, Inc. Modular Field Dist. Sensor Model(s): WRDR-L FCC ID: UQXWRDR569 IC: 6809A-WRDR569 Please find enclosed application materials for certification of Wanco, Inc. WRDR-L Field Dist. Sensor. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 6809A-WRDR569 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

  127(681/(6627+(5:,6(63(&,),(' ,167$//$7,217(03(5$785(  )  0867:,7+67$1'7(03(5$785((;75(0(62) )72 )  02817,1*685)$&(60227+3/$67,&(1&/2685()/$7685)$&(  %5$6,21$9(5$*(,1'8675,$/86$*(  23(5$7,1*&21',7,216287'22586$*(7(503(5$785(9$5,$7,21  (;32685(728/75$9,2/(7/,*+7+,*+35(6685(:$6+%/$&.7(;721:+,7(%$&.*5281'  0$7(5,$/7+,&.1(66,60,/:,7+0$77(),1,6+0,/&/($5&2$7   3(50$1(1735(6685(6(16,7,9($'+(6,9(  =21( 5(9 '(6&5,37,21 '$7( &+$1*('%< (&2 7KLVGUDZLQJLVWKHSURSHUW\RI:DQFR,QFRUSRUDWHGDQGVKDOOQ RWEHFRSLHG GLVWULEXWHGRUGLVFORVHGZLWKRXWZULWWHQFRQVHQW ' & % $ $ % & '                 6+((7RI % 5(9 '5$:1%< '$7( '5$:,1*12 6,=( .0F&RUPLFN 6ROLG:RUNV )   6&$/(  72/(5$1&(6)5$&7,21$/'(&,0$/$1*8/$5 :$1&2 ;;; ;; 81/(6627+(5:,6(63(&,),(' ;; 7,7/(   ;  ,17(535(7'5$:,1*3(5$16,<$//',0(16,216$5(,1,1&+(6',0(16,216$5(72%(0(7%()25(3527(&7,9(&2$7,1*,6$33/,(' ,1&25325$7(' /$%(/)&&:5'5 0$7(5,$/[    %/$&.5('   ,7(0$1',7(00867%($66(0%/(',1 7+(25,(17$7,216+2:1  %()25(7,*+7(1,1*187 ,7(0 &211(&7 &$%/($66(0%/< ,7(0 723&%$66(0%/< ,7(0 &$%/(,16,'(2)%2;,6$352;,1&+(66(('5$:,1*180%(5 ,7(0 )25'(7$,/(',1)250$7,21   ,7(0180%(566+,)7(' ./0 =21( 5(9 '(6&5,37,21 '$7( &+$1*('%< (&2 7KLVGUDZLQJLVWKHSURSHUW\RI:DQFR,QFRUSRUDWHGDQGVKDOOQ RWEHFRSLHG GLVWULEXWHGRUGLVFORVHGZLWKRXWZULWWHQFRQVHQW   ,7(012 3$57180%(5 '(6&5,37,21 47<   (1&/2685(02',),('5$'$5+($'    /,'(1&/2685( 3529,'(':,7+ 1*<(1&/2685(    &$%/($66<5$'$5    &25'*5,3137&%/ 3529,'(':,7+&$%/(    6&53$181&  3529,'(':,7+5$'$5 (1&/2685(    187+(;&25'*5,3 3529,'(':,7+&$%/(    /.:6+5637  [[=3    3&%0(&+$66<5$'$5+($'   ) )2$05$'$5+($'7+.    :6+5  [[VDH=36    187+(;1</LQVU  =3    6&53$181&;=3+   ) /$%(/)&&:5'5   ) '(&$/6HULDO1RDQG0IJ'DWH5DGDU   :$55$17</$%(/ :DUUDQW\ODEHO    6&53$10[3+66    67')+(;0)0/[6[5  ' & % $ $ % & '                 6+((7RI % 5(9 '5$:1%< '$7( '5$:,1*12 6,=( '%5,'*(6 6ROLG:RUNV    6&$/(  72/(5$1&(6)5$&7,21$/'(&,0$/$1*8/$5 :$1&2 ;;; ;; 81/(6627+(5:,6(63(&,),(' ;; 7,7/(   ;  ,17(535(7'5$:,1*3(5$16,<$//',0(16,216$5(,1,1&+(6',0(16,216$5(72%(0(7%()25(3527(&7,9(&2$7,1*,6$33/,(' ,1&25325$7(' $66<5$'$5:5'5/

Potential Health Hazard EM Radiation Level The minimum separation distance calculated following FCC OET Bulletin 65 is calculated as follows, where S is power density, EIRP(dBm) = E 3 (dBμV/m) – 95.2 dB( mW/(μV/m) ) EIRP = 122.0 (dBμV/m) - 95.2 dB( mW/(μV/m) ) = 26.8 dBm = 478.6 mW ERP = EIRP – 2.15 = 26.8 – 2.15 = 24.65 dBm = 291.7 mW = 0.292 W Thus, the power density at 20 cm becomes S(mW/cm 2 ) = EIRP(mW)/(4ʌ R(cm) 2 ) = 0.095 mW/cm 2 NOTE: (1) Under no circumstances is the ERP of this device greater than 3W, as required by 2.1091 and the FCC mm-wave accepted test procedures.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-362 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Wanco K-band Modular Doppler Radar Model(s): WRDR-L Report No. 415031-362 March 22, 2007 Copyright © 2007 For: Wanco, Inc. 5870 Tennyson St. Arvada,Co 80003 Contact: Tim Groth [email protected] Tel: (303) 427-5700 x333 Fax: (303) 427-5725 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, according to Part 15.245 were performed on Wanco WRDR- L Doppler radar. In testing completed March 15, 2007, the device tested met the emission limits at the fundamental by 6.0 dB, at the harmonics by 36.5 dB, and spurious meet Class B by 14.7 dB. For RF Health Hazard, the maximum RF field at a 20 cm distance was calculated to be 0.095 mW/cm 2 . The DUT is designed for operation on a 12 VDC system, but ac mains conducted emissions were measured with a laboratory power supply and meet the FCC Class B limit by more than 3.0 dB. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-362 Page 2 of 13 1. Introduction The Wanco WRDR-L Doppler radar was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1. Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) Hewlett-Packard 8592L, SN: 3710A00856 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (40-60 GHz) X Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (60-90 GHz) X Pacific Millimeter Prod., VN, SN: 47 Harmonic Mixer (75-110 GHz) X Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) X Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) X FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) X FXR, Inc., U638A U-band horn (40-60 GHz) X Custom Microwave, HO19 V-band horn (60-90 GHz) X Custom Microwave, HO12 W-band horn (75-110 GHz) X Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) X Avantek, AFT-12665 Amplifier (6-16 GHz) X Trek LISN (50 μH) University of Michigan Signal Generator (0.1-2060 MHz) Hewlett-Packard, 8657B Signal Generator (0.01-20 GHz) X Hewlett-Packard, 8550B / 83592A University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-362 Page 3 of 13 3. Configuration and Identification of Device Under Test The Device Under Test (DUT) is a 24.125 GHz Doppler Radar. The radar transceiver uses an advanced PHEMT oscillator to generate a continuous wave (CW) signal centered at 24.125 GHz, which is transmitted via a planar patch antenna array. It is used to measure very small changes in the speed of a vehicle approaching the radar. The size of the DUT is 12 (W) x 12(H) x 5.5(D) cm with a single cable on the bottom side. Nominal operating voltage is 13.8 VDC; for testing this was supplied by a laboratory style power supply. The DUT was manufactured by Wanco, Inc., 5870 Tennyson St., Arvada, CO 80003. It is identified as: Wanco Doppler radar Model(s): WRDR S/N: prototype FCC ID: UQXWRDR569 IC: 6809A-WRDR569 Please note this device does not require features to prevent continuous operation, as emissions in the restricted bands, other than the second and third, fully comply with the limits given in 15.209 (15.245(1)(iii)). 3.1 Changes made to the DUT No changes were made to the DUT by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiator, subject to Section 15.245 and all other sections referred to therein. The applicable critical testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2. Table 4.1. Radiated Emission Limits (Ref. FCC 15.209, 15.245, RSS-210 Annex 7) --Transmitter. Fundamental Frequency Fundamental Ave. E lim (3m) Harmonics Ave.E lim (3m) Spurious** Ave.E lim (3m) (MHz) (mV/m) dB(μV/m) (mV/m) dB(μV/m) (mV/m) dB(μV/m) 24075-24175 2500 128 25.0* 88.0* 50 dBc or 15.209 * 2nd and 3rd harmonics only ** Other than fundamental and harmonics, 50 dB down from fundamental or 15.209 limits. University of Michigan…

Text truncated - open the document above for the full version.

DUT on 3-meter table (one of 3 axes tested) DUT on Conducted Emissions Table
