URT36-414-600SMK MSCL

Document : Technical Manual for SMK MSCL Model name : SMKREN Version: 0.1 Date: October 23, 2006 HUF KOREA CO., LTD. Operation Guide This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution ! Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. ABBREVIATION REGISTER Abbreviation Description ACC ACCessory ECU Electronic Control Unit GND GrouND MSCL Mechatronic Steering Column Lock PCB Printed Circuit Board 1. Structure 1) The MSCL provides an electronically controlled mechanical release of the steering column lock. The MSCL is integrated in the steering column. The MSCL physically contains: ① a housing with peripheral mechanism components - MSCL controller as an assembled printed circuit board (PCB) 2) The knob rotation shall be in accordance with a rotary type ignition switch having 3 static positions -‘LOCK’/‘ACC’/ ‘ON’ and 1 kinetic position – ‘START’ as shown in below diagram (see figure 2). The outermost position shall be ‘START’ position that permits automatic return to ‘ON’, therefore, when releasing the knob at ‘START’ position, the knob shall be returned automatically to ‘ON’position by the self returning torque of the ignition switch. Thus, the rotation of knob will result in combinated electrical output in each 4 positions through the ignition switch. (see circuit diagram of Ignition Switch Specification ES95470-35.) 3) The axial movement of knob shall be followed as shown in below diagram (see figure 1) in function with a pressure spring.The knob can be pushed by an external force against a spring force and can be returned to ‘UNPUSHED’ from ‘1 st PUSHED position’ in MSCL Lock position or/and ‘1 st PUSHED’ position from ‘2 nd PUSHED’ position as soon as a external force eliminated. The knob rotation from ‘LOCK’ to ‘ACC’ is possible at ‘1 st PUSHED’ and‘2 nd PUSHED’ positions. Also The knob rotation from ‘ACC’ to ‘LOCK’ is possible at ‘2 nd PUSHED’ positions. The knob movement at ‘LOCK’ position will toggle the knob push switch signal which shall be transmitted to Smart Key ECU and MSCL controller for MSCL release and block function. 4) The Auto lever shall normally be moved from ‘P’ position to the other positions at ‘ON’. However, at ‘ACC’ position, the key interlock function shall be only depending on the status of ‘P’ position switch at the auto lever. 5) The turning movement between ‘ACC’ and ‘ON’ position will also toggle the knob push switch to Smart Key ECU and MSCL controller for the Pre-Key Interlock function, depending on the status of ‘P’ position switch at the auto lever and previous key interlock function status. 6) FOB key insertion and extraction to knob is only possible in the position ‘LOCK’ under normal operation. The FOB key shall not be extracted out of MSCL knob unit under minimum 100 N except ‘LOCK’ position. And, these insertion and extraction will toggle the key-in switch signal which shall be transmitted to Smart Key ECU for Limp home release and block function of MSCL Knob. 7) Unlocking of the steering device shall be performed as the knob is rotated from ‘LOCK’ to ‘ACC’ position after pushing and unblocking of knob. And, the locking of steering device will be proportionally performed as the knob is rotated from ‘ACC’ to ‘LOCK’with engagement of the lock bolt. 8) Electric power supply toward MSCL controller to activate a bistable solenoid shall be used to block and release the knob rotation. And, the solenoid block and release position shall be detected by an optical sensor integrated in MSCL controller, and the status will be transmitted to Smart Key ECU whenever the status is requested. And, due to the quick trial, when the knob rotation is jammed-the knob release or key interlock release, the user shall be able to turn the knob further only with short removal of the torque on the knob and without any operation for system re-triggering. If the electric power supply is failed towards MSCL controller, it is not possible to release and block the knob rotation. And, the solenoid will keep remained in the current position ‘Released’ or ‘Blocked’. In case the solenoid keep remained in position ‘Released’ instead of ‘Blocked’ because of electric failure.

Huf Korea Co., Ltd. 710, Baeksuk-dong, Chonan, Chungnam, 330-220, Korea TEL : 82-41-559-6452 / FAX : 82-41-621-4953 http://www.huf-group.com/ Date: October 23, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Hyun Lee / Senior Research Engineer / Huf Korea Co., Ltd.

Huf Korea Co., Ltd. 710, Baeksuk-dong, Chonan, Chungnam, 330-220, Korea TEL : 82-41-559-6452 / FAX : 82-41-621-4953 http://www.huf-group.com/ Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Huf Korea, would like the following documents regarding this submission for FCC ID: URT-36-414-600 to be kept confidential document from public disclosure indefinitely. - Schematics, Parts List - Block diagram, Theory of operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 45 days from the date of grant: - User manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Sang Hyun Lee / Senior Research Engineer / Huf Korea Co., Ltd.

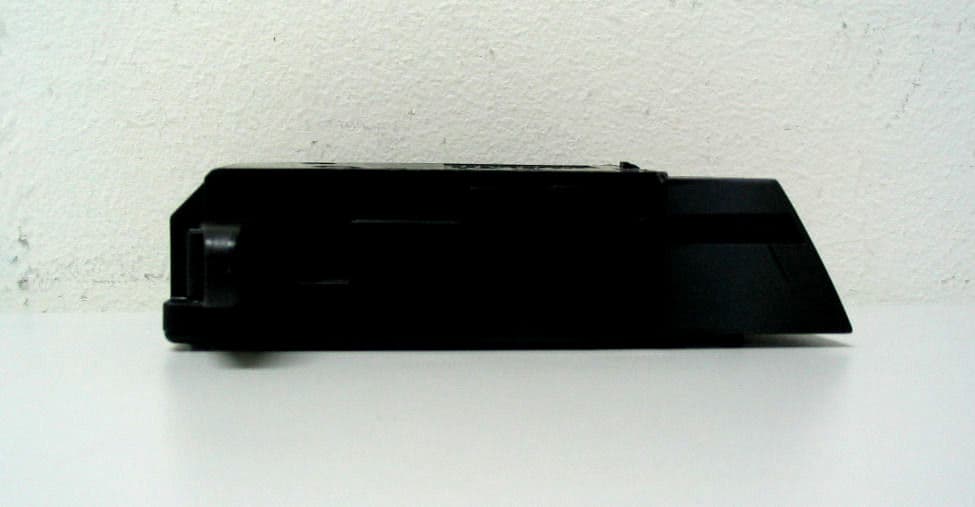

FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 18 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix B. Photos of the EUT Front View of EUT Rear View of EUT FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 19 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Right View of EUT Left View of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location Huf Korea Co., Ltd. Model : HUF-SMKREN FCC ID : URT36-414-600 Made in Korea

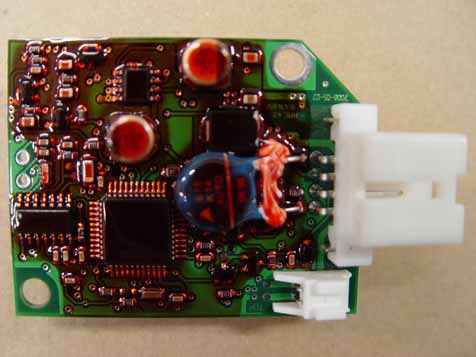

FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 20 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT Top View of Main-board FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 21 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Main-board View of Antenna ANT

FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 1 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT OF FCC Part 15 Subpart C §15.209 FCC ID: URT36-414-600 Equipment Under Test :SMK MSCL Model Name :HUF-SMKREN Serial No. :N/A Applicant :Huf Korea Co., Ltd. Manufacturer :Huf Korea Co., Ltd. Date of Test(s) :2006-10-30 ~ 2006-11-03 Date of Issue :2006-11-10 In the configuration tested, the EUT complied with the standards specified above. The above test certificate is the accredited test results by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. Te s t e d B y : Date 2006-11-10 Feel Jeong Approved By Date 2006-11-10 Albert Lim FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 2 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ----------------------------------------------------------- 6 3. Spurious Emission--------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency----------------------------------------------------- 13 5. Transmission Time-------------------------------------------------------------------------- 15 Appendix A. Photo of Field Strength fundamental & Spurious Emission Test Appendix B. Photos of the EUT FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 3 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-Si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Huf Korea Co., Ltd. Address : 710 Baeksuk-dong, Chonan, Chungnam, Korea Contact Person : Sang Hyun Lee Phone No. : +82 +41 559 6452 Fax No. : +82 +41 621 4953 1.3. Description of EUT Kind of Product SMK MSCL Model Name HUF-SMKREN Serial Number N/A Power Supply DC 12 V Frequency Range 125 kHz(Tx / Rx) Modulation Technique ASK(Tx / Rx) Frequency Generation X-Tal Number of Channels 1 CH(Tx / Rx) Operating Conditions -20 ~ +60 Antenna Type Fixed Type(Loop Coil Antenna) 1.4. Details of modification -N/A FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 4 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. EQPT. USED Spectrum Analyzer Agilent E4440A May 2007 Spectrum Analyzer H.P 8565E Dec. 2006 Loop Antenna Rohde & Schwarz HFH2-Z2 Sep. 2007 Ultra-Broadband AntennaRohde & Schwarz HL562 Oct. 2007 Horn Antenna Schwarzbeck BBHA9120A Jul. 2007 Test Receiver Rohde & Schwarz ESHS10 Jun. 2007 Test Receiver Rohde & Schwarz ESVS10 May 2007 Test Receiver Rohde & Schwarz ESU26 Aug. 2007 Anechoic Chamber SY Corporation L WH 9.66.46.4 Jun. 2008 FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 5 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15, Subpart C Standard Section Test Item Result 15.209(a) Field Strength of Fundamental PASS FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 6 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 kHz to 30 MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 MHz to 1 GHz Emissions. FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 7 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com The diagram below shows the test setup that is utilized to make the measurements for emission from 1 GHz to 18 GHz Emissions. FCC ID : URT36-414-600 Report File No. : STROR-06-082 Page : 8 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2.2. Limit 2.2.1. Radiated emission limits, general requirements Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength…
