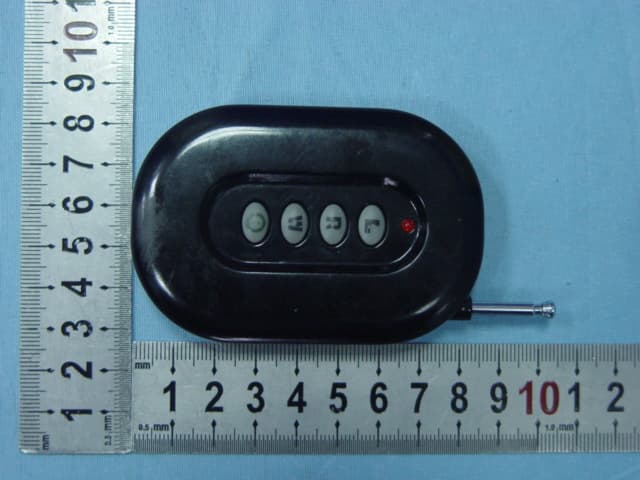

US5LYCY315MHZRemote Control
Le Yuan Kuo Enterprise Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Dec 10, 2006
- Application Purpose
- Original Equipment
- Date of Application
- Dec 10, 2006
- Equipment Note
- Remote Control
- Frequency Range
- 315.00000000 - 315.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
1 Remote Control Use the Remote Control to control the Remote Control Sprinkler, and the remote distant is Max 20M far away the Remote Control Sprinkler. I. How to use the Remote Control A. Press “ ” enter sprinkle mode, and the water automatic sprinkling around the middle to left 45° B. Press “ ” enter sprinkle mode, and the water automatic sprinkling around the middle to right 45°. C. Press “ ” enter sprinkle mode, and the water automatic sprinkling around full angle 90°. D. Press “ ” the Remote Control Sprinkler will stop sprinkling. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
ID Label/Location Info

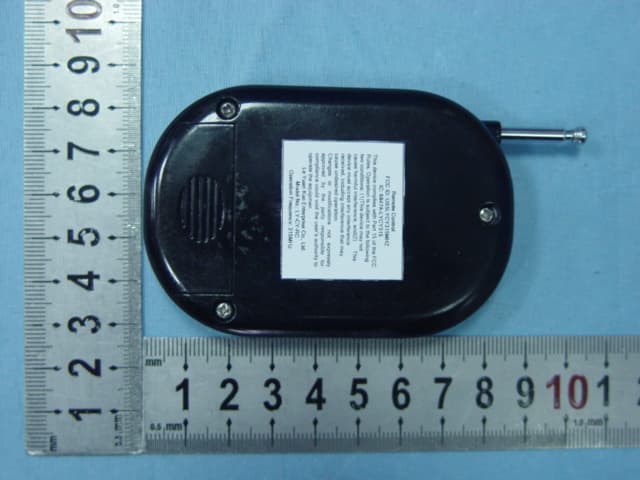

Remote Control FCC ID: US5LYCY315MHZ IC: 6847A-LYCY315 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipmen Le Yuan Kuo Enterprise Co., Ltd. Model No.: LY-CY-RC Operation Frequency: 315MHz FCC MARKING/LABEL FOR PART15 20mm 20mm
Operational Description
315MHZ Transmitter Operation description Transmitter Frequency: 315MHz Modulation type: ASK The control data signal is input to MCU by pressing the keyboard PCB. R1 provide the 2kHZ clock signal to MCU. Q4 is the oscillator transistor, which oscillating frequency is depends on Y1, C4, C2, R4 and C3, final oscillating frequency is 315MHz. Q3 is amplitude-transistor, and amplify the signal to oscillator transistor, and transmitted through the printed PCB antenna. C1 serve the function of antenna matching network
Schematics
1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 8-Dec-2006 Sheet of File: C:\Documents and Settings\weirunlin\My Documents\NT-4012B.DDB Drawn By: R1 4.7M R5 10K R2 51K R6 10K R710K R810K R351K R951K K0K1K3K2 BT12V C14P C36P C4102P C37P D4 1N4148*4 D3 D2 D1 Q1DV5 D5LED 12 3 Y1315 Q42SC3356 ANT +12V 12V A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6/D5 7 A7/D4 8 Vss 9 A8/D3 10 A9/D2 11 A10/D1 12 A11/D0 13 / TE 14 OSC1 15 OSC2 16 Dout 17 Vcc 18 U1PT2262
Test Report
Page 1 of 32 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20062448 APPLICATION CERTIFICATION On Behalf of Le Yuan Kuo Enterprise Co., Ltd. Remote Control Model No.: LY-CY-RC FCC ID: US5LYCY315MHZ IC ID: 6847ALYCY315 Prepared for : Le Yuan Kuo Enterprise Co., Ltd. Address : 10 Fang Tong Road, Wen-Jin Village Fang Yuan, Chang-Hwa, Taiwan Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20062448 Date of Test : November 28, 2006 Date of Report : November 29, 2006 Page 2 of 32 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20062448 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................4 1.3. Measurement Uncertainty.........................................................................................................................4 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 5 3. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 6 3.1. Block Diagram of Test Setup....................................................................................................................6 3.2. The Field Strength of Radiation Emission Measurement Limits..............................................................6 3.3. Configuration of EUT on Measurement ...................................................................................................7 3.4. Operating Condition of EUT ....................................................................................................................7 3.5. Test Procedure ..........................................................................................................................................7 3.6. The Field Strength of Radiation Emission Measurement Results ............................................................8 4. 20DB OCCUPIED BANDWIDTH ................................................................................................ 10 4.1. Block Diagram of Test Setup..................................................................................................................10 4.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................10 4.3. EUT Configuration on Measurement .....................................................................................................11 4.4. Operating Condition of EUT ..................................................................................................................11 4.5. Test Procedure ........................................................................................................................................11 4.6. Measurement Result ...............................................................................................................................12 5. 99% OCCUPIED BANDWIDTH .................................................................................................. 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. The Bandwidth of Emission Limit According To RSS-210 A1.1.3 .......................................................13 5.3. EUT Configuration on Measurement .....................................................................................................14 5.4. Operating Condition of EUT ..................................................................................................................14 5.5. Test Procedure ........................................................................................................................................14 5.6. Measurement Result ...............................................................................................................................15 6. RELEASE TIME MEASUREMENT............................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(a)& RSS-210 A1.1.1 ............16 6.3. EUT Configuration on Measurement .....................................................................................................17 6.4. Operating Condition of EUT ..................................................................................................................17 6.5. Test Procedure ........................................................................................................................................17 6.6. Measurement Result ...............................................................................................................................18 7. AVERAGE FACTOR MEASUREMENT .................................................................................... 19 7.1. Block Diagram of Test Setup..................................................................................................................19 7.2. Average factor Measurement ..................................................................................................................19 7.3. EUT Configuration on Measurement .....................................................................................................20 7.4. Operating Condition of EUT …
Text truncated - open the document above for the full version.
Contact Information
Applicant
Kuo Wen Ren(CEO)
Test Firm
Accurate Technology Co., Ltd.Sean Liu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 315 MHz - 315 MHz | - |
