USDK50362Electronic Ballast

Instruction 1. Purpose Link’s self ballast lamp has implemented three phosphors together into one compact fluorescent. It is a new type of light resource of green environment. The product’s applications are practical for supermarkets, shopping centers, retail stores, and gymnasium. 2. Characteristics Link’s self ballast lamp provides instant start, long-life and high lumen output. The lamp is designed to perform up to the industry standards by using less electricity. Lamp can operate under -18 °C below zero degrees Celsius. From Link’s testing results shows the self ballast lamp only uses 20% of the electricity and it is compared and equivalent to a regular incandescent bulb. 3. Directions 1) For Safety purposes, the lamp fixture must be powered off before being installed, changed or being cleaned 2) This self ballast lamp cannot be operated with dimmer device. In order to keep the lamp’s high performance it should be used in defined voltage. 3) This Lamp can be performed under environmental areas in temperature from -18° C to 45° C, it cannot be used in enclosed fixture or wet areas. 4). Please check the power, voltage and contacts of the lamp incase the lamp performs abnormal signs such as the light blinking or the light turns off suddenly 5). Do not hold the tube by the hands while changing or cleaning the lamp. The proper way is to hold the lamp by the plastic housing. 4 Warnning This device complies with Part 18 of the FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance. LINK SHANGHAI ELECTRONIC LIMITED OFFICE: 470 Jiang Su Lu, Building A, Suite 1203 Shanghai, China LINK WEBSITE: www.linklights.net

BLOCK DIAGRAM EMI Filter Rectifier Control driver Oscillator LC resonance Bulb

APPENDIX III External Photos EUT - Front View

APPENDIX I FCC ID Label FCC ID: USDK50362

APPENDIX II FCC ID Label Location FCC ID Label Location

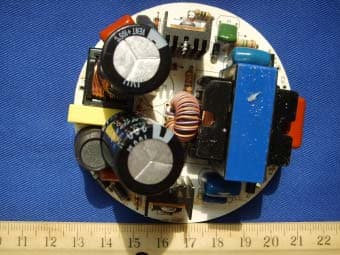

APPENDIX IV Internal Photos EUT – Uncovered View EUT –Components View EUT–Solder View

Circuit Description L2 L0C3 and C4 is a filter, can prevent noise conducted to public AC power line, and the AC will become DC via D1 to D4, C1, C2, T1 and T2 and it’s concern components form a oscillator, translate the DC to high voltage AC and output to lamp, then the lamp work normally.

Note: The test report is specially limited to the above company and the product model only, it may not be duplicated without prior written consent of Best Test Service (Shenzhen) Co., Ltd. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For LINK ELECTRONIC SHANGHAI CO., LTD. Zhu Jia Long Village, Gu Cun Town, Bao Shan District, Shanghai, China Brand Name: LINK Model No: LKE65 FCC ID: USDK50362 This Report Concerns: Original Report Equipment Type: Self Ballast Lamp Test Engineer: Andy Chou Report No.: BTR06110601-1 Report Date: 2006-11-08 Reviewed By: Chris Zeng Prepared By: Best Test Service (Shenzhen) Co., Ltd. Flat 11E, Xinhaofang Building, 11018, Shennan Road,Nanshan District, Shenzhen, China Tel: +86-755-86182350 Fax: +86-755-86182353 LINK ELECTRONIC SHANGHAI CO., LTD.. FCCID: USDK50362 Report # BTR06110601-1 Page 2 of 8 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SCHEMATICS / BLOCK DIAGRAM..................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................4 CONDUCTED EMISSIONS TEST DATA .................................................................................................................5 APPLICABLE STANDARD..............................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 EUT SETUP.................................................................................................................................................................5 TEST EQUIPMENTS.......................................................................................................................................................6 TEST PROCEDURE........................................................................................................................................................6 SUMMARY OF TEST RESULTS.......................................................................................................................................6 CONDUCTED EMISSIONS TEST DATA AND PLOTS.........................................................................................................7 LINK ELECTRONIC SHANGHAI CO., LTD.. FCCID: USDK50362 Report # BTR06110601-1 Page 3 of 8 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The LINK ELECTRONIC SHANGHAI CO., LTD.’s model LKE65or the “EUT” as referred to in this report is Self Ballast Lamp, which measures approximately is 8.0cmL x 8.0cmW x 27.4cmH, rated input voltage: AC 120V/60Hz. The test data was only good for the test sample. It may have deviation for other test sample. Objective The following test report is prepared on behalf of LINK ELECTRONIC SHANGHAI CO., LTD.. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to demonstrate compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with MP-5 1986, FCC Method of measurements of radio noise emission from Industrial, Scientific and Medical equipments. Test Facility All measurement facilities used to collect the data are located at Huatongwei Building , Keji Rd, 12 S, high-Tech Park, Nanshan District, Shenzhen, China. The sites are constructed in conformance with the requirements of ANSI C63.7/634 and CISPR 22, The site was accredited by FCC (662850), A2LA( 2243.01) and CNAL (L1225) LINK ELECTRONIC SHANGHAI CO., LTD.. FCCID: USDK50362 Report # BTR06110601-1 Page 4 of 8 FCC Part 18 Report SYSTEM TEST CONFIGURATION Justification The EUT was tested under normal mode as used by a common (typical) user. Schematics / Block Diagram N/A. Equipment Modifications No modifications were made by BEST TEST SERVICE (SHENZHEN) CO., LTD. to ensure the EUT to comply with the application limits and requirements. Configuration of Test System Test Setup Block Diagram 1.5 Meters E U …

Text truncated - open the document above for the full version.

APPENDIX V Test Setup Photos Test Setup – Front View Test Setup – Side View
