USE010387net10 desktop reader

INS-01009 1 ? 2 4 3 x 1 paxton.info/2243 The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 To comply as a UL listed installation, the following conditions must apply:- Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities having jurisdiction. Wiring: - Where an equivalent cable / wire is used it must be ' UL Listed '. All interconnecting devices must be UL Listed. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. La déclaration de conformité est disponible sur demande. Consultez : http://paxton.info/596 Pour que l’installation répond aux normes UL, les conditions suivantes sont applicables:- Les méthodes de câblage doivent être en accord avec le code nation électrique (ANSI/NFPA70), codes locaux et les autorités ayant la juridiction. Quand un cable équivalent est utilisé, il doit être ‘listé UL’Tout appareil d’interconnexion doit être listé UL Conformité FCC Ce dispositif est conforme à la section 15 du règlement de la FCC. Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif ne doit pas créer d'interférences nuisibles et (2) ce dispositif doit accepter toute interférence reçue, y compris des interférences qui peuvent causer un fonctionnement non souhaité. Tout changement ou modication non agréé par la partie responsable de la mise en conformité peut entraîner une interdiction d'utilisation de l'équipement. l’industrie Canadienne Ce dispositif est conforme au(x) standards RSS de l’industrie Canadienne sans-licence. Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif ne doit pas créer d’interférences nuisibles et (2) ce dispositif doit accepter toute interférence reçue, y compris des interférences qui peuvent causer un fonctionnement non souhaité. +44 (0)1273 811011 paxton.support [email protected] +44 (0)1273 811011 paxton.support [email protected] +1(800) 672-7298 usapaxton.support [email protected] +1(800) 672-7298 usapaxton.support [email protected] +49 (0) 251 2080 6900 paxton.gmbh.support [email protected] +31 (0)76 3333 999 paxton.benelux.support [email protected] +31 (0)76 3333 999 paxton.benelux.support [email protected] +31 (0)76 3333 999 paxton.benelux.support [email protected] +33 (0)157 329356 [email protected] paxton.support +27 (0) 272 14276691 [email protected] paxton.support +44 (0)1273 811011 paxton.support [email protected] 1.0.0© Paxton Ltd

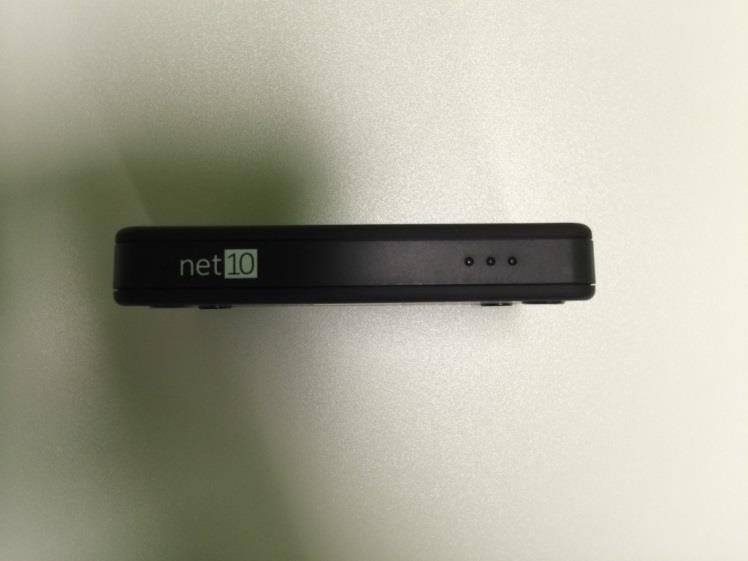

External Photographs PHOTO 1 – top view PHOTO 2 – bottom view PHOTO 3 – front view PHOTO 4 – back view PHOTO 5 – side view

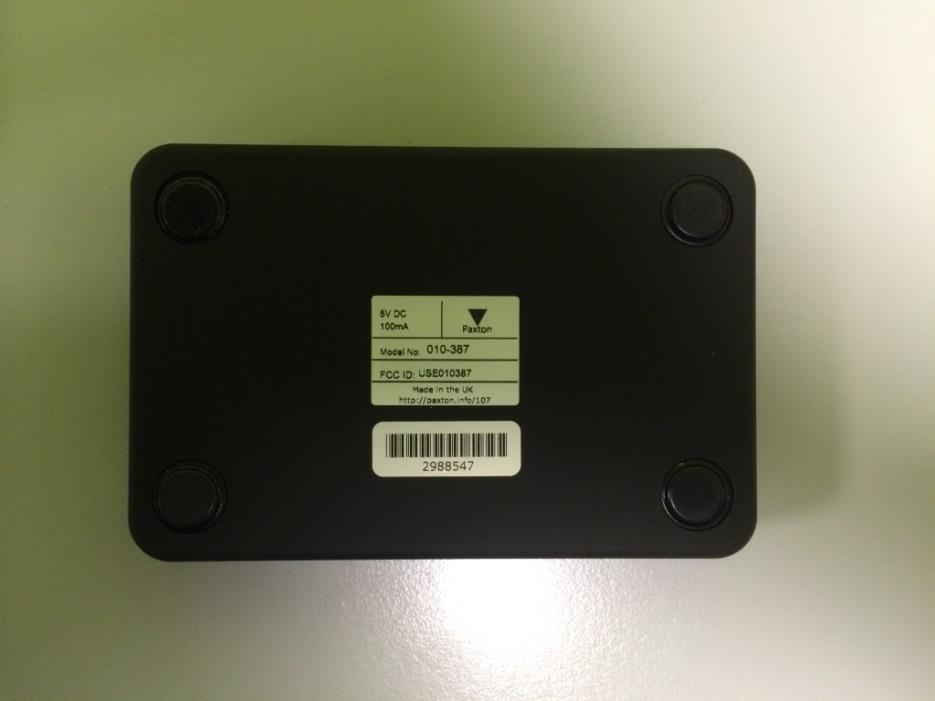

Label Information 010-387 – net10 desktop reader Label Artwork: Sales Code Label part number: Ils-z214 - Sales Code label, 27x20mm, Net10, CE, FCC Label Make-up Information: Base label: Label – ils-272w - Label - 27x20mm UL Z-X4000T white, 3340 per roll Label dimensions: 27mm x 20mm Label material and print ribbon manufacturer: ZEBRA TECHNOLOGIES EUROPE LTD Label materials: Z Xtreme 4000T White with 3200 ribbon. UL file number: PGJI2.MH18322 Label Location: On back of enclosure (indent provided)

Internal Photographs PHOTO 1 - PCB in base housing PHOTO 2 – PCB top view PHOTO 3 – PCB bottom view

AN RADIO TEST REPORT FOR Paxton Access Ltd ON Net10 Dual Mode RFID Desktop Reader DOCUMENT NO.TRA-024435-00-47-00B TRaC Wireless Test Report : TRA-024435-00-47-00B Applicant : Paxton Access Ltd Apparatus : Net10 Dual Mode RFID Desk Top Reader Specification(s) : CFR47 Part 15, RSS-GEN & RSS-210 Purpose of Test : Certification FCCID : USE010387 Certification Number : 10217A-010387 Authorised by : : Radio Product Manager Issue Date :23 rd April 2015 Authorised Copy Number : PDF Total number of pages: 51 TRaC Global Test Report: TRA-024435-00-47-00B Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated – 125.0 kHz 15 A2 Transmitter Intentional Emission Radiated – 13.56MHz 16 A3 Radiated Electric Field Emissions 18 A4 Power Line Conducted Emissions 23 A5 Frequency Tolerance 13.56MHz 28 Appendix B: Supporting Graphical Data 29 Appendix C: Additional Test and Sample Details 37 Appendix D: Additional Information 43 Appendix E: Calculation of the duty cycle correction factor 44 Appendix F: Photographs and Figures 45 Appendix G: General SAR test reduction and exclusion guidance 49 3 TRaC Global Test Report: TRA-024435-00-47-00B Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: S Hodgkinson This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-024435-00-47-00B 1.2 Tests Requested By This testing in this report was requested by : Paxton Access Ltd Paxton House Home Farm Road Brighton BN1 9HU Great Britain 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 22 nd – 28 th January 2015 The Net10 Dual mode Desktop RFID reader which operates on 125kHz and 13.56MHz. Model: 010-387 5 TRaC Global Test Report: TRA-024435-00-47-00B 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Title 47 of the CFR: Part 15 Subpart (c) RSS-210 Measurement standard Result Spurious Emissions Radiated <1000MHz 15.209 RSS-Gen Issue 4 6.13 ANSI C63.10:2009 Pass Spurious Emissions Radiated >1000MHz 15.209 RSS-Gen Issue 4 6.13 ANSI C63.10:2009 N/A Emissions Below 30MHz 15.209 RSS-Gen Issue 4 6.13 ANSI C63.10:2009 Pass AC Power conducted emissions 15.207 RSS-Gen Issue 4 8.8 ANSI C63.10:2009 Pass Intentional Emission Frequency 15.209 & 15.225(a) A2.6 & RSS-Gen Issue 4 6.13 ANSI C63.10:2009 Pass Intentional Emission Field Strength 15.209 & 15.225(a) A2.6 & RSS-Gen Issue 4 6.12 ANSI C63.10:2009 Pass Intentional Emission Band Occupancy 15.215 (c) RSS-Gen Issue 4 6.6 ANSI C63.10:2009 Pass Frequency Stability 15.225 RSS-Gen 4.7 ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Subpart (b) 15.109 RSS-Gen Issue 4 6.11 ANSI C63.10:2009 Pass Antenna Arrangements Integral: 15.203 RSS-Gen Issue 4 6.7 - Pass Antenna Arrangements External Connector 15.204 RSS-Gen Issue 4 6.7 - N/A Restricted Bands 15.205 RSS-Gen Issue 4 8.10 - Pass Maximum Frequency of Search 15.33 RSS-Gen Issue 4 6.13 - Pass Extrapolation Factor 15.31(f) RSS-Gen Issue 4 6.5 - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-024435-00-47-00B 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 t…
