Installation Instructions Original Instructions 58UHF RFID Short-range Transceiver Catalog Numbers 58UHF-TR-100-SR15US, 58UHF-TR-100-SR15EU Features •Global Ultra-High Frequency (UHF) RFID solution -865...868 MHz EU and UK model (CE) -902...928 MHz US and North America model (FCC) •Tag compatibility: ISO 18000-63 (EPC global Gen2) compliant •Sensing range up to 1.5 m (4.92 ft) •Built-in status indicators for diagnostics •All-in-one linear and circular antennas •Excellent reliability in harsh environments Typical Applications •Asset tracking •Data acquisition •Product handling •Automotive •Food and pharmaceutical Specifications Status Indicator Functionality WA R N I N G : Never disassemble or modify the scanner. Doing so could result in an accident such as fire or electric shock. AttributeValue Enclosure ratingIP66/67 Operating temperature [°C (°F)]-20...+55 (-4...+131) Storage temperature [°C (°F)]-40...+85 (-40...+185) Relative humidity (1) (1)No condensation • Operating: 35...95% • Storage: 25...85% Vibration 10 g at 10...500 Hz Shock resistance [g]50 Tag compatibility ISO 18000-63 Sensing distance, max (2) [m (ft.)] (2)The setting limits depend on the country or the function. This reference value can vary depending on the operating environment tag type. 1.5 (4.92) Compliance FCC, UL/cUL, CE, UKCA, and ISED Connector • EtherNet/IP™: M12 4-pin plug DC Micro • Power and I/O: M12 4-pin socket DC Micro Communication protocolEtherNet/IP Supply voltage 19.2...26.4V DC Current consumption at 24V DC, max •Supply: 1 A CLASS2/SELVS •Input: 15 mA •Output: 0.5 A Communication rate • RFID: 1024 bps • Ethernet: 10/100 Mbps, half or full-duplex Frequency • 865.7...867.5 MHz EU and UK model (at 600 kHz intervals, 4 channels total) • 902.75...927.25 MHz US and North America model (at 500 kHz intervals, 50 channels total) NameDescriptionStateIndicates MOD Indicates status of the transceivers OffNo power Steady greenDevice operational Flashing greenStandby (device has not been configured) Flashing redMajor recoverable fault Steady redMajor nonrecoverable fault Flashing green/redSelf-test (power-up testing) Link1/2 Indicates status of Ethernet (E1/ E2) port OffNo link Steady greenLink Steady yellowPort disabled Flashing green Port activity (data packets currently being exchanged) Flashing yellowCollision Steady redMajor NIC fault NET Indicates status of the connections OffNo power or powered on with no IP address Flashing green No connections (IP address, but no CIP™ connections are established, and an exclusive owner connection has timed out) Steady greenConnected Flashing redConnection timeout Steady redDuplicate IP Flashing green/redSelf-test (power-up testing) R/W Indicates status of the read/write commands OffNo power Steady greenPowered but idle Flashing green Transmitting RF carrier wave (no tags detected) Steady yellow Succeeded at tag operation (tag read/write complete) Flashing yellow Failed at tag operation (tag read/write incomplete) Flashing redRF transmit failure 2Rockwell Automation Publication 58UHF-IN001A-EN-P - December 2022 58UHF RFID Short-range Transceiver Installation Instructions Connector Pinouts FCC Notice (For U.S. Customers) This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device will not cause harmful interference; and (2) This device must accept any interference received, including interference that can cause undesired operation of the device. Changes and modifications that are not expressly approved by Rockwell Automation can void your authority to operate this equipment under Federal Communications Commissions rules. This equipment is tested and found to comply with the limits for a Class A digital device, according to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. IMPORTANTInstallation must be in accordance with local and/or national codes. Servicing energized industrial control equipment can be hazardous if not in accordance to recommended safety procedures. Table 1 - EtherNet/IP (1) (1)E1 - Standard right-angle Ethernet cables point left. E2 - Standard right-angle Ethernet cables point right. DC M12, D-coded, 4-pin PlugPin SignalColor 1TxData +White/orange 2Recv Data +White/green 3TxData -Orange 4Recv Data -Green Table 2 - Power I/O DC M12, D-coded, 4-pin SocketPin SignalColor 1+24V DCBrown 2InputWhite 30V DCBlue 4OutputBlack 1 2 4 3 1 2 4 3 ATTENTION: This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, can cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you must correct the interference at your own expense. IMPORTANTThis equipment complies with FCC radiation exposure limits for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. When you install and operate this equipment, keep a minimum of 35 cm (13.78 in.) between the radiator and a person’s body. Rockwell Automation Publication 58UHF-IN001A-EN-P - December 20223 58UHF RFID Short-range Transceiver Installation Instructions ISED Information Th is device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference; an d (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada ap plicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doi…

Text truncated - open the document above for the full version.

User Manual Original Instructions 58UHF RFID Systems Bulletin Number 58UHF 2Rockwell Automation Publication 58UHF-UM001A-EN-P - January 2023 58UHF RFID Systems User Manual Important User Information Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards. Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations. These labels may also be on or inside the equipment to provide specific precautions. The following icon may appear in the text of this document. WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss. ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence. IMPORTANTIdentifies information that is critical for successful application and understanding of the product. SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present. BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures. ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE). Identifies information that is useful and can help to make a process easier to do or easier to understand. Rockwell Automation Publication 58UHF-UM001A-EN-P - January 20233 Table of Contents Purpose of this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Who Should Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Chapter 1 IntroductionRFID Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 International Standard Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ISED Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 2 RFID ComponentsTransceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Status Indicators Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Main Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Chapter 3 Electrical InstallationCable Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power I/O Connection (on Transceiver) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 EtherNet/IP Connection (on Transceiver) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Chapter 4 EtherNet/IP AddressingStar Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Linear Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Device Level Ring (DLR) Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Set the Net…

Text truncated - open the document above for the full version.

Jim Dogul 2 Executive Dr Chelmsford MA 01824 Tel :978 446 3208 Email:[email protected] CFR 47 §2.911 (d)(5) Attestation Date: February-07-2023 FCC ID: USM-58UHF-SR To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA Rockwell Automation, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 1. Rockwell Automation, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: James Dogul Job Title: Continuation Engineer Company Name: Rockwell Automation, Inc.

Jim Dogul 2 Executive Dr Chelmsford MA 01824 Tel :978 446 3208 Email:[email protected] Rockwell Automation Company 'Confidential' CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: April-19-2023 FCC ID: USM-58UHF-SR To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA Rockwell Automation, Inc. (“t he applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. James Dogul FRN: 0015553290 Rockwell Automation, Inc. 2 Executive Drive, Chelmsford, Massachusetts 01824, United States [email protected] Sincerely yours, James Dogul Rockwell Automation, Inc. 2 Executive Drive, Chelmsford, Massachusetts 01824, United States [email protected]

Letter of Authorization Date: February 9, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Rockwell Automation, Inc. FCC ID: USM-58UHF-SR To whom it may concern: We, the undersigned, hereby authorize Shuichi Ohyama of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Tatsuya Terashima DENSO WAVE Inc.

Request for Confidentiality Date: February 10, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Rockwell Automation, Inc. FCC ID : USM-58UHF-SR To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts list The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Tatsuya Terashima DENSO WAVE Inc.

Request for Short-Term Confidentiality Date: February 9, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : USM-58UHF-SR Applicant : Rockwell Automation, Inc. To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization based on the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Tatsuya Terashima DENSO WAVE Inc.

58UHF-TR-100-SR15US

Position of Label: All products have 2 kind of Label. -MAC ID Label -Product Label ※The labels are made from UL-rated materials and their durability is verified by accelerated life testing. MAC ID Label Product Label

/** 発表会名 / 日付 / 発表者氏名 / 部署名 を英語で記入（スライドマスターでフッターを変更してください） © DENSO WAVE INCORPORATED All RightsReserved. CONFIDENTIAL 関係者外秘 Product Label/US Short 5 FCC ID:USM-58UHF-SR IC:26075-58UHFSR 1.011 DIR/VER 10006964461/00 PN-678636 CIP 801FE418 2003259 PRODUCT OF JAPAN 58UHF-TR-100-SR15US Rockwell Automation, 1201 S 2ND St, Milwaukee, Wl 53204, USA CAT A SER FW SN DE0AA0AA INPUT : 24V 15mA MAX OUTPUT : 24V 0.5A MAX SUPPLY : 24V 1A CLASS2/SELVS YYYY/MM/DD E222552 ITE itemheight[mm] CAT1.2 58UHF-TR-100-SR15US1.5 SER1.2 A1.5 FW1.2 1.0111.2 FCC ID:***1.5 IC:*** 1.5 SN ********1.2 DIR/VER:***1.2 PN-6786361.2 CIP 801FE418 1.2 20032591.2 PRODUCT OF JAPAN1.2 Rockwell Automation, 1201 S 2ND St, Milwaukee, Wl 53204, USA 1.0 SUPPLY : ***1.0 INPUT : ***1.0 OUTPUT : ***1.0 YYYY/MM/DD1.2 ITE1.2 E2225521.2

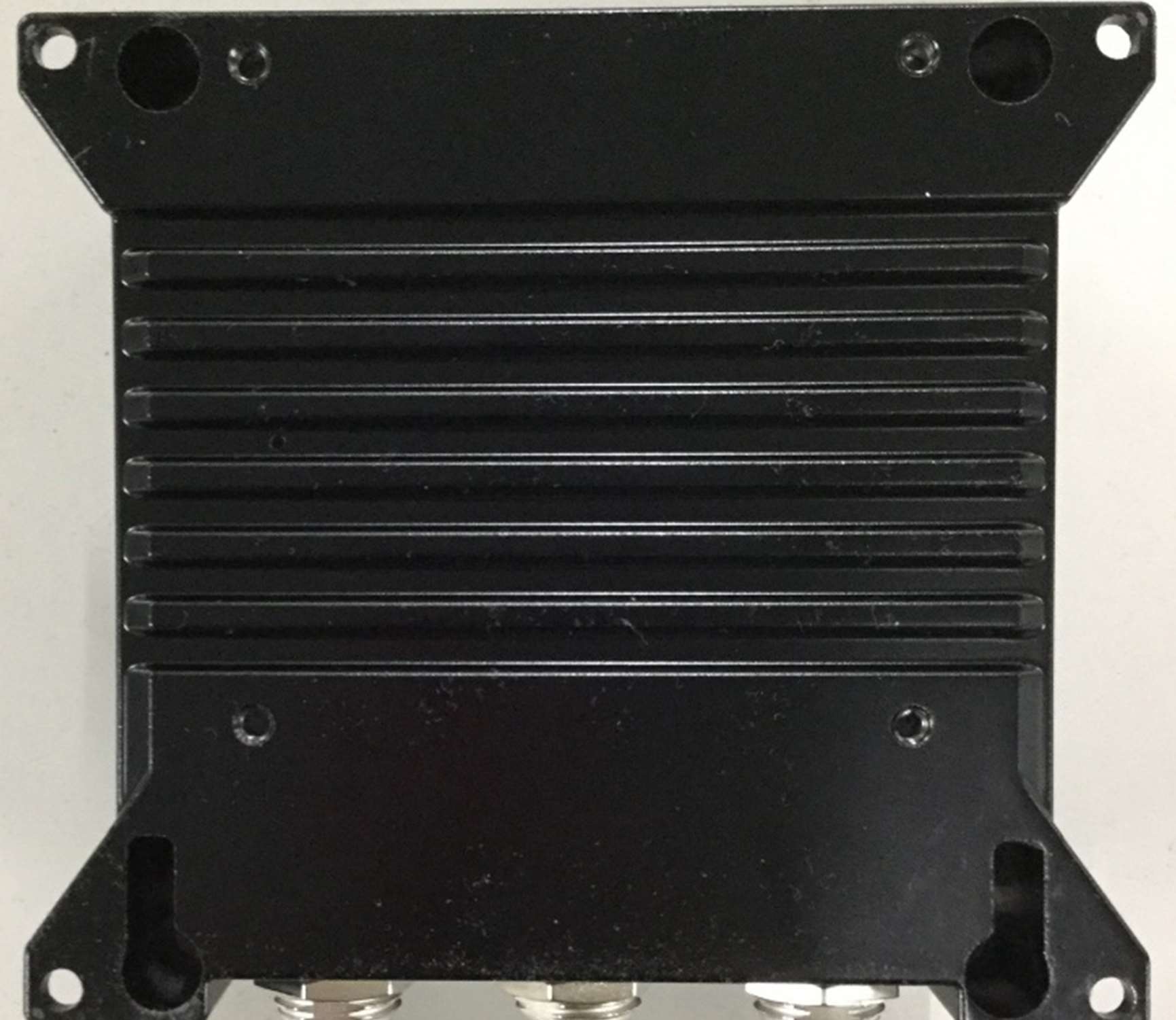

58UHF-TR-100-SR15US RF circuit Front Back RF circuit 58UHF-TR-100-SR15US Antenna RF circuit 80ｍｍ 80ｍｍ

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com February 14, 2023 FCC ID: USM-58UHF-SR To whom it may concern, We, UL Japan, Inc, hereby declare that UHF RFID Transceiver 58UHF Short US Band, model: 58UHF-TR-100- SR15US (FCC ID: USM-58UHF-SR) of Rockwell Automation, Inc. is exempt from RF exposure SAR evaluation because the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(i)(B). This method is used at separation distances d (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive) for single RF sources. P th is given by: 푃 ௧௛ ሺ mW ሻ ൌ൜ 퐸푅푃 ଶ଴ ୡ୫ ሺ푑 / 20 cmሻ ௫ 퐸푅푃 ଶ଴ ୡ୫ 푑൑20 cm 20 cm ൏ 푑 ൑ 40 cm Where 푥ൌെlog ଵ଴ ቆ 60 퐸푅푃 ଶ଴ ୡ୫ ඥ 푓 ቇand 푓 is in GHz 퐸푅푃 ଶ଴ ୡ୫ ሺ mW ሻ ൌቊ 2040푓 3060 0.3 GHz൑푓൏1.5 GHz 1.5 GHz൑푓൑6 GHz When the minimum separation distance is shorter than 0.5 cm, 0.5 cm is applied. The SAR evaluation exemption threshold is calculated as below. Pth (mW) 1840.08(dBm)20.67 f (GHz) 0.902(mW)116.7 ERP 20 cm (mW) 1840.083.62 d (cm) 35.024.29 (dBm)22.15 (mW)164.1 The Maximum time-averaged power or ERP whichever greater is 164.1 mW. Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP Thank you for your attention to this matter. Ryota Yamanaka Engineer

Model number58UHF-TR-100-SR15US Frequency Range902.75MHz to 927.25MHz Antenna Typeλ/2 Patch antenna Connector TypeUFL Antenna Gain3.62dBi max(902MHz to 928MHz) Impedance50Ω Cable length105mm Cable loss 902MHz：-0.2544 dB 915MHz：-0.2549 dB 928MHz：-0.2444 dB Does the value of antenna gain include cable loss? Not included Photographs of antenna FrontBack Antenna specification ①Test method of antenna gain Test Setup Network AnalyzerPosition Controller Horn antenna 58UHF-TR-100-SR15US 3m 1.5m Turntable Company Name DENSO WAVE INCORPORATED Company Address 1 Yoshiike Kusagi Agui-cho, Chita-gun, Aichi 470-2297, Japan date2022/12/13 EngineerTatsuya Terashima Setting of Network Analyzer •Frequency range 800MHz to 1000MHz •Number of measurement points 1000 Antenna measurement １．Adjust the scale of the standard dipole antenna to 920 MHz. ２．Measure S21 characteristics. １．Measure the S21 characteristics of horizontal polarization and linear polarization. （ Rotate the turntable within ±90°. ） Standard Dipole Antenna UHF Antenna(58UHF-TR-100-SR15US ) Antenna gain calculation ・ S21 characteristics of Standard dipole antenna G1：Horn antenna Gain＋ Standard dipole antenna Gain＋Free Space Path Loss ・ S21 characteristics of UHF antenna G2： Horn antenna Gain＋ UHF antenna Gain＋Free Space Path Loss Standard dipole antenna Gain：2.15dBi UHF antenna Gain [dBi] = G2 – G1 ＋ Standard dipole antenna Gain ②Test Equipment DescriptionManufacturerModelSerial Network Analyzer Agilent Technologies E5071BE5071B-AO-16984 MY42404382 Horn antenna--- Standard Dipole Antenna ANRITSU CORP. -- Antenna towerDEVICE CO.,LTD DW3259AV2/O Position Controller DEVICE CO.,LTD -- Turntable--- ③Photographs of test setup

Test Report No. : 14586577H-A-R1 Page : 1 of 44 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No.: 14586577H-A-R1 Customer Rockwell Automation, Inc. Description of EUT UHF RFID Transceiver 58UHF Short US Band Model Number of EUT 58UHF-TR-100-SR15US FCC ID USM-58UHF-SR Test Regulation FCC Part 15 Subpart C Test Result Complied (Refer to SECTION 3) Issue Date February 15, 2023 Remarks - Representative Test Engineer Approved By Junya Okuno Engineer Ryota Yamanaka Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Re port Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test Report No. : 14586577H-A-R1 Page : 2 of 44 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14586577H-A Th is report is a revised version of 14586577H-A. 14586577H-A is replaced with this repor t. Revision Test Report No. Date Page Revised Contents - (Original) 14586577H-A February 13, 2023 - 114586577H-A-R1 February 15, 2023 Correction of EUT’s model number in Clause 4.2 1 14586577H-A-R1 February 15, 2023 Correction of the Measurement Range in SECTION 6; From 30 MHz to 26.5 GHz To 30 MHz to 10 GHz This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. Th e results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.) This sample tested is in compliance with the limits of the above re gulation. The test results in this test report are traceable to the national or international standa rds. Th is test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. This test re port covers Radio technical requirements. I t does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicab le) Th e all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accred ited. Th e information provided from the custome r for this report is identified in Section 1. For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test Report No. : 14586577H-A-R1 Page : 3 of 44 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. : 14586577H-A-R1 Page : 4 of 44 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ...................................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .......................................................................................... 5 SECTION 3: Test Specification, Procedures & Results ....................................................................... 6 SECTION 4: Operation of EUT during testing .................................................…
