USNCWF-1X1900AACDMA FIXED WIRELESS PHONE

3 WARNING! Read this information before using you phone In August 1996 the Federal Communications Commission(FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guideline are consistent with the safety standard previously set by both U.S and international standards bodies. The design of this phone complies with the phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Near-Body Operation This device was tested for typical body-worn operations with the back of phone kept 2.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, maintain a 2.5 cm. separation distance between the user’s body and the phone, including the antenna. FCC RF EXPOSURE INFORMATION Safety Precautions4 Checking Parts 5 Setting up Your Phone6 Getting to Know Your Phone9 Display Icons10 Function Keys11 Basic Operation Placing Calls14 Redial14 Receiving Calls15 Adjusting Volumes16 Choosing the Ring Tone17 On-Hook Call17 Internal Phone Book The Internal Phone Book 20 Storing Numbers in Memory20 Searching for Numbers in Memory21 Erasing a Number in Memory23 One-Touch Calling24 Two-Touch Calling24 Useful Features Call Logs26 Electronic Dialing27 Displaying Your Phone Number28 Mute28 Silent Scratchpad 29 Sending Your Phone Number30 Selecting Time Mode31 Setting the Alarm31 Checking and Clearing Call Times32 Setting Warning Beeps32 Advanced Features Changing Greeting Message34 System Reset34 Restricting Use of the Phone35 Locking the Phone37 Changing the Lock Code38 Tone Length38 Optional Features Call Forwarding40 Call Waiting40 Three-Way Calling40 Message Service40 Miscellaneous Menu Options Table46 FWT Setting48 Conversation and Message Menu50 Specifications50 TABLES OF CONTENTS 1.Avoid placing the phone in a dusty location, or near a source of gas or fire. 2.Don’t shake, hit or drop the phone. 3.If you clean the outside of the phone, use only a soft, dry cloth. The chemicals in alcohol, benzine or acetone can damage the surface of the phone. 4.Do not twist or pull the cord out of the phone. 5.Do not disassemble the phone. 6.DO NOT use the power adapter if: The power cord is damaged. The phone has been dropped or damaged in any way. 7.Use only the provided adapter. Do not use the - adapter for any other purpose. 8.Use only the provided antenna. Do not use the antenna for any other purpose. 9.Frequency and length of use can affect the life of the self-charging battery. Contact your customer service if the battery is not operating properly. 10. Use only the designated self-charging battery. Dispose of exhausted batteries properly. Never discard a battery in or near fire or flame. 11.Do not use the telephone near water, for example, near a bathtub, sink, wet basement, or swimming pool. NOTE : The input voltage and the shape of the plug on this phone may vary from country to country. 4 USER’S MANUAL SAFETY PRECAUTIONS • • Once you have unpacked your phone, make sure that you have all the parts shown below. If any piece is missing or broken, please call your customer service. 1.Main Set 2.Hand Set 3.AC/DC Adapter4.User’s Manual 5.Antenna6.External Battery(optional) 7.Data Cable-USB(Optional)8.Data Cable-RS-232C(optional) 5 USER’S MANUAL CDMA WIRELESS LOCAL LOOP PHONE CHECKING THE PARTS 12 3 654 87 NOTE :The input voltage and the shape of the plug may vary from country to country. The input and output voltage of the adapter is indicated on the adapter. Do not use the phone with unspecified voltage. 6 USER’S MANUAL SETTING UP YOUR PHONE Attach the handsetConnect the antenna Plug the AC/DC adapter into the jack on the back of the telephone Plug the AC/DC adapter into an appropriate wall outlet INSTALLING THE PHONE 1 2 34 This phone operates by receiving D.C. power from the specified D.C. adapter, which is connected to electrical outlet. The phone is equipped with a rechargeable external battery to back up power failure. Display in service area When the power cord is connected properly, Power LED will light. All segments in the LCD window will turn on briefly. When the service LED at the top of the phone is on, service is available. The display will show the greeting, time and date. You can change the greeting(See page 34). Display in area with no service When there is no service in your area, the signal icon does not appear in the display. In this case, contact your service provider. 7 USER’S MANUAL CDMA WIRELESS LOCAL LOOP PHONE SERVICE STATUS CHECK Display in service area Display in area with no service Battery icon indicates when use battery. USER’S MANUAL INSTALLING THE BATTERY Remove the back cover of the phoneInsert the battery 12 8 NOTE :Please put the battery switch located in battery slot at "1" position after insert the battery. 9 USER’S MANUAL CDMA WIRELESS LOCAL LOOP PHONE GETTING TO KNOW YOUR PHONE 1. Antenna :Adjusting the antenna improves the sound quality of the call. 2. Power/RSSI LED : The Power LED lights when the power is connected. Under battery power, this LED is always blinking. 3. STORE : Stores phone numbers, and any settings you select in the menu within the phone’s memory. 4. MESSAGE : Press to retrieve messages. 5. RECALL : Allows you to redial the last number called. 6. On-Hook : Allows you to enter phone number without lifting the handset off the hook. 7. Shift Keys : Press to move the cursor when entering letters and to scroll through menu options and displays. 8. CLEAR :Lets you clear your last entry. 9. MENU : Press to access the phone’s menus. Icons display on the screen to indicate what features you are using and the status of the phone, signal strength, and battery. 10 USER’S MANUAL DISPLAY ICONS Indicates the strengt…

Text truncated - open the document above for the full version.

December 06, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ACBEL POLYTECH INC. FCC ID : USNCWF-1X1900AA Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [USNCWF-1X1900AA] SCH.pdf), Parts list(File name: [USNCWF-1X1900AA] PL.pdf), Block diagram (File name: [USNCWF-1X1900AA] BLK.pdf) and Operational description (File name: [USNCWF-1X1900AA] Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hsin-Ming, Feng ACBEL POLYTECH INC. No. 159, Sec. 3, Tam-King Rd., Tamsui, Taipei, Taiwan, R.O.C. Tel. +886-2-26217672 Fax +886-2-86318073

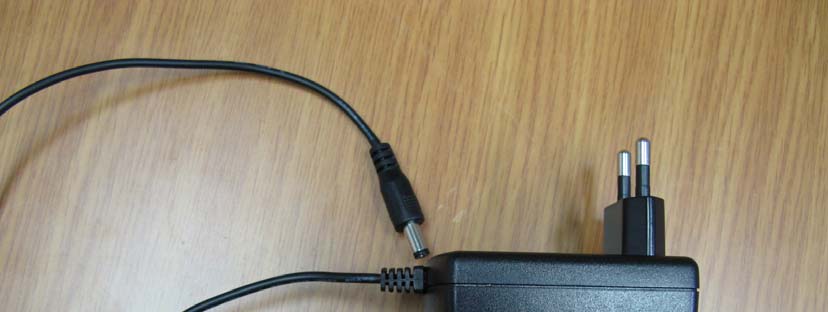

FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. View 1 FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. View 2 FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. View 3 FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. View 4 FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. Adaptor photo

ACBEL POLYTECH INC. NO.159, SEC.3, TAM-KING RD., TAMSUI, TAIPEI, TAIWAN, R.O.C. TEL:02-26217672 FAX:02-86318064 Label Location for FCC ID. Model : CWF-1x1900AA Please refer to photo below, FCC Label Location

ACBEL POLYTECH INC. NO.159, SEC.3, TAM-KING RD., TAMSUI, TAIPEI, TAIWAN, R.O.C. TEL:02-26217672 FAX:02-86318064 Label Location and Label Sample for FCC ID. Model : CWF-1x1900AA Please refer to photo below, FCC ID: USNCWF-1X1900AA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. Inside photo FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. Main Board FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. Main Board FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. LCD FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. Key Pad photo FCC ID: USNCWF-1X1900AA Copyright Ⓒ 2007, LTA Co., Ltd. photo

A A A c c c B B B e e e l l l Specification-CWF1900/800 AcBel August 15, 2005 Rev.0 Confidential CDMA2000 1x WLL CWF-1x 1900/800 CDMA2000 1x WIRELESS LOCAL LOOP FIXED TELEPHONE CWF-1x 1900/800 Product Specification Confidential Document All data and information contained in or disclosed by this document are confidential and proprietary information of ACBEL POLYTECH INC., and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of ACBEL POLYTECH INC. Information in this document is preliminary and subject to change and does no t represent a commitment on the part of ACBEL POLYTECH INC. A A A c c c B B B e e e l l l i/18 AcBel Confidential CDMA2000 1x WLL CWF-1x 1900/800 Contents 1. Scope ............................................................................................................... 1 1.1 Purpose................................................................................................... 1 1.2 General Descriptions.............................................................................. 1 2. Applicable Documents.................................................................................... 2 3. Specifications .................................................................................................. 3 3.1 General Specifications ........................................................................... 3 3.1.1 Transmitter.................................................................................... 4 3.1.2 Receiver ........................................................................................ 4 3.1.3 LED............................................................................................... 4 3.1.4 ICON............................................................................................. 5 3.1.5 Sound Indications ......................................................................... 5 3.1.6 Adapter ......................................................................................... 6 3.1.7 Battery........................................................................................... 7 3.1.8 Frequency Bands.......................................................................... 8 3.1.9 Preferred Roaming List (PRL) ..................................................... 8 3.1.10 Vocoder......................................................................................... 8 3.1.11 External Interfaces ........................................................................ 8 3.1.12 Keypad/Button/Switch.................................................................. 8 3.1.13 Display/LCD................................................................................. 9 3.2 Functional Specifications.....................................................................10 3.2.1 General Functionalities............................................................... 10 3.2.2 Battery Time ............................................................................... 10 3.2.3 Languages ................................................................................... 10 3.2.4 Features....................................................................................... 11 3.2.4.1 Call Waiting & 3-way calling (Network dependent feature).. 11 3.2.4.2 Call Forwarding (Network dependent feature) ....................... 11 3.2.4.3 Caller ID .................................................................................. 11 3.2.4.4 Voice Mail System (VMS) ..................................................... 11 3.2.4.5 Indicators ................................................................................. 12 3.2.5 Number Assignment Module..................................................... 12 3.2.6 Short Message Service................................................................ 12 3.2.6.1 Basic Capabilities.................................................................... 12 3.2.6.2 Mobile Terminated SMS......................................................... 13 3.2.6.3 Mobile Originated SMS .......................................................... 13 3.2.7 Data Service................................................................................ 15 4. Abbreviations ................................................................................................ 16 A A A c c c B B B e e e l l l 1/18 AcBel Confidential CDMA2000 1x WLL CWF-1x 1900/800 1. Scope 1.1 Purpose The purpose of this document is to define the product specifications for the CDMA2000 1x Wireless Local Loop Fixed Telephone (“CWF”). 1.2 General Descriptions CDMA is a modulation and multiple access scheme based on the spread-spectrum communication technology. Individual terminals use spread-spectrum techniques and occupy the entire spectrum whenever they transmit. Users share time and frequency allocations, and are channelized by unique assigned codes. Signals of different users are separated at the receiver by using a correlator that captures signal energy only from the desired user or channel. Undesired signals contribute only to noise and interference. CWF has the following main features: ¾ CDMA2000 1X ¾ 2Line, 1Icon LCD ¾ Packet Data Speed (Up to 153.6 Kbps) ¾ Circuit Data Speed (Up to 14.4 Kbps) * ¾ Generate Dial tone ¾ Caller ID* ¾ R-UIM (Non UIM for Software Option) ¾ Call Waiting* ¾ Call Forwarding* ¾ Three-way Calling* ¾ Signal Strength Indicator LED ¾ Power LED ¾ RS-232C and USB Data Port for Data Service (Cable dependent) ¾ Automatic Sending ¾ Vocoder: 13KQ-CELP, 8K EVRC *: Network Dependent Features A A A c c c B B B e e e l l l 2/18 AcBel Confidential CDMA2000 1x WLL CWF-1x 1900/800 2. Applicable Documents The following standards constitute provisi…

Text truncated - open the document above for the full version.

ACBEL POLYTECH INC. NO.159, SEC.3, TAM-KING RD., TAMSUI, TAIPEI, TAIWAN, R.O.C. TEL:02-26217672 FAX:02-86318064 TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this CDMA Fixed Wireless phone. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

Ͳ΁΁ͽ ͅʹͲͿ΅͑ͿͲ;Ͷ͑͗͑Ͳ͵͵΃Ͷ ́ ́͑ͫ ͵Ͳ΅Ͳ͑͗͑ͽ΀ʹͲ΅ ͅ΀Ϳ͑΀ͷ͑΅Ͷ ́΅ ͅͿ͸ ͲΔΓΖΝ͑΁ΠΝΪΥΖΔΙ͑ ͅΟΔ͟ ͵ΒΥΖΤ͑ΠΗ͑ΥΖΤΥΚΟΘ͑ͫ͑ ΅ΖΤΥ͑ ́ΚΥΖ͑ͫ͑Ͷ ́΅Ͷʹ͹͑ʹΠ͑͟͝ͽΥΕ͑͟ͼΠΣΖΒ ΅ΖΤΥ͑͵ΖΧΚΔΖ͑ͫ͑ ΅ΖΤΥ͑ΣΖΡΠΣΥ͑ΟΠ͑ͫͿΦΞΓΖΣ͑ΠΗ͑ΡΒΘΖ͑ͫ ʹΠΟΥΒΔΥ͑ΡΖΣΤΠΟ͑ͫ΃ΖΤΡΠΟΤΚΓΝΖ͑ΥΖΤΥ͑ͶΟΘΚΟΖΖΣ͑ͫ ͲΡΡΝΚΔΒΟΥ͑΅ΪΡΖ͑ͫ ͷʹʹ͑ʹͽͲ ́ ́ ͅͷ ͅʹͲ΅ ͅ΀Ϳ͑ͫ ͷʹʹ͑΃ΦΝΖ͑΁ΒΣΥ͙Τ͚ ΅ΖΤΥ͑ΣΖΤΦΝΥΤ͑ͫ͑ ͵ΒΥΖ͑ΒΟΕ͑ ́ΚΘΟΒΥΦΣΖΤ͑ͫ͑ ͣͧ͑͵ΖΔΖΞΓΖΣ͑ͣͧ͡͡ ΃ΖΡΠΣΥ͑΁ΣΖΡΒΣΖΕ͑ͳΪ͑ͫ͑ ͶΟΘΚΟΖΖΣ͑͠ ͟ͅͼ͟͹ΠΟΘ ͙ ́ΚΘΟΒΥΦΣΖ͚ ͶΟ ΘΚΟΖΖΣΚΟΘ͑;ΒΟΒΘΖΣ͑͠ͻΒΪ͑ͼΚΞ ͙ ́ΚΘΟΒΥΦΣΖ͚ {Œš›G™Œ—–™›G•–GaGlz{zhyW]XYTWWX ͷʹʹ͑ ͅ͵͑ͫ͑Ά ́ͿʹΈͷ͢͞Ήͪ͢͡͡ͲͲΈΖΓ͑ͫ͑ΨΨΨ͑͟ΖΤΥΖΔΙ͑͟ΔΠ͑͟ΜΣ͑͑͑͑͑͑͑΁ΒΘΖ͑͑͢ΠΗ͑ͣͣ ͑͑΅ΙΖ͑΅ΖΤΥΖΕ͑ΕΖΧΚΔΖ͑ΔΠΞΡΝΚΖΤ͑ΨΚΥΙ͑ΥΙΖ͑ΣΖ΢ΦΚΣΖΞΖΟΥΤ͑ΚΟ͑ΣΖΤΡΖΔΥ͑ΠΗ͑ΒΝΝ ΡΒΣΒΞΖΥΖΣΤ͑ΤΦΓΛΖΔΥ͑ΥΠ͑ΥΙΖ͑ΥΖΤΥ͑͟΅ΙΖ͑ΥΖΤΥ͑ΣΖΤΦΝΥΤ͑ΒΟΕ͑ΤΥΒΥΖΞΖΟΥΤ͑ΣΖΝΒΥΖ͑ΠΟΝΪ ΥΠ͑ΥΙΖ͑ΚΥΖΞΤ͑ΥΖΤΥΖΕ͑͟΅ΙΖ͑ΥΖΤΥ͑ΣΖΡΠΣΥ͑ΤΙΒΝΝ͑ΟΠΥ͑ΓΖ͑ΣΖΡΣΠΕΦΔΖΕ͑ΣΖΔΖΡΥ͑ΚΟ͑ΗΦΝΝ͝ ΨΚΥΙΠΦΥ͑ΨΣΚΥΥΖΟ͑ΒΡΡΣΠΧΒΝ͑ΠΗ͑ΥΙΖ͑ΝΒΓΠΣΒΥΠΣΪ͟ ͅͶͶͶ͙͑ͦͣͩ͢͵ΖΔ͚ͣͤ͟͡͡ ΃ΖΔΠΞΞΖΟΕΖΕ͑΁ΣΒΔΥΚΔΖ͑ΗΠΣ͑͵ΖΥΖΣΞΚΟΚΟΘ͑ΥΙΖ͑΁ΖΒΜ͑ ́ΡΒΥΚΒΝ͞ͲΧΖΣΒΘΖ͑ ́ΡΖΔΚΗΚΔ ͲΓΤΠΣΡΥΚΠΟ͑΃ΒΥΖ͙ ́Ͳ΃͚͑ΚΟ͑ΥΙΖ͑͹ΦΞΒΟ͑ͳΠΕΪ͑͵ΦΖ͑ΥΠ͑ΈΚΣΖΝΖΤΤ͑ʹΠΞΞΦΟΚΔΒΥΚΠΟΤ ͵ΖΧΚΔΖ͑ͫ͑ͶΩΡΖΣΚΞΖΟΥΒΝ͑΅ΖΔΙΟΚ΢ΦΖΤ ͽΚΔΖΟΤΖΕ͑ͿΠΟ͞ͳΣΠΒΕΔΒΤΥ͑ΤΥΒΥΚΠΟ͑΅ΣΒΟΤΞΚΥΥΖΣ͙΅Ϳͳ͚ ηͣͪͤͬ͑͟͢͡ͷʹʹ͠΀Ͷ΅͑ͳΦΝΝΖΥΚΟ͑ͧͦ͑ ́ΦΡΡΝΖΞΖΟΥ͑ʹ͙͑ͻΦΝΪ͚͑ͣ͢͡͡ ʹΖΣΥΚΗΚΔΒΥΚΠΟ ΅ΖΤΥΚΟΘ͑ΙΒΤ͑ΓΖΖΟ ʹΒΣΣΚΖΕ͑ΠΦΥ͑ΚΟ ͲΔΔΠΣΕΒΟΔΖ͑ΨΚΥΙ͑ͫ ́Ͳ΃͑ʹΠΞΡΝΚΒΔΖ͑΅ΖΤΥ͑΃ΖΡΠΣΥ Ͷ ́΅ ́Ͳ΃ͧͣͣͣ͢͢͡͞͡͡ ͿΠ͑ͦͪ͟͢͝΅ΒΞ͞ͼΚΟΘ͑΃ΠΒΕ͑͝ ́ΖΔ͑ͤ͑͟͝΅ΒΞΤΦΚ͝ ΅ΒΚΡΖΚ͑͹ΤΚΖΟ͑ͣͦ͢͝΅ΒΚΨΒΟ ;ΠΕΖΝΤ͑ͫ͑ʹΈͷ͢͞Ωͪ͢͡͡ͲͲ ͷʹʹ͑ ͅ͵͑ͫ͑Ά ́ͿʹΈͷ͢͞Ήͪ͢͡͡ͲͲ ΅Ί΁Ͷ͑ͫ͑ͷΚΩΖΕ͑Έͽͽ͑΅ΖΝΖΡΙΠΟΖ͙͑ʹ͵;Ͳ͚͙͑΁ΣΠΥΠΥΪΡΖ͚ ͑͢͢͵ΖΔΖΞΓΖΣ͑ͣͧ͑͑͑͡͡ί͑ͣͧ͑͵ΖΔΖΞΓΖΣ͑ͣͧ͡͡ ͟ͅͼ͟͹ΠΟΘ͹ΤΚΟ͞;ΚΟΘ͑ͷΖΟΘ 1. SUMMARY FOR SAR TET REPORT --------------------------------------------------------------------- ͤ 1.1 Head Configuration ----------------------------------------------------------------------------------------- - ͤ 1.2 Body Worn Configuration --------------------------------------------------------------------------------- - ͤ 1.3 Measurement Uncertainty -------------------------------------------------------------------------------- - ͤ 2. INTRODUCTION ----------------------------------------------------------------------------------------------- - ͥ 3. DESCRIPTION OF THE DEVICE UNDER TEST ------------------------------------------------------ ͦ 3.1 Antenna Description ---------------------------------------------------------------------------------------- ͦ 3.2 Device Description ------------------------------------------------------------------------------------------ - ͦ 3.3 Battery Option ------------------------------------------------------------------------------------------------ ͦ 4. TEST CONDITIONS ------------------------------------------------------------------------------------------- - ͧ 4.1 Ambient Conditions ----------------------------------------------------------------------------------------- ͧ 4.2 RF Characteristics of The Test Site -------------------------------------------------------------------- - ͧ 4.3 Test Signal, Frequencies, And Output Power -------------------------------------------------------- - ͧ 5. DESCRIPTION OF THE TEST EQUIPMENT ----------------------------------------------------------- - ͨ 5.1 Test System Specifications ------------------------------------------------------------------------------- ͨ 5.2 SAR Measurement Setup --------------------------------------------------------------------------------- ͨ 5.3 DASY 4 E-Field Probe System -------------------------------------------------------------------------- - ͩ 5.4 Phantom & Equivalent Tissues -------------------------------------------------------------------------- - ͢͡ 6. DESCRIPTION OF THE TEST PROCEDURE --------------------------------------------------------- - ͣ͢ 6.1 Definition of Reference Point ----------------------------------------------------------------------------- ͣ͢ 6.2 Test Configuration Positions ----------------------------------------------------------------------------- - ͤ͢ 6.3 Scan Procedures -------------------------------------------------------------------------------------------- - ͧ͢ 6.4 SAR Averaging Methods ---------------------------------------------------------------------------------- - ͧ͢ 7. MEASUREMENT UNCERTAINTY ------------------------------------------------------------------------- ͨ͢ 8. SYSTEM VERIFICATION ------------------------------------------------------------------------------------ - ͩ͢ 8.1 Tissue Verification ------------------------------------------------------------------------------------------ - ͩ͢ 8.2 Test System Validation ------------------------------------------------------------------------------------ - ͩ͢ 9. RESULTS -------------------------------------------------------------------------------------------------------- - ͪ͢ 10. REFERENCES ------------------------------------------------------------------------------------------------ - ͣͣ APPENDIX A : Validation Test Data of Tissue APPENDIX B : Validation Test Data APPENDIX C : SAR Test Data APPENDIX D : Calibration Certificates ͑ {Œš›G™Œ—–™›G•–GaGlz{zhyW]XYTWWX ͷʹʹ͑ ͅ͵͑ͫ͑Ά ́ͿʹΈͷ͢͞Ήͪ͢͡͡ͲͲΈΖΓ͑ͫ͑ΨΨΨ͑͟ΖΤΥΖΔΙ͑͟ΔΠ͑͟ΜΣ͑͑͑͑͑͑͑΁ΒΘΖ͑ͣ͑ΠΗ͑ ͣͣ ΅ΒΓΝΖ͑ΠΗ͑ʹΠΟΥΖΟΥΤ ͣ͑͢͟ͳΠΕΪ͑ΈΠΣΟ͑ʹΠΟΗΚΘΦΣΒΥΚΠΟ͑ ͑͑͑;ΒΩ͑͟ ́Ͳ΃͑;ΖΒΤΦΣΖΞΖΟΥ ;͹Ϋ ʹΙΕͳΞ ͳΒΥΥΖΣΪ ͤ͑͢͟;ΖΒΤΦΣΖΞΖΟΥ͑ΆΟΔΖΣΥΒΚΟΥΪ {Œš›G™Œ—–™›G•–GaGlz{zhyW]XYTWWX ͷʹʹ͑ ͅ͵͑ͫ͑Ά ́Ϳʹ Έͷ͢͞Ήͪ͢͡͡ͲͲΈΖΓ͑ͫ͑ΨΨΨ͑͟ΖΤΥΖΔΙ͑͟ΔΠ͑͟ΜΣ͑͑͑͑͑͑͑΁ΒΘΖ͑ͤ͑ΠΗ͑ͣͣ ͑͢͟ ́Ά;;Ͳ΃Ί͑ͷ΀΃͑΅Ͷ ́΅͑΃Ͷ΁΀΃΅ ͑͵ΒΥΖ͑ΠΗ͑ΥΖΤΥ ͑ͷʹʹ͑ ͅ͵ ͑;ΖΒΤΦΣΖΞΖΟΥ͑ΡΖΣΗΠΣΞΖΕ͑ΓΪ ͑͢͢͵ΖΔΖΞΓΖΣ͑ͣͧ͑͑͑͡͡ί͑ͣͧ͑͵ΖΔΖΞΓΖΣ͑ͣͧ͡͡ Ά ́ͿʹΈͷ͢͞Ήͪ͢͡͡ͲͲ ͻΒΪ͑ͼΚΞ͑΃ΖΤΡΠΟΤΚΓΝΖ͑ΥΖΤΥ͑ΖΟΘΚΟΖΖΣ ͟ͅͼ͟͹ΠΟΘ ͑ͶΆ΅͑΅ΪΡΖ ͑΅Ω͑ͷΣΖ΢ΦΖΟΔΪ ͷΚΩΖΕ͑Έͽͽ͑΅ΖΝΖΡΙΠΟΖ͙͑ʹ͵;Ͳ͚͙͑΁ΣΠΥΠΥΪΡΖ͚͑ ͩͦͣͦ͑͢͢͟ί͑ͪͩͨͦ͑͢͟͡;͹Ϋ ͑΃Ω͑ͷΣΖ΢ΦΖΟΔΪ ͑;ΒΩ͑͟΃ͷ͑΀ΦΥΡΦΥ͑΁ΠΨΖΣ ͪͤͣͦ͑͢͢͟ί͑ͪͩͩͨͦ͑͢͟;͹Ϋ ʹ͵;Ͳ͙͑͑ͣͥͦ͑͟ΕͳΞ͚͑͑͑͑͑͑ ́Ͳ΃ ͙Έ͠ΜΘ͚ Ϳ͠Ͳ ;ΒΩΚΞΦΞ͑΃ΖΤΦΝΥΤ͑ͷΠΦΟΕ͑͵ΦΣΚΟΘ͑ ́Ͳ΃͑ͶΧΒΝΦΒΥΚΠΟ͑ΦΟΕΖΣ͑ΡΙΠΟΖ͑ΔΒΝΝ͑ ͷ΃Ͷ΂ΆͶͿʹΊ ;ΠΕΦΝΒΥΚΠΟ ʹΠΟΕΦΔΥΖΕ͑΁ΠΨΖΣ͙ΕͳΞ͚ ́ΖΡΒΣΒΥΚΠΟ͑ΥΖΤΥ ΡΠΤΚΥΚΠΟ ρ͙͑ͣͣ͑͟͡͡Μ͖ͮͣ͑ͪͦ͑͝ʹ΀Ϳͷ ͅ͵ͶͿʹͶ͑ͽͶ·Ͷͽ͚ ʹΠΞΓΚΟΖ͑ ́ΥΒΟΕΒΣΕ͑ΆΟΔΖΣΥΒΚΟΥΪ ͶΩΥΖΟΕΖΕ͑ ́ΥΒΟΕΒΣΕ͑ΆΟΔΖΣΥΒΚΟΥΪ ͪͩͨͦ͢͟͡ ͨͦ͢͢ ʹ͵;Ͳ ρ͙͑͑͢͢͟͡͡Μ͚ͮ͢ ͣͦ͟ΔΞ͑ΌΨ͠Π͑͹ΠΝΤΥΖΣΎ ͨͧͩͣͥͦ͟͟͡ SAR Definition ͷΚΘΦΣΖ͑ͣ͑͟͢ ́Ͳ΃͑;ΒΥΙΖΞΒΥΚΔΒΝ͑Ͷ΢ΦΒΥΚΠΟ ́Ͳ΃͑ΚΤ͑ΖΩΡΣΖΤΤΖΕ͑ΚΟ͑ΦΟΚΥΤ͑ΠΗ͑ΈΒΥΥΤ͑ΡΖΣ͑ͼΚΝΠΘΣΒΞ͙͑Έ͠ΜΘ͚͟ ́Ͳ΃͑ͮ͑՗͑Ͷς͑͑͠Օ ΈΙΖΣΖͫ ͑͑͑͑͑͑͑͑͑͑͑͑͑՗͑ͮ͑ΔΠΟΕΦΔΥΚΧΚΥΪ͑ΠΗ͑ΥΙΖ͑ΥΚΤΤΦΖ…

Text truncated - open the document above for the full version.

Ref. : LR500190701B Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 26 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: December 21,2006 ~ January 05, 2007 Test Report S/N: LR500190701B Test Site : LTA CO., LTD. FCC ID APPLICANT TEST REPORT FCC Part 24(E) Certification Classification : Licensed Portable Transmitter Held to Ear (PCE) Manufacturing Description : CDMA Fixed Wireless Phone Manufacturer : ACBEL POLYTECH INC. Model name : CWF-1x1900AA Test Device Serial No.: : Identification FCC Rule Part(s) : §24(E), §2 TX Frequency Range : 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range : 1931.25~1988.75MHz (PCS CDMA) Max. RF Output Power : 0.393W EIRP PCS CDMA (25.94dBm) Max. SAR Measurement : 0.768W/kg PCS CDMA Body SAR Emission Designators: : 1M27F9W Data of issue : January 09, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 USNCWF-1X1900AA ACBEL POLYTECH INC. Ref. : LR500190701B Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 DESCRIPTION OF TESTS -------------------------------------------------------------------------- 3.2.1 EQUIVALENT ISOTROPIC RADIATED POWER ---------------------------------------- 3.2.2 FIELD STRENGTH OF SPURIOUS RADIATION ---------------------------------------- 3.2.3 OCCUPIED BANDWIDTH -------------------------------------------------------------------- 3.2.4 SPURIOUS EMISSION AT ANTENNA TERMINAL -------------------------------------- 3.2.5 OCCUPIED BANDWIDTH EMISSION LIMITS ------------------------------------------ 3.2.6 FREQUENCY STABILITY -------------------------------------------------------------------- 3.3 TEST DATA --------------------------------------------------------------------------------------------- 3.3.1 EFFECTIVE RADIATED POWER OUTPUT ----------------------------------------------- 3.3.2 FIELD STRENGTH OF SPURIOUS RADIATION ---------------------------------------- 3.3.3 FREQUENCY STABILITY --------------------------------------------------------------------- 3.4 CNNCLUSION ---------------------------------------------------------------------------------------- 3.5 TEST PLOTS ------------------------------------------------------------------------------------------- APPENDIX APPENDIX 1 TEST EQUIPMENT USED FOR TESTS ------------------------------------------ APPENDIX 2 LABEL AND USER’S MANUAL INFORMATION ----------------------------- 3 4 5 6 6 6 7 7 7 8 9 9 10 13 14 15 23 25 Ref. : LR500190701B Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 26 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. : LR500190701B Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 26 2. Information’s about test item 2-1 Client Company name : ACBEL POLYTECH INC. Address : No. 159, Sec. 3, Tam-King Rd., Tamsui, Taipei, Country : Taiwan, R.O.C. Telephone : +886-2-26217672 Facsimile : +886-2-86318073 2-2 Equipment Under Test (EUT) Classification : Licensed Portable Transmitter Held to Ear (PCE) Trade name : CDMA Fixed Wireless Phone Model name : CWF-1x1900AA Serial number : Identification Date of receipt : December 04, 2006 EUT condition : Pre-production, not damaged Antenna type / Gain : Half Wavelength Antenna / Max. 2.72dBi TX Frequency Range : 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range : 1931.25~1988.75MHz (PCS CDMA) Frequency Tolerance : ±0.00025% (2.5ppm) Emission Designators : 1M27F9W Voltage and Current applied through the final Amplifier : 5.0V / 0.551A / 2.755W Power Source : AC Adaptor (Normal) Input: 110~240VAC, 50~60Hz / Output: 5VDC/1.5A Internal Battery (Emergency) Li-Ion 2000mA 2-3 Tested frequency Frequency (CH) TX (MHz) Low (0025) 1851.25 Mid (0600) 1880.00 High (1175) 1908.75 Ref. : LR500190701B Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 26 3. Test Report 3.1 Summary of tests Parameter Status Transmitter Requirements Equivalent Isotropic Radiated Power C Occupied Bandwidth C Field Strength of Spurious Radiation C Spurious Radiation at Antenna Terminal C Frequency Stability C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2 : The data in this test report are traceable to the national or international standards. A sample calculation: COR. F (correction factor)= Antenna factor + Cable loss- Amp.gain- Distance correction Emission Level= meter reading + COR.F Emission Designator: EMISSION Designator = 1M27F9W Calculation : 2M + 2DK CDMA BW = 1.268MHz F = Frequency Modulation 9 = Composite Digital Info W = Combination (Audio/Data) (Measured at the 99.75% power bandwidth) Ref. : LR500190701B Copyright ○ c 200…

Text truncated - open the document above for the full version.

FCC ID: USNCWF-1X800AA Copyright Ⓒ 2007, LTA Co., Ltd.
