RF-6 English User manual FCC ID: USW-RF-6 4-Key Remote Operating Instruction Individual Button Description Silence key Press this button for 1 second; it will shorten the high decibel alarm sound. Alarm arming key Press this key and the high decibel alarm will beep once. This indicates that the anti-burglary mode is ON or set to arm. Alarm disarming key Press this key and the high decibel alarm will beep twice. This indicates that the anti-burglary mode is removed or set to disarm. SOS/Emergency key To prevent user from pressing this button accidentally, the user have to press this key for five seconds continuously to send the signal. The Alarm system will send SMS to the owner’s hand phone number and control center/Emergency contacts. Pay Attention: After system sends for SOS help, all system functions will temporary stop; according to priority help condition (except anti-thief will function normally); the system will return to normal after 5 mins. If press by mistake, you can press the disarm key 10 times to disarm the system. Sizes：59mm(l)×39mm(w)×11mm(h) Weight：33.2g Type of Battery：23A SOS FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

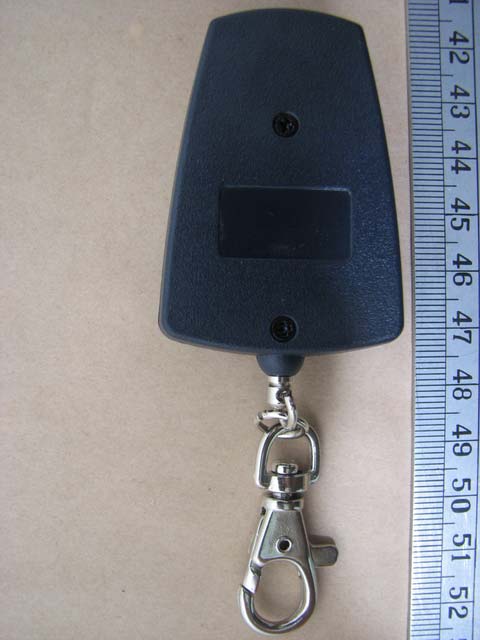

FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. External Photos FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd.

FCC ID Label information: The label size is 19.5 mm X10 mm and because of the size of this device is too small to be placed the other required statement, the following will be placed in the user’s manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: RF-6 FCC ID: USW-RF-6 Brand name: redKnows Made in Taiwan

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: USW-RF-6 Test report no.: W6D20610-7525-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 20 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.4 APPLICATION DETAILS 4 1.5 TEST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST EQUIPMENT UTILIZED 6 2.4 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 O UT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 C ONDUCTED MEASUREMENT AT (AC) POWER LINE 19 A PPENDIX 20 FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: November 20, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: November 20, 2006 Steven Chuang Date ETS Name Signature Note: This device, RF-6, is based on the test report number W6M20610-7524-C-1 ( Model No.: RF-6 ). The only difference between them is the brand name. FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : AxTech AB Street : S:t Jörgens Väg 4, 422 49 Hisings Backa Town : ./. Country : Sweden Telephone : +46 31 55 88 66 Fax : +46 31 55 88 69 FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 20 1.4 Application details Date of receipt of application : October 31, 2006 Date of receipt of test item : November 01, 2006 Date of test : from November 02, 2006 to November 17, 2006 1.5 Test item Description of test item : RF Remote Type identification : RF-6 Brand name : redKnows Serial number : Test sample without serial number Transmitting frequency : 315 MHz Operation mode : simplex Voltage supply : 12 VDC ( Battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 315 MHz Antenna type : PCB antenna Photos : see Appendix Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 20 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 (a) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12 VDC ( Battery ) FCC ID: USW-RF-6 Registration number: W6D20610-7525-C-1 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 20 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S In House Certificate ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-UMAA0305-009 GIANT FORC…
