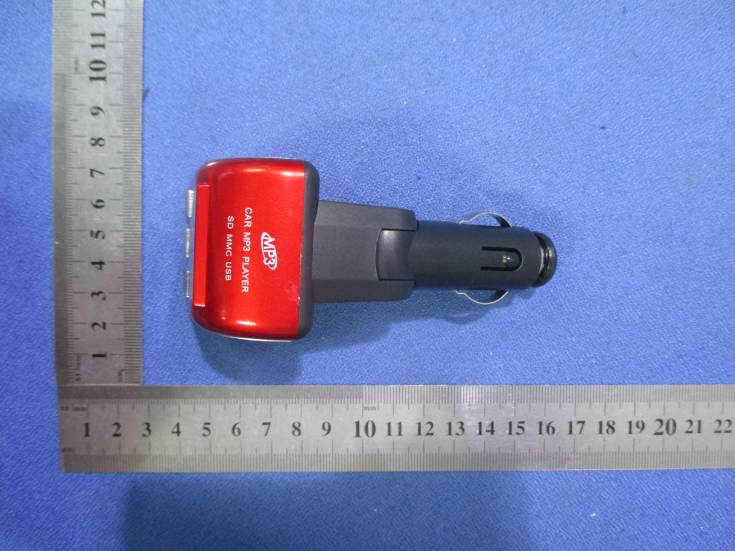

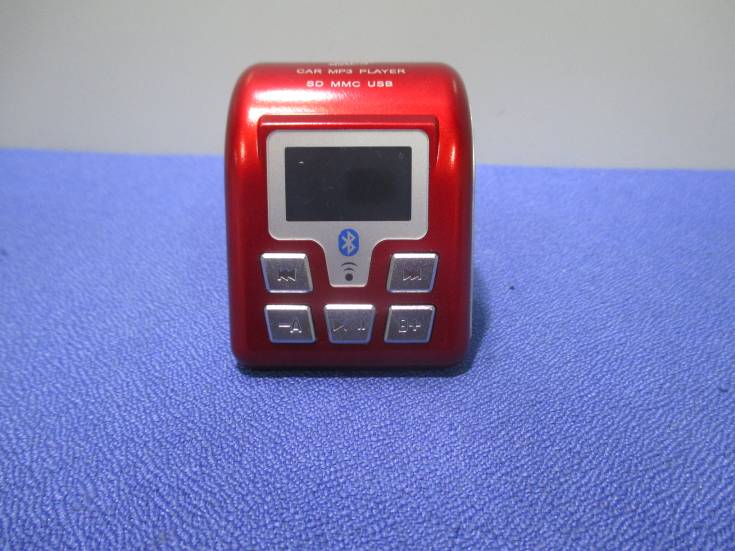

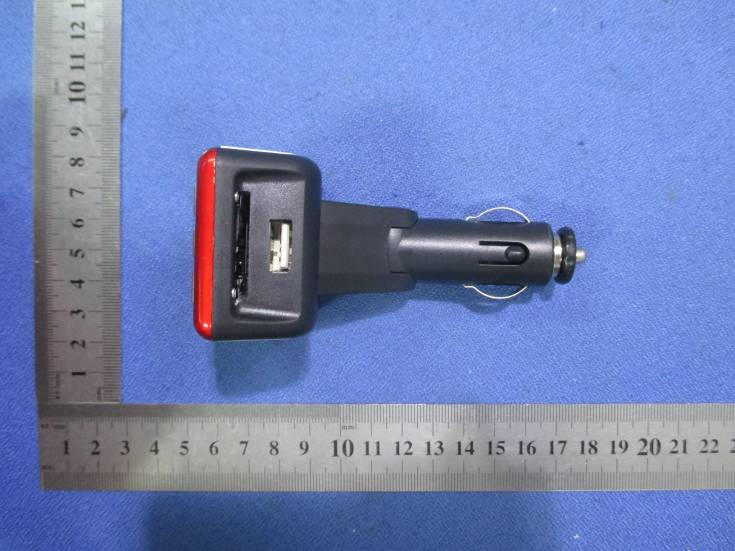

UTO-UNFM transmitter

ESI CASES AND ACCESSORIES 240 Madison Ave 11 Floor New York, NY 10016, United States TEL: (212) 883-8838 FAX: 212-883-8844 DATE 07-07-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UTO-UN Product Name: FM transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07-07-2015 By: Elliot Azoulay Signature Printed Title: Mana ging Director On behalf of : ESI CASES AND ACCESSORIES Telephone: 212-883-8838

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: UN FCC ID: UTO-UN FCCID Label Location

RF Exposure evaluation According to KDB 44749 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 0dBi ;so Ant numeric gain=1 Field strength = 97.04 dBuV/m @3m So Pt={ [10 (97.04 /20) /10 6 x3] 2 /30x1 }x1000 mW =1.52 mW So (1.52mW/5mm)x √2.402 GHz = 0.5 < 3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.239 Report Reference No.: CTL1505251366-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: FM transmitter Model/Type reference..................: UN List Model(s).................................: / Trade Mark....................................: N/A FCC ID...........................................: UTO-UN Applicant’s name.........................: ESI CASES AND ACCESSORIES Address of applicant...................: 240 Madison Ave 11 Floor, New York, NY 10016, United States Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................:FCC Part 15.239: Operation in the band 88–108 MHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: May 30, 2015 Date of Test Date..........................: June 05, 2015 - June 30, 2015 Data of Issue.................................: July 06, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 30 Report No.: CTL1505251366-WF T E S T R E P O R T Test Report No. :CTL1505251366-WF July 06, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : FM transmitter Model /Type : UN Applicant : ESI CASES AND ACCESSORIES Address : 240 Madison Ave 11 Floor, New York, NY 10016, United States Manufacturer : ESI CASES AND ACCESSORIES Address : 240 Madison Ave 11 Floor, New York, NY 10016, United States Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 30 Report No.: CTL1505251366-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY ............................................................................. 5 2.1.Equipment Under Test 5 2.2.Short description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 5 2.4.EUT configuration 5 2.5.Related Submittal(s) / Grant (s) 5 2.6.Modifications 5 2.8. Test Result Summary 5 3. TEST ENVIRONMENT ............................................................... 6 3.1.Address of the test laboratory 6 3.2.Test Facility 6 3.3.Environmental conditions 6 3.4.Configuration of Tested System 6 3.5.Statement of the measurement uncertainty 7 3.6.Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1.Conducted Emissions Test 9 4.2.Radiated Emission Test 11 4.2.1Field Strength of Fundamental Emissions 13 4.2.2Spuroius Emissions 14 4.3.Occupied Bandwidth 20 5. ANTENNA REQUIREMENT ....................................................... 22 6.TEST SETUP PHOTOS OF THE EUT .......................................... 23 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 24 V1.0 Page 4 of 30 Report No.: CTL1505251366-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.239: Operation in the band 88–108 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz V1.0 Page 5 of 30 Report No.: CTL1505251366-WF 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz ƽ 12 V DC o 24 V DC o Other (specified in blank below) 2.2. Short description of the Equipment under Test (EUT) The EUT is a FM transmitter work at 88.1-107.9MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.3. EUT operation mode The EUT has been tested under typical operating condition. 2.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer ƽ - supplied by the lab 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: UTO-UN filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.6. Modifications No modifications were implemented to meet testing criteria. 2.8. Test Result Summary 15.239 V1.0 Page 6 of 30 Report No.: CTL1505251366-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements. 3.2. Test Facility The test facility is recognized, certified, or accredited by the following organizations: IC Registration No.: 9618B The 3m alternate test s…

Text truncated - open the document above for the full version.

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No.: CTL1505251366-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Tracy Qi (Manager) Product Name...............................: FM transmitter Model/Type reference..................: UN List Model(s).................................: / Trade Mark....................................: N/A FCC ID...........................................: UTO-UN Applicant’s name.........................: ESI CASES AND ACCESSORIES Address of applicant...................: 240 Madison Ave 11 Floor, New York, NY 10016, United States Test Firm.......................................: Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm...................: Floor 1- A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification.........................: Standard........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator..........................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF..............................: Dated 2011-01 Date of Receipt.............................: May 30, 2015 Date of Test Date..........................: June 05, 2015 - June 30, 2015 Data of Issue.................................: July 06, 2015 Result............................................: Positive Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 28 Report No.: CTL1505251366-WF T E S T R E P O R T Test Report No. : CTL1505251366-WF July 06, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : FM transmitter Model /Type : UN Applicant : ESI CASES AND ACCESSORIES Address : 240 Madison Ave 11 Floor, New York, NY 10016, United States Manufacturer : ESI CASES AND ACCESSORIES Address : 240 Madison Ave 11 Floor, New York, NY 10016, United States Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 28 Report No.: CTL1505251366-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY ............................................................................. 5 2.1.Equipment Under Test 5 2.2.Description of the Equipment under Test (EUT) 5 2.3.EUT operation mode 6 2.4.EUT configuration 6 2.5.Related Submittal(s) / Grant (s) 6 2.6.Modifications 6 3. TEST ENVIRONMENT ............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 12 4.3.Occupied Bandwidth Measurement 18 5. ANTENNA REQUIREMENT ....................................................... 20 6.TEST SETUP PHOTOS OF THE EUT .......................................... 21 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 22 V1.0 Page 4 of 28 Report No.: CTL1505251366-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 ANSI C63.4-2014 V1.0 Page 5 of 28 Report No.: CTL1505251366-WF 2. SUMMARY 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz ƽ 12 V DC o 24 V DC o Other (specified in blank below) 2.2. Description of the Equipment under Test (EUT) The EUT (FM transmitter) support Bluetooth function. Name of EUT FM transmitter Model Number UN Antenna Type Internal BT CE Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK,8DPSK,/4DQPSK(BT V2.1+EDR) Bluetooth BT V2.1+EDR Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 28 Report No.: CTL1505251366-WF 2.3. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX power by battery The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The followi…

Text truncated - open the document above for the full version.
