UUTBF520801TWO-WAY RADIO

Page 1 of 12 THE USER’S MANUAL User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR BFDX PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards The two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle (5% talk-5% listen-90% standby), even though this radio complies with the FCC occupational RF exposure limits at duty cycles of up to 50% talk. Complies with the following of RF energy exposure standards and guidelines: United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Operational Instructions To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Hand-held radio operation Hold the radio in a vertical position with the microphone 5 cm away from the lips and let the antenna farther away from your head. Notices to the User •Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. •Illegal operation is punishable by fine or imprisonment or both. •Refer service to qualified technicians only. WARNING: It is important that the operator is aware of and understand hazards common to the operation of any transceiver. Explosive environment(such as gases, dust, fumes, etc). Turn off your transceiver while talking on fuel, or while parked in gasoline service stations. If you require this machine to be developed or some changed, pleased connect with BFDX or your BFDX dealer. Page 2 of 12 FCC Caution: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: _ Reorient or relocate the receiving antenna. _ Increase the separation between the equipment and receiver. _ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. _ Consult the dealer or an experienced radio/TV technician for help. FCC Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. Precautions
Only qualified technicians are allowed to maintain this product.
Do not use the radio or charge a battery in explosive areas such as coal gas, dust, steam, etc.
Switch OFF the radio while refueling or parking at gas station.
Do not modify or adjust this radio without permission.
Do not expose the radio to direct sunlight over a long time, nor place it close to heating source.
Do not place the radio in excessively dusty, humid areas, nor on unstable surfaces. Safety: It is important that the operator is aware of and understands hazards common to the operation of any radio. CE Caution: Hereby, Fujian Quanzhou Beifeng Telecom Systems Co., Ltd. declares that this Tow-way radio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and the COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure by the general public to electromagnetic fields (0 Hz to 300 GHz) (1999/519/EC). A copy of the DoC may be obtained through the following address. Puren Industrial Area, Beimen Quanzhou, Fujian, China Page 3 of 12 Training Guidelines 1.Only qualified technicians are allowed to maintain this product. 2.To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any place where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. When on aircraft, turn off your radio when airline crew instruct you to do so. 3. When in vehicles with an airbag, do not place a portable radio in the area over an airbag or in the airbag deployment area. 4.Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. 5.To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps. 6.Do not use any portable radio th…

Text truncated - open the document above for the full version.

ANT LPF FI NAL AM P Q11 ANT SW 2S K3476 Q10 2S K3475 DRI VE AMP D1 D 2 HVC13 1 X2 Q9 2S K3077 AMP Q12 2S C4226 AMP D9 D 10HS C277 AMP X2 Q3 2S C5108 AMP Q2 2S C5108 BUFF AMP Q5 2S C4226TX VCO D11 MA2S 360 DE V D5 D 6 MA2S 376 F. C O NT X2 DE V Q6 2S C5108 RX VCO Q19 Q23 UMC4T/R SW DT A143 R/T 5C D7 D 8 MA2S 376 F. C O NT X2 LOOP FILTER U3 MB15E 03 Q1 2S C5108 AMP X1 13MH z VCCN TXCO 5C TO 5C 5R 5T 5T 5T VR1 B AP C THERMALPR O TE C TI ON 5T Q32 2S K1824 Q31 DCT 114 Q29 2S K1824 5T Q25 DT A144 Q18 DT C144 5T SW SW SW AP C U6 T A75W01 DE T ANT SW D3 D 4 HVC13 1 X2 BPF L44 L45D16 D17 Q34 3S K318 5R AMP TUNE BPF L 41 L 42 L 43D13 D14 D1 5 TUNE Q33 3S K318 5R 1S T MI XE R XF 2 XF3 MCF 45. 05MHz Q4 2S C5108 IF AM P 5R U7 T A3113 6 CF XF 1455 KHz 5R CD1455 KHz IF IC 2ND LOCAL 5R BUS Y CHARGE Q37 DT A114 BASE BAND SE CTI ON U10 NJ M2902 V NJ M2902 VU5 NOISE FILTER U11LM1 894 TI 5R 5R MUTE S W Q30 2S K1824 MUTE VR1 SBB U1 T A7368 Q44 CPH 3413 Q43 CPH 3413 AUDI O AMP MUT E S W MUT E S W Q7 2S B624 Q21 DT C144 Q17 DT C144 SB SW SW SW AFCO SP Q16 2S C4617 Q27 DAN2 22 Q20 1S S37 2 U2 NJ M2100 Q13 2S C4617 Q14 2S C4617 AGC/MUT E SW DE T MUTE LIMITER AMPHP F LPF LPF BATT MIC VR2 VR3 DE V TO DE V DQT BALANCE PLL DA TA PLLSTBPLLCLKPLLDAT TXC RXD RE AD/WRIT E AP C/ TUN ETOSA VE5T C5RCAFP OGL EDRLEDSH IFTMUTEBEEPR/T PLLULTIBUS YBATT U12 817 350 5V RE G SB Q35Q36 Q40 UP A572 REF 5T 5C SW 5T C SA VE SB Q24 DT A143 5T5C5R 5RC 5T 5T 5T Q42 DT C114 RLED U41 DT C114 GL ED SB T X/BUS Y LAMP Q38Q392S B766 X2 UMG3 X2 +5 V U8 AT 2408 SC LSD A EEPROM CHANNE L SW EN0EN1EN2EN3 X332. 768KHz X49.8 304MHz Q22 DT C114 SH IFT U9 S3 C8249 T X 450 -470 MHz B L O C K D I A G R A M

Hello Bruno, For avoiding the internet interruption these days, I sent the Additional requirements through E-mail. If you received it, plz sent me a messages. (FCC ID: UUTBF520801 JOB 59CC7) Problem 2. I revised the test report in Page 4 of 28 under the sheet "Note...", Since I have confirmed that product is only one power setting(3.13w). So, the OperationDescription Page 5 of 5, "1W for low" is deleted. Also, the user manual is deleted about the program power control uncorrect info. refer to the UserManual Page 12 of 12. Problem 3. The Attestation is confirmed by the manufacture, refer to the attachement. Problem 5. Since the test sample is a engineering sample using a same module construction, and the whole productions will get no screws for belt-clip peraration. Also, the "external microphone/speaker connector" is designed for engineer development use for writing channel only. refer to the updated Usermanual Page 9 of 12(Connectors) and Page 5 of 12(Assessories), Page 1 of 12(Body-worn Operation), Page 3 of 12(Instructions). For the customer demanded, the files connected have been updated as: UserManual ExternalPhoto TestSetupPhoto IDLabelLocation IDLabelInfo Problem 6. The channel/frequency is programed by manufacture only and it is capable of these 3 band 430.185-430.560MHz Jandy so SEM.Test compliance 2007-01-23 TIMCO TCB 2007-01-19 00:03:21 [email protected] Gilbert Lui TIMCO-TCB/Request for additional question - FUJIAN QUANZHOU BEIFENG TELECOM SYSTEMS CO., LTD. - FCC ID: UUTBF520801 TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] First request 1/15/2007, SECOND REQUEST 1/18/07 Mr. Jandy So SEM.TEST COMPLIANCE SERVICE CO., LTD. (86) 0755-33663308 x813 (86) 0755-33663309 [email protected] SUBJECT: FUJIAN QUANZHOU BEIFENG TELECOM SYSTEMS CO., LTD. - FCC ID: UUT BF520801 REFERENCE: JOB 59CC7 Dear Mr. So: This application is on hold until these questions are resolved. Please answer all question(s) together and only respond to [email protected]. Any other method will cause unnecessary delay. DO NOT HIT REPLY! Your response should be sent ONLY to [email protected]. Any additional exhibits that are sent should be UPLOADED at our web site – please do not attach files to your email. Responses should also contain the job number, applicant name and FCC ID of the device. If an acceptable response is not received within 2 weeks the job will be closed & there will be additional charges to reopen. . Be sure to number or identify your answer with the corresponding question. If you are referring to another document, be sure to give the page number and paragraph reference where your response can be found. Thank you for your reply and revised exhibit. However, based upon our review of this application we still have the following questions (blue font): 1. - 2. Power settings: Please describe whether the power is switchable or variable from Low to High power setting. Please revise test report to include this information. a) It is understood that only the manufacturer will set the power to high and low. Please explain whether the radio has a switch so the user can select either 3.13W or 1W. b) Can the manufacturer program the power anywhere between 3.13W and 1W (example 2 Watt radio for user A and 3.13 W to user B, etc.) c) If the radio is tunable from 1W to 3.13W by the manufacturer, then a grant note will be added to the grant conditions. d) If the radio is switchable to 3.13 or 1W, then 3 line items will be added on the grant with a rated power of 1W. e) If the radio is switchable to 3.13 or 1W, please provide in the test report the measured output power for the low power settings. 3. Part 90.203(e): The manual page 13/15 indicates that users can program the channel/ frequency and the desired power setting (low and high). Please provide an attestation for compliance with this section. Section 90.203(e): Except as provided in paragraph (g) of this section, transmitters designed to operate above 25 MHz shall not be certificated for use under this part if the operator can program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel, using the equipment's external operation controls. a) Please provide an attestation from the applicant. 4. - 5. Part 2.1093 - RF exposure and manual exhibits: The applicant is supplying a belt-clip for operation at a separation distance closer than 2.5cm from the body. This conflicts with the instruction to operate at >2.5cm. The equation used in this exhibit is not appropriate for a P.T.T device with a belt-clip providing a separation distance from the body of less than 2.5cm. The following equation should be used for determining whether or not SAR is required to qualify for TCB approval: Low Threshold = (375/fGHz) mW, d < 2.5 cm. SAR testing is required for this device. Alternatively, please provide a side view photo of the belt-clip showing a separation distance > or = 2.5cm from the back of the radio (not the antenna). a) Manual - Page 1 of 15 : It is indicated the following: “ Body-worn Operation: Always place the radio in an BFDX approved holder, case, or body harness for this product” This is conflicting with previous reply. This device was designed to be used with a belt-clip (see screws on back of device for belt-clip accessory). Manual - page 3 of 15: Instructions 9. “if you wear a portable two way radio on your body, ...”. The FCC requires showing evidence of a belt-clip providing a separation distance of at least 2.5cm in order to qualify for the low threshold for d >2.5cm. Even though the manufacturer is not supplying a belt-clip, this device is supplied with an external microphone/speaker connector for connection to a headphone and it has VOX capability. This device is expected to be body-worn and the user has not mean to p…

Text truncated - open the document above for the full version.

EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5

EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

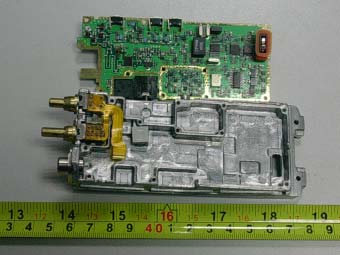

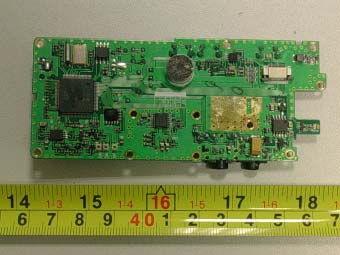

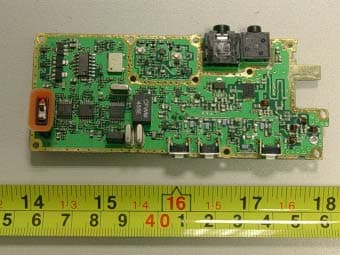

EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Solder Board-Component View 1 Solder Board-Component View 2

CIRCUIT DESCRIPTION 1.Frequency configuration The receiver utilizes double conversion. The first IF is 45.05MHz and the second IF is 455kHz. The first local oscillator signal is supplied from the PLL circuit. The PLL circuit in the transmitter generates the necessary frequencies. Fig. 1 shows the frequencies Fig. 1 Frequency configuration 2.Receiver The receiver is double conversion superheterodyne, designed to operate in the frequency range of 430 to 470MHz. The frequency configuration is shown in Fig. 1. 1) Front-end RF amplifier The signal coming from the antenna passed through the transmit/receive switching diode circuit, (D1, D2, D3 and D4), passed through a BPF (L44 and L45), and is amplified by the RF amplifier (Q34). The resulting signal passed through a BPF (L41, L42 and L43) and goes to the mixer. These BPFs are adjusted by variable capacitors (D13, D14, D15, D16 and D17). The input voltage to the variable capacitor is regulated by voltage output from the microprocessor (U9). (See Fig.2) Fig. 2 Receiver section configuration 2) First Mixer The signal from the front-end is mixed with the first local oscillator signal generated in the PLL circuit by Q33 to produce a first IF frequency of 45.05MHz. The resulting signal passed through the MCF (XF2 and XF2) to cut the adjacent spurious and provide the optimum characteristics, such as adjacent frequency selectivity. 3) IF Amplifier Circuit The first IF signal is passed through a four-pole crystal filter (XF2 and XF3) to remove the adjacent channel signal. The filtered first IF signal is amplified by the first IF amplifier (Q4) and then applied to the IF system IC (U7). The IF system IC provides a second mixer, second local oscillator, limiting amplifier and quadrature detector. The second mixer mixes the first IF signal with the 45.05MHz of the second local oscillator (44.595MHz) and produces the second IF signal of 455kHz. The second IF signal is passed through the ceramic filter (XF1) to remove the adjacent channel signal. The filtered second IF signal is amplified by the limiting amplifier and demodulated by the quadrature detector with the ceramic discriminator (CD1).The demodulated signal is routed to the audio circuit. 4) Audio Amplifier Circuit The demodulated signal form U7 is amplified by U10 (1/4), low-pass filtered by U10 (2/4), high-pass filtered by U10 (3/4 and 4/4), high-pass filtered by U5 (4/4), and de-emphasized. The signal then goes through an noise filter U11,an AF volume control (VR1), and is routed to an audio power amplifier (U1) where it is amplified and output to the speaker. 5) Squelch Part of the AF signal from the IC enters the FM IC (U7) again, and the noise component is amplified and rectified by a filter and an amplifier to produce a DC voltage corresponding to the noise level. The DC signal from the FM IC goes to the analog port of the microprocessor U9. U9 determines whether to output sounds from the speaker by checking wheter the input voltage is higher or lower than the preset value. To output sounds from the speaker, U9 sends a high signal to the MUTE and AFCO lines and turns U1 on through Q30, Q17, Q7, Q21, Q43 and Q44. (See Fig. 3) Fig. 3 AF Amplifier and squelch 6) Receive Signalling (QT/DQT) 300Hz and higher audio frequencies of the output signal from IF IC are cut by a low-pass filter U5 (1/4 and 2/4). The resulting signal enters the microprocessor (U9). U9 determines whether the QT or DQT matches the preset value, and controls the MUTE and AFCO and the speaker output sounds according to the squelch results. 3.PLL frequency synthesizer The PLL circuit generates the first local oscillator signal for reception and the RF signal for transmission. 1) PLL The frequency step of the PLL circuit is 5 or 6.25kHz. A 13MHz reference oscillator signal is divided at U3 by a fixed counter to produce the 5 of 6.25kHz reference frequency. The voltage controlled oscillator (VCO) output signal is buffer amplified by Q2,then divided in U3 by a dual-module programmable counter. The divided signal is compared in phase with the 5 of 6.25kHz reference signal in the phase comparator in U3. The output signal from the phase comparator is filtered through a low-pass filter and passé to the VCO to control the oscillator frequency. Fig. 4 PLL circuit 2) VCO The operating frequency is generated by Q5 in transmit mode and Q6 in receive mode. The oscillator frequency is controlled by applying the VCO control voltage, obtained from the phase comparator, to the varactor diodes (D5 and D6 in transmit mode and D7and D8 in receive mode). The T/R pin is set high in transmit mode causing Q19 and Q23 to turn Q6 off, and turn Q5 on. The T/R pin is set low in receive mode. The outputs from Q5 and Q6 are amplified by Q2 and sent to the buffer amplifiers. 3) Unlock Detector If a pulse signal appears at the LD pin of U3, an unlock condition occurs, and the DC voltage obtained from U3 cause the voltage applied to the microprocessor to go low. When the microprocessor detects this condition, the transmitter is disabled, ignoring the push-to-talk switch input signal. 4.Transmitter 1) Microphone Amplifier The modulation signal from the microphone is amplified by U2 (1/2),passed through a preemphasis circuit, and amplified by the other U2 (2/2) to perform IDC operation. The signal then passed through a low-pass filter (splatter filter) (Q13 and Q14) and cuts 3kHz and higher frequencies. The resulting signal goes to the VCO through the VCO modulation terminal for direct FM modulation. (See Fig. 5) Fig. 5 Transmit audio QT/DQT 2) QT/DQT encoder A necessary signal for QT/DQT encoding is generated by U9 and FM-modulated to the PLL reference signal. Since the reference OSC does not modulate the loop characteristic frequency of higher, modulation is performed at the VCO side by adjusting the balance. 3) Drive and Final Amplifier The signal form the T/R switch (D101 is on) is amplified by the pre-drive (Q12 and Q9) and drive amplifier (Q10) to 500mW. …

Text truncated - open the document above for the full version.

PARTS LIST DesignatorFootprintComment C10402102 C100402102 C1000402104 C1010402153 C1020402104 C1030402104 C1040402104 C1050402104 C1060402104 C1070402104 C1080402104 C1090402104 C110402102 C1100402104 C1110402104 C1120402104 C1130402104 C1140402104 C1150402104 C1160402104 C1170402224 C1180402224 C1190402104 C120402102 C1200402104 C1210402104 C1220402104 C1230402104 C1240402104 C1250603104 C1260402104 C1270402104 C1280805105 C1290805105 C130402102 C1300603475 C1310603105 C1320805105 C1330603105 C1340603105 C1350805105 C1360603105 C1370805105 C1380603105 C1390805105 C140402102 C1400603105 C141040225P C150402102 C15406031.5PB C15704026P PARTS LIST DesignatorFootprintComment C15804026P C15904026P C160402102 C16006036P C16104026P C16206036P C16306036P C16406036P C165060322P C166040220P C167060320P C168040220P C169060320P C170402103 C1700603101 C1710402101 C1720603101 C1730402101 C1740402101 C1750402101 C1760603101 C17706035P C17806035P C17906035P C180402102 C181060311P C18206036P C18306037P C184040215P C185040210P C186060333PG C1870402103 C1880402103 C1890402103 C190402103 C1900402103 C1910402103 C1920402103 C1930402103 C1940402103 C1950402103 C1960402103 C1970402103 C1980402103 C1990402103 C20402102 C200402102 C2000402103 C2010402103 C2020402472 C2030402103 C2040402103 C2050402103 C2060402103 C2070402103 PARTS LIST DesignatorFootprintComment C2080402103 C209040212P C210402102 C21104020.5P C21204020.5P C21304024P C21404028P C21504024P C21604024P C2170805475 C2180805475 C2190805475 C220402102 C2200805475 C221060318P C22206037P C22304027P C22604021P C2270603473 C2280402473 C2290402473 C230603102 C2300402473 C2310402153 C2320402223 C2330402223 C2340402272 C2350402332 C2360603225 C2370603225 C2380603104. C2390603104. C240402102 C24006034PB C24106034.5PB C24206034PB C2432412100uF C2440402561 C2450402182 C2460805106 C2470805106 C2480805106 C2490805106 C250402102 C2500805225 C2510805106 C2520805106 C2530805106 C2540805106 C2550805106 C2560805106 C2570805106 C2580805106 C2590805106 C260402102 PARTS LIST DesignatorFootprintComment C2600402273 C2610402273 C262040256P C263040256P C264040256P C2650402153 C26606032PB C26706033PB C26806033PB C26906032PB C270402102 C27006033PB C27106033PB C27206033PB C2730402221 C2740402221 C27504022P C276040233P C277040210P C278040222P C279040222P C280402102 C280040222P C281040222P C282040222P C283040222P C284040215P C28506035PB C2860402472 C28706032PB C28806032.5PB C28906033PB C290402102 C290040282P C291040230P C292040230P C2980402102 C2990402272 C30402102 C300402102 C300040282P C304SMD-CAPVAR3.2A10P C305SMD-CAPVAR3.2A10P C3080402102 C3090402473 C310402102 C3100603105 C3110402104 C3120402104 C3130402102 C3140402471 C3150402473 C3160402102 C3170402102 C320402102 PARTS LIST DesignatorFootprintComment C330402102 C340402102 C350402102 C360402102 C370402102 C380402102 C390402471 C40402102 C400402471 C410402104 C420402471 C430402471 C440402471 C450603471 C460402471 C470402471 C480402471 C490402471 C50402102 C500603471 C510603471 C520402471 C530603471 C540402471 C550402471 C560402471 C570402471 C580402471 C590402471 C60402102 C600402471 C610402153 C620402471 C630402471 C640402471 C650603471 C6606033.5PB C670603471 C680402471 C690402471 C70603102 C700402471 C710402471 C720402471 C730402471 C740402471 C750402471 C760402471 C770402471 C780402471 C790402471 C80402102 C800402471 C810402471 C820402471 PARTS LIST DesignatorFootprintComment C8304022P C8406032P C8506032P C8606032P C8704023P C8804023P C8906030.75P C90402102 C900402104 C910603104 C920402104 C930603104 C940402104 C950402104 C960402104 C970402104 C980402104 C990402104 CD1CDBM455C24455K CP10603X41k CP20603X447k D1UFPHVC131 D10UFPHSC277 D11URPMA360 D1210055V D13UFPHVC355B D14UFPHVC355B D15UFPHVC355B D16UFPHVC355B D17UFPHVC355B D180603G D190603R D2UFPHVC131 D20UFPMA2S111 D3UFPHVC131 D4UFPHVC131 D5UFPHVC376B D6UFPHVC376B D7UFPHVC376B D8UFPHVC376B D9UFPHSC277 J1JACK-MICA0SPEAKER J2JACK-SPAMICROPHONE JP1SMDPIN-12S-0.512PIN K1SW-K2ASCAN K2SW-K2APTT K3SW-K2AMONI L1060322nH L10SMD-L-5T1.5-0.33.5T L11SMD-L-5T1.5-0.33.5T L12SMD-L-5T1.5-0.33.5T L1306031uH L140603L L150603L L160805L PARTS LIST DesignatorFootprintComment L170805L L180603L L190603L L2060322nH L200603L L210603L L220603L L230603L L240603L L2506036.8nH L2606033.3nH L27060315nH L28060315nHL L2906030.22uHL L3060318nH L3012101uH L3106031uH L3206033.3uH L3306033.3uH L34SMD-L-5T1.5-0.34.5T L35060322nH L36SMD-L-7T1.5-0.32.5T L37060315nH L38060333nH L3908050.68uHL L4060327nH L400603470nH L4108058.2nHL L4208058.2nHL L4308058.2nHL L4408058.2nHL L4508058.2nHL L46060356nHL L4706036.8nH L4806030.22uH L5060310uH L6060310uH L7060322nHL L8060327nHL L9060356nHL M1MIC-9.7MIC Q1SC-752SC5108 Q10SOT-892SK3475 Q112-5N1A2SK3476 Q12SC-702SC4226 Q13SC-752SC4617 Q14SC-752SC4617 Q15SC-752SC4617 Q16SC-752SC4617 Q17SC-75DTC144EE Q18SC-75DTC144EE Q19UMT5UMC4 Q2SC-752SC5108 Q20SC-701SS372 Q21SC-75DTC144EE PARTS LIST DesignatorFootprintComment Q22SC-75DTC114YE Q23SC-75DTA143ZE Q24SC-75DTA143ZE Q25SC-75DTA144EE Q26SC-70MA742 Q27SC-75DAN222 Q28SC-752SK1824 Q29SC-752SK1824 Q3SC-752SC5108 Q30SC-752SK1824 Q31SC-75DTC114TE Q32SC-752SK1824 Q33CMPAK-4T3SK318 Q34CMPAK-4T3SK318 Q35SOT-892SB766 Q36SOT-892SB766 Q37SC-75DTA114EE Q38UMT5UMG3N Q39UMT5UMG3N Q4SC-752SC5108 Q40UMT5UPA572T Q41SC-75DTC114YE Q42SC-75DTC114YE Q43SOT-23CPH3413 Q44SOT-23CPH3413 Q5SC-702SC4226 Q6SC-752SC5108 Q7SOT-232SB624 Q8SC-752A1774 Q92-2K1D2SK3077 R104020 R1004020 R10004024.7K R10104024.7k R10204024.7k R10304024.7K R10404024.7k R105040233k R10604024.7k R10704024.7k R10804023.3k R10904023.3k R1104022.2k R11004023.3k R11104024.7k R11204023.3k R11304023.3k R11404023.3k R11504023.3k R1160402200 R117040233k R118040233k R1190402560 R12040215k R1200402560 PARTS LIST DesignatorFootprintComment R1210402560 R1220402390 R1230402390 R1240402390 R1250402120K R1260402120k R127060347 R128060322 R129060356nHL R1304020 R1300402330 R1310603330 R13304026.8k R13404026.8k R135040239k R136040239k R137040239k R1380402100 R1390402330 R1404020 R140040282k R141040282…

Text truncated - open the document above for the full version.

ADJUSTMENT Required Test Equipment 1. Stabilized Power supply 1) The supply voltage can be changed between 5V and 20V, and the current is 3A or more. 2) The standard voltage is 7.2V. 2. DC ammeter 1) Class 1 ammeter (17 ranges and other features). 2) The full scale can be set to either 300mA or 3A 3) A cable of less internal loss must be used. 3. Radio Communication test set Frequencies of up to 1GHz or so can be measured, and measurements are highly stable and accurate (0.2ppm or so). 4. Digital Voltmeter 1) Voltage range: FS=18V or so. 1) Input resistance: 1M or more. ADJUSTMENT FREQUENCY LIST CH TX Frequency (MHz) RX Frequency(MHz) Center 450.185 450.185 Low 430.185 430.185 High 469.985 469.985 Remarks z Center frequency range from 450.185-450.560MHz (25kHz channel spacing) z Low frequency range from 43 0.185-430.560MHz (25kHz channel spacing) z High frequency range from 469 .610-469.985MHz (25kHz channel spacing) VCO Measurement Adjustment Item Condition Test equipment Terminal parts method Specifications / Remarks 1.Setting 1.Power supply voltage Battery terminal: 7.2V 1.CH: TX high C304 3.2V 0.1V 2.CH: TX high C305 3.2V 0.1V 3.CH: TX high 2.VCO lock voltage 4.CH: TX high Digital voltmeter CV Check More than 1.2V Receiver Section Measurement Adjustment Item Condition Test equipment Terminal parts method Specifications / Remarks 1.AF level CH: RX center TEST output:-47dB m AFGen1 Frea: 1kHz AFGen1 To: 3kHz Check MAX AF level More than 0.5W 2.Sensitiviity CH: RX center CH: RX low CH: RX high TEST output:-119dB m AFGen1 Frea: 1kHz AFGen1 To: 3kHz Filter1: 300Hz HPF Filter2: 3kHz LPF Check SINAD: more than 12dB 3. Squelch Level CH: RX center Level 9 TEST output: -116dBm Level 3 TEST output: -121dBm Radio Communication Test Set ANT Adjust to close the squelch. The squelch must be closed. Transmitter section Measurement Adjustment Item Condition Test equipment Terminal parts method Specifications / Remarks 1.Transmit frequency CH: TX center PTT: ON VR1 Adjust to center frequency Within 100Hz 2.Power CH: TX center Battery terminal: 7.2V PTT: ON Check 3.8W0.2W 3. MAX DEV CH: TX center AFGen1 Freq: 1kHz AFGen1 Lv1:100mV PTT: ON Radio Communication Test Set ANT VR2 Adjust it to 4.2kHz 2.2kHz~3.6kHz 4.MIC SENX CH: TX center AFGen1 Freq: 1kHz AFGen1 Lv1:10mv PTT: ON Check MAX AF level More than 0.5W 5.CTCSS/DC S DEV CH: TX center CTCSS: 67Hz DCS: 023 Radio Communication Test Set ANT VR3 Adjust it to 0.75kHz 50Hz

AN TE NNAA1 1u HL30 *C210 3.5TL12 3.5TL11 3.5TL10 0.75 PC89 5PC179 2PC86 5PC178 2PC84 * * * * ** * 2PC85* 101C170 4.5TL34 4P BC240 HV C1 31D3 6PC164 8.2n HLL45 1.5PBC154 3P BC272 * 3P BC271 3PBC28 9 8.2nHL L44 0R19 3SK31 8Q34 471C69 68kR152 51kR55 56n HLR129 471C68 220R209 56n HLL46 471C70 471C72 3.5PBC66 8.2n HLL42 4.5PBC241 3PBC270 5PBC285 8.2nHL L43 3P BC2672P BC287 8.2n HLL41 471C65 22PC278 470 nHL400R18 3SK31 8Q33 33n HL382PC275 180 R208 104 C111 10PC185 0.68 uHLL39 103C197 103C198 103C196 560R121 45.0 5MH zXF 2 45.0 5MH zXF 3 15P C28 4 103C195 680R204 2S C5108Q4 680 kR167 102C25 OSCI 1 OSCO 2 MIXO 3 VCC 4 IFI 5 DEC 6 FILO 7 FILI 8 AF 9 QUAD 10 IFO 11 RSSI 12 NDET 13 NREC 14 E 15 MIXI 16 TA311 36FN U7 82P C290 455 KCD1 1kR88 100 kR52 104 C11 2 DTA1 14EEQ37 104C113 104C116 104C115 455 KHzXF1 104 C10 9 180k R194 221C273221C274 2.2kR72150 kR39 10PC277 3.3kR112 471C64 103C193 106C251 0R16 47kR31 2S C4226Q12 471 C49 330 R130 15nH L27 22R128 102C14 6PC182 200R116 10k R154 471 C50 330 R131 15nH L37 LL18 7PC183 * 270R14 2 270R14 3 471 C45 HV C1 31D2 5PC177 * 0.22 uHLL29 LL16 7.5VE1 471C78 …
