UUU-L7E20070323Portable Cellular/ PCS CDMA Text Device

Y about your -e- Y Y © 2007 or its affiliates. All rights reserved. / the : logo are trademark or '-gisierea trademarks of or its affiliate* nt the u.b. and other countries. and alt trademarks and logos are trademarks or registered trademarks of . in the U.S. and other countries. The . device 6. Sux^eei ic-pt-nding patent protection in the United States and other countries. T table of contents INTRODUCTION 01 About this Manual 01 About the User's Guide 01 Physical Components and Documentation 02 TOUR OF YOUR 03 Front View of 03 Back View of 05 Bottom View of 06 Removing the Back Cover 07 Replacing the Back Cover 09 ACCESSORIES 10 Charging Your. 10 Using Your 12 Connecting to Your Computer 14 Using an SD Memory Card 16 A WORD ABOUT WIRELESS 17 Simple Explanation of Wireless Technology 17 Wireless Safety 17 MAINTAINING YOUR 19 Caring for Your 19 Changing the Battery 20 Tips for Conserving Your Battery 22 Battery Safety 22 Recycling and the Battery Properly 22 T TIPS AND TROUBLESHOOTING 23 About the Screen 23 Battery Charging 23 Text Size 23 The Wireless Connection 24 Resetting Your 24 Security Concerns 24 SD Memory Cards 25 The Store 25 The USB Connection 26 No Sound 26 Customer Support 27 NOTICES AND CERTIFICATIONS 28 Government Standards for Radio Frequency Signals 28 FCC Notice 28 RF Exposure Information (SAR) 29 UL Certification Number 29 PRODUCT SPECIFICATIONS 30 ™ model number D00111 Introduction About This Manual About Your provides a description and illustration for each of your components. It also furnishes some background information about the wireless connection, and some safety precautions associated with this technology. If you have questions that need answers, you may find the "Tips and Troubleshooting" section useful. Your License Agreement and Terms of Use are included in a separate manual. About The User's Guide The User's Guide is an electronic document already on your that includes explanations and examples for all of the features and functions. It is designed to be used as a reference, and is , like all other content on When you turn on for the first time, the , User's Guide will open automatically. It helps you get started immediately, and also highlights some important features you will want to explore. 01 T Physical Components and Documentation This is what you will find in your box: Power adapter USB cable About Your (you are reading it now) License Agreement and Terms of Use 02 T Tour of Your Front View of Previous page button Next page button Keyboard - Cursor bar • Select wheel ~ Next page button Back button 03 Y Cursor bar Select wheel Next page button Back button Keyboard Contains the cursor, which is a silver rectangle that allows you to select a particular line on the display. You move the cursor up and down the right side of this bar using the select wheel. When the cursor is lined up with the appropriate selection point, you press the select wheel to make your selection. Roll this wheel to move the cursor up and down the cursor bar. Press it to select a particular item. Takes you to the next page in your (There is a next page button on either side of .) Like the back button on your web browser, this button allows you to retrace your steps on Use the keyboard to enter search terms, annotations . URLs for web sites, etc. There are also some special function keys that are described in the User's Guide. Previous page button Takes you to the previous page in your 04 Tour of Your Back View of Power switch. Back cover - Y Speaker Wireless switch Back cover Power switch Wireless switch Speaker Slides off to allow you to change the battery, to insert or remove an SD memory card, or to reset your Turns youron or off. Turns the wireless service on or off without turning off your Allows you to listen to rto 05 Bottom View of V USB port Headphone jack \ Charge indicator light Power adapter jack Volume controls Headphone jack USB port Plug in headphones to listen to Attaching head phones disaoies une speaker. Plug in the included USB cable to transfer between your computer and your' Charge indicator light When your is attached to the power adapter, a lit LED indicates that the battery is charging. Power adapter jack Plug in your power adapter here to recharge the battery. Volume controlsControls the headphone or speaker volume for , and 06 'v JourofYour. Removing the Back Cover You will need to remove the back cover to: Insert or remove an SD memory card Reset your Replace the battery 07 Y To remove the cover, follow these steps: 1. Turn your over so that the back cover is facing you, as shown in the illustration. 2. Turn the power off. 3. Slide the back cover off by pressing the cover firmly with your thumbs, and pushing it away from you as shown in the previous illustration. 4. The illustration below shows you where the internal features are located once you have the cover off. Reset button -SD memory card slot Battery compartment 08 lour of Your Replacing the Back Cover To replace the back cover, follow these steps: 1. Lay the cover flat on the back of the , and slide it to the left until it clicks into place. 2. Make certain that all of the tabs on the cover are properly seated. There are three tabs on top, and four tabs underneath. 3. Turn your back on by sliding the power switch to the ON position. 09 T Accessories Your comes with a power adapter, a and a USB cable. In addition, you can purchase a designed for your as well as replacements or spares for any of these accessories at the Store on Charging Your To charge your , follow these steps. 1. If you haven't already done so, remove the power adapter from the left-hand side of the box. 2. Plug the adapter into the bottom of your 3. Plug the power adapter into an electrical outlet. Check to make sure the power adapter is not covered by anything that could cause it to overheat. 4. Check to make sure that the charge indicator light has turned on to indicate charging. Go ahead and get started. It is okay to use your w…

Text truncated - open the document above for the full version.

about your ™ 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 1 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 2 P/N- 3A2200100-G6T-N © 2007AmazonTec hnologies , Inc. or its affiliates. Allrightsrese rv ed . Amazo n, Amazon.com,Whispernet,Kindle andtheAmazonKindle logoar e tr ad emarksor re gis ter edtra de marks of AmazonTe chnologies, Inc.or it s affiliatesin theU.S. andothercountries. JavaandallJavabase d tra demarksandlogos ar e trademarks or re gis te redtr ademarksof Su n Microsystems,Inc.in theU.S . andothercountries . MPEG La yer-3 audio decodingtechnology li ce ns edfro m FraunhoferIIS andThomson. TheKi nd le dev iceis su bjectto pe ndingpa tentpr otection in theUnite d Stat es andotherco untries. 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 3 tab le of conten ts INTRODUCTION01 Ab outth is Manual01 Ab outth e Kindle Use r’s Guide01 Phy si calCo mponents andDocumentation02 TOUROF YOU R KIND LE03 Front Vi ewof Ki ndle03 BackViewof Kindle05 Botto m Viewof Kindle06 Re movingtheBack Cover07 Re placing theBackCover09 KINDLE ACC ESSORIE S10 Ch ar ging YourKindle10 Us in g YourBook Cover12 Connectingto Yo ur Computer14 Us in g an SDMemor y Card16 A WORD ABO UT WIRELE SS17 Simple Explanation of Wir elessTechnology17 Wireles s Safety17 MA IN TAIN IN G YO UR KINDLE19 Ca rin g for Yo ur Ki ndle19 Ch an ging theBatter y20 Ti psfor Co ns ervingYourBatter y22 BatterySafety22 Re cyclin g Kindle andtheBatter y Pr operly22 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 4 TIPS AND TRO UBLESHOOTIN G23 Ab outthe Screen23 Batte ry Charging23 Te xt Size23 The Wireles s Conne ct ion24 Res et ti ngYourKi ndle24 Se curity Concerns24 SDMemoryCards25 The Kind le Store25 The USB Connection26 NoSo und26 Custo merSupport27 NOTICES AN D CERTIFICATION S28 GovernmentStand ardsforRadio Fr equencySignals28 FC C Notice28 RF Ex po sureInformation(SAR)29 ULCerti fi cation Number29 PRODUCT SPE CIFI CA TIO NS30 Ki nd le ™ modelnu mber D00 111 Kin dle ™ modelnumberD0011 1 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 5 In trodu ct ion Abo ut Th is Manu al AboutYourKindleprovidesa de scriptionandil lustrationforeachof your Kin dle components.It alsofurnishessome backgroundinformationab out th e Ki ndl e wir elessconnect ion, an d somesafetyprecautionsassociated wi thth is technology. If yo u havequestions thatnee d an sw ers,youmayfindthe“Tip s and Troubles hooti ng ” se ctionuseful.YourLicenseAgreementandTermsofUse arein cludedin a se parate manual. Abo ut Th e Kin dle Us er ’s Guide TheKindleUser’sGuideis anele ctr onicdocumental readyonyour Kin dle el ectronic re aderth at includes explanationsan d examplesfor al l of theKi nd le features andfunctions. It is designedto be usedasa ref erence,andis searchable, likeallot her contentonKindle. Whenyouturn onKindleforth e firsttime,theKindleUser’sGuide wi ll ope n automatically.It he lpsyougetstartedreadingimmediately, an d al sohi ghlig htssomeimportantfeaturesyouwillwanttoexplore. 01 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 6 Phy sic al Com po nentsand Doc um ent atio n This is whatyo u wil l fin d in yourKindl e box: Kin dle electro ni c reader Book co ver Po weradapter USBcable AboutYourKindle(y ouar e readingit now)  LicenseAgreementandTermsofUse 02 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 7 To ur of YourKi nd le El ectronicReader Fro nt Vie w of Kin dle 03 Cur sor ba r Keyboard Sel ect wheel Nex t pag e butto n Ba ck butto n Pre vio us pag e bu tt on Next pa ge but to n ™ 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 8 Cu rs or ba rContains thecu rs or,whichis a silv er re ctangle thatal lows youto sel ect a particularli neonthe display.Youmove th e cursor up an d downthe ri ght si deof th is barus in g these lectwheel. When th e cu rs oris li ne d upwith the appropr iat e selectionpoint , youpress the se le ct whee l to makeyourse lection . Se lec t wheelRollthiswheeltomovethecu rsorup and do wnthecu rsorbar . Press it to se lect a particularit em. Nextpag e bu tto nTakesyoutothenextpagein your re ad in g mater ial.(There is a nex t page button oneith er sideof Ki ndl e.) Ba ck bu tt onLiketheba ckbu ttononyourwebbrowser, th is button allowsyouto retraceyour st epson Ki nd le . Keyb oardUseth e keyboardtoentersearchterms, an no tati onsin conte nt, URLs forwebsites, et c. The re are al so somespecialfun ctionkeys th at aredescrib edin th eKindleUser’sGuide. Prev io us pag e bu tto nTakesyoutothepreviouspagein your re ad in g mater ial. 04 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 9 To ur of YourKi nd le BackView of Kin dl e 05 Ba ck co verSlidesofftoallowyouto changeth e battery,toinsert orre moveanSDmemory card, or tore set yourKindle. Pow er swi tchTurns yourKindleonoroff. Wi rel es s sw it chTurns AmazonWhispernetonorof f with outturni ng offyourKi ndl e. Whisp ern et is Amazon'swi re le ss se rvicethat en ab le s you to di scove r, purchase,an d downloadcontent toyo ur Ki ndl e wi th outa comput er. Sp eakerAllowsyoutolistentoaudiobooksorto backgro undmusi c. Spe aker Wirel ess switc h Po wer sw it ch Back co ve r 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 10 06 Bott om Vie w of Kindle Hea dph one jackPl ugin he adphonestoli stento backgro und musicor anaudiobook.Attaching head phone s disablesthe speaker. USB portPl ugin th e includ edUSBcable totransfer conte ntbetweenyourcompute r an d yo ur Ki nd le . Ch arg e in dicator lightWhen yourKindle is attachedtothepower adapter, a lit LEDindicatesth at th e Kin dle battery is charging. Po wer adapt er jackPl ugin yourpowerad apterhereto re chargethe Kindle battery. Vo lumecon trol sContr olsthe headphoneorspeakervolume fo r audiobooksan d background music. VOLUME + He adpho ne jack USB po rt Cha rg e indi cator li ght Po wer adap ter ja ck Volum e con trol s 11_14_R_ManualMECH_v8.qxd:Layout 1 11/14/07 5:05 PM Page 11 To ur of YourKi nd le Removin g th…

Text truncated - open the document above for the full version.

PCTEST TCB/CB 6660 Dobbin Road Suite A Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 © 2008 PCTEST Engineering Laboratory Inc. September 25, 2009 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Payne LLC FCC ID: UUU-L7E20070323 Request for Extension of Time To Whom It May Concern: On behalf of Payne LLC, we would like to request an Extension to respond to your questions pertaining to the Portable Cellular/ PCS CDMA Text Device (FCC ID referenced above). We are currently working with the applicant to respond to all of your questions. We would like to request a 30-day extension of time to fully respond to all of your concerns. Please let us know if this is acceptable. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, CC: David Woo; Payne LLC.

PCTEST TCB/CB 6660 Dobbin Road Suite A Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 © 2009 PCTEST Engineering Laboratory Inc. October 23, 2009 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Tim Herrington SUBJECT: Payne LLC FCC ID: UUU-L7E20070323 Response to CRN75243 Dear Tim: This is in response to your email dated August 26, 2009 requesting additional information on the above-referenced FCC ID. Please see below our responses to your questions pertaining to the Portable Cellular/ PCS CDMA Text Device. 1. Please see attached user’s manual. The FCC requested information is stated on pp. 17 and 33-34. 2. Please note that this issue was addressed with the applicant during the initial certification. PCTEST is currently awaiting the applicant’s updated response regarding this issue. 3. At the time of this application (May 2007), the Permit-but-Ask procedure was not yet in existence. The required 1.5cm spacing provided by the supplied cover was addressed with the applicant during the initial certification. PCTEST is currently awaiting the applicant’s updated response regarding this issue. Under further guidance from the FCC, PCTEST would amend the grant remarks accordingly. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, cc: David Woo; Payne LLC.

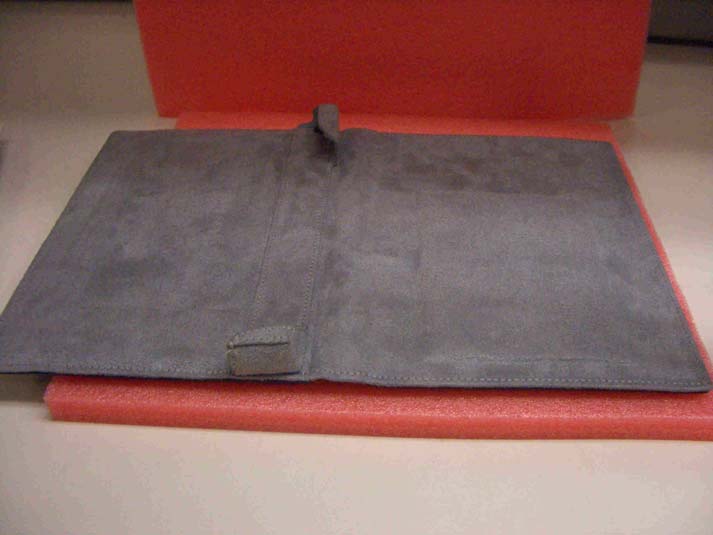

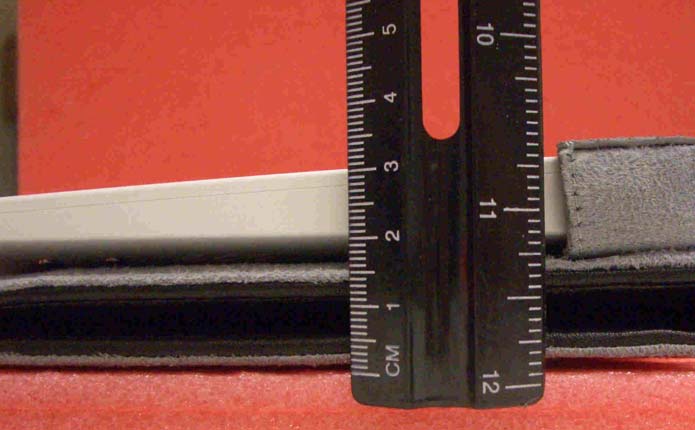

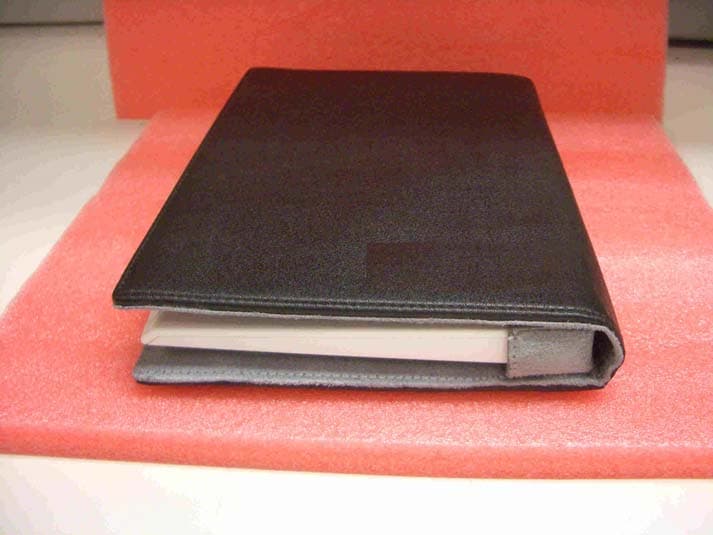

TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A1 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 APPENDIX A. Photographs of EUT 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A2 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 Model D00111 Protective Cover Photographs of the Model D00111 protective cover, or case, are provided below. The cover provides protection during transport and operation. Figure 1. Top Edge View of Operational D00111 in Cover Figure 1 is a photograph of the device in typical operating mode with the protective cover. The cover is marketed with the product and provides over 1.5 cm (1.8 cm typical) of separation between the antenna (located at the top edge of the device) and the user. Figure 2. Top Edge View of D00111 Within Cover Figure 2 provides a view of the model D00111 within the cover for transport or storage. Figure 3. Inside View of Open Cover Figure 3 shows the inside of the cover folded open. Figure 4. Inside View of Cover Folded Back (Device Operational View) Figure 4 shows the inside of the cover folded back. This is the orientation of the cover when the device is in operational mode.

SYNTHETIC PAPER (80G ART PAPER WITH PET FILM) c c AECR-0395 2007.3.5 Serial No. ASSEMBLED IN CHINA ESN HEX Model No. D00111 Input: 5VDC --- 2.0A FCC ID:UUU-L7E20070323 210-1001-00 Rev C 210-1001-00 LABEL,UNIT,D00111LABEL,UNIT,D00111 LABEL,UNIT,D00111LABEL,UNIT,D00111 D00111 Quick Start Guide text FCC ID: UUU-L7E20070323 200-1002-00 Rev C 200-1002-00 D00111 Model D00111 Unit Label Location Battery Compartment Unit Label Back of Unit Battery Cover (side) (Not to Scale) FCC ID is permanently attached to device. Model D00111 FCC ID Location on Protective Display Film Front of Unit (Not to Scale) Protective Display Film (Peel Away) FCC ID: UUU-L7E20070323 FCC ID is visible at time of purchase. Payne LLC The Neumours Bldg, Suite 1414 Wilmington, Delaware 19801 April 2, 2007 Federal Communications Commission Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Re: FCC ID No. UUU-L7E20070323 FCC 47 CFR Part 15B FCC 47 CFR Part 22/24 UNIT LABEL LOCATION Ladies and Gentlemen: Enclosed for your consideration is an email exchange between the FCC's Generic Office of Engineering Technology and G. Snyder of PCTest Lab, dated March 20, 2007. The email exchange confirms that the requirements of Section 2.925 are met by the combination of (a) the permanent attachment of the FCC ID to the main body of the unit; and (b) the inclusion of an additional FCC ID label, visible at the time of purchase, appearing on the display screen's removable protective cover. Respectfully, <•"- Stephanie Burns President, Payne LLC Attachment A From: Generic Office of Engineering Technology [mailto:oetech@fccsun27w,fcc.gov] Sent: Tuesday, March 20, 2007 2:55 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 619762) Inquiry: To follow-up to Inquiry 714592 (see attached) the FCC ID label is permanently attached to the main body of the unit and not the removable battery cover. As the label is permently attached it complies with the requirements of 2.925. However, the unit is delivered to the end user ready for use out-of-the-box and there is no need to remove the plastic battery cover and therefore the label would not be visible at time of purchase. Is it then permissible to also add an additional FCC ID label that appears on a removable protective cover on the display screen so that the FCC ID is visible at time of purchase? Both requirements of being permanently attached and being visible to the end user at time of purchase would therefore be fulfilled. Response: Yes, the device may be equipped with a means such as a user display screen to display the FCC Identification normally contained on the nameplate or label, per Section 2.925(e). From: Generic Office of Engineering Technology [mailto:[email protected]] Sent: Tuesday, March 20, 2007 11:23 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 714592) Inquiry: I have a client that has a permanently attached label containing the FCC ID placed on the back of the unit under a removal battery compartment cover. The unit is to be sold with the battery and cover already installed. In order to comply with the requirements of the FCC ID being visible at the time of purchase they want to also add the FCC ID to a protective plastic cover that goes over the display and is removed by the end user, thus the FCC ID would be visible at time of purchase. Additionally, if necessary, they could add a label location description to the manual. Please see attached drawing. Response: It is prohibited to place the ID label on the battery cover of the device. Pursuant to Section 2.925(d), the nameplate or label must be "permanently aff! ixed" to the equipment and be readily visible to the purchaser at the time of purchase. Section 2.925 (d)(l) states that "permanently affixed" means that the required label data must be etched, engraved, stamped, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment enclosure (which a battery cover is not permanently attached, but removable...). Alternatively, the required information may be permanently marked on a nameplate or label of metal, plastic, or other material fastened to the equipment enclosure by welding, riveting, etc., or with a permanent adhesive. Such a nameplate must be able to last the expected lifetime of the equipment in the environment in which the equipment will be operated and must not be readily detachable. Reference our rules in CFR 47 at http://www.fcc.gov/oet/info/rules. Please further note that Section 2.925(f) states... "Where a permanently attached label is not desirable or feasible, an alternate method may be used if approved by the Commission." The proposed alternative method of identification and the justification for its use must be included with the application for equipment authorization when filed. Guidelines for labelling and user Information for Part 15 and Part 18 devices are posted on the FCC Web Site page ( http://www.fcc.gov/oet/ea/) under "Labelling Guidelines" ; or by going directly to http://www.fcc.gov/oet/ea/Labelling Guidelines Parts 15_and 18 final.pdf

TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A3 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A4 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A5 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A6 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A7 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A8 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A9 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04 TEST REPORT REPORT NO. : FD661611-04 SPORTON International Inc. Page Number : A10 OF A12 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 661611-04 661611-04

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 01 FCC TEST REPORT Report No. : FG661611-04 FCC TEST REPORT for 47 CFR Part 22H, 24E Equipment : Mobile Text Device Model No. : D00111 FCC ID : UUU-L7E20070323 Uplink Frequency Range : CDMA2000 Cellular 850 : 824~849 MHz CDMA2000 PCS 1900 : 1850~1910 MHz Downlink Frequency Range : CDMA2000 Cellular 850 : 869~894 MHz CDMA2000 PCS 1900 : 1930~1990 MHz Max. ERP/EIRP Power : CDMA2000 Cellular 850 : 0.01 W CDMA2000 PCS 1900 : 0.42 W Emission Designator : 1M25F9W Applicant : Payne LLC The Neumours Bldg., Suite 1414 Wilmington, Delaware 19801 ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Jul. 08, 2007 at Sporton International Inc. LAB. ‚ Report No.: FG661611-04, Report Version: Rev. 01. Roy Wu Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : UUU-L7E20070323 FCC TEST REPORT Report No. : FG661611-04 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 1.5 Report Date ....................................................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................3 3. General Information of Test Site ....................................................................................................................4 3.1 Test Voltage ...................................................................................................................................................................................4 3.2 Test in Compliance with .................................................................................................................................................................4 3.3 Frequency Range Investigated ......................................................................................................................................................4 3.4 Test Distance .................................................................................................................................................................................4 4. Test Data and Test Result...............................................................................................................................5 4.1 List of Measurements and Examinations .......................................................................................................................................5 4.2 RF Output Power ...........................................................................................................................................................................6 4.3 ERP / EIRP Measurement .............................................................................................................................................................8 4.4 Occupied Bandwidth and Band Edge Measurement ...................................................................................................................12 4.5 Conducted Emission ....................................................................................................................................................................46 4.6 Field Strength of Spurious Radiation ...........................................................................................................................................56 4.7 Frequency Stability (Temperature Variation) ..........................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FG661611-04 SPORTON International Inc. Page No. : C1 of C1 TEL : 886-2-2696-2468 Report Issued Date : Jul. 09, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 01 Spurious Radiation FRONT VIEW REAR VIEW Appendix C. Setup Photograph 661611-04 661611-04
