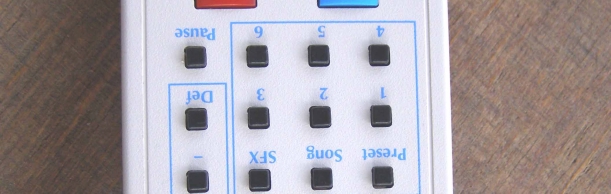

UUVMIETransmitter, Remote Control

4. MIE-3XG KEyboard GuIdE | [pa GE ] MIE-3XG KEyboard GuIdE General Description and Features The Music In Education Keyboard (MIE-3XG) is designed specifically for use in music education classrooms. The unique design and functionality of this keyboard is the result of extensive input from classroom music teachers throughout the United States. Its sophisticated functions and convenient features give both teachers and students a wide variety of options for classroom participation and musical achievement. The MIE-3XG is the centerpiece for classroom learning in the Music In Education program. The MIE-3XG Keyboard is exclusive to the Music In Education program. Only Music In Education software is de- signed to work with the MIE-3XG Keyboard. However, the MIE-3XG is compatible with the MIDI (Musical Instru- ment Digital Interface) standard and can be used in any MIDI system, including computer-based music software. The MIE-3XG features a full five-octave MIDI keyboard with touch response, that functions in four separate modes — Normal, Split, Ensemble, and Accompaniment (Accompaniment mode includes Single and Fingered operation). The MIE-3XG also features 695 dynamic XG-compatible voices, plus 15 panel voices and 15 styles. These voices are specially programmed synthesized sounds and cannot be modified by the user. As you unpack the MIE-3XG Keyboard you will find additional materials that go with each keyboard. A music rack fits into slot located on the top edge of the keyboard behind the control panel. A keyboard split divider fits over the center octave and should be used when you use the split or ensem- ble function of the MIE-3XG Keyboard. A dust cover should always be used to protect the keyboards when they are not in use, either overnight, for the weekend or for longer periods of time. Note that the cover can be used without unplugging the headphones. A power adapter provides (packaged separately) power to the MIE-3XG; the plug is on the back of the keyboard. The power adapter should be used at all times with the MIE-3XG, except as noted in the next topic “Electrical Power.” Do not substitute any other brand or model! GM System Level 1 “GM System Level 1” is an addition to the MIDI standard which guarantees that any data conforming to the stan- dard will play accurately on any GM-compatible tone generator or synthesizer from any manufacturer. XG XG is a Yamaha MIDI specification which significantly expands and improves on the GM System Level 1 standard with greater voice handling capacity, expressive control and effect capability while retaining full compatibility with GM. By using the MIE-3XG’s XG voices, it is possible to record XG-compatible song files. Electrical Power Power is supplied to the MIE-3XG Keyboard through a power adapter (PA- 5D). This power adapter is the only one that should be used during regular classroom use. • • • • 4. MIE-3XG KEyboard GuIdE | [pa GE ] Back of MIE-3XG Keyboard Located on the back of the MIE-3XG Keyboard are a variety of jacks (as well as a STANDBY/ON switch) that are essential to the accurate functioning of the keyboard in the Music In Education System. Once set and connected, this part of the keyboard will rarely be touched. To insure correct operation of the system, no student should be al- lowed to touch this section of the keyboard. Connect the MIE-3XG to external equipment only after turning off power for all de- vices. To prevent damage to the speakers, set the volume of the external devices at the minimum setting before connecting them. Failure to observe these cautions may result in electric shock or equipment damage. 1: MIDI JACKS The MIE-3XG Keyboard contains the standard MIDI IN, OUT and THRU jacks and can run any standard MIDI application. In addition, the keyboard has a special MERGE IN jack used only in the Music In Education System. See the “1. Quick Start Guide” sec- tion for details on how to connect the MIDI cables to the jacks. 2: AUDIO IN JACKS In the Music In Education system the AUDIO IN jacks bring sound from the teacher’s keyboard and the computer to the student keyboard speakers and headphones. 3: AUDIO OUT JACKS These jacks contain only the audio signal coming from the AUDIO IN jacks and thus cannot be used to record the keyboard. (Use the headphone jack to record performanc- es onto a tape or digital recorder.) 4: DC IN JACK The external AC power adapter is connected here. This adapter should be used at all times during normal classroom operation. You should never substitute any other kind of adapter. Never interrupt the power supply (e.g., unplugging the AC adapter) during any MIE- 3XG record operation! Doing so can result in a loss of data. Use ONLY a Yamaha PA-5D AC Power Adapter (or other adapter specifically recom- mended by Yamaha) to power your instrument from the AC mains. The use of other adapters may result in irreparable damage to both the adapter and the MIE-3XG. Unplug the AC Power Adapter when not using the MIE-3XG, or during electrical storms. You should disconnect the power strip from the wall to accomplish this for an entire MIE classroom. 5: STANDBY/ON SWITCH The power switch should always be left turned on. While the system is in use, turning this switch off will cause the software to stop functioning until the keyboards are reini- tialized. In normal operation, the power to the keyboards (and the entire MIE system) should be controlled from the wall outlet or main power strip. Even when the switch is in the “STANDBY” position, electricity is still flowing to the instrument at the minimum level. When you are not using the MIE-3XG for a long time, make sure you unplug the AC power adapter from the wall AC outlet. 4. MIE-3XG KEyboard GuIdE | [pa GE 3] Top & Front of MIE-3XG Keyboard 4. MIE-3XG KEyboard GuIdE | [pa GE 4] Top & Front of MIE-3XG Keyboard (Continued) 6: HEADPHONES AND HEADPHONE JACKS Stereo headphone jacks are located on the front left and right corners of the key- board. Headphones should…

Text truncated - open the document above for the full version.

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Thursday, March 15, 2007 11:49 AM To: '[email protected]' Cc: '[email protected]'; '[email protected]' Subject: FCC ID: UUVMIE 3/21/2007 Mr. Fujimoto: In order for processing of this certification application (FCC ID: UUVMIE) to continue, the following issue(s) will have to be addressed: 1) The confidentiality letter must be signed by the contact person on file with the FCC. Please submit a new letter. 2) The block diagram must indicate clock frequencies at each block. 3) Please submit a current, signed certification contract. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is UUVMIE-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB

Correspondence by Project Project Number: Correspondence NumberMemo UUVMIE-1 1) The confidentiality letter must be signed by the contact person on file with the FCC. Please submit a new letter. Response: The Contact Person has been changed with the FCC to reflect the letters send with this package. 2) The block diagram must indicate clock frequencies at each block. Response: Please see the Revised Block Diagram in the Exhibits. 3) Please submit a current, signed certification contract. Response: Pleasee see the new certification contract in the exhibits. 1172802270

FCC ID: UUVMIE This device complies with Part 15 of the FCC Rules. Operation is subject to the two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 6.5 2.75 Note: Dimensions are specified in inches. MiE Remote Control Transmitter Rear Panel FCC Label Placement JUribe December 11, 2006 Confidential JLCoo p er Electronics Internal Document

Report Number: B61213B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter, Remote Control Model: MiE Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for TRANSMITTER, REMOTE CONTROL MODEL: MiE Prepared for JLCOOPER ELECTRONICS, INC. 142 ARENA STREET EL SEGUNDO, CALIFORNIA 90245-3901 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 19, 2006 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 12 11 45 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B61213B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter, Remote Control Model: MiE Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test (continued) 14 7.3 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B61213B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter, Remote Control Model: MiE Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Site Report Number: B61213B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter, Remote Control Model: MiE Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Transmitter, Remote Control Model: MiE S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: JLCooper Electronics, Inc. 142 Arena Street El Segundo, California 90245-3901 Test Date: December 13, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz This test was not performed because the EUT is battery powered only and does not connect to the AC public mains. 2 Radiated RF Emissions, 10 kHz – 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B61213B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter, Remote Control Model: MiE Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Transmitter, Remote Control, Model: MiE. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report N…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 1 MHz VBW 1 MHz RF Att 10 dB A IN1 Unit dB
V P0 TDS SWT 200 ms Center 433.92 MHz20 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 D1 54 dB
V Date: 13.DEC.2006 14:56:32 The on time is greater than 100 milliseconds, thus the duty cycle will be 100%
