UV2ACTIVENT-VU315MHz Receiver

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 5 von 6 Page 5 of 6 User manual www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 6 von 6 Page 6 of 6 This page of user manual is inserted between page 2 and 3.

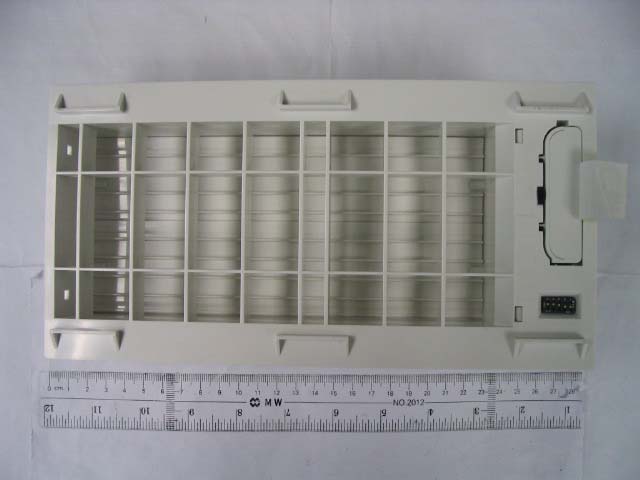

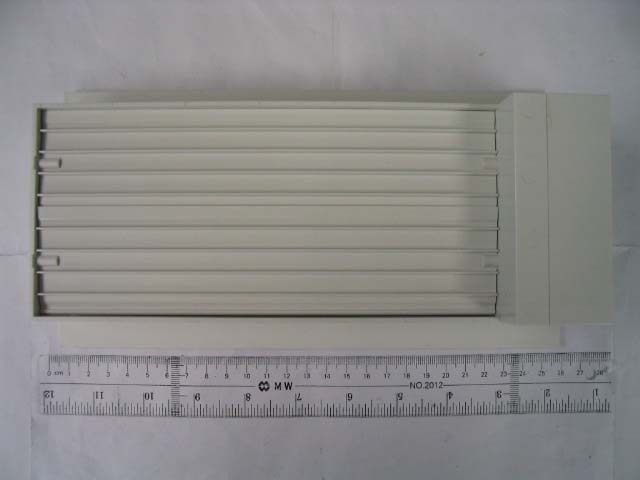

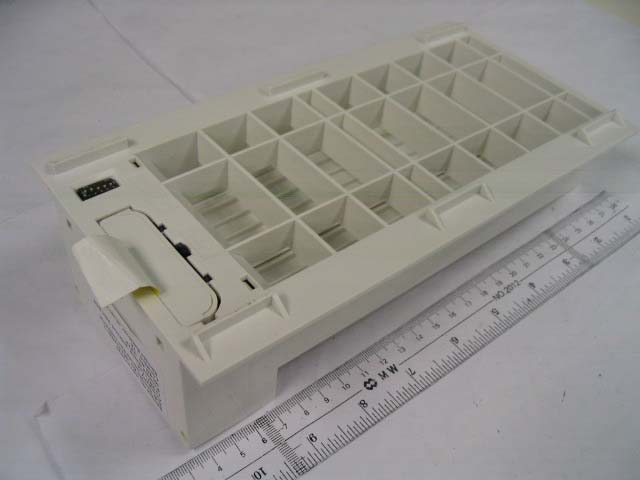

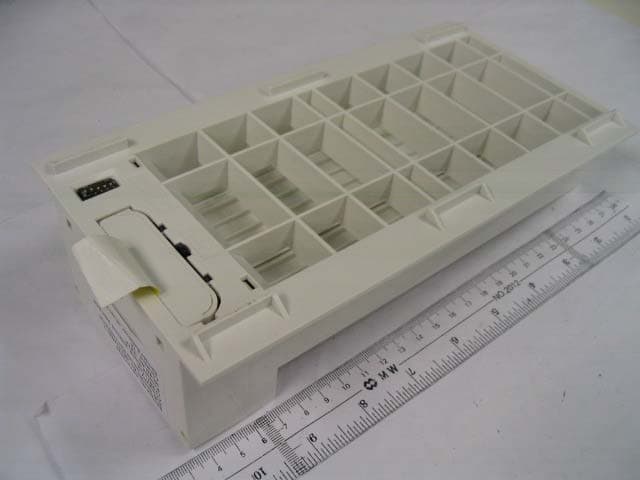

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 1 von 3 Page 1 of 3 Receiver (External view) Receiver (External view) www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 2 von 3 Page 2 of 3 Receiver (External view) Receiver (External view) www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 3 von 3 Page 3 of 3 Receiver (External view) Receiver (External view)

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 4 von 6 Page 4 of 6 FCC label and location

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 1 von 4 Page 1 of 4 Receiver (Internal view) Receiver (Internal view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 2 von 4 Page 2 of 4 Receiver (Internal view) Receiver (Internal view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 3 von 4 Page 3 of 4 Receiver (Internal view) Receiver (Internal view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 4 von 4 Page 4 of 4 Receiver (Internal view)

www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 2 of 9 Test Summary Spurious Radiated Emissions Result: Pass www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 3 of 9 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details ..........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ...........................................................................7 Countermeasures to achieve EMC Compliance..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission .........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Spurious Radiated Emissions Section 15.109 .........................................................................9 Appendix 1: Test Setup Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 4 of 9 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Active Loop Antenna EMCO 6502 9107-2651 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3347 Signal Generator Rohde & Schwarz SMY 01 844146/024 www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 5 of 9 General Product Information Product Function and Intended Use The equipment under test (EUT) is a receiver of a remote control louver system operating at 315MHz. The EUT turns the louver close and open according to the command of the associate transmitter. FCCID: UV2ACTIVENT-VU Model Product description Series A Activent Ratings and System Details Receiver Frequency range : 315MHz Number of channels : 5 dip switches (using same frequency with different identification scheme depends on dip switch pattern) Type of antenna : Integral antenna Power supply : DC 6.0V, 4 x AA size batteries Ports : none Protection Class : III www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 6 of 9 Independent Operation Modes The basic operation modes are: - Power on when batteries are inserted. - Louver movement: turn clockwise or anti-clockwise to open and close the louver. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - User manual - Label artwork Related Submittal(s) Grants This is a single application for certification of the Receiver. www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 7 of 9 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance The test sample, which has been tested, contained the noise suppression parts as described in the Circuit Diagram or the Technical Construction File. No additional measures were employed to achieve compliance. www.tuv.com Test Report No.: 14014822 001 Date: 05.01.2007 Page 8 of 9 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. The EUT was tested in three orthogonal planes. The investigation is performed with the EUT rotated 360ﾟ, the antenna height scanned between 1m and 4m, and the antenna rotated to repeat the measurements for both the horizontal and vertical antenna polarizations. Repeat the measurement steps until the maximum emissions were obtained. All radiated tests were performed at an antenna to EUT with 3 meters distance, unless stated otherwise in section 7.1.1 and 7.1.2 of this test report. Field Strength Calculation The field strength at 3 m was establis…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14014822 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Receiver) Set-up for Radiation Emission (Receiver)
