UVNTP2-TRUCKER-RAREPEATER

USER MANULUSER MANUL Table of contentsTable of contents • INTROUCTION • SPECIFICATION • INSTALLATION of REPEATER CE0678CE0678 1. Introduction TP2-Repeater is device to relay TPM(Tire Pressure Monitoring) information from TPM Sensor, Which is installed in each tires, to Monitor through 433.92MHz of RF 2 Specification2.Specification ○ Frequency : 433.92MHz ○ Output Power : EN300 200 ○ Operating temperature : -20°C ~85°C ○ Operating voltage: DC 24V ○ ○ SIZE (L × H × W) : 116mm × 41mm × 103mm ○ Weight : 137g 3. Installation of REPEATER ○ Mounting of tire pressure sensor ○ TP2-Repater install in vehicle back wheel frame middle, so fixed it to NUT ○ TP2-Repater power line is connected to ignition of vehicle ○ Plug in the Monitor to cigarette socket and turn on the key to ACC mode This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmfulto the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipmentusers authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and if not installed and useduses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingto try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules.

SEETRON INC. 201-403, 388 Songnae-daero, Wonmi-gu, Bucheon-si, Gyeonggi-do, 420-733, Republic of Korea March 20, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; SEETRON INC. 201-403, 388 Songnae-daero, Wonmi-gu, Bucheon-si, Gyeonggi-do, 420-733, Republic of Korea i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sign Name: Jae Yun, Joo Title: Senior Research Engineer Tel: +82-32-323-3123 E-mail: [email protected] Company Name: SEETRON INC.

March 20, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: UVNTP2-TRUCKER-RA To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, SEETRON INC. 201‐403, 388 Songnae‐daero, Wonmi‐gu, Bucheon‐si, Gyeonggi‐do, 420‐733, Republic of Korea Name: Jae Yun, Joo Title: Senior Research Engineer Tel: +82-32-323 -3123 E-mail: [email protected] Company Name: SEETRON INC.

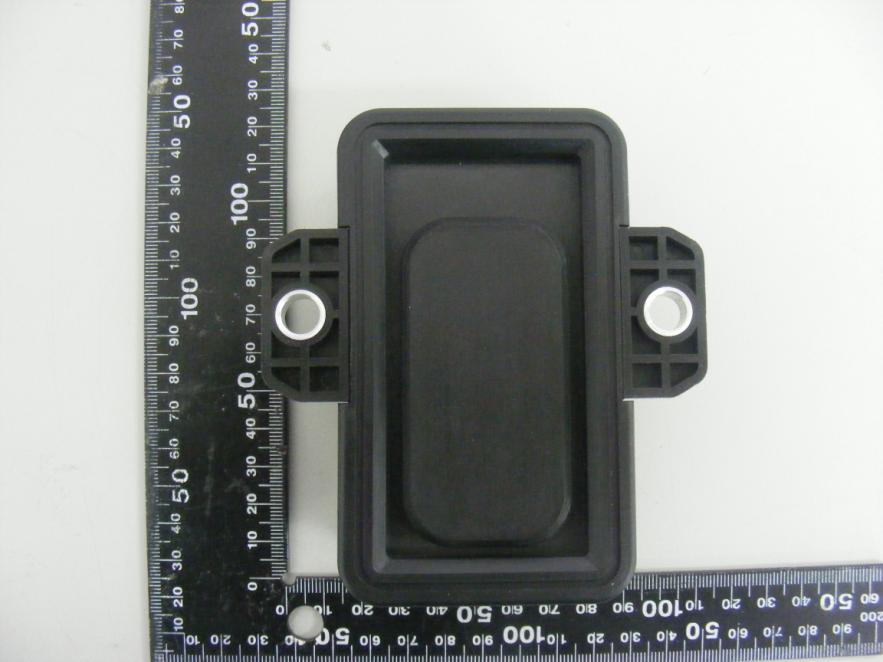

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT

Label Information FCC ID: UVNTP2‐TRUCKER‐RA Front view of EUT

Report Number:F690501/RF-RTL008498-1 Page:2of18 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Field Strength of Fundamental ----------------------------------------------------------6 3. Spurious Emission--------------------------------------------------------------------------11 4. Bandwidth of Operation Frequency----------------------------------------------------13 5. Transmission Time -----------------------------------------------------------------------15 Report Number:F690501/RF-RTL008498-1 Page:3of18 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+ 82 31 688 0901 Fax No.:+ 82 31 688 0921 1.2. Details of applicant Applicant:SEETRON INC. Address:201-403, 388 Songnea-daero, Wonmi-gu, Bucheon-si, Gyeonggi-do, 420-733 Contact Person:Cho, Byoum-Youn Phone No.:+ 82 32 327 8123 1.3. Description of EUT Kind of Product REPEATER Model Name TP2-TRUCKER-RA Associated Transmitter TP2-CV1-1 (FCC ID : UVNTP2-CV1-1) Power Supply DC 24.0 V (used by vehicle battery) Frequency Range Tx : 433.92㎒, Rx : 433.92㎒ Modulation Type FSK Number of Channels 1 Antenna Type Coil Antenna 1.4. Associated Transmitter Model nameInformation TP2-CV1-1 (FCC ID : UVNTP2-CV1-1)- Basic model TP2-CV1-3 TP2-2.3P TP2-AD-9 - These added models have different external depends on various car wheel. - H/W and S/W are same as basic. - TP2-CV1-1 was the worst case among the associated transmitters. So TP2-CV1-1 was used for test. Report Number:F690501/RF-RTL008498-1 Page:4of18 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorAgilentE8257DMY51501169Jul. 17, 2014AnnualJul. 17, 2015 Spectrum AnalyzerAgilentN9030AMY53120526Jul. 17, 2014AnnualJul. 17, 2015 Spectrum AnalyzerR&SFSV30101004Jun. 25, 2014AnnualJun. 25, 2015 DC power SupplyAgilentU8002AMY48490027Dec. 22, 2014AnnualDec. 22, 2015 AttenuatorMini-CircuitsBW-N20W5+0950-4Dec. 23, 2014AnnualDec. 23, 2015 PreamplifierH.P.8447F2944A03909Aug. 27, 2014AnnualAug. 27, 2015 PreamplifierR&SSCU-1810117Dec. 26, 2014AnnualDec. 26, 2015 High Pass FilterMini-CircuitsNHP-800+VUU16801113-2Jul. 01, 2014AnnualJul. 01, 2015 High Pass FilterWainwrightWHK3.0/18G-10SS344Jun. 10, 2014AnnualJun. 10, 2015 Test ReceiverR&SESU26100109Mar. 03, 2015AnnualMar. 03, 2016 Loop Antenna SCHWARZBECK Mess-Elektronik FMZB15191519-039Jul. 09, 2013BiennialJul. 09, 2015 Trilog Broadband Antenna SCHWARZBECK Mess-Elektronik VULB9163396Jun. 07, 2013BiennialJun. 07, 2015 Horn AntennaR&SHF906100326Dec. 10, 2013BiennialDec. 10, 2015 Antenna MasterINN-COMM4000N/AN.C.R.N/AN.C.R. Turn TableINN-CODS 1200SN/AN.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Report Number:F690501/RF-RTL008498-1 Page:5of18 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 15 Subpart C §15.209, §15.231 Section in FCC Part 15 Test ItemResult 15.209(a) 15.231(e) Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c)Bandwidth of Operation frequencyComplied 15.231(e)Transmission TimeComplied 1.7. Test Report Revision RevisionReport number Date of issue Description 0F690501/RF-RTL0084982015. 03. 17Initial 1F690501/RF-RTL008498-12015. 03. 29 Retested with associated transmitter (TP2-CV1-1). Report Number:F690501/RF-RTL008498-1 Page:6of18 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9㎑ to 30㎒Emissions. The diagram below shows the test setup that is utilized to make the measurements for …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Orthogonal planes of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). 1. X- axis 2. Y-axis 3. Z-axis B. Photo of Test setup (9 ㎑ ~ 30 ㎒) C. Photo of Test setup (30 ㎒ ~ 1 ㎓) D. Photo of Test setup (above1 ㎓) - DUT was tested in the Z-axis
