UVUL828UHF WIRELESS MICROPHONE

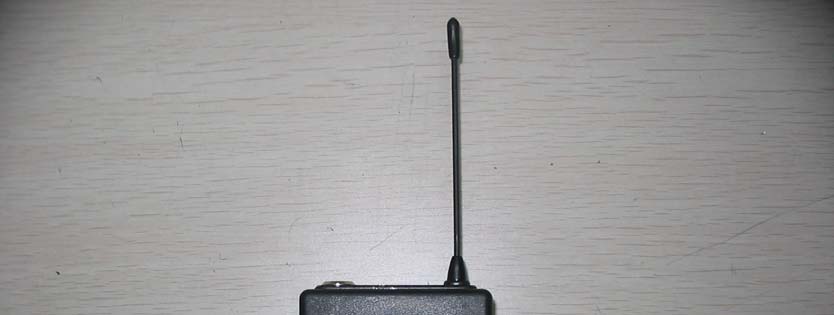

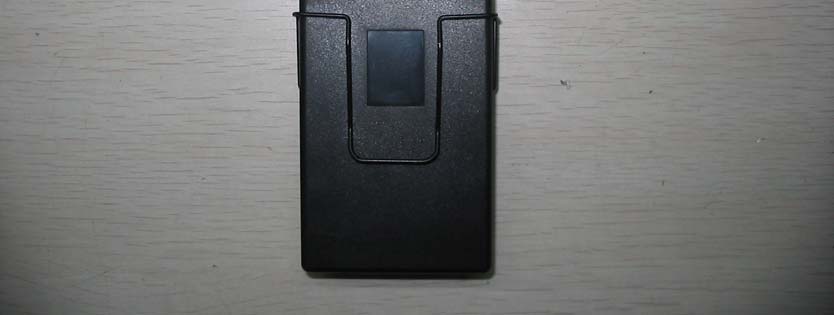

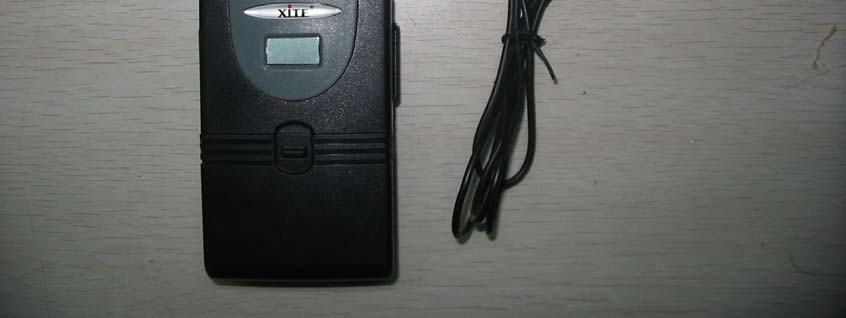

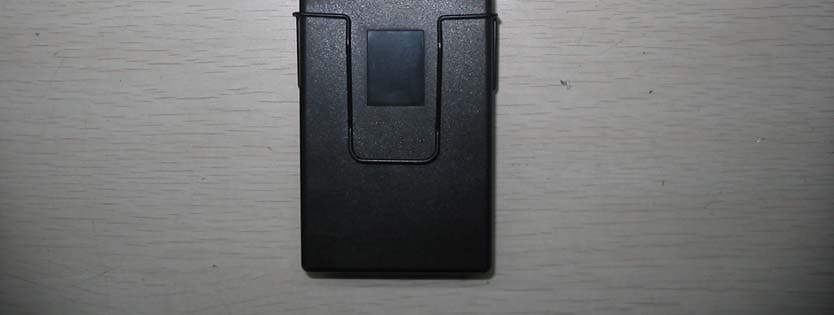

External Photograph for FCCID: UVUL828

UVUL828 FCCID label Frequency range: 701.500MHz – 805.000MHz ENPING CITY XENON ELECTRONIC CO.,LTD. This device complies with Part 74 of FCC Rules FCC ID:UVUL828

Page 1 of 4 Internal Photograph for FCCID: UVUL828 Internal View of Body worn Microphone-1 Internal View of Body worn Microphone-2 Page 2 of 4 Internal View of Body worn Microphone-3 Internal View of Body worn Microphone-4 Page 3 of 4 Internal View of Body worn Microphone-5 Internal View of Body worn Microphone-6 Page 4 of 4 Internal View of Body worn Microphone-7

Theory Of Operation 1, Switch on the power, then all the components are on power 2, Audio signals are acquired from the MIC. 3, Carrier Frequency are produced by Crystal Responser(X1). 4, Audio signals are modulated on the Carrier Frequency by the way of F3E. 5, The modulated signal will be amplified. 6. The amplified signal will then be transmitted to the air by the transmitting antenna.

Part Type Designator FootprintPart Type Designator Footprint 0.01uFC44103R40 1.0uFC18103R43 1.0uFC19103R46 1.0uFC13103R45 1.0uFC1103R44 1.0uFC12103R55 1.0uFC21104PC4 1KR39104PC3 2.2UC61104PC60 2.2uFC8104PC23 2.2uFC5104PC7 2.2uFC25104PC6 2.2uFC24104PC56 2.2uFC22104PC29 2.2uFC20104pC57 2N6L7106C38 2P4C55153PC15 0.583333333 C43153PC14 2R2R3221PC49 4MCRY1222PC17 0.666666667 C34224PC9 0.666666667 C33471PC39 0.75C31471PC37 10uFC11471PC48 18PC16471PC45 47KR38471PC40 47pC58471PC50 68PC35473PC30 101C62474C28 101PC2475C36 101PC26475C27 101PC421503IC3 101PC414148D1 102C634148D 102PC594148D2 102PC109014Q1 103R5033179IC1DIP8 103R49LL4 103R48MC7805KIC4TO-3 103R51N2Q2 103R54N2Q3 103R53N2Q4 103R52NL 103R47NL6 103R42NL5 103R41NL3 Part Type Designator FootprintPart Type Designator Footprint NL2R223R18 NE571IC2R223R9 PC47R223R19 PC46R223R8 PC53R271R24 PC52R470R30 PC32R470R32 PC54R471R1 PC51R472R36 PICIC5R502R2 R34R103R503R5 R100R33R560R31 R100R35R628R21 R101R22SW-PBDOW R101R29SW-PBUP R102R23 R102R6 R103R10 R103R11 R103R12 R103R4DIP8 R104R20 R153R13 R153R14 R182R26 R183R28 R203R17 R203R16 R203R15 R220R37 R221R25 R223R27 R223R7

Page 1 of 1 FCCID: UVUL828 Dec. 19, 2006. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 I would like to confirm this device (FCCID: UVUL828) does not have tune up information because the tune up is fixed by the manufacturer. Therefore, the user cannot tune up the device. Sincerely, ENPING CITY XENON ELECTRONLC CO., LTD. ------------------ Enming Wu (Mr.) Manager

Page 1 of 3 Circuit Diagram for FCCID: UVUL828 Frequency range: 701.500MHz – 805.000MHz Page 2 of 3 Page 3 of 3

GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 1 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 74 SUBPART H REQUIREMENT OF UHF Wireless Microphone MODEL NO.: L828 BRAND NAME: N/A FCC ID: UVUL828 REPORT NO: HST06090043 ISSUE DATE: December 12, 2006 Prepared for ENPING CITY XENON ELECTRONIC CO., LTD. No3. WULIYING INDUSTRIAL AREA NORTH SUBURB, ENPING，GUANGDONG，CHINA Prepared by GUANGZHOU HUESENT TESTING SERVICE CO., LTD. NO. 91, DONGGUANZHUANG RD., TIANHE DISTRICT,GUANGDONG,P.R. CHINA TEL: 86-020-87221905 FAX: 86-020-87223892 This report shall not be reproduced, except in full, without the written approval of GUANGZHOU HUESENT TESTING SERVICE CO., LTD. GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 2 VERIFICATION OF COMPLIANCE Applicant: ENPING CITY XENON ELECTRONIC CO., LTD. No3. WULIYING INDUSTRIAL AREA NORTH SUBURB, ENPING, GUANGDONG，CHINA Product Description: UHF Wireless Microphone Brand Name: N/A Model Number: L828、L818、L900 Serial Number: N/A File Number: HST06090043 Date of Test: Nov 12,2006 ~ Dec 8, 2006 We hereby certify that: The report for the equipment was prepared by GUANGZHOU HUESENT TESTING SERVICE CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603; ANSI C 63.4:2001 and the sample tested as described in this report is in compliance with the FCC Rules Part 74 Subpart H. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Henly.xie / Q.A. Manager GUANGZHOU HUESENT TESTING SERVICE CO., LTD. GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 3 Table of Contents 1. GENERAL INFORMATION.........................................................4 2. SYSTEM TEST CONFIGURATION .............................................8 3. SUMMARY OF TEST RESULTS ...................................................11 4. DESCRIPTION OF TEST MODES................................................11 5. MAXIMUM TRANSMITTER POWRE..........................................12 6. MODULATION CHARACTERISTICS..........................................15 7. FREQUENCY TOLERANCE ......................................................23 8. EMISSION BANDWIDTH ............................................................27 9. UNWANTED RADIATION .........................................................30 APPENDIX 1 PHOTOGRAPHS OF SETUP ............................................................36 GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 4 1. GENERAL INFORMATION 1.1 Product Description ENPING DEXUN ELECTRONIC TECHNOLOGY CO.,LTD. Model: BT-8U (referred to as the EUT in this report). The EUT is a UHF Wireless Microphone designed as Low Power Auxiliary Stations for transmitting voice only. It is designed by way of utilizing the FM modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Frequency Tolerance: 0.00063% (0.005%) B). Communication Type: Voice/Tone only C). Modulation: FM D). Emission type: F3E E). Emission designator: 100K1F3E (2M+2DK, M=12, D=38.04, K=1, Necessary Bandwidth = 100.1 KHz) F). Emission Bandwidth: 102.7 KHz (Limit: 200 KHz) G).Peak Frequency Deviation: 38.04 KHz (Limit<±75 KHz) H).Audio Frequency Response: 12 KHz I). Maximum Transmitter Power: 3.24 mW (Limit: 250 mW) J). Output power Modification: Fixed can’t be change K). Unwanted Radiation: 1). At least 60 dB (Limit 25 dB) on any frequency removed from the center of the authorized bandwidth by more than 50% up to and including 100% of the authorized bandwidth. 2). At least 65 dB (Limit 35 dB) on any frequency removed from the center of the authorized bandwidth by more than 100% up to and including 250% of the authorized bandwidth. 3). At least 27 dB (Limit 17.38 dB) on any frequency removed from the center of authorized bandwidth by more than 250%) L ). Antenna Designation: Integral M). Power Supply: 9V dc by battery N). DC Voltage= 7.3 V and DC Current= 16.3 mA into the final stage for normal operation over the power range O). Battery Endpoint: DC7.3 V P). Operating Frequency Range and Channels Frequency Range: 701 MHz – 805 MHz CH01 – 701.50 MHz CH02 – 794.90 MHz CH03 – 804.78 MHz Q). Effective distance:50M GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 5 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID filing to comply with the FCC Part 74, Subpart H Rules. 1.3 Test Methodology The radiated emission testing was performed according to the procedures of ANSI TIA/EIA 603 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057 1.4 Test Facility The open area test site used to collect the radiated data is located on the address of Compliance Engineering Service (China), No. 6, Jinao industrial park, No.35 Jukeng Road, Dashuikeng Village, Guanlan Town, Baoan District, Shenzhen, China. The Open Area Test Site is constructed and calibrated to meet the FCC requirements in documents ANSI C63.4: 2001 and CISPR 22/EN 55022 requirements. FCC Registered Test Site Number：101879. 1.5 Special Accessories Not available for this EUT intended for grant. 1.6 Equipment Modifications Not available for this EUT intended for grant. 1.7 Differences between Models Model Name Differences L828 Outer Decoration L818 Outer Decoration L900 Outer Decoration GUANGZHOU HUESENT TESTING SERVICE CO., LTD. REPORT NO: HST06090043 FCC ID: UVUL828 DATE OF ISSUE: December.12.2006 Page 6 2. System Test Configuration 2.1 EUT Configuration The EUT configuration for testing is installed on RF …

Text truncated - open the document above for the full version.

Page 1 of 1 Test setup Photograph Frequency range: 701.500MHz – 805.000MHz
