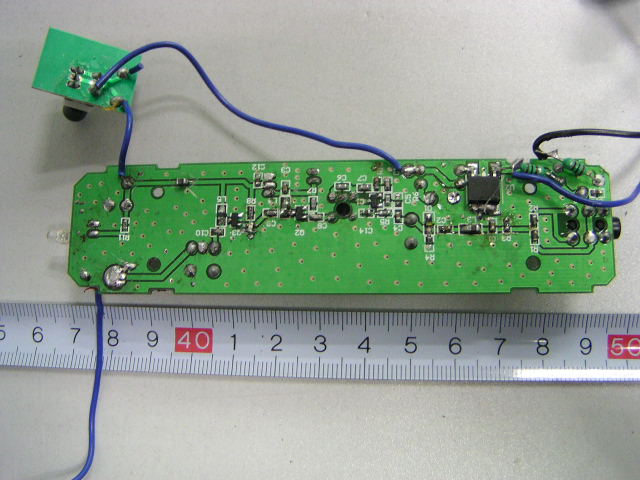

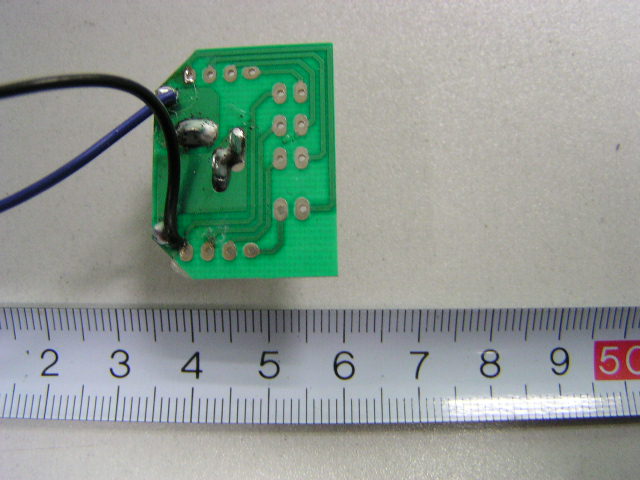

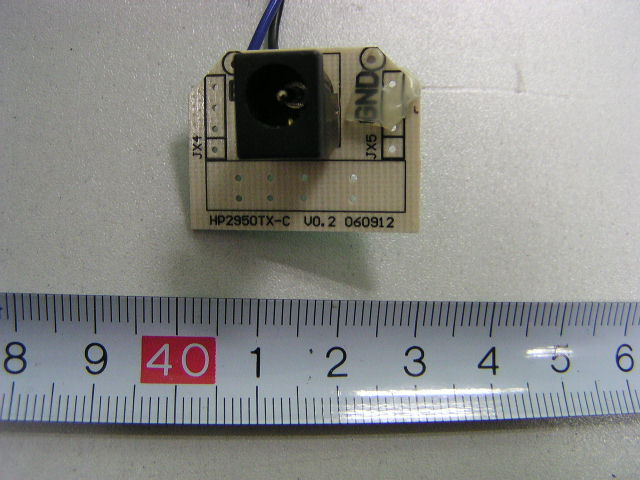

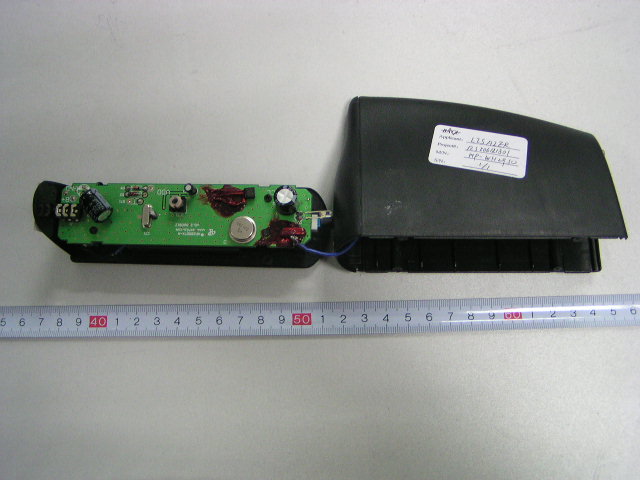

Internal Photos EUT- Inside View EUT- PCB (1) Top View EUT- PCB (1) Bottom View EUT- PCB (2) Top View EUT- PCB (2) Bottom View

HP-WH2950 transmitter Operating Elements 1. Power supply: Use size “6F22” 9V battery, or use adopter. 2. U1 and U2 is a power regulator, it’s supply stably voltage to circuit. 3. Stereo audio input jack, inside circuit combination to mono, modulation carrier wave. 4. Q1 with crystal (49.85MHz) and other assistant components composing oscillation amplifier and FM circuit. Who it’s resonance about 49.85MHz frequency. 5. Q2 and assistant components composing primary band filter amplifier, it’s resonance 49.85MHz frequency. 6. Q3 and assistant components composing second band filter amplifier. 7. F1 is a integrated band filter, it’s resonance 49.85MHz, E1 is a radiation antenna. 8. D5is a power ON/OFF indicator.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 7-Nov-2006 Sheet of File: E:\my work\protel files\hP2950.ddb Drawn By: GND Input 1 Gnd 2 Output 3 U2MC7809 C13104 EC3470uF/25V R210K R110K R32.2k HP-WH2950 wireless headphone transmitter V1.0 1 OF 1JOHN BT19V D41N4148 CT149.85MHz D1BB910 R524K C3103 Q1 2SC9018H R10 75R C11 82P C715P C515P IFT1 6KN C615p GND C8 10p R7 47k Q22SC9018H C12104 C982P Q3BF106 R8 33K GND GND L4100uH L5 4.7uH C4472 R4100k C1082p C2105 E1 6110 D21N4148 EC2470uF/25V VCC C1103 J1Audio input J2DCJACK DC input jack 9V DC regulator Audio in jack Audio equalizer 49.85MHz Crystal OSC B.P.F filter Second RF amplifier Final RF amplifier RF radiate antenna In 1 Gnd 2 Out1 3 Gnd 4 Out2 5 F1SD46/49 GND VOUT 3 GND 1 VIN 2 U1 HT7133A-1 EC1 22uF/10V GND R647K SW1BPowerSW1APower L3100uH D5 red R11 4.7K C14104 GND
