UY55031AIRTALK900Wireless Lane Module

Air Talk 900™ User’s Manual Rev D – 03/01/2007 FCC Statement This statement applicable for both the 5030 Wireless Audio Console and 5031 Wireless Lane Module NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Understanding the Air Talk 900™ System Information and Basic Specifications The Air Talk 900™ is a wireless, full-duplex intercom system that supports any combination of 1 to 4 audio consoles communicating with 1 to 8 drive-thru lanes. Thus, the system can be as simple as 1 audio console communicating with 1 lane or as complex as 4 audio consoles communicating with up to 8 lanes. The audio quality of the Air Talk 900™ is superb because of advanced audio processing features such as background noise cancellation, echo cancellation, and RF compression / expansion techniques. Below are the basic RF technical specifications for the Air Talk 900™ wireless intercom:
Console Frequency: 925.5MHz (Tx), 904.5MHz (Rx) +/- 1.5MHz
Lane Frequency: 904.5MHz (Tx), 925.5MHz (Rx) +/- 1.5MHz
RF Channels: 20 at 150KHz spacing
Antenna Impedance: 50 Ohm
Line of sight range: 100 feet maximum The Air Talk 900™ consists of two basic modules; the 5030 wireless console and the 5031 wireless lane module. Both the 5030 and 5031 require only 12Vdc +/- 2.5Vdc to operate. No other wiring is required. Typical Installation Procedure The typical installation for the Air Talk 900™ is a very simple process consisting of the following steps: 1. Determine the desired number of 5030 consoles (1 to 4) and 5031 lane modules (1 to 8) 2. Setup a unique console number for each 5030 3. Connect power to the 5030 wireless consoles 4. Setup the lane numbers for each 5031 5. Mount the 5031 wireless lane modules 6. Mount the 5031 lane antennas and connect to the 5031 modules 7. Connect power to the 5031 wireless lane modules 8. Test the system and adjust as needed. Understanding the Base Frequency and Communications Frequency The Air Talk 900™ utilizes a base frequency for communications between the 5030 wireless audio consoles and the 5031 wireless lane modules while in the idle state. Every console and lane module communicates on this base frequency. When the wireless audio consoles and lane modules are in the idle state they are simply listening on the base frequency for commands. When a lane button is selected the wireless audio console sends a command requesting that the selected lane enter into a private communications session with the console. If the desired lane is present in the system and is listening on the base frequency the lane will acknowledge the command and both the wireless lane module and the requesting wireless audio console will switch to their own private communications frequency. All the other idle lanes and consoles will remain at the base frequency. When the teller hangs up or puts the customer on hold both sides will switch back to listening on the base frequency. The private communications frequency is determined by the unique audio console number setup. This is why the audio console number must be unique or the communications session between the teller and customer will not be private. Because so much communication occurs on the base frequency it is important that the base frequency be free from interference. Thus, there are 4 possible base frequency settings which may be tested and / or changed in the maintenance setup mode. See the section on Maintenance Setup for more information. Understanding the Master Lane Module As described above, when a teller and lane customer are communicating they are on a private frequency and thus are not privy to what is occurring on the base frequency. Thus, during this conversation the wireless audio console does not have access to the status of the other consoles and lanes and so the lane status LED’s on the console will not be updated. The purpose of the master lane module is to update the system status to an audio console that has been communicating with a lane and has hung up or put a lane on hold. In a system that has installed a master lane module every idle console will have an updated LED status. This may be important in a system with multiple tellers. In smaller installations it may not be necessary to have a master lane module because there may only be 1 or 2 tellers and the status of every lane is easily obtained without looking at the console LED’s. It is possible to enable or disable the use of the master lane module on a wireless audio console. If the use of the master lane module is enabled but not present there will be a 5 second communication delay after hanging up or putting a lane on hold before another button press will take effect. This is because the console is waiting for an answer from the master lane module. Thus, if a master lane module is not present it should be disabled in maintenance setup. See the section on Maintenance Setup for more information. Keypad Operation of the 5030 Wireless Console
To Talk to a Customer Press LANE b…

Text truncated - open the document above for the full version.

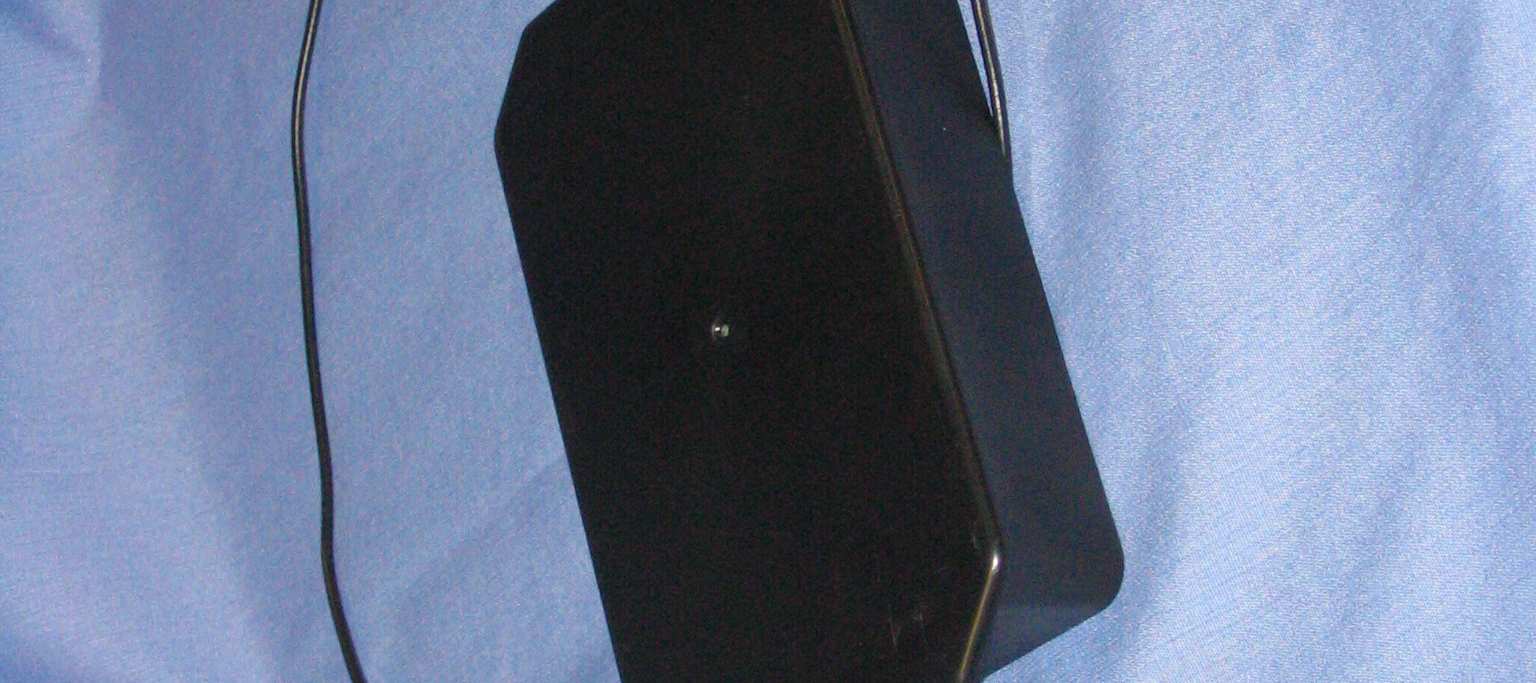

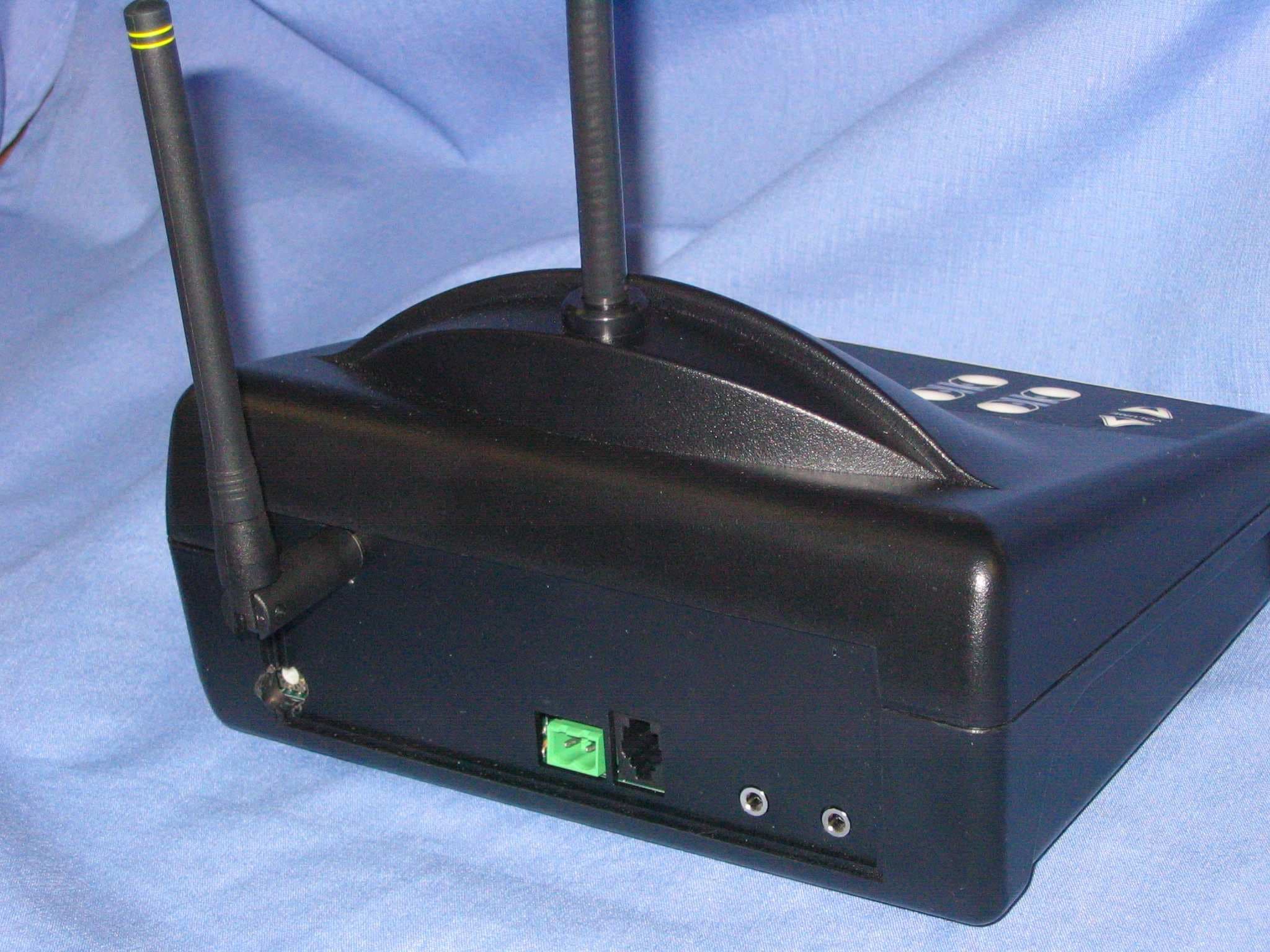

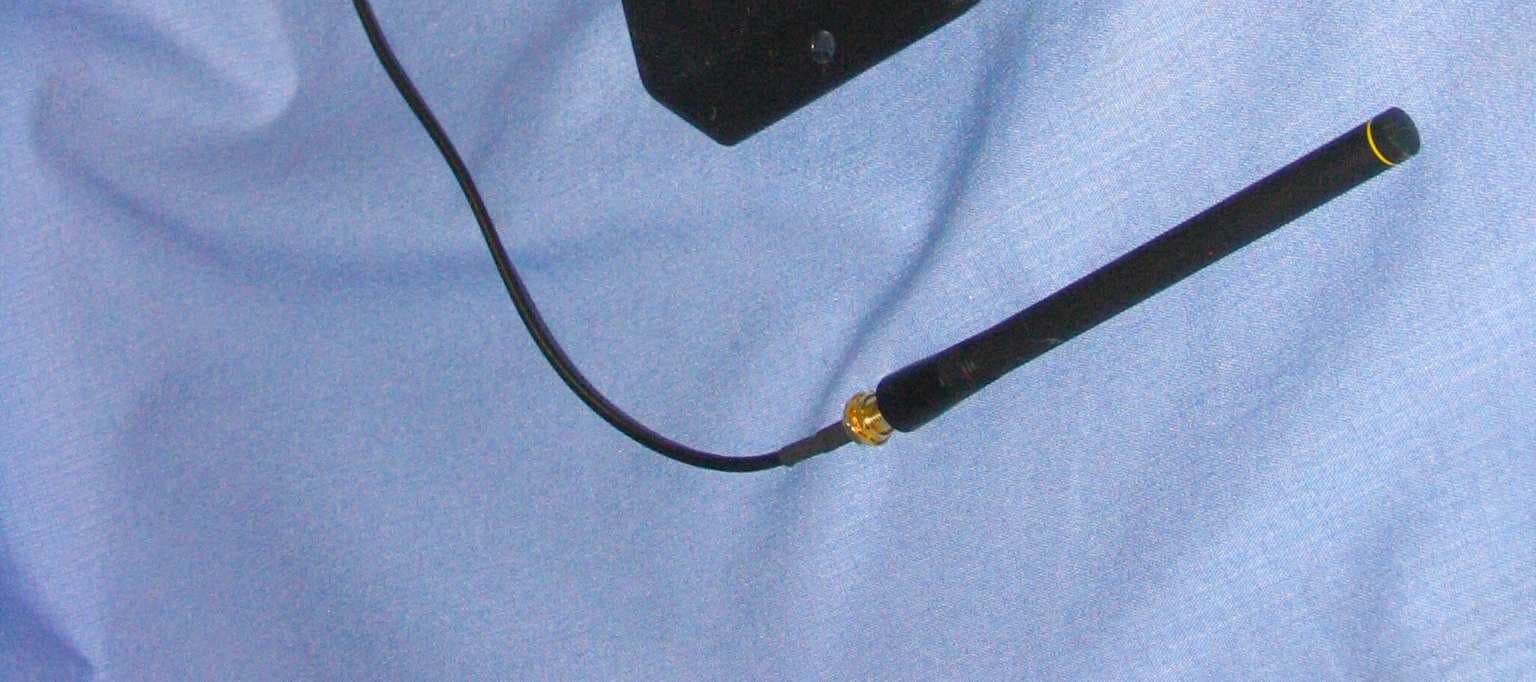

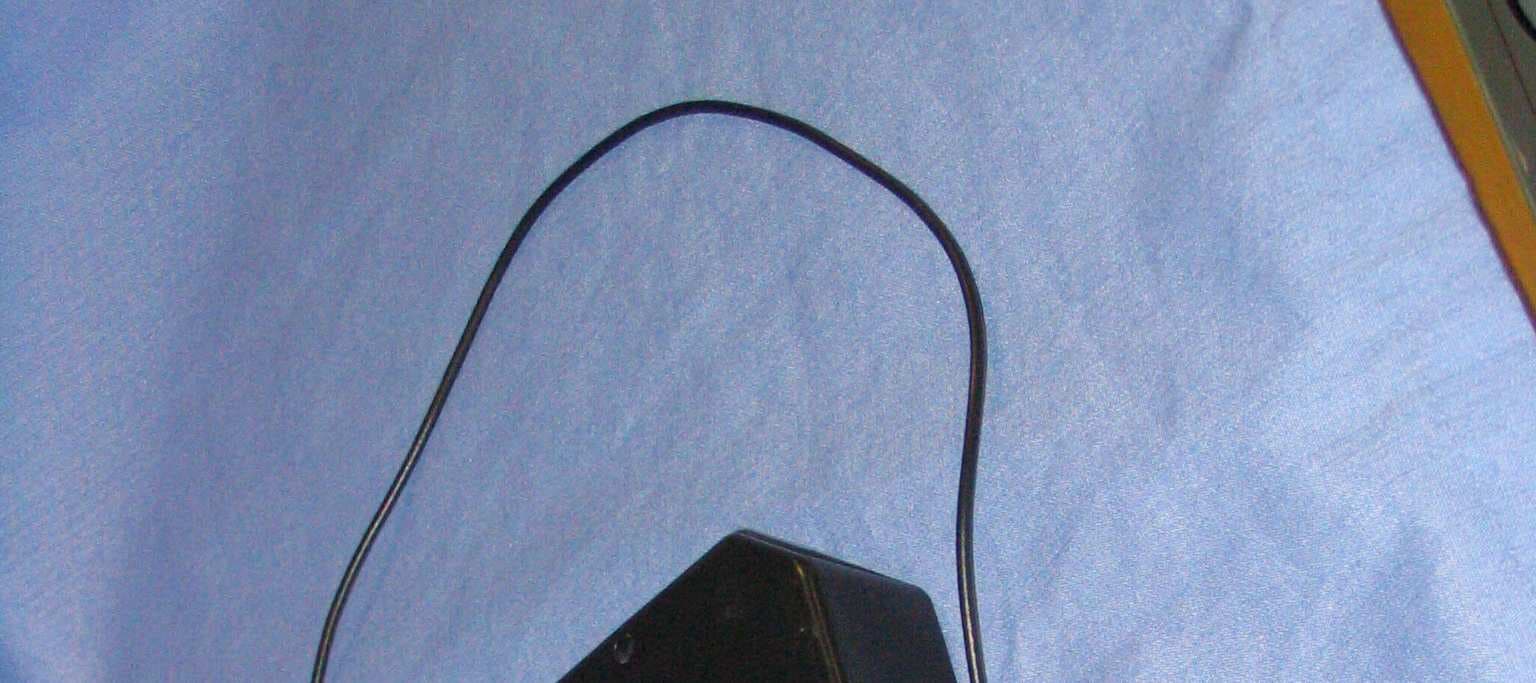

External Photographs – Top External Photographs – Bottom

Air Talk 900™ 5030 and 5031 FCC Labels Company Name: Greyfield Industries, Inc. FRN: 0016023772 FCC Grantee Code: UY5 5030 FCC ID: UY5 5030AirTalk900 5031 FCC ID: UY5 5031AirTalk900 5030 FCC Label FCC ID: UY5 5030AIRTALK900 “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.” 5031 FCC Label FCC ID: UY5 5031AIRTALK900 “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.” Air Talk 900™ FCC Label Locations Company Name: Greyfield Industries, Inc. FRN: 0016023772 FCC Grantee Code: UY5 5030 FCC ID: UY5 5030AirTalk900 5031 FCC ID: UY5 5031AirTalk900 5030 FCC Label Location 5031 FCC Label Location

PCB Placement Board – Top Side with Shield in Place Board – Top Side with Shield Removed Board – Bottom Side

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TEST REPORT Report Number: 3112812LEX002 Project Number: 3112812 Evaluation of the Air Talk 900™ Wireless Lane Module Model Number: 5031 FCC ID: UY55031AIRTALK900 FCC Part 15 Subpart B FCC Part 15 Subpart C For Greyfield Industries, Inc. Test Performed by: Test Authorized by: Intertek 731 Enterprise Drive Lexington, KY 40510 Greyfield Industries, Inc. 3104 Wayne Madison Road Trenton, OH 45067 Prepared By:_______________________________Date:____2/5/2007________ Jason Centers, Senior Project Engineer Approved By:______________________________Date:____2/5/2007_________ Bryan C. Taylor, Team Leader Intertek 731 Enterprise Drive, Lexington, KY 40510 Telephone: 859-226-1000 Fax: 859-226-1040 Web: www.etlsemko.com 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Greyfield Industries, Inc. FCC ID: UY55031AIRTALK900 Model No: 5031 Report Number: 3112812LEX002 Page 2 of 20 FCC Part 15 Subpart B & C Evaluation TABLE OF CONTENTS 1 JOB DESCRIPTION .......................................................................................................................... 3 1.1 COMPANY INFORMATION............................................................................................................ 3 1.2 TEST SAMPLE INFORMATION....................................................................................................... 3 1.3 SYSTEM SUPPORT EQUIPMENT.................................................................................................... 4 1.4 CABLES USED DURING TESTING................................................................................................. 4 1.5 SYSTEM BLOCK DIAGRAM(S) ...................................................................................................... 5 1.6 MODE(S) OF OPERATION / ENGINEERING JUDGMENTS................................................................ 5 2 EXECUTIVE SUMMARY................................................................................................................. 6 2.1 MODIFICATIONS REQUIRED FOR COMPLIANCE............................................................................ 6 3 TEST FACILITY................................................................................................................................ 7 3.1 TEST EQUIPMENT......................................................................................................................... 7 4 FIELD STRENGTH OF SPURIOUS RADIATION ....................................................................... 8 4.1 TEST PROCEDURE........................................................................................................................ 8 4.2 TEST RESULTS............................................................................................................................. 8 5 RADIATED RECEIVER EMISSIONS .......................................................................................... 10 5.1 TEST METHOD........................................................................................................................... 10 5.2 TEST RESULTS........................................................................................................................... 11 6 CONDUCTED VOLTAGE EMISSIONS....................................................................................... 15 6.1 TEST METHOD: .......................................................................................................................... 15 6.2 TEST RESULTS: .......................................................................................................................... 16 731 Enterprise Drive, Lexington KY 40510 Evaluation For:Greyfield Industries, Inc. FCC ID: UY55031AIRTALK900 Model No: 5031 Report Number: 3112812LEX002 Page 3 of 20 FCC Part 15 Subpart B & C Evaluation 1 JOB DESCRIPTION 1.1 Company Information Company Information Manufacturer: Greyfield Industries, Inc. Address: 3104 Wayne Madison Road Trenton, OH 45067 Contact Name: Brian Miller Telephone Number: (513) 988-9524 Email Address: [email protected] 1.2 Test Sample Information The Air Talk 900™ is a wireless, full-duplex intercom system that supports any combination of one to four 5030 wireless audio consoles communicating with one to eight 5031 wireless lane modules. Thus, the system can be as simple as one audio console communicating with one lane or as complex as four audio consoles communicating with up to eight lanes. The Air Talk 900™ contains audio processing features such as background noise cancellation, echo cancellation, and RF compression / expansion techniques. This report pertains only to the Air Talk 900™ Wireless Lane Module Model 5031. Test sample Model Number: 5031 Serial Number: Not Labeled FCC ID: UY55031AIRTALK900 Device Category: Mobile RF Exposure Category: General Population/Uncontrolled Environment Transmission: Full Duplex FM Frequency Range (MHz) 903-906 Antenna Type: ½ wave center-fed dipole Antenna Location: External Manufacturer Model Number Serial Number Power Supply Terayon AD-121ADT Not Labeled 731 Enterprise Drive, Lexington KY 405…

Text truncated - open the document above for the full version.

Radiated Tests Conducted Voltage Emissions Test
