UYKRFCT-10Transmitter for Wireless Clock System

RFCT-10 manual Transmitter for wireless clock system Contents 1 Description....................................................................................................................1 2 Initial Setup...................................................................................................................4 2.1 Preparation for setup..........................................................................................4 2.2 Setup ...................................................................................................................4 3 Operation ......................................................................................................................6 3.1 Operation details.................................................................................................6 3.2 GPS Operation.....................................................................................................8 3.3 SNTP Operation..................................................................................................9 4 Monitoring using PC ...................................................................................................10 4.1 Preparation........................................................................................................10 4.2 Command...........................................................................................................11 5 LCD Menu using key pad............................................................................................17 5.1 Status ................................................................................................................17 5.2 Time..................................................................................................................17 5.3 Reference..........................................................................................................18 5.4 Radio Frequency...............................................................................................19 5.5 Init LCD.............................................................................................................20 FCC CONCERNS FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF Exposure Statement: The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Do not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. 1 1 Description Figure 1.1 The RFCT-10 receives a time from a GPS (global positioning system) receiver or from a NTP (network time protocol) server via ethernet port. Then the RFCT-10(time transmitter) broadcasts the time to remote wireless clocks (time receiver of our company). As a result, all the wireless clocks are synchronized to the exact time. This time synchronization system is ideal for schools, universities, hospitals, and other applications in synchronizing time. Ethernet Transmitter RFCT-10 GPS Satellite Wireless Clock GPS Receiver Figure 1.2 Input, output and in-out ports are described as follows. - Input port ¾ DC Power ( 9VDC ) 2 ¾ GPS Antenna port ¾ Key pad( 4x4 array) - Output port ¾ RF Antenna port - Input and output port ¾ RJ-45 RS232 PC Interface port ¾ Ethernet port - Display output ¾ LED( REF, Alarm, Fault, PWR) ¾ LCD - Accessory ¾ AC-DC Adaptor ( input:100-240VAC, output:9VDC/1.5A) ¾ GPS Antenna(GPS18LVC) Figure 1.3 shows the input, output and in-output connection. RFCT(Transmitter) GPS Ant. NTP Server RS232 Ethernet PC RS232 AC/DC Adaptor Input:110~220V AC Output: 9V DC FM 72.1MHz~72.4MHz 30dBm(1W max.) *Monitor port connector only when being monitored. GPS port Ethernet port Monitor Port Figure 1.2 3 Figure 1.4 shows the block diagram of RFCT-10 Processor block (uController+ Flash memory+SRAM) 72MHz Narrow Band FM Modulator Power Amplifier GPS Receiver Port Ethernet Port LCDLED PC Monitor port for connecting network time server(NTP) Server DC-DC Block 5V 3.3V 7V Keypads ethernet RS232 RS232 TTL TTLTTL NTP Server internet GPS Antenna Data72MHz 110/220V – 9VDC AC-DC Adaptor 9V Figure 1.4 4 2 Initial Setup 2.1 Preparation for setup z RFCT-10 Set ¾ Transmitter (RFCT-10 main body). ¾ AC-DC Adaptor power supply ¾ RF Transmitter Antenna ¾ GPS Antenna z PC and monitoring cable( refer to 4.Monitoring using PC) : optional 2.2 Setup 2.2.1 Location The first step in setting up the transmitter is to determine a suitable location for the transmitter and GPS unit. The transmitter's power supply requires 120 Volts AC so proximity within reach of the transformer cord is needed. It is recommended that the transmitter be located a minimum of 2 to 3 feet above the floor and away from large metal objects, such as lockers, filing cabinets, etc. The transmitted signal from the an…

Text truncated - open the document above for the full version.

Hanyang Navicom Co., Ltd. 100 Sinseong-dong, Yuseong-gu, Daejeon, 305-345 Korea TEL : 82-42-868-4551 / FAX : 82-42-868-4501 http://www.navicom.co.kr/ Date: Feb 2, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Lee Seung-Il / Manager

Hanyang Navicom Co., Ltd. 100 Sinseong-dong, Yuseong-gu, Daejeon, 305-345 Korea TEL : 82-42-868-4551 / FAX : 82-42-868-4501 http://www.navicom.co.kr/ Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Hanyang Navicom Co, Ltd., would like the following documents regarding this submission for FCC ID: UYKRFCT-10 to be kept confidential. 1. Schematics 2. Parts List 3. Block Diagram 4. Theory of operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Lee Seung-Il / Manager

http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk Hanyang Navicom Co., Ltd., FCC ID: UYKRFCT-10, Assessment NO.: AN07T6625, Notice#1 Inbox Reply from "[email protected]" <[email protected]> hide details Mar 23 (3 days ago) to [email protected] cc [email protected] date Mar 23, 2007 1:22 PM subject Hanyang Navicom Co., Ltd., FCC ID: UYKRFCT-10, Assessment NO.: AN07T6625, Notice#1 Dear Denny Ham, The review of this application is complete. There are a few items that need to be resolved before the grant can be issued. Please contact me if you have questions. AN07T6625 Hanyang Navicom UYKRFCT-10 . 1. The test report must report data according to the following additional paragraphs from FCC Part 2 Subpart J: 2.1047, Modulation Characteristics 2.1049 Occupied Bandwidth, 2.1053 Field strength of spurious radiation (see No. 4 below). The report section 7 should reference 2.1047 and 2.1049. Although some of the measurements have been made, reference to these rule sections has not been included in the report. Please revise the report. The FCC rules can be accessed at the following link: http://www.access.gpo.gov/nara/cfr/ waisidx_06/47cfrv1_06.html 2. Licensed devices must be tested using the procedures of ANSI/TIA-603-C:2004. The test report makes reference only to ANSI C63.4:2003. Please revise the test report to include reference to ANSI/TIA-603-C:2004. 3. The field strength of spurious radiation test procedure must reference the substitution method described in ANSI/TIA-603-C:2004. The ANSI C63.4:2003 radiated emissions test procedure is not acceptable for licensed devices. For more information, refer to the following link Http://gullfoss2.fcc.gov/prod/oet/cf/kdb/forms/FTSSearchResultPage.cfm?id=20445&switch=P 4. Please provide a technical specification exhibit describing the antennas acceptable for use with the product In particular, please provide the specifications for the antenna on which the MPE calculation was based. The MPE calculation must be made with the highest gain antenna acceptable for use with the product. Thank you and best regards, Tim Dwyer CCS Tecnical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail Reply from "Ham, Denny (Gunpo)" <[email protected]> hide details 8:44 am (6 hours ago) to [email protected] cc "Kwon, James (Gunpo)" <[email protected]> date Mar 26, 2007 8:44 AM subject RE: Hanyang Navicom Co., Ltd., FCC ID: UYKRFCT-10, Assessment NO.: AN07T6625, Notice#1 http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (1 of 2)3/26/2007 3:30:32 PM http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk Dear Tim Dwyer, I did upload the test report and antenna gain data. Please review my upload files. Best regards, ========================================= Denny Ham / Asst. Manager Wireless Div. RF Lab SGS Testing Korea Co., Ltd. 18-34, Sanbon-Dong, Gunpo, Kyunggi-do, Korea (435-040) Tel : +82-31-428-5746 Fax : +82-31-427-2371 Mobile : +82-11-281-7016 www.electrolab.kr.sgs.com ========================================= - Show quoted text - Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (2 of 2)3/26/2007 3:30:32 PM

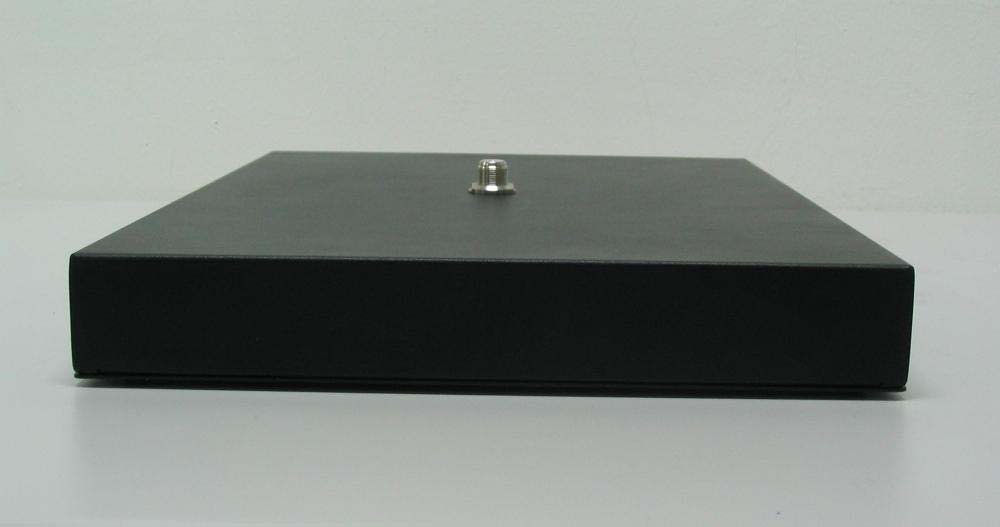

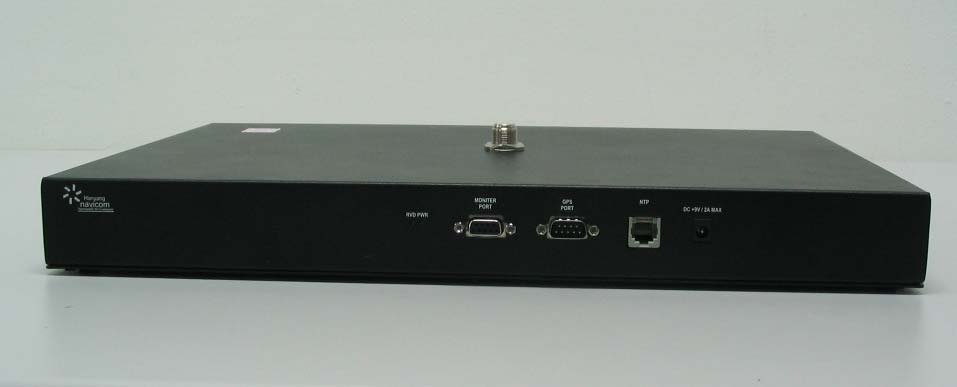

FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 32 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix C. Photos of the EUT Front View of EUT Rear View of EUT FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 33 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Right View of EUT Left View of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location -Rear side of set Hanyang Navicom Co., Ltd Model : RFTC-10 FCC ID : UYKRFCT-10 Made in Korea

FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 34 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 35 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Main-board Bottom View of Main-board FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 36 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Keyboard Bottom View of Keyboard FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 37 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of LED Display Bottom View of LED Display

FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 28 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 8. Maximum Permissible Exposure (MPE) 8.1. Radiofrequency radiation exposure limits. : § 1.1310 § 1.1310 The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. Table 1--Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.6131.0 6 300-1500 - -f/300 6 1500-100,000 - -5 6 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.0730.2 30 300-1500 - -f/300 30 1500-100,000 - -1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 To Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 To Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 29 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 8. 2 MPE Calculations S = P＊G/(4＊π＊R 2 ) [mW/ cm 2 ] where S = power density P = power input to the antenna G = antenna gain of an isotropic radiator R = distance to the center of radiation of the antenna P t = P + G =27.33 [dBm] + (-4.72).[dBi] = 22.61 [dBm] = 0.182 [W] [10 (27.33/10) ＊10 -3 ] S = P t / (4＊π＊0.2 2 ) = 0.182 / 0.502 [W/m 2 ] = 0.036 [mW/cm 2 ] 8.3 Results MPE Distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) 20 27.33 -4.72 0.036 0.2

FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 1 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT OF FCC Part 90, Part 2 FCC ID: UYKRFCT-10 Equipment Under Test :Transmitter for wireless clock system Model Name :RFCT-10 Serial No. :N/A Applicant :Hanyang Navicom Co., Ltd. Manufacturer :Hanyang Navicom Co., Ltd. Date of Test(s) :2007-02-22~ 2007-03-15 Date of Issue :2007-03-15 In the configuration tested, the EUT complied with the standards specified above. Te s t e d B y : Date 2007-03-15 Denny Ham Approved By Date 2007-03-15 James Kwon FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 2 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information 3 2. AC Power Line Conducted Emission 6 3. Spurious Radiated Emission 10 4. Frequency Stability 21 5. Frequency Stability for primary supply voltage 23 6. Conducted Output Power 24 7. Modulation Characteristics & Occupied Bandwidth 26 8. Maximum Permissible Exposure(MPE) 29 Appendix A. Photo of Radiated Emission Test Appendix B. Photos of Conducted Power Line Test Appendix C. Photos of the EUT FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 3 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-Si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Hanyang Navicom Co., Ltd. Address : 100 Sinseong-dong, Yuseong-gu, Daejeon Korea 305-804 Contact Person : Seungil Lee Phone No. : +82 +42 868 4551 Fax No. : +82 +42 868 4501 1.3. Description of EUT Kind of Product Transmitter for wireless clock system Model Name RFCT-10 Serial Number N/A Power Supply DC 9 V(AC 100 ~240 V adaptor) Frequency Range 72.1 MHz ~ 72.4 MHz Modulation Technique F1D(FSK) Number of Channels 16 ch Operating Conditions -30 °C ~ 50 °C Antenna Type Whip antenna Antenna Gain -4.72 dBi 1.4. Details of modification -N/A FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 4 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C May 2007 Spectrum Analyzer H.P 8593E Sep. 2007 Spectrum Analyzer R & S FSP40 Jan. 2008 Power Meter Agilent E4416A May 2007 Power Sensor Agilent E9327A May 2007 DC Power Supply Agilent 6674A May 2007 Attenuator Agilent 8494B May 2007 Two-Line V-Network NNB 41 Schaffner Sep. 2007 Test Receiver Rohde & Schwarz ESVS10 May 2007 Ultra-Broadband Antenna Rohde & Schwarz HL562 Sep. 2007 Dipole Antenna Schwarzbeck VHAP/UHAP Jun. 2007 Anechoic Chamber SY Corporation L xWxH 9.6x6.4x6.4 Aug. 2007 FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 5 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part 90, Part 2, Part 15 Standard Section Test Item Result 15.107(b) AC Power Line Conducted Emission - 90.210(c) Spurious Radiated Emission Complied 90.213(a) Frequency Stability Complied 90.257(b)(2) Conducted Output Power Complied 2.1047 Modulation Characteristics Complied 2.1049 Occupied Bandwidth Complied FCC ID : UYKRFCT-10 Report File No. : STROR-07-018(R1) Page : 6 of 38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. AC Power Line Conducted Emission 2.1. Test Setup 2.2. Test Procedures The test procedure is performed in a 6.5m × 3.6m× 3.6m (L×W×H) shielded room. The EUT along with its peripherals were placed on a 1.0m(W)× 1.5m(L) and 0.8m in height wooden table and the EUT was adjusted to maintain a 0.4 meter space from a vertical reference plane. The EUT was connected to power mains through a line impedance stabilization network (LISN) which provides 50 ohm coupling impedance for measuring instrument and the chassis ground was bounded to the horizontal ground plane of shielded room. All peripherals were connected to the second LISN and the chassis ground also bounded to the horizontal ground plane of shi…

Text truncated - open the document above for the full version.

FCC ID : UYKRFCT-10 Report File No. : STROR-07-018 Page : 30 of 37 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix A. Photo of Radiated Emission Test
