UYRTX19933REMOTE CONTROL HELICOPTER (TX)

WARNING: • Any unauthorized adjustment on this product could result in a violation of part 95 of the FCC Rules. Please have a person certified as technically qualified to perform transmitter maintenance and repair duties in the private land mobile services and fixed services by an organization or committee representative of users of the services. • Replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of part 95 of the FCC Rules. • A license may be required to operate this product in some countries. Consult about the license issue from the radiology department of the country. • Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Block Diagram 72.810MHz Antenna Power LED Power 4 Channel Control Pad CPU Mix Frequency Filter Power Out p u t Crystal Oscillate

EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UYRTX19933 Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UYRTX19933 Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

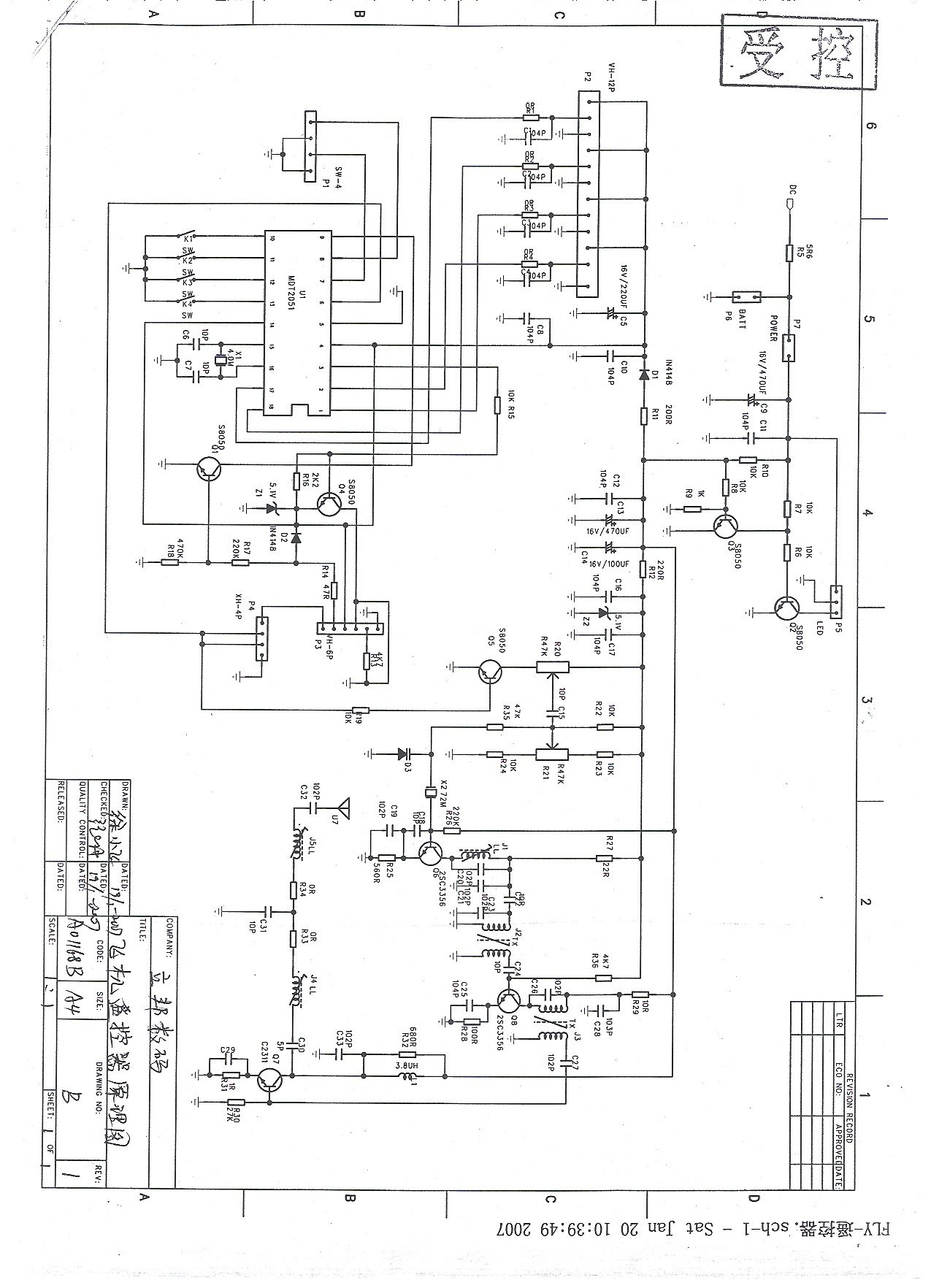

OPERATION DISCRIPTIONS The functional signal analyzed by the CPU which gets a pulse modulation passing through the Mix Frequency working with 4MHz crystal for producing a FM carrying signal. Carrying Wave amplified by the amplifier circuit unit, through the Filter Power Output and transmitting circuit and antenna, then transmit out as 72.810MHz. 1. 4 Channel Control Pad deals with the functional controlling. 2. CPU is the main functional control center, deal with Faction function control and other state indication. 3. Mix Frequency is a multiplied frequency to produce an extract HF signal, working with 14.483MHz crystal, it is a FM Module for producing FM CW. 4. Filter Power Output is function on enlarge the output power and HF Pass filter. It is consist of amplifier and LC filter. 5. There is no receiving function since it is a one-side band transmitting module.

ItemSpecificationQuatityUnit SMD Resistor0R6Pcs SMD Resistor100R1Pcs SMD Resistor10K9Pcs SMD Resistor10R1Pcs SMD Resistor1R1Pcs SMD Resistor1K1Pcs SMD Resistor200R1Pcs SMD Resistor220K2Pcs SMD Resistor220R1Pcs SMD Resistor22R1Pcs SMD Resistor27K1Pcs SMD Resistor2.2R1Pcs SMD Resistor470K1Pcs SMD Resistor47R1Pcs SMD Resistor4.7K2Pcs SMD Resistor560R2Pcs SMD Resistor5.6R1Pcs SMD Resistor680R1Pcs SMD Resistor47K2Pcs SMD Capacitor102P8Pcs SMD Capacitor103P1Pcs SMD Capacitor104P12Pcs SMD Capacitor10P5Pcs SMD Capacitor5P1Pcs Electrolytic Capacitor 100UF/16V1Pcs Electrolytic Capacitor 220UF/16V1Pcs Electrolytic Capacitor 470UF/16V2Pcs Chip Diodetransfiguration1Pcs Chip Diode2SC1623-L6 2Pcs Chip Diode2SC3356-R25 1Pcs DiodeS8050 3Pcs DiodeC2311 1Pcs Varistor47K 2Pcs Colour-code Inductor3.8UH 1/4W 1Pcs Crystal4.0M 1Pcs Zener diode5.1V 1/8W1Pcs Antenna1.2m 2Pcs SocketVH-2P1Pcs DiodeIN41481Pcs SocketVH-3P1Pcs Varistor TX1Pcs MDT2051 1Pcs switch1Pcs SocketVH-4P 4Pcs VaristorX4Pcs SocketVH-6P 2Pcs SocketVH-12P 1Pcs Array CordD=70mm VH-12P 1Pcs Power CordD=70mm 1Pcs wire47K4Pcs Crystal72M 1Pcs PCBHF-1021Pcs

APPLICANT: Libang Digital Electronics Manufacturing Co., Ltd. FCC ID: UYR TX19933 The unit has no provisions for tuning.

LIBANG DIGITAL ELECTRONICS MANUFACTURING CO., LTD. MODEL: HF-102 REPORT NO.: STR07018037I PAGE 1 OF 14 FCC PART 95 FCC PART 95 MEASUREMENT AND TEST REPORT FOR LIBANG DIGITAL ELECTRONICS MANUFACTURING CO., LTD. One Of 2 Industrial Road, Huanglian Second Development Zone, Leliu Town, Shunde District, Foshan City, Guangdong Province, China FCC ID: UYRTX19933 Report Concerns: Original Report Equipment Type: Remote Control Helicopter (Tx) Model: HF-102, HF-102A, HF-102B HF-101, HF-101A, HF-101B Report No.: STR07018037I Test/Witness Engineer: Innaz Lee Test Date: 2007-01-25 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . LIBANG DIGITAL ELECTRONICS MANUFACTURING CO., LTD. MODEL: HF-102 REPORT NO.: STR07018037I PAGE 2 OF 14 FCC PART 95 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS..................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §2.1046 AND §95.639(B) (3) - RF OUTPUT POWER............................................................................................6 3.1 STANDARD APPLICABLE........................................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAIL.......................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.4 TEST RESULT/PLOTS..............................................................................................................................................7 4. §2.1049 AND § 95.633(B) - OCCUPIED BANDWIDTH OF EMISSION ............................................................8 4.1 STANDARD APPLICABLE........................................................................................................................................8 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.5 TEST RESULTS/MASKS...........................................................................................................................................9 5. §95.635(B)(1), §95.635(B)(3), §95.635(B)(7), §95.635(B)(10), §95.635(B)(11), §95.635(B)(12)- RADIATED SPURIOUS EMISSION ..............................................................................................................................................10 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 5.2 STANDARD APPLICABLE......................................................................................................................................10 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.4 TEST PROCEDURE.................................................................................................................................................11 5.5 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.6 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. §2.1055, §95.621 AND §95.627(B)- FREQUENCY STABILITY ........................................................................13 6.1 STANDARD APPLICABLE...............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiated Spurious Emission Setup Frequency Stability Test Setup
