UZAVUSV2VAC-U-STORE V2

On/Off SW (on/off Tx LED) Tx enable Remote Control Encoder Address (A0~A7) & Data (D0~D3) select Select Control 433.92MHz Tx Encoder Data RF Remote Encoder Part System Use 12V Battery

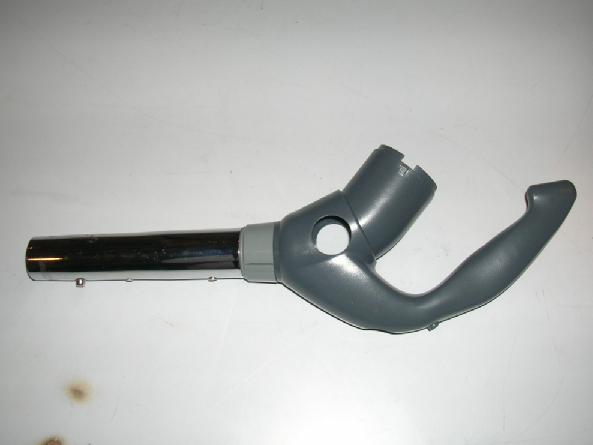

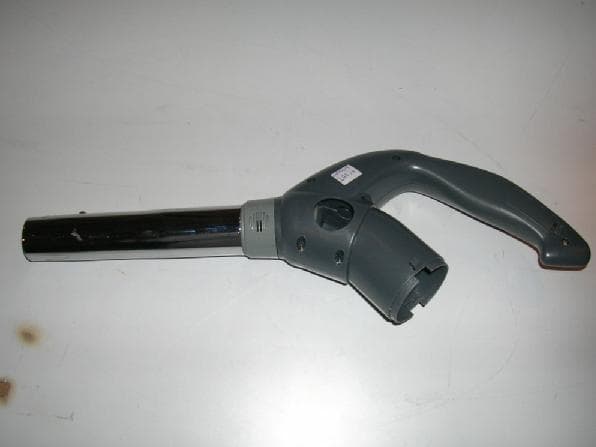

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: UZAVUSV2 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: UZAVUSV2 Circuit Description The 433 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The network consisting of C7 and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source No external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12 Volt (“H23A” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control operating at 433MHz band. The transmitter is powered by a 12V battery (“H23A” size battery x1) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 433MHz carrier frequency. Remarks: The transmitter is a 1 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

RF Remote Enc BOM : RF Remote Enc Date: 20-Apr-07 Ver : 0.01 Sch:RF Remote Enc_v0_03.sch ItemDescriptionManufacturerPart Number Our MFGPart No.Unit CostQtyTotal 1 IC, Remote Ctrl Encoder, RSM2262-S, SOIC-20 1 U1 2 Antenna, Wire L=???mm 1 ANT 3 Chip Capacitor, 0402, 100n 1 C3 4 Chip Capacitor, 0402, 2p2 1C7 5 Chip Capacitor, 0402, 5p 1C10 6 Chip Capacitor, 0402, 8p 1 C6 7 Chip Capacitor, 0402, 1n 1 C11 8 Chip Capacitor, 0402, NC C2C4C5C8C9C12 C13 C14C15C16 9 E-Cap, 33uF 16V 1C1 10 Chip Inductor, 0805, HQ-39nH 1L1 11 Chip Inductor, 0603, 56nH 1 L3 12 Jumper wire 1L4 13 Jumper wire 1L2 14 LED, Dia=3mm 1 D4 15 SMT Transistor, NPN, THN6501U, SOT323 1 Q1 16 Chip Resistor, 0402, 10k 1 R1 17 Chip Resistor, 0402, 120k 1 R2 18 Chip Resistor, 0402, 4M7 1 R5 19 Chip Resistor, 0402, 3k 1 R3 20 Chip Resistor, 0402, 2k2 1 R14 21 SAW Resonator, 433MHz, 3Pin, TO-39 1 Y1 22 SW, TACT SW, 6x6mm 1 S1 23 PCB, S/S, FR4, Th=1.0mm, size 23x16mm 1 24 PCB, D/S, FR4, PTH, Th=1.6mm, size 54.5x26mm 1 25Wire, L=20mm, for Key Pcb to Enc Pcb3 26Wire, L=60mm, for battery +12V1 27Wire, L=20mm, for battery Gnd1 28 Chip Resistor, 0402, 0R Option 4 DO0 DO1DO2DO3 Reference Page 1

ANTENNA INFORMATION No Exnternal antenna. There is no external ground connection. The ground is only that of the printed circuit borad. Electric current is supplied by 12Vlot “H23A” battery.

STC Test Report Date : 2007-05-10 Page 1 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Lung Fat Industries (HK) Co., Ltd. Flat 7, 8/F, New City Centre, 2 Lei Yue Mun Road, Kwun Tong, Kowloon, Hong Kong. Description of Samples: Model name: VAC-U-STORE V2 Model no.: Vac-U-Store V2 Brand name: Vac-U-Store FCC ID: UZAVUSV2 Date Samples Received: 2006-11-27, 2006-12-12, 2006-12-18, 2007-01-03, 2007-01-15, 2007-04-10 Date Tested: 2006-11-27 to 2007-04-19 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-05-10 Page 2 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 1.0 General Details 1.1 Test Laboratory Page 4 of 19 1.2 Applicant Details Page 4 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 19 Description of EUT operation 1.4 Date of Order Page 5 of 19 1.5 Submitted Samples Page 5 of 19 1.6 Test Duration Page 5 of 19 1.7 Country of Origin Page 5 of 19 2.0 Technical Details 2.1 Investigations Requested Page 6 of 19 2.2 Test Standards and Results Summary Page 6 of 19 3.0 Test Results 3.1 Emission Page 7-11 of 19 3.2 Bandwidth Measurement Page 12-13 of 19 STC Test Report Date : 2007-05-10 Page 3 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 19 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 19 Appendix C Periodic Operation Page 17 of 19 Appendix D Photographs Page 18-19 of 19 STC Test Report Date : 2007-05-10 Page 4 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Lung Fat Industries (HK) Co., Ltd. Flat 7, 8/F, New City Centre, 2 Lei Yue Mun Road, Kwun Tong, Kowloon, Hong Kong. HKSTC Code Number for Applicant Manufacturer Lung Fat Industries (HK) Co., Ltd. Flat 7, 8/F, New City Centre, 2 Lei Yue Mun Road, Kwun Tong, Kowloon, Hong Kong. STC Test Report Date : 2007-05-10 Page 5 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: VAC-U-STORE V2 Manufacturer: Lung Fat Industries (HK) Co., Ltd. Brand Name: Vac-U-Store Model Number: Vac-U-Store V2 Rating: 12Vd.c. (“H23A” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an Lung Fat Industries (HK) Co., Ltd. VAC-U-STORE V2. The transmitter is a 1 button transmitter. The EUT is to transmit while button is being pressed. It is pulse transmitter, Modulation by IC; and type is pulse modulation. 1.4 Date of Order 2006-11-27, 2006-12-12, 2006-12-18, 2007-01-03, 2007-01-15, 2007-04-10 1.5 Submitted Sample(s): 11 Samples 1.6 Test Duration 2006-11-27 to 2007-04-19 1.7 Country of Origin China STC Test Report Date : 2007-05-10 Page 6 of 19 No. : HM157802 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results S…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
