UZENRX700

Nanoradio AB

IEEE802.11b/g WLAN chipset on a reference platform

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Feb 06, 2007
Application Purpose: Original Equipment
Date of Application: Feb 06, 2007
Equipment Note: IEEE802.11b/g WLAN chipset on a reference platform
Frequency Range: 2412.00000000 - 2462.00000000
Company: Nanoradio AB
Country: Sweden

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

External Photos

ID Label/Location Info

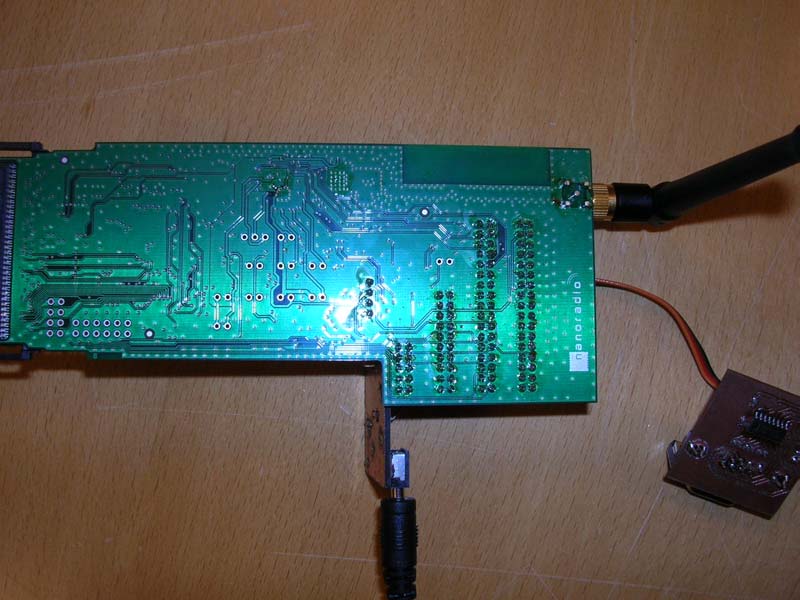

Internal Photos

RF Exposure Info

Test Report

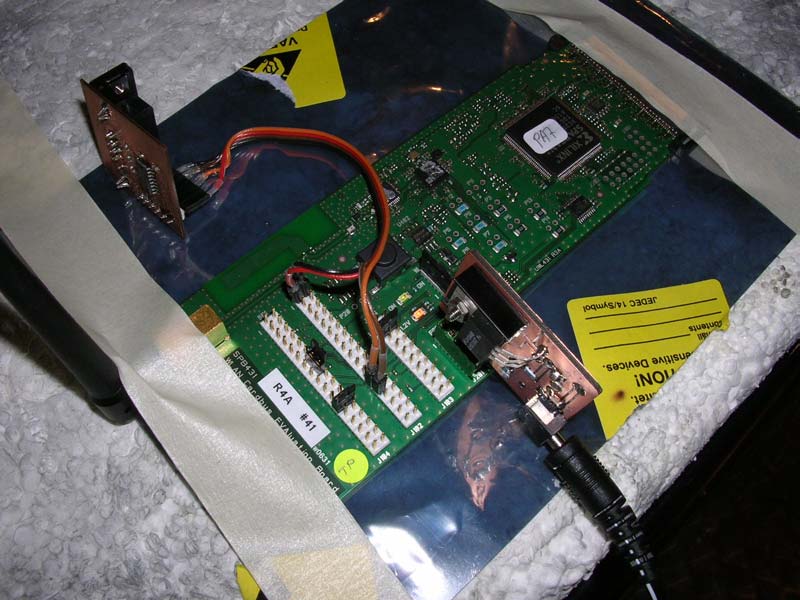

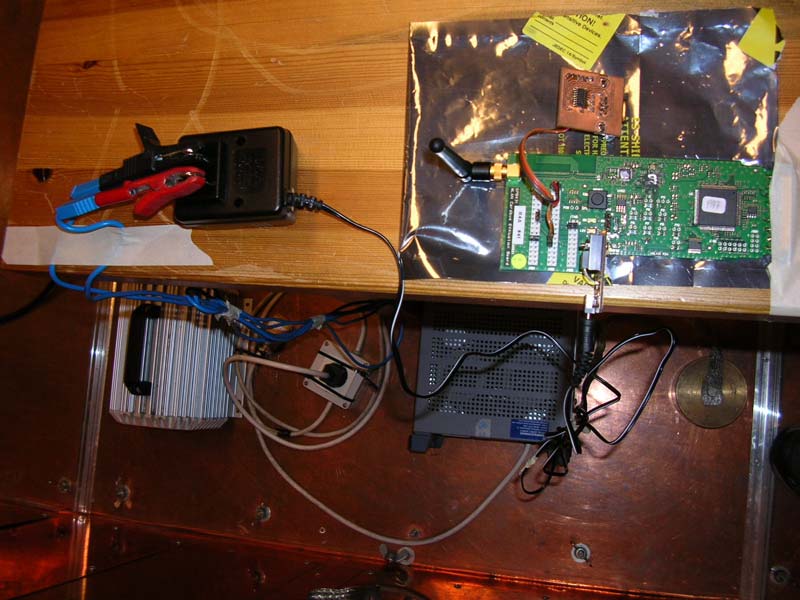

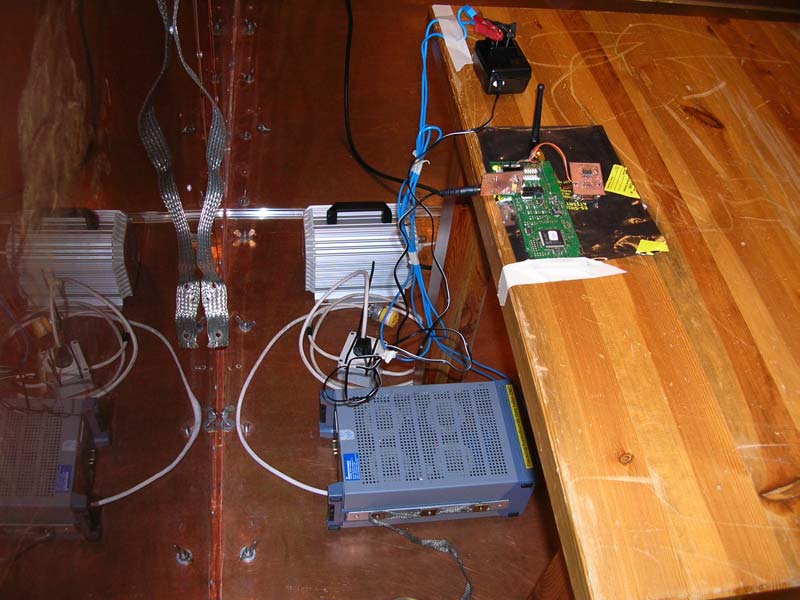

Test Setup Photos

Contact Information

Applicant

Tomas Blom(RF Module Design Manager)

[email protected]46 701 141423246Fax: 46 8 752 0491

Technical Contact

Nanoradio ABTomas Blom

[email protected]+46701141423246

Torshamnsgatan 39 · Kista, Stockholm · Sweden

Non-Technical Contact

Nanoradio ABTomas Blom

[email protected]+46701141423246

Test Firm

Intertek SEMKO ABNiklas Bostrom

[email protected]46-8-750-00-00Fax: 46-8-750-60-30

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	220.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Power Output listed is Conducted. Approval is limited to OEM installation only. Only antennas of the same type listed within this filing having gain of no more than 2dBi may be used. The antenna must be located at least 20cm from all persons. Evaluation for radiated emissions must be performed on the final product. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
