UZI-35M168LTE/EVDO REV. A MODULE

M535U User Guide 1. Connect the evaluation board with USB to Data & Power. 2. Follow the direction to insert the SIM card. 3. Turn on the Power Switch. 4. Launch Putty and select Serial. 5. Launch Device Manager and check the AT CMD port. 6. Input the AT CMD port to Putty. 7. Input AT command (at$qcrmcall=1,1)to establish the connection between PC and M535U. 8. How to install M535U to other host devices. Insert the module to assigned standard PCI‐E mini card slot. Secure the module using two screws and attach the cables (LTE1/2 & GPS if applicable) appropriately. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. End Product Labeling When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re‐moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: UZI‐35M168” The grantee's FCC ID can be used only when all FCC compliance requirements are met. This device is intended only for OEM integrators under the following conditions: (1) The antenna must be installed such that 20 cm is maintained between the antenna and users, (2) The transmitter module may not be co‐located with any other transmitter or antenna, except has been assessed in accordance with FCC multi‐transmitter product guidelines. (3) To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile exposure condition must not exceed: When in stand‐alone configuration: 。 9.0 dBi in Cellular band 。 8.0 dBi in PCS band 。 7.5 dBi in AWS band 。 11.0 dBi in 700 MHz band When co‐located with a 5 dBi Wi‐Fi antenna: 。 6.0 dBi in Cellular band 。 8.0 dBi in PCS band 。 7.5 dBi in AWS band 。 7.5 dBi in 700 MHz band In the event that these conditions cannot be met (for example certain laptop configurations or co‐location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re‐evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.

BandRich Inc. 6F., No. 71, Zhouzi St., Neihu Dist., Taipei City 11493, Taiwan Date: February 26, 2014 Module Approval Checklist FCC ID: UZI-35M168 Item Requirements EUT 1. The modular transmitter must have its own RF shielding. The module is equipped with its own shielding case. 2. The modular transmitter must have buffered modulation / data inputs. The module has buffer modulation / data inputs. 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), Not applicable to licensed modules. 5. The modular transmitter must be tested in a stand‐alone configuration. EUT conformance testing was performed in a standalone configuration. 6. The modular transmitter must be labeled with its own FCC ID number. The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end‐user of the final end‐product. 8. The modular transmitter must comply with any applicable RF exposure requirement. Compliance with RF Exposure requirement is addressed in RF exposure report

Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 720510

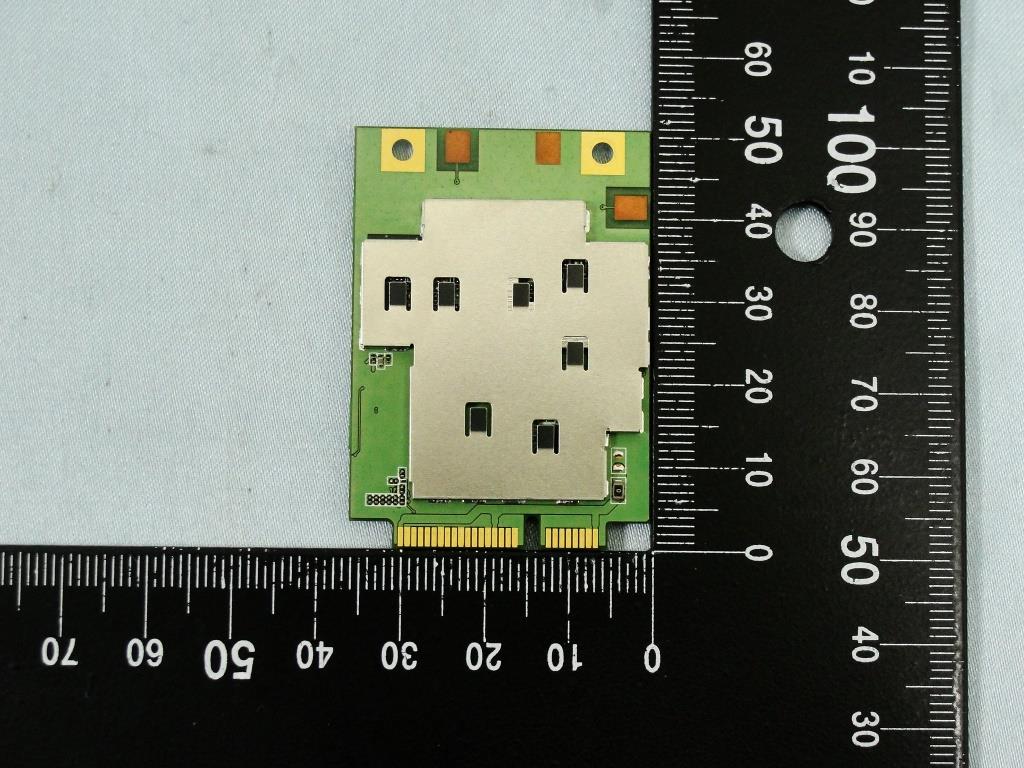

Front of the Device Label is located on the shield

Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 2. Internal Photograph of EUT 720510 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 720510 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 720510 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 6 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 7 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 8 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 9 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Photographs of EUT Report No.: EP421186 Brand Name: BandLuxe / Model Name: M535U SPORTON INTERNATIONAL INC. Page Number : 10 of 10 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168

SPORTON INTERNATIONAL INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 RF Exposure Evaluation Report APPLICANT : BandRich Inc. EQUIPMENT : LTE/EVDO Rev. A module BRAND NAME : BandLuxe MODEL NAME : M535U FCC ID : UZI-35M168 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 1.2. Applicant ............................................................................................................................................ 4 1.3. Manufacturer ...................................................................................................................................... 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculations............................................................................................ 8 5.2. Collocated Power Density Calculations ............................................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA421186 Rev. 01 Initial issue of report Feb. 19, 2014 SPORTON INTERNATIONAL INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 1. Administration Data 1.1. Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 1.2. Applicant Company Name BandRich Inc. Address 6F., No. 71, Zhouzi St., Neihu Dist., Taipei City 11493, Taiwan (R.O.C.) 1.3. Manufacturer Company Name FAIR GOAL ELECTRONIC CO. Address 1F., No.97-1, Haihu, Luzhu Township, Taoyuan County 338, Taiwan (R.O.C.) SPORTON INTERNATIONAL INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type LTE/EVDO Rev. A module Brand Name BandLuxe Model Name M535U FCC ID UZI-35M168 Wireless Technology and Frequency Range CDMA2000 BC0: 824.7 MHz ~ 848.31 MHz CDMA 2000 BC1: 1851.25 MHz ~ 1908.75 MHz LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz Mode •CDMA2000 : 1xRTT/1xEv-Do(Rel.0)/1xEv-Do(Rev.A) •LTE: QPSK, 16QAM Antenna Type Fixed External Antenna HW Version V1614E01 SW Version QC_2_00016739_3_001_0001 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 3. Maximum RF average output power among production units Band Average Power (dBm) CDMA BC0 25.0 CDMA BC1 25.0 LTE Band 12 22.5 LTE Band 5 22.5 LTE Band 4 22.5 LTE Band 2 22.5 SPORTON INTERNATIONAL INC. Page Number : 6 of 9 TEL : 886-3-327-3456 Report Issued Date : Feb. 19, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 RF Exposure Evaluation Report Report No. : FA421186 The table below summarized necessary items addressed in KDB 941225 D05 v02r03. FCC ID UZI-35M168 EUT LTE/EVDO Rev. A module Operating Frequency Range of each LTE transmission band LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 05: 824.7 MHz ~ 848.3 MHz LTE Band 04: 1710.7 MHz ~ 1754.3 MHz LTE Band 02: 1850.7 MHz ~ 1909.3 MHz Channel Bandwidth LTE Band 12: 1.4MHz, 3MHz, 5MHz, 10MHz LTE Band 05: 1.4MHz, 3MHz, 5MHz, 10MHz LTE Band 04: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz LTE Band 02: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz Transmission (H, M, L) channel numbers and frequencies in each LTE band LTE Band 12 Bandwidth 1.4 MHz Bandwidth 3 MHz Bandwidth 5 MHz Bandwidth 10 MHz Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) L 23017 699.7 23025 700.5 23035 701.5 23060 704 M 23095 707.5 23095 707.5 23095 707.5 23095 707.5 H 23173 715.3 23165 714.5 23155 713.5 23130 711 LTE Band 5 Bandwidth 1.4 MHz Bandwidth 3 MHz Bandwidth 5 MHz Bandwidth 10 MHz Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) Ch. # Freq. (MHz) L 20407 824.7 20415 825.5 20425 826.5 20…

Text truncated - open the document above for the full version.

SPORTON INTERNATIOINAL INC. Page Number : 1 of 45 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG421186A FCC RF Test Report APPLICANT : BandRich Inc. EQUIPMENT : LTE/EVDO Rev. A module BRAND NAME : BandLuxe MODEL NAME : M535U FCC ID : UZI-35M168 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Feb. 11, 2014 and testing was completed on Feb. 17, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIOINAL INC. Page Number : 2 of 45 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG421186A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Maximum Frequency Tolerance, and Emission Designator ............................................................. 6 1.7 Testing Site ....................................................................................................................................... 6 1.8 Applied Standards ............................................................................................................................. 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 2.3 Support Unit used in test configuration and system .......................................................................... 8 2.4 Measurement Results Explanation Example .................................................................................... 9 3 TEST RESULT ........................................................................................................................................... 10 3.1 Conducted Output Power Measurement ......................................................................................... 10 3.2 Peak-to-Average Ratio .................................................................................................................... 12 3.3 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 18 3.4 Band Edge Measurement ................................................................................................................ 26 3.5 Conducted Spurious Emission Measurement ................................................................................. 29 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 35 3.7 Frequency Stability Measurement ................................................................................................... 41 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 44 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 45 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIOINAL INC. Page Number : 3 of 45 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG421186A REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG421186A Rev. 01 Initial issue of report Feb. 26, 2014 SPORTON INTERNATIOINAL INC. Page Number : 4 of 45 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG421186A SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 RSS-132 (5.4) RSS-133 (6.4) Conducted Output Power N/A PASS - 3.2 §24.232(d) RSS-132 (5.4) RSS-133(6.4) Peak-to-…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B FCC RF Test Report APPLICANT : BandRich Inc. EQUIPMENT : LTE/EVDO Rev. A module BRAND NAME : BandLuxe MODEL NAME : M535U FCC ID : UZI-35M168 STANDARD : 47 CFR Part 2, 22(H), 24(E), 27 CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Feb. 11, 2014 and testing was completed on Feb. 17, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 6 1.1 Applicant ............................................................................................................................................ 6 1.2 Manufacturer ...................................................................................................................................... 6 1.3 Feature of Equipment Under Test ..................................................................................................... 6 1.4 Product Specification of Equipment Under Test ................................................................................ 7 1.5 Modification of EUT ........................................................................................................................... 7 1.6 Emission Designator .......................................................................................................................... 8 1.7 Testing Site ...................................................................................................................................... 10 1.8 Applied Standards ........................................................................................................................... 10 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ...................................................................... 11 2.1 Test Mode ........................................................................................................................................ 11 2.2 Connection Diagram of Test System ............................................................................................... 13 2.3 Support Unit used in test configuration and system ........................................................................ 13 2.4 Measurement Results Explanation Example ................................................................................... 14 3 TEST RESULT ........................................................................................................................................... 15 3.1 Conducted Output Power Measurement ......................................................................................... 15 3.2 Peak-to-Average Ratio .................................................................................................................... 26 3.3 Occupied Bandwidth ........................................................................................................................ 40 3.4 Conducted Band Edge Measurement ........................................................................................... 161 3.5 Conducted Spurious Emission Measurement ............................................................................... 243 3.6 Radiated Spurious Emission Measurement .................................................................................. 304 3.7 Frequency Stability Measurement ................................................................................................. 346 4 LIST OF MEASURING EQUIPMENT ...................................................................................................... 350 5 UNCERTAINTY OF EVALUATION ......................................................................................................... 351 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG421186B Rev. 01 Initial issue of report Feb. 26, 2014 SPORTON INTERNATIONAL INC. Page Number : 4 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 RSS-Gen(4.8) RSS -130(4.4) RSS-132 (5.4) RSS -133 (6.4) RSS-139 (6.4) Conducte…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 161 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B 3.4 Conducted Band Edge Measurement 3.4.1 Description of Conducted Band Edge Measurement 22.917(a) For Band 5 For operations in the 824 – 849 MHz band, the FCC limit is 43 + 10log 10 (P[Watts]) dB below the transmitter power P(Watts) in a 100kHz bandwidth. However, in the 1MHz bands immediately outside and adjacent to the licensee's frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. 24.238 (a) For Band 2 For operations in the 1850-1910 and 1930-1990 MHz band, the FCC limit is 43 + 10log 10 (P[Watts]) dB below the transmitter power P(Watts) in a 1MHz bandwidth. However, in the 1 MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. 27.53 (f) For Band 12 For operations in the 698 -746 MHz band, the FCC limit is 43 + 10log10(P[Watts]) dB below the transmitter power P(Watts) in a 100 kHz bandwidth. However, in the 100 kilohertz bands immediately outside and adjacent to a licensee's frequency block, a resolution bandwidth of at least 30 kHz may be employed. 27.53 (g) For Band 4 For operations in the 1710 – 1755 MHz band, the FCC limit is 43 + 10log 10 (P[Watts]) dB below the transmitter power P(Watts) in a 1 MHz bandwidth. However, in the 1MHz bands immediately outside and adjacent to the licensee's frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. 3.4.2 Measuring Instruments The measuring equipment is listed in the section 4 of this test report. SPORTON INTERNATIONAL INC. Page Number : 162 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B 3.4.3 Test Procedures 1. The EUT was connected to Spectrum Analyzer and Base Station via power divider. 2. The band edges of low and high channels for the highest RF powers were measured. Setting RBW ≥ 1% EBW, and measuring bandwidth = 1MHz. 3. The RF fundamental frequency should be excluded against the limit line in the operating frequency band. 4. The limit line is derived from 43 + 10log(P)dB below the transmitter power P(Watts) = P(W)- [43 + 10log(P)] (dB) = [30 + 10log(P)] (dBm) - [43 + 10log(P)] (dB) = -13dBm. 3.4.4 Test Setup SPORTON INTERNATIONAL INC. Page Number : 163 of 351 TEL : 886-3-327-3456 Report Issued Date : Feb. 26, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : UZI-35M168 Report Template No.: BU5-FGLTE Version 1.0 FCC RF Test Report Report No. : FG421186B 3.4.5 Test Result (Plots) of Conducted Band Edge Band : LTE Band 5 Band Width : 1.4MHz / QPSK Lower Band Edge Plot for QPSK-…
