V23TWDBMPSB-01Mobile Phone Signal Booster

- 1 - Dual Band Mobile Phone Signal Booster INSTALLATION AND OPERATION MANUAL P/N: TWDBMPSB-01 - 2 - INSTALLATION AND OPERATION MANUAL 1. Package Contents................................................................ 3 2. Important Safety Information................................................... 3 a. Limited Warranty.................................................... 4 b. Limitation on Liability............................................... 4 c. FCC Regulations..................................................... 4 3. Pre-installation Guidelines...................................................... 4 a. Installation Tools.................................................... 4 b. Installation Procedure............................................... 4 c. Electrical Power......................................................6 d. Amplifier/Repeater Status..........................................6 e. In-building Coverage Problems....................................6 f. Coaxial Cable Recommendations.................................. 6 4. Home/Office Installation.......................................................... 7 5. Specifications....................................................................... 7 6. Antenna & Accessory Options................................................... 8 7. Technical Support.................................................................. 8 - 3 - --------------------IMPORTANT-------------------- Read instructions completely before installation! 1. Package Contents Part Number Description TWDBMPSB-01 Dual Band Mobile Phone Signal Booster ANTDBSUS-01 Inside omni-directional dual band stick antenna ANTDBHUS-01 Indoor/Outdoor omni-directional 5dBi dual band helix antenna ADREPUS-01 110-240 VAC to 5 VDC power supply CBLREP-50 50' RG-6 satellite TV low loss cable (optional) ANTDBPUS-01 Indoor/Outdoor directional 8/11dBi dual band panel antenna (optional) 2. Important Safety Information The TWDBMPSB-01 system complies with all FCC, IC, UL rules, regulations and codes. Follow all guidelines in the installation and instruction manual and read completely before beginning the installation procedure. Do not deviate or disregard any of the safety features included in the manual or with the equipment, nor operate the system in an unintended application. WARNING! Only Think Wireless, Inc. authorized products may be used with the TWDBMPSB-01 system. Using unauthorized equipment with the TWDBMPSB-01 system will harm the system, voids the warranty and can be detected in the event of a failure. WARNING! Do not install antenna near power lines. Contact with any high voltage power lines could result in shock or loss of life. WARNING! Handle all electronic parts with care. Dropping or mishandling the TWDBMPSB-01 amplifier/repeater, antennas or power supplies can damage sensitive RF and electronic components. - 4 - a. LIMITED WARRANTY Think Wireless, Inc. warrants mobile phone repeaters for one (1) year that its Products sold hereunder will at the time of shipment be free from defects in material and workmanship and will conform to Think Wireless’s applicable specifications or, if appropriate, to Customer’s specifications previously accepted by Think Wireless in writing. If products sold hereunder are not as warranted, Think Wireless shall, at its option either refund the purchase price, or repair or replace the product, provided proof of purchase and written notice of nonconformance are received by Think Wireless, Inc. within one (1) year of date of purchase and provided said nonconforming Products are, with Think Wireless’s written authorization, returned in protected shipping containers. Think Wireless will pay for transporting the repaired or exchanged product to Customer. This warranty shall not apply to any Products Think Wireless determined to have been, by Customer otherwise, subjected to mishandling, misuse, neglect, improper testing, repair alteration, damage, assembly or processing that alters physical or electrical properties. b. LIMITATION ON LIABILITY In no event shall Think Wireless, Inc. be liable for any direct, indirect, special, punitive, incidental, exemplary or consequential damages, or any damages whatsoever, even if Think Wireless, Inc. has been previously advised of the possibility of such damages, whether in an action under contract, negligence, or any other theory, arising out of or in connection with the use, inability to use, or performance of the information, services, products, and materials available from this manual. These limitations shall apply notwithstanding any failure of essential purpose of any limited remedy. Because some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of liability for consequential or incidental damages, the above limitations may not apply to you. c. FCC REGULATIONS FCC ID: V23TWDBMPSB-01 This equipment complies with FCC radiation exposure limits set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Pre-Installation Guidelines a. INSTALLATION TOOLS The following tools are required for installation: Standard wrench and philips head screwdriver Standard drill (optional) Mobile phone operating on 800 and/or 1900 MHz bands (any USA or Canadian mobile phone except Nextel) Wire fasteners (optional) b. INSTALLATION PROCEDURE Description of TWDBMPSB-01 System The TWDBMPSB-01 Dual Band Wireless Amplifier/Repeater system provides cellular signal coverage to areas that have low signal strength to adequately operate a mobile phone. In these poor coverage areas it becomes difficult to place or receive calls and usually results in a dropped call. The TWDBMPSB-01 dual band amplifier/repeater system provides increased r…

Text truncated - open the document above for the full version.

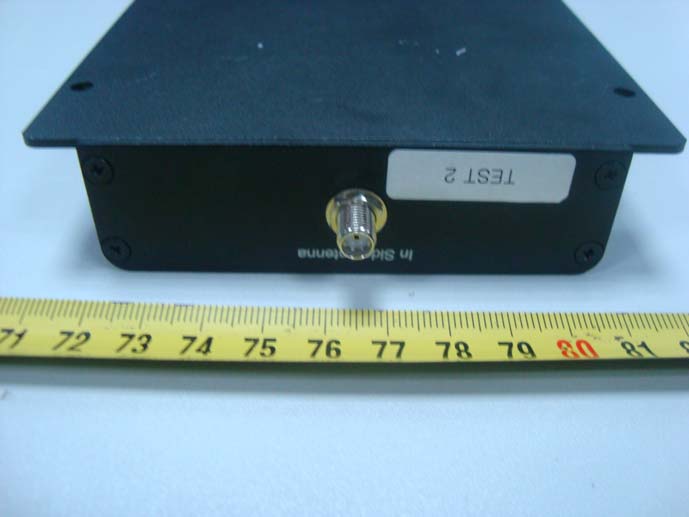

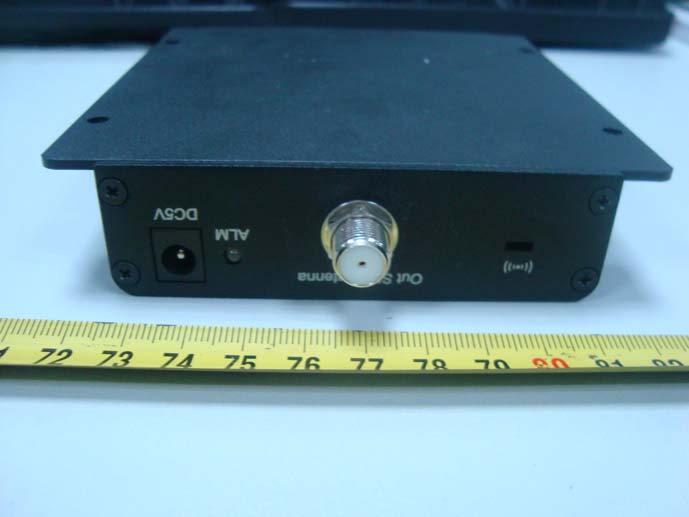

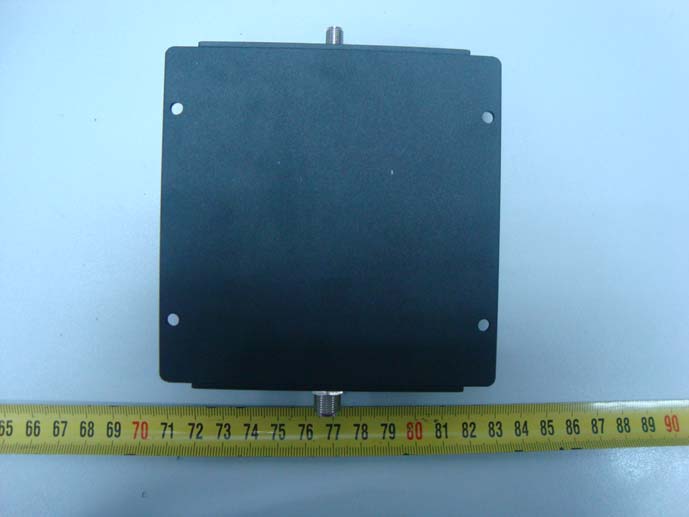

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Shield Top view EUT – Main Board Shield Bottom view EUT – Main Board Unshield Top view EUT – Main Board Unshield Bottom view

Think Wireless, Inc. FCC ID: V23TWDBMPSB-01 Report No.: RSZ10072801 Page 8 of 104 FCC Part 22H/24E Test Report FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §1.1307 (b)(1) and §2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Cellular Band: Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) UL 836.5 5 3.16 16.63 46.03 20 0.029 0.558 DL 881.6 5 3.16 4.71 2.96 20 0.002 0.588 PCS Band: Antenna Gain Conducted Power Mode Frequency (MHz) (dBi) (numeric)(dBm)(mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) UL 1850.2 5 3.16 16.72 46.99 20 0.03 1.0 DL 1960.0 5 3.16 4.37 2.74 20 0.002 1.0 Result: Compliant

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H & 24E MEASUREMENT AND TEST REPORT For Think Wireless, Inc. 5497 Wiles Rd, Suite 205, Coconut Creek, FL 33073, USA FCC ID: V23TWDBMPSB-01 Report Type: Original Report Product Type: Repeater Test Engineer: Wayne Cheng Report Number: RSZ10072801 Report Date: 2010-09-01 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Think Wireless, Inc. FCC ID: V23TWDBMPSB-01 Report No.: RSZ10072801 Page 2 of 104 FCC Part 22H/24E Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE).............................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §2.1047 - MODULATION CHARACTERISTIC ..............................................................................................9 FCC §2.1046, §22.913(A) & §24.232(C) - RF OUTPUT POWER...........................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST DATA................................................................................................................................................................11 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................13 APPLICABLE STANDARDS...........................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................28 APPLICABLE STANDARDS...........................................................................................................................................28 TEST PROCEDURE......................................................................................................................................................28 TEST EQUIPMENT LIST AND…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Spurious Radiated Emissions – Front View Below 1 GHz: Spurious Radiated Emissions – Rear View Above 1 GHz: Spurious Radiated Emissions – Front View Above 1 GHz: Spurious Radiated Emissions – Rear View
