V27SD-41Tough Mobile

Bittium Tough Mobile Quick start guide Bittium Tough Mobile Quick start guide2 Device at-a-glance 1 Power key and status indicator LED 2 Earpiece and microphone 3 Headset and protective cover 4 Front Camera 5 Back Camera 6 Loudspeakers 7 Flash LED 8 Volume Key 9 PTT/Multipurpose Key 10 Battery Cover 11 Battery charging connectors 12 USB 3.0 port and protective cover The ambient light sensor and proximity sensor are located next to the camera on the front of the Tough Mobile. The micro USB 3.0 port is located on the bottom of the Tough Mobile. Bittium Tough Mobile Quick start guide3 123 4 56 7 8 9 10 111112 The Tough Mobile is water and dust resistant (IP67). In order to maintain the water and dust resistance the battery cover, the USB connector cover and the headset cover must be properly closed. Submerging the Tough Mobile in water will degrade touch screen responsiveness and audio quality. The restoration of touch screen responsiveness and normal audio quality will require all water to be wiped off the touch screen and completely dried from the ear- piece and loudspeaker openings. Bittium Tough Mobile Quick start guide4 Box contents The Tough Mobile sales package contains the following items: • Battery • Charger, with US, UK and EU adapters • Micro USB 3.0 cable • 3.5mm Headset • Quick Start Guide Box contents and the appearance of the ac- cessories may vary. Verify that the Tough Mobile is turned OFF before removing the battery and inserting SIM card(s). Getting started To start using the Tough Mobile first remove the battery cover and insert SIM card(s). In- sert a micro SD card into a micro SD card slot. SIM card 1 is inserted into SIM card slot 1 and the battery is inserted. Replace the battery cover and push the power key to power the Tough Mobile. MICRO SD CARD SIM CARD 2 SIM CARD 1 Bittium Tough Mobile Quick start guide5 Prior to using the Tough Mobile the battery should be fully charged using the charger and USB3.0 cable provided inside of the sales package. The Back Cover of the Tough Mobile is intentionally tight to meet IP67 requirements. Apply enough force via the small notch in the Back Cover to pry the cover open. In order to maintain the water and dust re- sistance, the battery cover must be properly closed. 1 Align the upper edge of the back cover notches in place. 2 Snap lower edge notches in place 3 Squeeze the back cover in place 4 Verify that all notches have closed on all sides 1 2 3 4 Bittium Tough Mobile Quick start guide6 Once the Tough Mobile has powered up, fol- low the on-screen instructions to set up the device using the Security Wizard. Security wizard The Tough Mobile is equipped with a Securi- ty Wizard that is launched during the initial power up of the device. The Security Wizard is used to set up a number of different de- vice settings. Follow the on-screen instruc- tions by first setting a screen lock code. The number of set-up steps may vary depend- ing on the security features of the device. Bittium Tough Mobile Quick start guide7 Lock screen Turning off the display locks the Tough Mo- bile. The Tough Mobile also locks after a period of inactivity. Turn the display off by pressing the power key once. The display can be turned on by pressing the power key or multiuse key. To open the screen lock and to access the home screen, follow the steps outlined below: 1. Swipe the lock upwards. 2. Enter screen lock code. 3. Press the check mark. Bittium Tough Mobile Quick start guide8 Emergency dialer The Emergency Dialer can be entered direct- ly from the lock screen by pressing the text “EMERGENCY DIALER”. To place an emergency call, dial the emer- gency number and press the green icon. To return back to the lock screen, push the arrow in the left top corner. Home screen Once the Tough Mobile is successfully booted up and the screen is unlocked, it will display the home screen. Press the APPS symbol in the middle section of the bottom of the screen to open the application grid. Press the square RECENT APPS symbol to open the list of recent applications. The Bittium Tough Mobile Quick start guide9 circular HOME symbol is used to return to the home screen. The triangular BACK symbol is pressed to return to the prior screen. A swipe motion to the right or left is used to navigate around the home screen. BackRecent apps Apps Home Encrypted email The Tough Mobile supports email encryp- tion using OpenPGP. PGP related key man- agement, encryption, decryption and key signing are performed using the OpenKey- Chain application. To set up the email encryption, the security keys must be created or imported for the cipher. 1. Open OpenKeyChain and create or import keys. Bittium Tough Mobile Quick start guide10 2. Select the encryption algorithm and key strength. More encryption options are available in the advanced settings. 3. A key icon in the status bar indicates the PGP is set up and ready to use. 1 2 3 Bittium Tough Mobile Quick start guide11 More information about OpenKeyChain can be found at http://www.openkeychain.org/ Device encryption The Tough Mobile supports file system en- cryption for both the device internal flash memory and micro SD card. The internal flash memory is encrypted by default. 1 2 To enable micro SD card encryption select “Security” from the device Settings menu and Encrypt SD card from the Security set- tings menu. Follow the instructions provid- ed on the Tough Mobile screen. The Tough Mobile battery must be suffi- ciently charged or connected to a charger in order to proceed with the encryption set-up. Bittium Tough Mobile Quick start guide12 PTT/Multipurpose key The PTT/Multipurpose key can be config- ured via the Settings menu for the following features: 1. Operate the Push-to-Talk (PTT) functionality. 2. Enter sleep / Wake up the device from sleep, similar to the default Android Power key functionality. 3. Select active SIM card (SIM card 1 or SIM card 2). 4. Launch camera application. 5. Launch a defined application Application permiss…

Text truncated - open the document above for the full version.

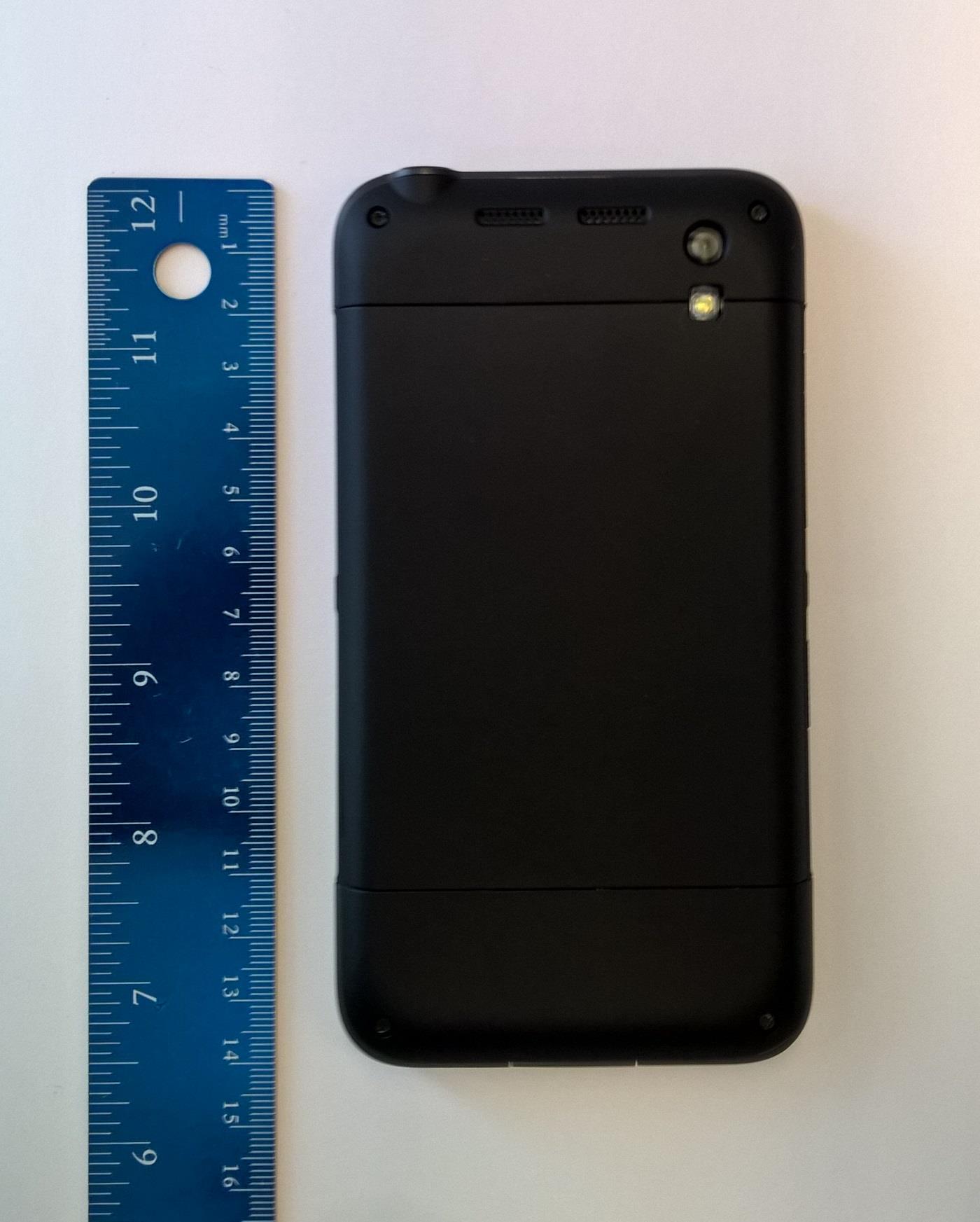

V27SD-41 External Pictures

V27SD-41 Internal Pictures Label location Label dimensions 41,90mm x 62,80mm

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 64 Report No. : SA150623C04 Issued Date : Nov. 20, 2015 FCC SAR Test Report Report No. : SA150623C04 Applicant : Bittium Wireless Ltd. Address : Tutkijantie 8, 90590, Oulu, Finland Product : Bittium Tough Mobile FCC ID : V27SD-41 Brand : Bittium Tough Mobile Model No. : Tough Mobile Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : Jun. 23, 2015 Date of Testing : Jul. 10, 2015 ~ Nov. 20, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 64 Report No. : SA150623C04 Issued Date : Nov. 20, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ......................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/11/20 P31 5.6G WLAN_802.11ac VHT80_Rear Face_1cm_Ch122 DUT: 150623C04 Communication System: WLAN_5G; Frequency: 5610 MHz;Duty Cycle: 1:1 Medium: B34T60N2_1120 Medium parameters used: f = 5610 MHz; σ = 5.828 S/m; ε r = 47.96; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C ; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.05, 4.05, 4.05); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2015/07/22 - Phantom: Twin SAM Phantom_1485; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (121x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.171 W/kg - Zoom Scan (6x6x12)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=2mm Reference Value = 0.7700 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.370 W/kg SAR(1 g) = 0.063 W/kg; SAR(10 g) = 0.017 W/kg Maximum value of SAR (measured) = 0.161 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/11/19 P32 5.8G WLAN_802.11ac VHT80_Rear Face_1cm_Ch155 DUT: 150623C04 Communication System: WLAN_5G; Frequency: 5775 MHz;Duty Cycle: 1:1 Medium: B34T60N2_1119 Medium parameters used: f = 5775 MHz; σ = 6.055 S/m; ε r = 48.33; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.45, 4.45, 4.45); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2015/07/22 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (101x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0359 W/kg - Zoom Scan (6x6x12)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=2mm Reference Value = 1.022 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.115 W/kg SAR(1 g) = 0.00878 W/kg; SAR(10 g) = 0.00327 W/kg Maximum value of SAR (measured) = 0.0227 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/07/11 P33 Bluetooth_Rear Face_1cm_Ch39 DUT: 150623C04 Communication System: BT; Frequency: 2441 MHz;Duty Cycle: 1:2.99 Medium: B19T27N1_0711 Medium parameters used: f = 2441 MHz; σ = 2.006 S/m; ε r = 51.123; ρ = 1000 kg/m 3 Ambient Temperature：23.9 °C; Liquid Temperature：23.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(7.12, 7.12, 7.12); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (91x141x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.00717 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.0110 W/kg SAR(1 g) = 0.00294 W/kg; SAR(10 g) = 0.00102 W/kg Maximum value of SAR (measured) = 0.00572 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/07/11 P34 2.4G WLAN_802.11b_Right Side_1cm_Ch6 DUT: 150623C04 Communication System: WLAN_2.4G; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B19T27N1_0711 Medium parameters used: f = 2437 MHz; σ = 2.002 S/m; ε r = 51.135; ρ = 1000 kg/m 3 Ambient Temperature：23.9 °C; Liquid Temperature：23.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(7.12, 7.12, 7.12); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x141x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.209 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.181 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.337 W/kg SAR(1 g) = 0.168 W/kg; SAR(10 g) = 0.082 W/kg Maximum value of SAR (measured) = 0.229 W/kg FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Nov. 20, 2015 Report No. : SA150623C04 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Nov. 20, 2015 Report No. : SA150623C04 Appendix D. Photographs of EUT and Setup FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150623C04 <Photographs of EUT> <Antenna Location> The separation distance for antenna to edge: Antenna To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WWAN Ant-0 122.7 3.6 48.5 5.4 WWAN Ant-1 125 3.6 3.8 59.5 WWAN Ant-2 127.7 5 20.9 49.6 WLAN / BT 81.8 39.8 68.9 1.6 EUT Top Side EUT Bottom Side EUT Right Side EUT Left Side WLAN / BT Antenna <EUT Front View> WWAN Antenna-0 WWAN Antenna-1 WWAN Antenna-2 FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150623C04 <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150623C04 Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap Left Side of EUT with 1.0 cm Gap Right Side of EUT with 1.0 cm Gap Bottom Side of EUT with 1.0 cm Gap

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Borsigstraße 11 Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Geschäftsführer/ Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Managing Director: USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Dr. Harald Ansorge Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC Measurement/Technical Report on WLAN transceiver Bittium Tough Mobile FCC ID: V27SD-41 IC: 3282B-SD41 Report Reference: MDE_ELEKT_1502_FCCb_rev2 Test report Reference: MDE_ELEKT_1502_FCCb_rev2 Page 2 of 68 Table of Contents 0 Applied Standards and Test Summary 3 0.1 Applied Standards 3 0.2 FCC-IC Correlation Table 4 0.3 Measurement Summary / Signatures 5 Revision History 12 1 Administrative Data 13 1.1 Testing Laboratory 13 1.2 Project Data 13 1.3 Applicant Data 13 1.4 Manufacturer Data 13 2 Test object Data 14 2.1 General EUT Description 14 2.2 EUT Main components 16 2.3 Ancillary Equipment 16 2.4 Auxiliary Equipment 16 2.5 EUT Setups 17 2.6 Operating Modes 17 2.7 Special software used for testing 18 2.8 Product labelling 18 3 Test Results 19 3.1 Conducted emissions (AC power line) 19 3.2 26 / 6 dB Emission bandwidth / 99 % occupied bandwidth 22 3.3 Maximum conducted output power 34 3.4 Maximum Power Spectral Density 41 3.5 Frequency Stability 47 3.6 Undesirable Emissions / General Field Strength Limits; Restricted Band and Radiated Emission Limits, Band Edge 48 4 Measurement Uncertainties 58 5 Test Equipment 59 6 Photo Report 67 7 Setup Drawings 68 Test report Reference: MDE_ELEKT_1502_FCCb_rev2 Page 3 of 68 0 Applied Standards and Test Summary 0.1 Applied Standards Type of Authorization Certification for an Intentional Radiator (Digital Device / Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-13 Edition) and 15 (10-1-13 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements Part 15, Subpart E – Unlicensed National Information Infrastructure Devices § 15.403 Definitions § 15.407 General technical requirements Note: The tests were selected and performed with reference to the FCC Public Notice “Guidelines for Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices - Part 15, Subpart E, 789033 D02 General U-NII Test Procedures v01, 2014-06-06”. ANSI C63.10 is applied. FCC ET Docket No. 13-49, FIRST REPORT AND ORDER, April 1, 2014 (“new rules”) is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.3 Measurement Summary / Signatures. Test report Reference: MDE_ELEKT_1502_FCCb_rev2 Page 4 of 68 0.2 FCC-IC Correlation Table Correlation of measurement requirements for UNII / LE-LAN (e.g. WLAN 5 GHz) equipment UNII equipment Measurement FCC reference IC reference Conducted emissions on AC Mains § 15.207 RSS-Gen Issue 4: 8.8 Occupied bandwidth § 15.403 (i) (26 dB) / § 15.407 (e) (6 dB) RSS-247 Issue 1: 6.2.1 (1), 6.2.2 (1), 6.2.3 (1) (99%) RSS-247 Issue 1: 6.2.4 (1) (6 dB) Maximum conducted output power § 15.407 (a) (1),(2),(3),(4) RSS-247 Issue 1: : 6.2.1 (1), 6.2.2 (1), 6.2.3 (1), 6.2.4 (1) Maximum power spectral density § 15.407 (a) (1),(2),(3),(5) RSS-247 Issue 1: : 6.2.1 (1), 6.2.2 (1), 6.2.3 (1), 6.2.4 (1) Transmitter undesirable emissions; General Field Strength Limits, Restricted Bands 15.407 (b) § 15.209 (a) RSS-Gen Issue 4: 6.13/8.9/8.10; RSS-247 Issue 1: : 6.2.1 (2), 6.2.2 (2), 6.2.3 (2), 6.2.4 (2) Frequency stability § 15.407 (g) RSS-Gen Issue 4: 6.11/8.11 Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) § 15.407 (h) RSS-247 Issue 1: 6.2.2 (1), 6.2.3 (1), 6.3 Antenna requirement § 15.203 / 15.204 RSS-Gen Issue 4: 8.3 Receiver spurious emissions – - Test report Reference: MDE_ELEKT_1502_FCCb_rev2 Page 5 of 68 0.3 Measurement Summary / Signatures FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 OP-Mode Setup Port Final Result a-Mode, CH 36, 20 MHz Setup_03 AC Port (power line) passed FCC Part 15, Subpart E § 15.403 (i), 15.407 (e) 26 / 6 dB Emission bandwidth / 99 % occupied bandwidth The measurement was performed according to FCC § 15.31 OP-Mode Setup Port Final Result a-Mode, CH 36, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 44, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 48, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 52, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 56, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 64, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 100, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 116, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 140, 20 MHz Setup_01 Temp.ant.connector performed a-Mode, CH 149, 20 MHz Setup_01 Temp.ant.connector passed a-Mode, CH 157, 20 MHz Setup_01 Temp.ant.connector passed a-Mode, CH 165, 20 MHz Setup_01 Temp.ant.connector passed n-Mode, CH 36, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 44, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 48, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 52, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 56, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 64, 20 MHz Setup_01 Temp.ant.connector performed n-Mode, CH 100, 20 MHz Setup_01 Temp.ant.connector performed…

Text truncated - open the document above for the full version.

TEST REPORT N°137269-676311 Page 2/27 SUMMARY 1. TEST PROGRAM ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) ................................ 4 3. DFS DETECTION THRESHOLDS DETERMINATION, REFERENCE NOISE LEVEL & CHANNEL LOADING ..................................................................................................................................................... 10 4. DYNAMIC FREQUENCY SELECTION (DFS): CHANNEL MOVE TIME & CHANNEL CLOSING TRANSMISSION TIME ................................................................................................................................. 16 5. DYNAMIC FREQUENCY SELECTION (DFS): NON-OCCUPANCY PERIOD ................................... 21 6. UNCERTAINTIES CHART ................................................................................................................ 26 7. RADAR TEST SIGNALS ................................................................................................................... 27 TEST REPORT N°137269-676311 Page 3/27 1. TEST PROGRAM References  47 CFR Part 15.407  905462 D02 UNII DFS Compliance Procedure New Rules v01r02  905462 D04 Test Mode New Rules v01  905462 D03 Client Without DFS New Rules v01r01  905462 D06 802.11 Channel Plans New Rules v01  905462 D07 Overview UNII Rules v01 Requirement: Test Description prior to use of a channel Test result - Comments Non-occupancy period  PASS  FAIL  NA  NP DFS Detection Threshold  PASS  FAIL  NA (1)  NP Channel Availability Check Time  PASS  FAIL  NA(1)  NP U-NII Detection Bandwidth  PASS  FAIL  NA (1)  NP This table is a summary of test report, see conclusion of each clause of this test report for detail. Test Description during normal operation Test result - Comments DFS Detection Threshold  PASS  FAIL  NA (1)  NP Channel Closing Transmission Time  PASS  FAIL  NA  NP Channel Move Time  PASS  FAIL  NA  NP U-NII Detection Bandwidth  PASS  FAIL  NA  NP This table is a summary of test report, see conclusion of each clause of this test report for detail. (1): The EUT is a client without radar detection. PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Performed DP: Declaration of provider TEST REPORT N°137269-676311 Page 4/27 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): Bittium Tough Mobile Serial Number: K0253000550 Equipment Under Test TEST REPORT N°137269-676311 Page 5/27 Inputs/outputs: Access Type Power & Data Micro USB Data SD slot Data USB Audio Jack Data Docking connector Equipment information: Type: WIFI Frequency band:  5150MHz-5250MHz  5250MHz-5350MHz  5470MHz-5725MHz Standard:  802.11a  802.11n HT20  802.11n HT40  802.11ac VHT80  802.11ac VHT160 Spectrum Modulation:  OFDM Channel bandwidth:  20MHz  40MHz  80MHz  160MHz Antenna Type:  Integral  External  Dedicated Antenna connector:  Yes  No  Temporary for test Transmit chains:  1  2  3  4  5  6  7  8  Single antenna  Symmetrical  Asymmetrical Gain 1: 2,5dBi Gain 2: 2dBi Gain 3: dBi Gain 4: dBi Gain 5: dBi Gain 6: dBi Gain 7: dBi Gain 8: dBi Accumuled Gain: dBi TPC:  Yes  No Receiver chains  1  2  3  4  5  6  7  8 Type of equipment:  Stand-alone  Plug-in  Combined Specific mode:  Ad-Hoc  Bridge  Mesh System type:  IP based  Frame based  Other DFS operation:  Master  Slave with radar detection  Slave without radar detection User access restriction:  Yes  No Equipment type:  Production model  Pre-production model Type of power source:  AC power supply  DC power supply  Battery (Lithium) Operating voltage range: Vnom:  120V/60Hz  3.8Vdc TEST REPORT N°137269-676311 Page 6/27 CHANNEL PLAN 802.11a / 802.11n HT20 Channel Frequency (MHz) Available Channel 36 5180  40 5200  44 5220  48 5240  52 5260  56 5280  60 5300  64 5320  100 5500  104 5520  108 5540  112 5560  116 5580  132 5660  136 5680  140 5700  149 5745  153 5765  157 5785  161 5805  165 5825  TEST REPORT N°137269-676311 Page 7/27 No DFS Channel DFS Channel DATA RATE 802.11a Data Rate (Mbps) Modulation Type Modulation Worst Case 6 BPSK  9 BPSK  12 QPSK  18 QPSK  24 16-QAM  36 16-QAM  48 64-QAM  54 64-QAM  CHANNEL PLAN 802.11n HT40 Channel Frequency (MHz) Available Channel 36+40 5190  44+48 5230  52+56 5270  C1=60+64 5310  100+104 5510  108+112 5550  132+136 5670  149+153 5755  157+161 5795  CHANNEL PLAN 802.11ac VHT80 Channel Frequency (MHz) Available Channel C11=36+40+44+48 5210 C12=52+56+60+64 5290 C13=100+104+108+112 5530 TEST REPORT N°137269-676311 Page 8/27 DATA RATE 802.11n HT20 Available for EUT MCS Index Spatial streams Modulation Data Rate (Mbps) Worst Case Modulation (GI = 800ns) (GI = 400ns)  0 1 BPSK 6.5 7.2   1 1 QPSK 13 14.4   2 1 QPSK 19.5 21.7   3 1 16-QAM 26 28.9   4 1 16-QAM 39 43.3   5 1 64-QAM 52 57.8   6 1 64-QAM 58.5 65   7 1 64-QAM 65 72.2  DATA RATE 802.11n HT40 Available for EUT MCS Index Spatial streams Modulation Data Rate (Mbps) Worst Case Modulation (GI = 800ns) (GI = 400ns)  0 1 BPSK 13 15   1 1 QPSK 27 30   2 1 QPSK 40.5 45   3 1 16-QAM 54 60   4 1 16-QAM 81 90   5 1 64-QAM 108 120   6 1 64-QAM 121.5 135   7 1 64-QAM 135 150  MCS Index Nbr of spatial streams Modulation (Stream 1/2/3/4) Coding rate Data Rate (in Mbps) 802.11n VHT80 Worst Case Modulation GI = 800ns GI = 400ns 0 1 BPSK 1/2 29.3 32.5 1 1 QPSK 1/2 58.5 65 2 1 QPSK 3/4 87.8 97.5 3 1 16-QAM 1/2 117 130 4 1 16-QAM 3/4 175.5 195 5 1 64-QAM 2/3 234 260 6 1 64-QAM 3/4 263.3 292.5 7 1 64-QAM 5/6 292.5 325 8 1 256-QAM 3/4 351 390 9 1 256-QAM 5/6 390 433.3 2.2. RUNNING MODE The EUT is set in the following modes during tests: - System testing is performed with the designed M…

Text truncated - open the document above for the full version.
