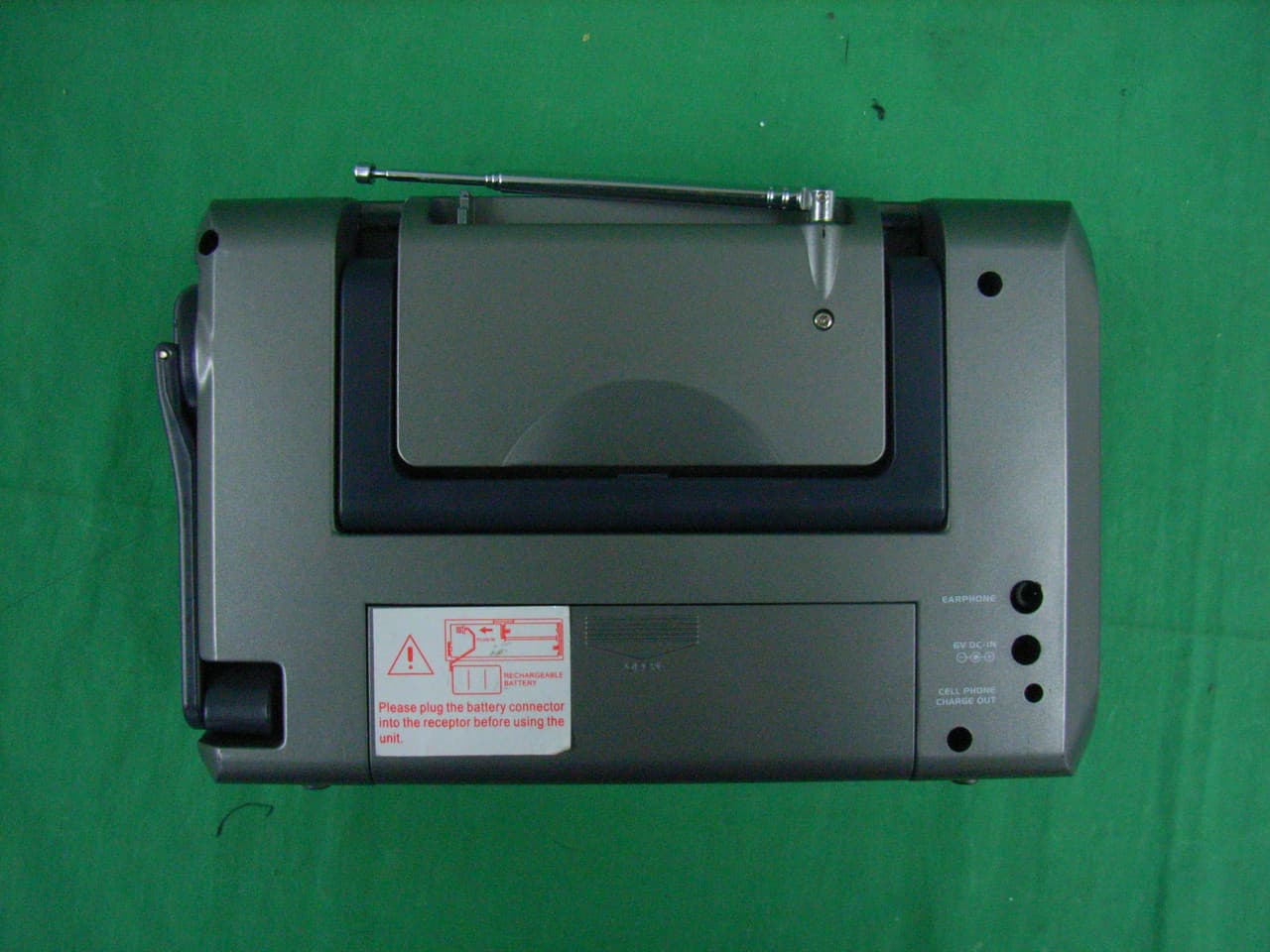

V2N38WBDIGITAL DISPLAY RADIO FLASHLIGHT

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Any use of the controls or an adjustment to the procedures other than those specified herein may result in hazardous radiation. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER-SERVICEABLE PAR TS INSIDE. PLEASE REFER ANY SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC Requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter ference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. When placing your unit on a lacquered or natural finish, protect your furniture with a cloth or other protective material. WARNINGS AND PRECAUTIONS Special Note

RECHARGEABLE BATT.=BUILT-IN RECHARGEABLE BATTERY BATT.=3 x “AA” ALKALINE BATTERIES (NOT INCLUDED)

RECHARGEABLE BATT.=BUILT-IN RECHARGEABLE BATTERY BATT.=3 x “AA” ALKALINE BATTERIES (NOT INCLUDED) RECHARGEABLE BATT.=BUILT-IN RECHARGEABLE BATTERY BATT.=3 x “AA” ALKALINE BATTERIES (NOT INCLUDED)

Unscrew the front cover. Remove the bulb by turning counter clockwise. Replace the light bulb with 3.6V/90mA.

- 9 - Power is not on. Rechargeable Battery Pack in not function. Rechargeable Battery Pack is not plugin properly. Rechargeable Battery is in sleeping-mode. (Not use over 3 months) Re-plug the Rechargeable Battery Pack. Rechargeable Battery by AC/DC adapter for over 12 hours. (AC/DC adapter not included) PMMU-0016-0118 2 days with new alkaline batteries/2 hours with fully charged built-in rechargeable battery. 10 days with new alkaline batteries/ 8 hours with fully charge built-in rechargeable battery. 1 days with new alkaline batteries/5 hours with fully charged built-in rechargeable battery.

FCC ID: V2N38WB Model: WB-38WB Operational Description: The Dynamo clock radio powered by 120V AC/DC adapter or three “AA” size batteries. In the AM, FM radio mode. The operating frequency of the AM band from 530 ~ 1710 kHz and FM band from 88 ~ 108 MHz. Telescopic antenna and ferrite bar antenna received FM or AM signal into I.C. SM1191 detector and amplifier output to speaker. Control the volume level for hearing AM or FM broadcasting program. In the weather radio mode. The operating frequency from 162.40 ~ 162.55 MHz. Telescopic antenna received weather information broadcasting from local weather band station, the weather signal through the RF amplifier Q201, Q202 mix the weather band broadcasting frequency and local oscillation frequency Q203 to generate IF signal, then that IF signal pass filter T202 and amplify by Q204, Q205, Q206 and Detector stages by T204 coils convert to audio signal to I.C. SM1191 built-in the amplifier for output to speaker. The band pass filter Q207 and pre-amplifier Q208 for detect the weather band alert tone signal to active warning sound. Crank handle to drive power generator M and bring electric power to save into rechargeable batteries for operate the unit.

TF-38-02-WB.sch-1 - Fri Jan 25 10:55:30 2008
