V35ZTX965DZTX965D Multi Input 900 MHz Universal Transmitter

ZTX965D Multi Input 900 MHz Universal Transmitter The ZTX965D offers the diversity of three independent contact closure alarm inputs, one independent analog input to monitor an external battery and one set of internal contact magnetic reed switches. All alarm inputs are de-bounced and are interrupt driven so the change of state is recognized in microseconds then verified for a few milliseconds which initiates the alarm or restore transmitted information. The ZTX965D is capable of being supervised by the system, the period between and the number of transmits per supervisory check-in is programmable, 1 to 65,535 seconds and times to transmit from 1 to 255. Default values are 300 seconds and 2 supervisory transmits. The ZTX965D internal battery is constantly monitored by the microprocessor and a low battery condition is the result of during a transmission or any event the battery level reaches a predetermined threshold. This threshold has been established to allow the battery to fully support the transmitter for as long as two weeks under normal operation. When the Low Battery Condition has been detected, the transmitter transmits a Low Battery Alarm and the Low Battery Status is latched. The Low Battery Status is transmitted with supervisory and alarm events . Mounting the ZTX965D Mount the bracket to a wa ll, door jam or a window casing using two each # 6 flathead wood or sheet metal screws. Engage the enclosure bottom with slide latches and slide the enclosure onto the bracket until it latches. To remove the enclosure, remove the cover and re move the battery. Use a small screw driver to push and release the latch, under the battery, and slide the enclosure bottom off of the bracket. Specifications ZTX965D Battery Replacement To replace the battery, remove the cover, remove the battery and replace with a new battery, observing the polarity labeled under the battery. Push the reset button and reinstall the cover. 8886 N. Government Way Hayden, ID 83835 Phone: 208-772-2780 Fax: 208-762-4877 www.ztxwireless.com ZTX965D Programming The transmitter is factory programmed with default values and the IDs are sequentially programmed when the unit passes final test. For custom programming contact the factory. The programmed firmware resides in non-volatile flash memory. The loss of power will not cause the loss of program. Reed switch top and side Contacts external / internal Max lead length for external contacts Dimensions Weight Operating Temperature Typical reed switch engage / release Battery type Typical Battery life NO / NC 12 feet 3.535” x 1.709” x 1.04” 2.5 oz (71gm) 32° to 140° F (0° to 60°C) .6” / .8” 3.0 V Lithium CR123A 4 years Input connector J2 Pin 1 = Ground Pin 2 = Alarm 1 Pin 3 = Alarm 2 Pin 4 = Alarm 3 Pin 5 = External Battery Internal Reed 1 at top and 1 at right center ZTX965D User Manual Doc 100-00130-20 Rev 1 3-31-08 Warranty & Disclaimer ZTX Wireless, Inc. (“ZTX Wireless”) warrants its products (“Produc t” or “Products”) to conform to its own specifications and to be free of defects in materials and workmanship under normal use for a period of twelve (12) months from the date of manufa cture. Within the warranty period ZTX Wireless will repair or re place, at its option, all or any part of the warranted products. ZTX Wireless will not be responsible for dismantling and/or reinstal lation charges. To exercise the warranty, the User (“User” , “Installer” or “Consumer” must be given a Return Material Authorization (“RMA”) Number by ZTX Wireless. Deta ils of shipment will be arranged at that time. This warranty does not apply in cases of improper installation, misuse, failure to follow insta llation and operating instructio ns, alteration, abuse, accident or tampering, and repair by anyone other than ZTX Wireless. This warranty is exclusive and expressly in lieu of all other wa rranties, obligations or liabilities, whether written, oral, ex press, or implied, including any wa rranty of merchantability or fitness for a particular purpose. ZTX Wireless will not be liable to anyone for any consequential or incidental damages for breach of this warranty or any other warranties. This warranty shall not be modified, varied or extended. ZTX Wireless does not authorize any person to act on its behalf to mo dify, vary or extend this warranty. This warranty will apply to ZTX Wireless products only. All other products, accessories or attachments used in conjunction with ZTX Wireless equipment, in cluding batteries, will be covered solely by their own warranty, if any. ZTX Wireless will not be liable for any dire ct, incidental or consequential damage or loss whatsoever, cause d by the malfunction of Products due to products, accessories, or attachments of other manufacturers, including batteries, us ed in conjunction with ZTX Wireless Products. This warranty does not warrant the replacement of batteries that are used to power ZTX Wireless Products. The User recognized that properly installed and maintained emergency call system may only reduce the risk of events such as per sonal injury, robbery, burglary or fire. It does not insure or guarantee that there will be no death, personal damage and/or damage to proper ty as a result. ZTX Wireless does not claim t hat the Product may not be compromised and/or circumvented, or that the Produc t will prevent any death, personal and/or bodily injury and/or damage to property resulting fro m burglary, robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection. ZTX Wireless shall have no liability for any death, injury or damage, however incurred, based on a claim that ZTX Wireless Prod ucts failed to function. Howe ver, if ZTX Wireless is held liable, directly or indirectly, for any loss or damage arisi ng under this limited warranty or otherwise, regardless of cause or origin, ZTX Wireless’ maximum liability will not in any case exceed the purchase price of the Product, which will be fixed as liquidated…

Text truncated - open the document above for the full version.

Figure 4 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 5 4/1/2008 Figure 5 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 6 4/1/2008 Figure 6 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 7 4/1/2008

REV REF. DESCRIPTION INPUT BY APP DATE 1 33108 Add V35 to FCC ID V35ZTX965D AH AR 3-31-08 ZTX Wireless, Inc. 8886 N. Government Way Hayden, Idaho 83835 Phone: 208-772-2780 Fax: 772-5577 NOTICE OF PROPRIETARY INFORMATION Information contained herein is proprietary and is the property of ZTX WIRELESS INCORPORATED. Where furnished with a proposal, the recipient shall use it solely to evaluate the proposal. Where furnished to a customer it shall be used solely for purposes of inspection, installation, or maintenance. Where furnished to a supplier, it shall be used solely in the performance of work contracted by this company. The information shall not be used or disclosed by the recipient for any other purpose whatsoever. APPROVALS Unless otherwise specified dimensions are in inches. NOT TO SCALE DRAWING ZTX WIRELESS, 8886 N. GOVERNMENT WAY STE. I, HAYDEN, ID. 83835 DWG. 91-00130-21 DATE 2-6-08 MKTG. LINDA PARIS DATE 2-6-08 TITLE: PRODUCT DRAWING MECH. ENG. AL HOLMES DATE 2-6-08 MKTG. BRUCE TOMBLIN DATE 2-6-08 ZTX965D ENCLOSURE BOTTOM WITH FCC ID, ELECT ENG. ART ROCCO DATE 2-6-08 MKTG. DATE IC ID, M/N AND COMPANY NAME WITH ADDRESS MFG. ENG. AL HOLMES DATE 2-6-08 S.Q.A. AL HOLMES DATE 2-6-08 Drawing Number 91-00130-21 SW ENG. AL HOLMES DATE 2-6-08 ENG. MGR. AL HOLMES DATE 2-6-08 PAGE 1 OF 3 Figure 1. FCC ID and IC Label FCC ID: V35ZTX965D IC: M/N: ZTX965D THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Figure 2. Location of Label on EUT Per attached DWG 91-00130-20 and 91-00130-21 Actual size of label is approximately 2.5” by 1.15” and will be placed on the ZTX965D enclosure bottom outside of product per attached drawings 91-00130-20 and 91-00130-21. ** NOTE: If assembly drawings are available that show the placement of the label on the product, please provide a copy of these to Timco Engineering. ZTX Wireless Document No. 91-00130-21 Rev 1 Confidential Page 2 4/2/2008 .0550 .3950.2950 .3750 3.2511 3.5224 1.6964 1.2788 F DETAIL F SCALE 1.5 : 1 5 4 3 2 1 ZTX Wireless 02-11-2008 Housing Bottom Material: UL Listed / Recognized 94VO (Flame Retardant) Polycarbonate.

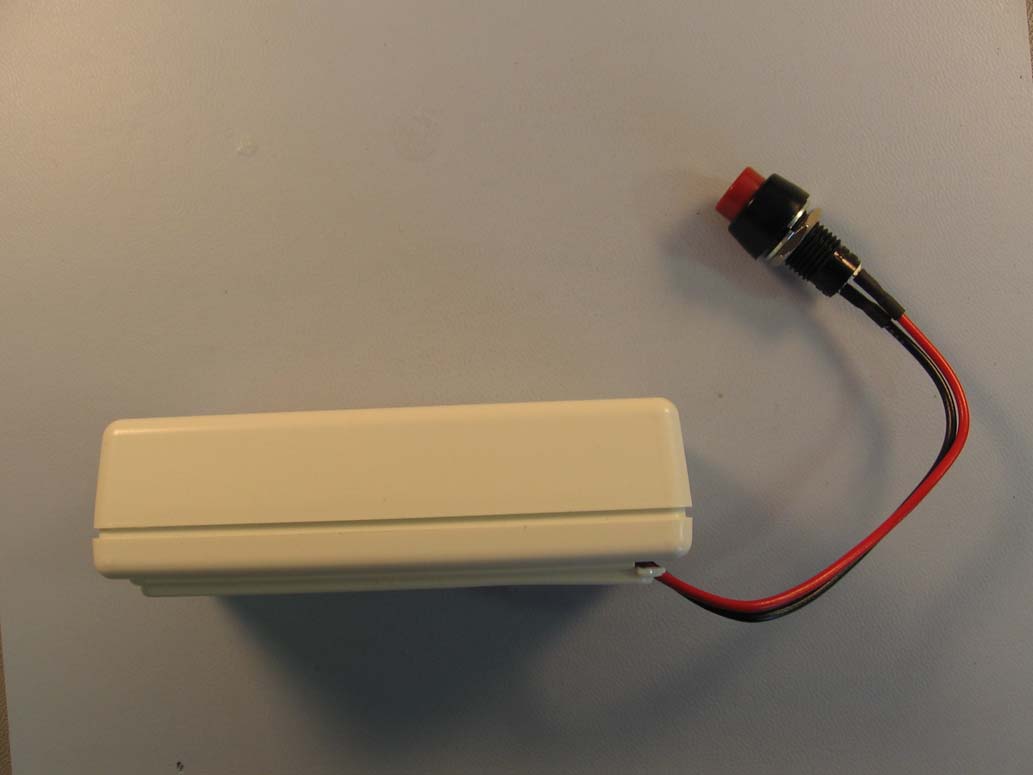

REV REF. DESCRIPTION INPUT BY APP DATE 1 4108 Added JPEGs of ZTX965D Enclosure Al Holmes A Rocco 4-1-08 ZTX Wireless, Inc. 8886 N. Government Way Hayden, Idaho 83835 NOTICE OF PROPRIETARY INFORMATION Information contained herein is proprietary and is the property of ZTX WIRELESS INCORPORATED. Where furnished with a proposal, the recipient shall use it solely to evaluate the proposal. Where furnished to a customer it shall be used solely for purposes of inspection, installation, or maintenance. Where furnished to a supplier, it shall be used solely in the performance of work contracted by this company. The information shall not be used or disclosed by the recipient for any other purpose whatsoever. APPROVALS Unless otherwise specified dimensions are in inches. NOT TO SCALE DRAWING ZTX WIRELESS, 8886 N. GOVERNMENT WAY STE. I, HAYDEN, ID. 83835 DWG. 91-00130-15 DATE 2-6-08 MKTG. LINDA TOMBLIN DATE 2-6-08 TITLE: PRODUCT DRAWING MECH. ENG. AL HOLMES DATE 2-6-08 MKTG. BRUCE TOMBLIN DATE 2-6-08 ZTX965D JPEG Top, Bottom and Side ELECT ENG. ART ROCCO DATE 2-6-08 MKTG. DATE PCBA - Enclosure Complete MFG. ENG. AL HOLMES DATE 2-6-08 S.Q.A. Mark mcEntire DATE 4-1-08 Drawing Number 91-00130-15 SW ENG. AL HOLMES DATE 2-6-08 ENG. MGR. AL HOLMES DATE 2-6-08 PAGE 1 OF 4 1 PURPOSE The purpose of this document is to record by JPEG of the top, bottom and side views of the 20-00130-05 Rev 3 (ZTX965D PCBA) Figures 1, 2 and 3 and the 40-00130-05 Rev 1 ZTX965D Top Assembly Figures 4, 5 and 6. P/N 32-00130-05 (ZTX965D) REV 1 Figure 1 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 2 4/1/2008 Figure 2 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 3 4/1/2008 Figure 3 ZTX Wireless, Inc. Document No. 91-00130-15 Rev 1 Confidential Page 4 4/1/2008

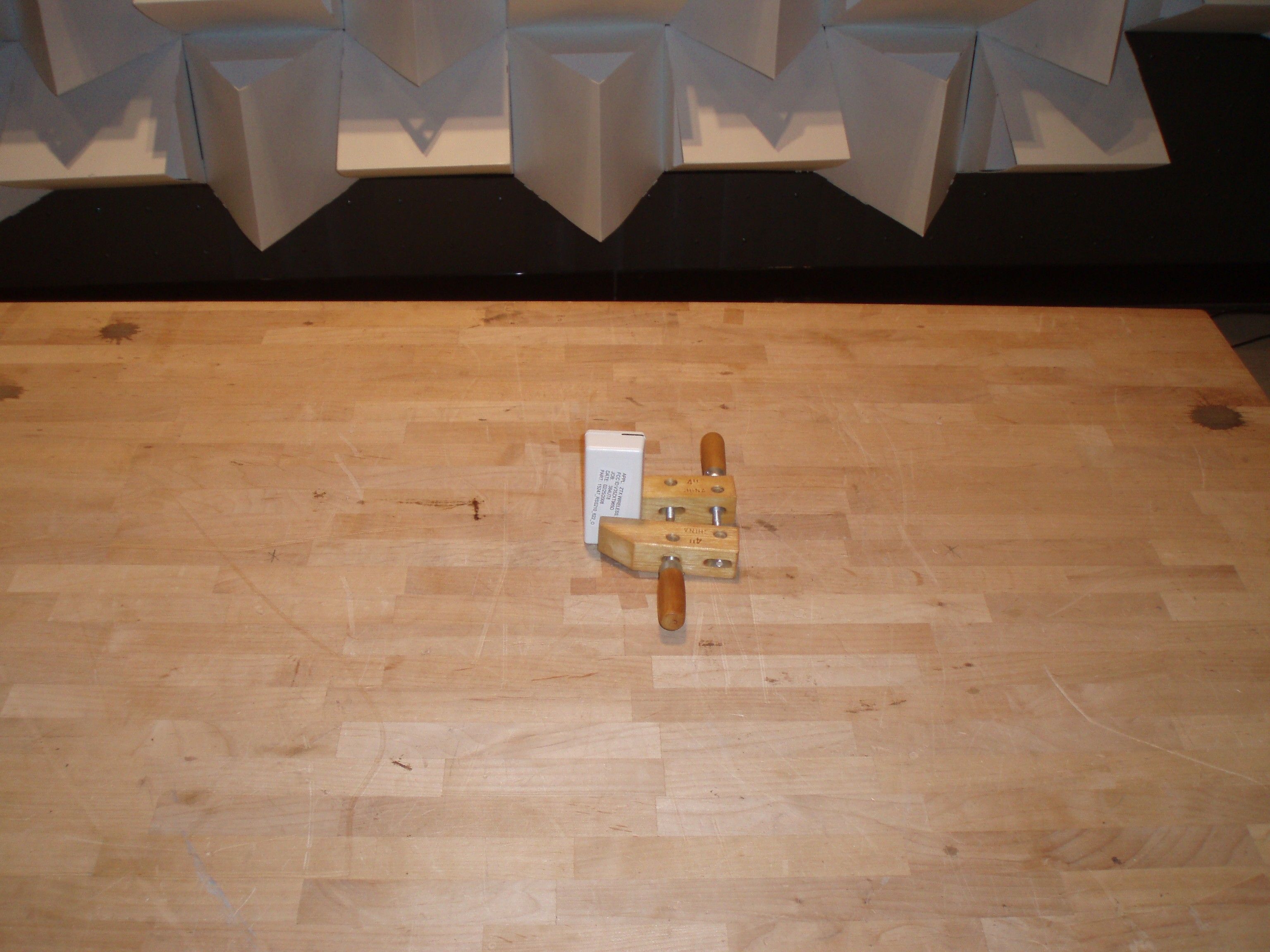

849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] FCC PART 15.247 FHSS TEST REPORT APPLICANT ZTX Wireless, Inc. ADDRESS 8886 N. Government Way Ste. J Hayden, ID 83835 PROPOSED FCC ID V35ZTX965D MODEL NUMBER ZTX965D PRODUCT DESCRIPTION 15.247 FHSS Radio DATE SAMPLE RECEIVED March 17, 2008 DATE TESTED March 19, 2008 TESTED BY Joe Scoglio APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 384YUT8Testreport.pdf TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: ZTX WIRELESS, INC. FCC ID: V35ZTX965D REPORT: X:\Z\ZTX Wireless\384YUT8\384YUT8TestReport.doc Page 2 of 22 TABLE OF CONTENTS ATTESTATION........................................................................................................... 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT AND TEST SETUP................................................................... 4 DUT DESCRIPTION................................................................................................... 5 EMC EQUIPMENT LIST............................................................................................. 6 TEST PROCEDURES................................................................................................. 7 POWER LINE CONDUCTED INTERFERENCE............................................................. 9 NUMBER OF HOPPING CHANNELS......................................................................... 10 DWELL TIME OF A HOPPING CHANNEL.................................................................. 12 20 dB BANDWIDTH................................................................................................. 13 CARRIER FREQUENCY SEPARATION...................................................................... 14 POWER OUTPUT..................................................................................................... 15 SPURIOUS EMISSIONS AT ANTENNA TERMINALS.................................................. 16 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 17 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND............... 21 Applicant: ZTX Wireless, Inc. FCC ID: V35ZTX965D Report: X:\Z\ZTX Wireless\384YUT8\384YUT8TestReport Page 3 of 22 ATTESTATION This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Test Certificate #0955-01 AUTHORIZED BY: Mario de Aranzeta SIGNATURE: FUNCTION: Lab Supervisor/ Test Engineer DATE: March 27, 2008 TESTED BY: Nam Nguyen, Joe Scoglio Test Technicians Applicant: ZTX Wireless, Inc. FCC ID: V35ZTX965D Report: X:\Z\ZTX Wireless\384YUT8\384YUT8TestReport Page 4 of 22 REPORT SUMMARY Disclaimer: The test results relate only to the items tested. Purpose of Test: To demonstrate that the DUT is in compliant with FCC Pt 15.247 requirements for a 902-928 MHz FHSS radio. Applicable Standards: FCC Pt 15.247, ANSI C63.4: 2003, ANSI TIA-603: 2004, FCC Pt 15.109 Related Reports: N/A TEST ENVIRONMENT AND TEST SETUP Test Facilities: All measurements were made at one or more of the test sites of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. Laboratory Test Conditions: Temperature: 26°C, Humidity: 55% Test Exercise: The DUT was set in continuous transmit mode of operation. Deviation to the Standards: There was no deviation from the standard. Modification to the DUT: No modification was made. Supporting Accessories: None Applicant: ZTX Wireless, Inc. FCC ID: V35ZTX965D Report: X:\Z\ZTX Wireless\384YUT8\384YUT8TestReport Page 5 of 22 DUT DESCRIPTION Manufacturer: ZTX Wireless, Inc. Product Description A Pt 15.247 FHSS transceiver FCC ID: V35ZTX965D Model Number: ZTX965D Brand Name: N/A Operating Frequency: 903 ~ 927 MHz Max. Output Pwr: 4.7 mWatt Type of Modulation: GFSK Primary Power – Any 3V dc source (battery) EUT Power Source: Secondary Power – N/A Test Item: Prototype Type of Equipment Mobile Antenna (Fixed) integral quarter wave wire Antenna Connector none Applicant: ZTX Wireless, Inc. FCC ID: V35ZTX965D Report: X:\Z\ZTX Wireless\384YUT8\384YUT8TestReport Page 6 of 22 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/11/07 5/10/10 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 452 3138A07786 3144A20661 CAL 11/30/07 11/30/09 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/30/07 11/30/09 Analyzer Tan tower Quasi-Peak Adapter HP 85650A 303A01690 CAL 11/30/07 11/30/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/07 12/12/09 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 7/18/07 7/18/09 Antenna: Double- Ridged Horn Electro- Metrics RGA-180 2319 CAL 7/18/07 7/18/09 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 7/23/07 7/23/09 Antenna: Log-Periodic Eaton 96005 1243 CAL 12/14/07 12/14/09 Receiver R & S ESIB40 11/25/2007 11/25/2009 Applicant: ZTX Wireless, Inc. FCC ID: V35ZTX965D Report: X:\Z\ZTX Wireless\384YUT8\384YUT8TestRep…

Text truncated - open the document above for the full version.
