V3H-B8Mobile Phone

1 B8 Quick Start Guide 2 Getting to know your phone News Cancel LEDIndicator Receiver Volume Control Touch Screen Stock OK MainMenu Phone Earphone Jack Charger / USB Stylus Pen Mic-In Power On Navigator 3 Hardware Specification CPU 32Bit CPU Memory 64MB FLASH / 32MB SDRAM Display 3.2" 65K QVGA TFT LCD with Touch Panel Communication Quad-band GSM/GPRS (850 / 900 / 1800 / 1900 MHz) Audio 32 polyphony (MIDI) Connector Mini USB Button (Up, Down, Left, Right) x 4 Function Key x 4 Power on Key x 1 Antenna Internal Battery Li-ion Battery Pack(1100mAH) Dimension 68 x 118 x 16 mm Weight 140g Including Battery Package and Optional Accessories Package Content: B8 ................................................ 1 Stylus ............................................ 1 Rechargeable Lithium Battery ............ 1 DC Power Adapter ........................... 1 USB Cable ..................................... 1 PC Toolkit CD ................................. 1 User Guide and Warranty .................. 1 Headset ......................................... 1 Optional Accessories: B8 Stylus B8 Leather Case B8 Rechargeable Lithium Battery 4 (Fig.0.1) 1 Calling You can only make a call when your B8 is turned on and you have coverage from a GSM Network. 1. Press the Power On key Fig. for two to three seconds to turn on your B8. 2. Tap Home > Phone (fig.0.1) > MyCall (fig.0.2). 1.1 Dailing and operational instructions The second line from the status indicator bar shows the service provider's name. Delete button: Deleting the digits on the right of the cursor. Backspace button: Deleting the digits on the left of the cursor. : Perform clear function during idle and hand up during a call. Press two to three seconds to turn on/off the B8. Delete the digits on the right of the cursor Delete the digits on the left of the cursor MyPhone The B8 is a full-featured color PDA phone having full integration with other functions of the device, including applications from third-parties. Tap Home > Phone (fig.0.1) to enter mobile phone (fig.0.2). (Fig.0.2) (Fig.1.1) Please use the 4-way navigation key or the stylus to move the cursor 5 : Send and Action/Send key for dialing or answering a call. Number keys: Input 1 to 9, * and #. 0: Press 1.5 seconds to enter plus (+) sign for international calls. *: Press 1.5 seconds to enter "p" for pause. You can use it while dialing an extension number, e.g. 0226576883p123. SMS: Tap this button to go to SMS message (as fig.2.2). PBK: Tap this button to go to Contacts (as fig.1.2). You can select a phone number in the Contacts. Setup: Tap this button to enter Setup (as fig.1.3). Press The red-key to go back to the previous screen. Rec.: Tap this button to enter Call list (as fig.1.4) and check your call history. Press the red-key to go back to the previous screen. (Fig.1.2) 1.2 Making a call Tip: Your B8 allows you to making a call in several ways. It also keeps the most recent 100 call records. l Making a domestic call Please make sure your B8 is turned on and within Network coverage before making a call. 1. Tap the numeric keys to enter a phone number. 2. Press / to dial out the number. A dialogue window will show that it's dialing (as fig.1.5). 3. If the call is successfully connected, and during a call,you can see the Phone screen will show “Talking” (as fig.1.6). 4. To end a call, press Hang up / red-key (Fig.1.3) (Fig.1.4) (Fig.1.5) (Fig.1.6) 6 l Making an international call 1. Press 0 for 1.5 seconds to enter the plus (+) sign. 2. Enter the country code, area code and the phone number. 3. Press green-key to dial the number (as fig.1.7). 4. To end a call, press Hang up / red-key . l Making an emergency call The international emergency number is "112". 1. Enter "112". 2. Press green-key to dial the number. It is possible to make an emergency call without a SIM card (as fig.1.8). l Making a call from Contacts 1. Tap MyPhone > Contacts to enter the Contacts. Select a contact to highlight it (as fig.1.9). 2. Tap the contact again to start dialing (as fig.1.10). 3. During dialing, you can press Hang up / red-key to cancel dialing. 4. To end a call, press Hang up / red-key . l Dialing an extension using Pause For example, if you want to dial 0226576883 ext. 123, the process is as follows: 1. Enter "0226576883". 2. Press "*" for 1.5 seconds until the display area shows a "p". 3. Enter "123" (as fig.1.11). 4. Press green-key to dial the number. Remark: Tap / to delete errors or tap to clear all digits. (Fig.1.7) (Fig.1.8) (Fig.1.9) (Fig.1.11) (Fig.1.10) 7 l Making a conference call Connecting all existing calls if you have subscribed to this service. 1. Tap Menu during a call, you will see a pop-up menu as fig.1.12. 2. Select “Hold” if you want to make the second or the third call (as fig.1.14). You will see a display as fig.1.13. Or tap Menu > Call list to check the status of every outcalls as fig. 1.15. 3. Press Phone again to enter the Phone screen to start dialing (as fig.1.16). When the second call is connected, tap Menu > Switch (as fig.1.17) to talk to the first person and put the second call on hold (as fig.1.18). If you check the Phone screen, you will see a message telling you that there is a call on hold (as fig.1.19). (Fig.1.13) (Fig.1.14) (Fig.1.17) (Fig.1.19) (Fig.1.18) (Fig.1.16) (Fig.1.15) (Fig.1.12) 8 4. Tap Phone > Conference (as fig.1.20) and you can join all existing calls to make a conference call (as fig.1.21). 5. If you go back to the Phone screen again, you will see a message showing “Conference” on the display area (as fig.1.22). 6. If you want make the third call, select Phone > Hold (as fig.1.23) to put all the existing calls on hold (as fig.1.24). To release hold, simply tap Phone > Reture (as fig.1.25). 7. You can select Handsfree on anytime during a call. 8. To end a certain call, select the call on the call list and tap Hang up / or tap Hang up All to end the conference. (Fig.1.20) (Fig.1.21) (Fig.1.22) (Fig.1.23) (Fig.1.25) (Fig.1.24) 9 1.3 Answering a call 1. Wh…

Text truncated - open the document above for the full version.

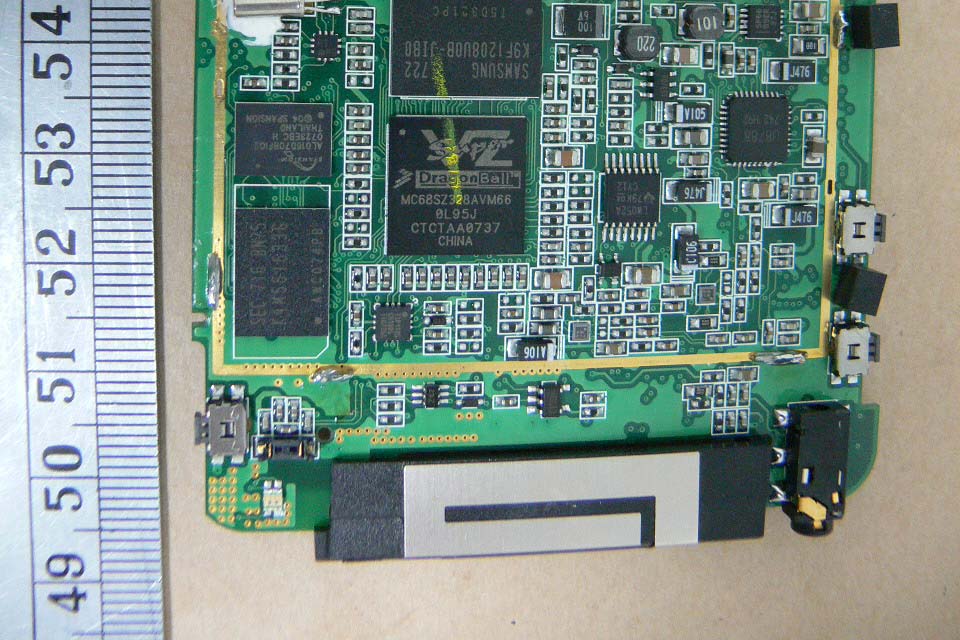

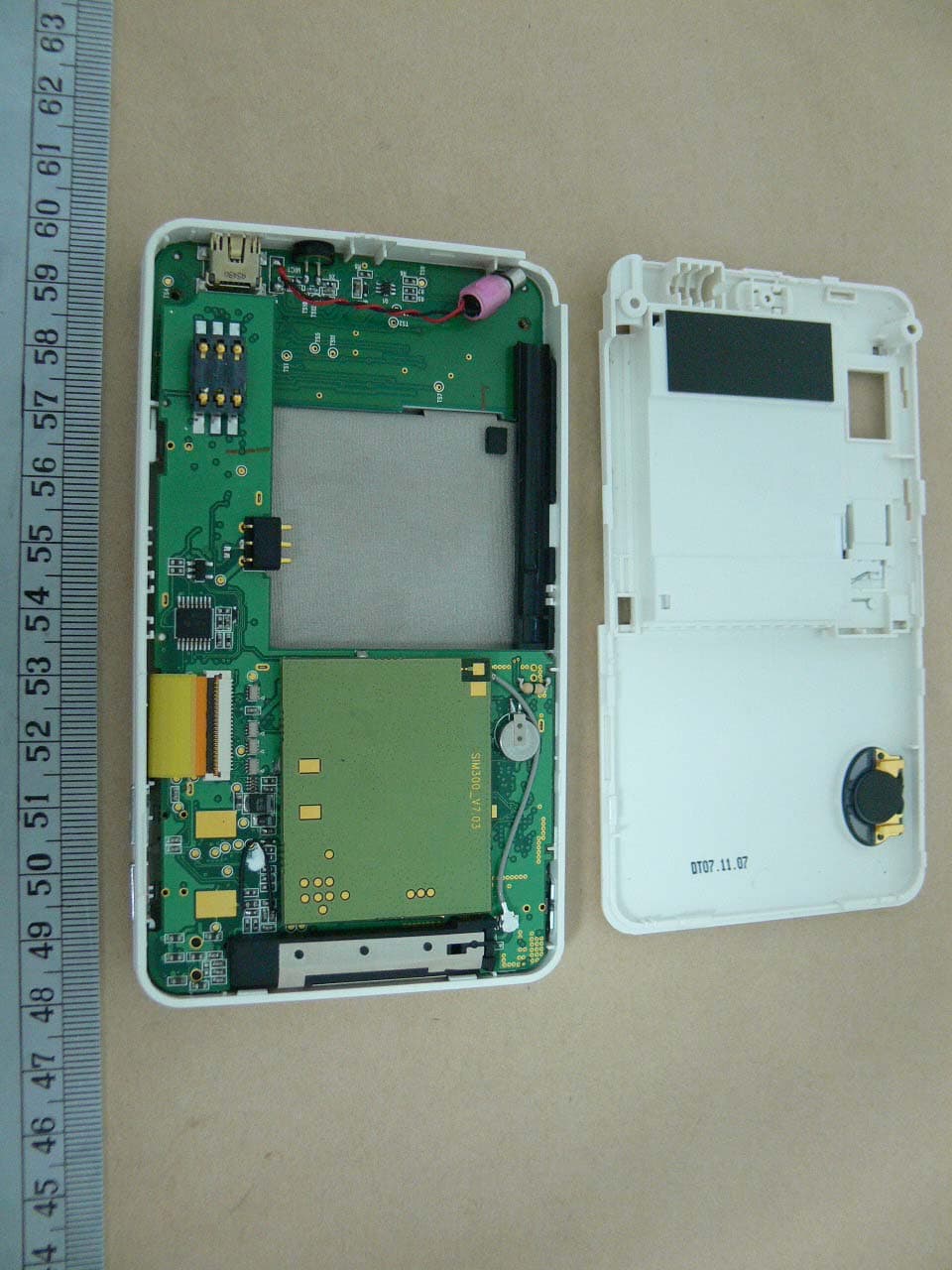

Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 12 of 27 Intenal Photos Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 13 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 14 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 15 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 16 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 17 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 18 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 19 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 20 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 21 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 22 of 27 Report Number: W6M20802-8869 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Appendix page 23 of 27

Report No：082200R-HPUSP10V01 Page: 1 of 26 Version:1.0 SAR Test Report Product Name ： Mobile Phone Model No. ： B8 Applicant ： TelePaq Technology Inc. Address ： 1F, No. 201, Sec. 2, Tiding Ave. Taipei 114, Taiwan, R.O.C. Date of Receipt：2008/02/18 Issued Date ：2008/02/22 Report No. ：082200R-HPUSP10V01 Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：082200R-HPUSP10V01 Page: 2 of 26 Version:1.0 Test Report Certification Issued Date: 2008/02/22 Report No.:082200R-HPUSP10V01 Product Name ： Mobile Phone Applicant ： TelePaq Technology Inc. Address ： 1F, No. 201, Sec. 2, Tiding Ave. Taipei 114, Taiwan, R.O.C. Manufacturer ： TelePaq Technology Inc. Trade Name ： TelePaq Model No. ： B8 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) GSM 850MHz: 0.478 W/kg PCS 1900MHz: 0.625 W/kg The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Engineering Adm. Assistant / Nicole Huang) Tested By ： (Engineer / Jung Chang) Approved By ： (Deputy Manager /Vincent Lin) Report No：082200R-HPUSP10V01 Page: 3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 Arrangement Assessment Setup ................................................................................... 17 4.2.1 Test Positions of Device Relative to Head................................................................ 17 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 17 4.2.1.2 Definition of the “Tilted” Position......................................................................... 18 4.2.2 Test Positions for body-worn.................................................................................... 19 4.3 SAR Measurement Procedure ...................................................................................... 19 Report No：082200R-HPUSP10V01 Page: 4 of 26 Version:1.0 4.3.1 SAR Measurement Procedure ................................................................................... 20 5. SAR Exposure Limits ......................................................................... 21 6. Test Equipment List............................................................................ 22 7. Measurement Uncertainty .................................................................. 23 8. Test Results......................................................................................... 24 8.1 SAR Test Results Summary ......................................................................................... 24 Appendi…

Text truncated - open the document above for the full version.

Report No：082200R-HPUSP10V01 Page: 62 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.482 W/kg Power Drift-Finish: 0.508 W/kg Power Drift (%) : 2.904 DUT Position : 15° Tilt Channel : 512 1 gram SAR value : 0.625 W/kg 10 gram SAR value : 0.534 W/kg Area Scan Peak SAR : 0.687 W/kg Zoom Scan Peak SAR : 1.352 W/kg Report No：082200R-HPUSP10V01 Page: 63 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 64 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.345 W/kg Power Drift-Finish: 0.349 W/kg Power Drift (%) : 1.159 DUT Position : 15° Tilt Channel : 661 1 gram SAR value : 0.414 W/kg 10 gram SAR value : 0.362 W/kg Area Scan Peak SAR : 0.450 W/kg Zoom Scan Peak SAR : 0.891 W/kg Report No：082200R-HPUSP10V01 Page: 65 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 66 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.261 W/kg Power Drift-Finish: 0.266 W/kg Power Drift (%) : 1.532 DUT Position : 15° Tilt Channel : 810 1 gram SAR value : 0.402 W/kg 10 gram SAR value : 0.356 W/kg Area Scan Peak SAR : 0.430 W/kg Zoom Scan Peak SAR : 0.885 W/kg Report No：082200R-HPUSP10V01 Page: 67 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 68 of 82 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report Report Date : 19-Feb-2008 Measurement Date : 19-Feb-2008 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : B8 Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 117.8 mm Width : 67.9 mm Depth : 15.8 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 324-B Frequency : 1900.00 MHz Last Calib. Date : 19-Feb-2007 Temperature : 20.20 °C Ambient Temp. : 21.10 °C Humidity : 50.00 RH% Epsilon : 54.14 F/m Sigma : 1.53 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Aug-2007 Frequency : 1900.00 MHz Duty Cycle Factor: 8 Conversion Factor: 5.5 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：082200R-HPUSP10V01 Page: 69 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.400 W/kg Power Drift-Finish: 0.400 W/kg Power Drift (%) : -0.044 DUT Position : Touch Channel : 512 1 gram SAR value : 0.462 W/kg 10 gram SAR value : 0.267 W/kg Area Scan Peak SAR : 0.565 W/kg Zoom Scan Peak SAR : 1.080 W/kg Report No：082200R-HPUSP10V01 Page: 70 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 71 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.191 W/kg Power Drift-Finish: 0.196 W/kg Power Drift (%) : 2.617 DUT Position : Touch Channel : 661 1 gram SAR value : 0.365 W/kg 10 gram SAR value : 0.287 W/kg Area Scan Peak SAR : 0.400 W/kg Zoom Scan Peak SAR : 0.690 W/kg Report No：082200R-HPUSP10V01 Page: 72 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 73 of 82 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.178 W/kg Power Drift-Finish: 0.181 W/kg Power Drift (%) : 1.685 DUT Position : Touch Channel : 810 1 gram SAR value : 0.322 W/kg 10 gram SAR value : 0.297 W/kg Area Scan Peak SAR : 0.340 W/kg Zoom Scan Peak SAR : 0.719 W/kg Report No：082200R-HPUSP10V01 Page: 74 of 82 Version:1.0 This is previous page plot (zoom in) Report No：082200R-HPUSP10V01 Page: 75 of 82 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report Report Date : 19-Feb-2008 Measurement Date : 19-Feb-2008 Product Data Device Name : Mobile Phone Type : Std Form Cell Phone Model : B8 Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 117.8 mm Width : 67.9 mm Depth : 15.8 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 324-B Frequency : 1900.00 MHz Last Calib. Date : 19-Feb-2007 Temperature : 20.20 °C Ambient Temp. : 21.10 °C Humidity : 50.00 RH% Epsilon : 54.14 F/m Sigma : 1.53 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Aug-2007 Frequency : 1900.00 MHz Duty Cycle Factor: 4 Conversion Factor: 5.75 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：082200R-HPUSP10V01 Page: 76 of 82 Version:1.0 Measurement Data Crest Factor : 4 Tissue Temp. : 20.20 °C Ambient Temp. : 21.10 °C Area Scan : 6x6x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.275 W/kg Power Drift-Finish: 0.285 W/kg Power Drift (%) : 3.520 DUT Position : Touch Channel : 512 1 gram SAR value : 0.251 W/kg 10 gram SAR value : 0.147 W/kg Area Scan Peak SAR : 0.440 W/kg Zoom Scan Peak SAR : 0.489 W/kg Report No：082200R-HPUSP10V01 Page: 77 of 82 Version:1.…

Text truncated - open the document above for the full version.

Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 1900MHz Head Calibration 1900MHz Body Calibration

Appendix E. Dipole Calibration Data Validation Dipole 835MHz P/N: ALS-D-835-S-2 S/N: QTK-315 Appendix E. Dipole Calibration Data Validation Dipole 1900MHz P/N: ALS-D-1900-S-2 S/N: QTK-318

of Applicant: TelePaq Technology Inc. Address: 1F, No. 201, Sec. 2, Tiding Ave. Taipei 114, Taiwan, R.O.C. Tested and Prepared by Taiwan ETS Product Service Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A-1 A2LA Accredited No.: 1983.02 PTCRB Accredited Type Certification Test House Report No.: W6M20802-8869-P-22/24 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 22/24 TEST REPORT for Mobile Phone Model No.: B8 FCC ID: V3H-B8 Report Number: W6M20802-8869-P-22/24 FCC ID: V3H-B8 Certification of Test Report Applicant : TelePaq Technology Inc. 1F, No. 201, Sec. 2, Tiding Ave. Taipei 114, Taiwan, R.O.C. Manufacturer : TelePaq Technology Inc. 1F, No. 201, Sec. 2, Tiding Ave. Taipei 114, Taiwan, R.O.C. Tested Equipment : Type Description : Mobile Phone Model Number : B8 Series Number : N/A Brand Name : TelePaq Operation Frequency : 824.3-848.7MHz / 1850.2 - 1909.7 MHz RF Output Power : DC 3.5 V 1) 824.3 - 848.7 MHz : 22.87 dBm (ERP) 2) 1850.2 - 1909.7 MHz : 28.37 dBm (EIRP) DC 4.2 V 1) 824.3 - 848.7 MHz : 22.87 dBm (ERP) 2) 1850.2 - 1909.7 MHz : 28.37 dBm (EIRP) Power Supply : Adaptor(I/P:AC100-240V/50-60Hz/0.2A, O/P:5V/1000mA) Battery 3.7V / 1100mAH Regulation Applied : 47CFR Part 22 (2005-10) and Part 24 (2005-10) Test Method : 47CFR Part 2 (2005), TIA/EIA-603B (2002) and ANSI C63.4(2003) I HEREBY CERTIFY THAT: The test results written in this report were derived conscientiously in accordance with the requirements and procedures of 47CFR Part 2(2005) and TIA-603-B(2002), and it was found that the device described above is in compliance with the applicable limits specified in 47CFR Part 22 and Part 24. Note: 1. The result of this test report is valid only in connection to the sample has been tested at the laboratory of Taiwan ETS Product Service Co. Ltd. 2. This test report shall always be duplicated in full pages unless the written approval of the testing laboratory is obtained. Test Engineer: March 7, 2008 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: March 7, 2008 Steven Chuang Date ETS Name Signature Report Number: W6M20802-8869-P-22/24 FCC ID: V3H-B8 Taiwan ETS Product Service Co., Ltd. Page 1 of 35 TABLE OF CONTENTS 1. SUMMARY .......................................................................................................................................2 1.1 D ESCRIPTION OF TESTED EQUIPMENT...........................................................................................2 1.2 D ATE OF TESTING PROCESSING....................................................................................................2 1.3 MODIFICATION INFORMATION.....................................................................................................2 1.4 T EST STANDARDS.........................................................................................................................2 1.5 SUMMARY OF TEST RESULT..........................................................................................................3 2. GENERAL INFORMATION ..........................................................................................................4 2.1 T ESTING LABORATORY................................................................................................................4 2.1.1 Location ..............................................................................................................................4 2.1.2 Details of accreditation status ............................................................................................4 2.2 D ETAILS OF APPROVAL HOLDER...................................................................................................4 2.3 DESCRIPTION OF TESTED SYSTEM................................................................................................5 2.4 TEST ENVIRONMENT....................................................................................................................6 2.5 GENERAL TEST REQUIREMENT....................................................................................................6 2.6 T EST EQUIPMENT LIST.................................................................................................................7 3. RF POWER OUTPUT .....................................................................................................................9 3.1 TEST PROCEDURE.........................................................................................................................9 3.1.1 Conducted Method ..............................................................................................................9 3.1.2 Radiated Method .................................................................................................................9 3.2 TEST RESULTS...........................................................................................................................11 4. MODULATION CHARACTERISTICS ......................................................................................12 4.1 T EST PROCEDURE.......................................................................................................................12 4.2 TEST RESULTS...........................................................................................................................12 5. OCCUPIED BANDWIDTH...........................................................................................................13 5.1 TEST PROCEDURE.......................................................................................................................13 5.2 T EST RESULTS...........................................................................................................................13 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..........................................................14 6.1 T EST PROCEDU…
