CP101 CP101CP101 CP101 Recreational Radio User Manual 1.1 Introduction The CP101 Recreational Radio combines quality and versatility into a compact, light and portable two-way radio with state-of-the-art design and easy-to-use features. 1.2 Key Features
weight : 53g
license free
talk for free!
3km/2mi range (open terrain)
clear, high power audio output
20 channels, 53 CTCSS tone code, 104 DCS code
voice activated transmission (VOX)
channel scan
2 receiving modes
General receiving mode
Dual watch mode
large LCD display with illumination
monitor mode
battery save
battery level indicator
low battery warning
keypad lock
busy channel lockout
external PTT / microphone and speaker jack
detachable belt clip 1.3 Optional Accessories
EM20 External PTT/ microphone 1. GENERAL INFORMATION 2. CONTROLS AND INDICATORS Key Beep Tone 3.1 Power On / Off Press and hold the power on Key to switch on or off. 3.2 Adjusting the Radio Volume/ Channel Scan Adjust the volume level by using ▲ / ▼ key (1-15 steps) Press and hold ▲ / ▼ key for 2 seconds. Press any key to stop. 3.3 Transmission /Receiving Press and hold the “PTT” button while speaking at about 5cm from the microphone for transmission. Release the “PTT” button to return to standby mode. 3.4 Channel Selection Press and hold the, use or to select the channel, press PTT key to confirm and back to receiving mode interface. 3.5 Keypad Lock Press for 3 seconds to activate and deactivate the keypad lock. cannot be function. 3.6 Monitor Presskey to open the speaker squelch for receiving the weak radio signal and monitoring channel with unknown CTCSS frequency. Press key for 3 seconds to enter the Menu Selection Mode. Press key to select one of the following features: Channel select >CTCSS/ DCS>Squelch Level >VOX >Dual Watch Mode >Key Beep Tone >Busy Channel Lock Out > Transmit LED indicator >Battery Save >Transmitter Power Select Press PTT to confirm setting and return to standby mode, the current setting will be confirmed and quit to standby mode if no action to the selected feature for more than fifteen seconds. 3. OPERATION 4. MENU SETTING 4.1 Channel Press/to select the channel. 4.2 CTCSS/DCS Press / to select desired CTCSS or DCS coding. 4.3 Squelch Level Press / to select squelch level ( 1 - 9 steps). 4.4 VOX Press / to select OFF & ON and select the VOX level ( OFF – 09 ). Without pressing the PTT button, the voice signal can be transmitted through the microphone. 4.5 DUAL WATCH Press / to select OFF & On Dual Watch Channels. 4.6 KEY BEEP TONE Press / to select On & OFF this feature. 4.7 BUSY CHANNEL LOCK OUT (BCLO) Press / to select and disable this feature. If this feature is turned on, transmission function will be temporary disabled when signal is being received. 4.8 BACK LIGHTING + LED Press / to select disable this feature. Back Lighting will be ON when you press PTT to indicate transmitter is function. 4.9 TRANSMISSION POWER ADJUST Press / to select Low or High Power. When the radio is on stand-by mode, Press PTT and to select Lo Power, Press PTT & to select Hi power. 4. MENU SETTING CTCSS CTCSSCTCSS CTCSS表 表表 表 N O . F r eq ue nc y ( H z) . N O . F r eq ue nc y ( H z) . N O . F r eq ue nc y ( H z) . N O . F r eq ue nc y ( H z) . 1 6 7 1 5 1 1 0. 9 2 9 1 7 9. 9 4 3 1 9 6. 6 2 7 1 .9 1 6 1 1 4. 8 3 0 1 8 6. 2 4 4 1 9 9. 5 3 7 4 .4 1 7 1 1 8. 8 3 1 1 9 2. 8 4 5 2 0 6. 5 4 7 7 1 8 1 2 3 3 2 2 0 3. 5 4 6 2 2 9. 1 5 7 9 .7 1 9 1 2 7. 3 3 3 2 1 0. 7 4 7 2 5 4. 1 6 8 2 .5 2 0 1 3 1. 8 3 4 2 1 8. 1 4 8 1 6 5. 5 7 8 5 .4 2 1 1 3 6. 5 3 5 2 2 5. 7 4 9 1 7 1. 3 8 8 8 .5 2 2 1 4 1. 3 3 6 2 3 3. 6 5 0 1 7 7, 3 9 9 1 .5 2 3 1 4 6. 2 3 7 2 4 1. 8 5 1 6 0 .7 1 0 9 4 .8 2 4 1 5 1. 4 3 8 2 5 0. 3 5 2 6 2 .5 1 1 9 7 .4 2 5 1 5 6. 7 3 9 6 9 .3 5 3 6 4 .7 1 2 1 0 0 2 6 1 6 2. 2 4 0 1 5 9. 8 1 3 1 0 3. 5 2 7 1 6 7. 9 4 1 1 8 3. 5 1 4 1 0 7. 2 2 8 1 7 3. 8 4 2 1 8 9. 9 DCS DCSDCS DCS表 表表 表 NO DCS code NO DCS code NO DCS code NO DCS code 1 23 27 165 53 413 79 731 2 25 28 172 54 423 80 732 3 26 29 174 55 431 81 734 4 31 30 205 56 432 82 743 5 32 31 223 57 445 83 754 6 43 32 226 58 464 84 53 7 47 33 243 59 465 85 122 8 51 34 244 60 466 86 36 9 54 35 245 61 503 87 145 10 65 36 251 62 506 88 212 11 71 37 261 63 516 89 225 12 72 38 263 64 532 90 246 13 73 39 265 65 546 91 252 14 74 40 271 66 565 92 255 15 114 41 306 67 606 93 266 16 115 42 311 68 612 94 274 17 116 43 315 69 624 95 325 18 125 44 331 70 627 96 332 19 131 45 343 71 631 97 356 20 132 46 346 72 632 98 446 21 134 47 351 73 654 99 452 22 143 48 364 74 662 100 454 23 152 49 365 75 664 101 455 24 155 50 371 76 703 102 462 25 156 51 411 77 712 103 523 26 162 52 412 78 723 104 526 CTCSS / DCS TABLE General GeneralGeneral General Channel Number 22CHs Frequency Range 462.5500MHz ~ 467.7125MHz Modulation Type FM Temperature Range -20°C ~ +55°C Power Supply AAA battery x 3 Operating Voltage 3.8V（3.3V ~ 4.5V） Size(W x H x D) 47 x 111 x 34 mm Weight without battery 53g Receiver ReceiverReceiver Receiver Sensitivity -120dBm Audio Output Power 0.5W / 8Ω阻抗 Audio Distortion < 5% Transmitter TransmitterTransmitter Transmitter Output Power < 0.5W Modulation Distortion < 5% Frequency Stability ±2.5ppm C h an ne l No . F r eq ue nc y（ M HZ） C a nn el N o. F r eq ue nc y（ M HZ） 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 1 0 467.6125 21 462.7000 1 1 467.6375 22 462.7250 CHANNEL FREQUENCY CHART TECHNICAL SPECIFICATIONS Website: www.cps-telecom.com Product Safety and RF Exposure This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1．This device may not cause harmful interference. 2．This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Caution: To maintain compliance with the FCC’s RF exposure guidelines hold the tr…

Text truncated - open the document above for the full version.

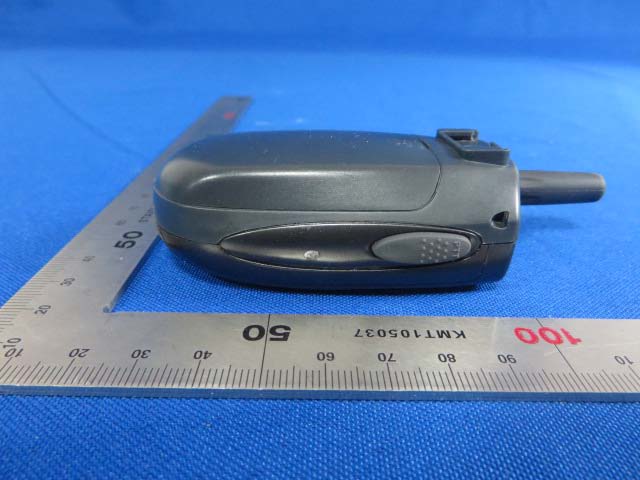

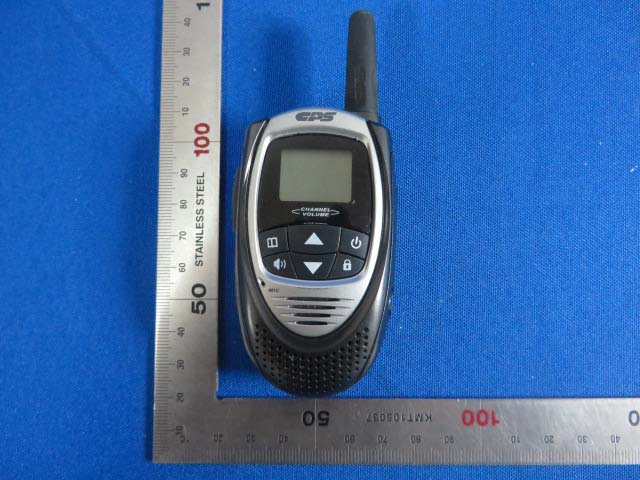

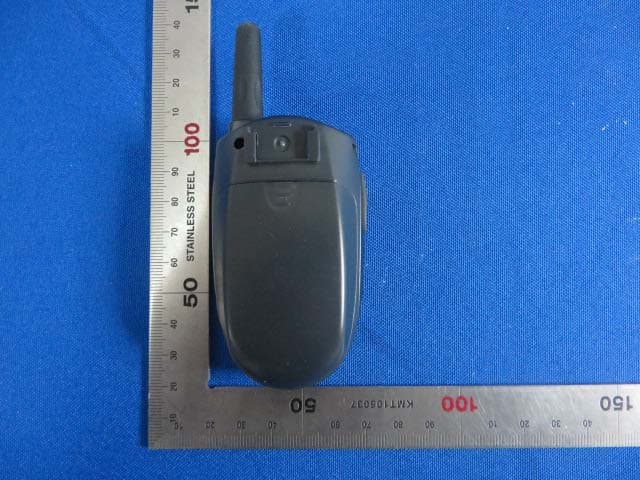

1 of 3 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo
