V4HSL-6703Car DVD player

AVN675D USB RESET MAP GPS MUTE SD PWR VOL MIC AUX AVN675D 6.75 Double Din with fixed panel Panel function description 03 Remote control function 04 Turn on/off Host 06 Access main interface 06 Wallpaper and Logo Setup 06 Radio Function Operation 07 Disc Function Operation 08 U Disc/SD Card function operation 09 BT Function Operation 10 Music function operation 11 External input operation 11 Compass 12 Counter 12 GPS Navigation Function Operation 12 Other function operation 13 Basic operation setup menu 14 Access setup interface 14 General Settings 16 Trouble shooting 17 CONTENTS NOTE 2. To drive safely and avoid break the traffic rules, do not watch program and operate the unit while driving. 3. To avoid short circuit, please do not exposure the device to rain. 4. To avoid short circuit, please do not put in the device or any metal objects left behind. 5. Not open the machine for maintenance by yourself, please go to the professional repair service station for repairing. 6. When the engine is turned off, please do not use the car audio a long time, otherwise the battery may run out. 7. Do not insert anything to the device’s vent and other openings. 8. Damage to the screen carefully! Do not use sharp objects push, rub, Stroke the screen. 1. Please read the instructions before using the unit, the damage caused by not following the instructions will not enjoy the warranty. 18 Accesories 18 WIRING DIAGRAM 02 SPECIFICATIONS Power supply Power range Max operate current Ground system Bluetooth Audio Video Display Resolution Max output power Subwoofer Output FM tuner Frequency range Signal/Noise ratio Stereo separation Search station volt Distortion rate AM tuner Frequency range Limit noise sensitivity DVD player Signal/Noise ratio Frequency response DC 12V 10.8-16.0V DC 15A Negative ground 2.0, class II RCA 4 Output, RCA 2 Input RCA 2 Output, RCA 1 Input 16:9 800*480 Pixels 4*25W 1 Output 87.5-107.9 MHz 55dB 30dB 20-30dBuv 1.5% 530-1710 KHz 32dB 70dB 20Hz-20KHz 19 19 SPECIFICATIONS 18 03 5. RESET Press this button can back to default mode. 6. USB slot 7. AUX slot 8. Eject disc 9. IR To receive infrared signals from the remote control matched with the unit. 10. Disk load slot 11. SD slot Connect the SD memory card to this socket, and the unit can play MP3 music. 12.MIC BT microphone input socket. Connect USB mobile device to read video, audio and image files of large volume. Warning: You can only use either front or rear USB at a time. Never connect both front and rear USB at the same time! This could cause malfunctions. To input external audio. Warning: You can only use either front or rear AUX at a time. Never connect both front and rear AUX at the same time. Press this button can eject the disc. Disk loading / exit window. Panel function description 1. PWR / VOL button 2. MUTE button Press the button to close volume output, re-press it to resume previous volume level. 3. GPS button 4. MAP slot Press this button to power on; In boot-up state, long press this button to power off; short press to return to main menu under an mode, rotating the knob to adjust the volume. Press it to enter or exit the navigation. Insert a map card to read navigation map data. USB RESET MAP GPS MUTE SD PWR VOL MIC AUX AVN675D WIRING DIAGRAM This player is equipped with ISO standard connector, pleasefollow below instruction: ● Yellow – 12 V Constant ● Black – Ground wire ● Blue - Power Antenna / Remote Amp Turn On ● Orange – Back-Up Camera Trigger (+) ● Red - ACC ON (+12V) ● Parking Brake (-) ● White/White black - Left front speaker (+/-) ● Purple/Purple black - Right rear speaker (+/-) ● Green/Green black - Left rear speaker (+/-) ● Grey/Grey black - Right front speaker (+/-) Accessories Left Bracket Right Bracket White screw 1 1 8 1 1 1 1 1 Warranty card Registration card Manual QRG Power harness Accessories 1 Trim 04 17 Remote control function 1. POWER Press once to switch on, press again to switch off. 2. MUTE button Press once to turn off audio output, press again to resume volume level. 3. NAVI button Press it to enter & to exit the navigation. 4. SOURCE button Press this button to choose audio sources. 5. EQ button Press this button 6. SEEK+ ( )/ SEEK- ( )button Press this button to manual turning, sped or quick back, previous song and next song. 7. VOL+ ( )/ VOL- ( ) Press this button to increase or decrease volume level. 8. SEL button Press this button to choose sound feature. 9. LOUD button Press this button to startup LOUD function. 10. BAND -P/N button In radio mode, press this button to choose band. In VCD, DVD mode, press this button to choose PAL, AUTO or NTSC system. 11. LOC/RDM button In radio mode, press this button to switch between local and direction, In VCD, CD mode, press this key to randomly play. 12. STOP button Press this button to stop playing. 13. PLAY/PAUSE button Press this button to switch between play and pause, In stop mode, press this button to play. 14. ST/PROG button In radio mode, press this button to choose stereo or mono station. In audio mode, it can help stop button to programmed play. at the can switch between different modes. Troubleshooting PROBLEMCAUSE CORRECT ACTION Poor performance of radio station Cannot load disk There is a disk inside Eject disk, then, slot in new disc After ignition switch off, setting information all lose Reset information and save Change battery or fuse Cannot power on Check fuse Change fuse same as the old one Some factors cause MPU wrong operation Press RES button on the panel by power on penpoint, then, Weak signal Move the car to another place, then research Cannot play disc Disc is scratched Change new disc Put wrong side of disc into the unit Insert in the disk with sign side up Clean lens by lens clean discLens is dirty Cannot switch language/subtitle There is only one language/subtitle in disc If disc is not with multi-language/subtitle, it cannot switch language/subtitle No image Other factors cause MPU wrong operation Press [RES] button o…

Text truncated - open the document above for the full version.

DATE :March 13, 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD ，5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA.，Hanson Chueng_, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with __ Shenzhen soling industrial Co., Ltd Soling Technological Industry Zone Xikeng, Fuming, Guanlan Shenzhen, China_ ( applicant name and address). Dated this March 13, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Wenxin Wu Signature Printed Title: Deputy General Manager On behalf of : Shenzhen soling industrial Co., Ltd Telephone: 0755-28028136

DATE March 13, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___ V4HSL-6703________ Product Name: Car DVD player Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this March 13, 2013 By: Wenxin Wu Signature Printed Title: Deputy General Manager On behalf of : Shenzhen Soling industrial Co., Ltd Telephone: 0755-28028136

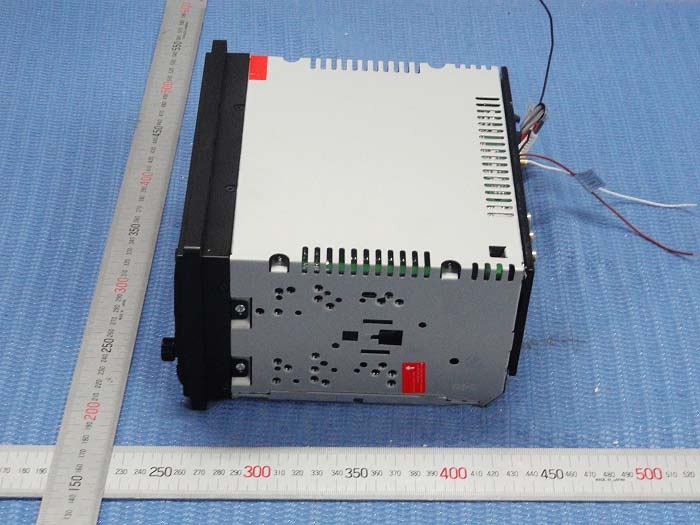

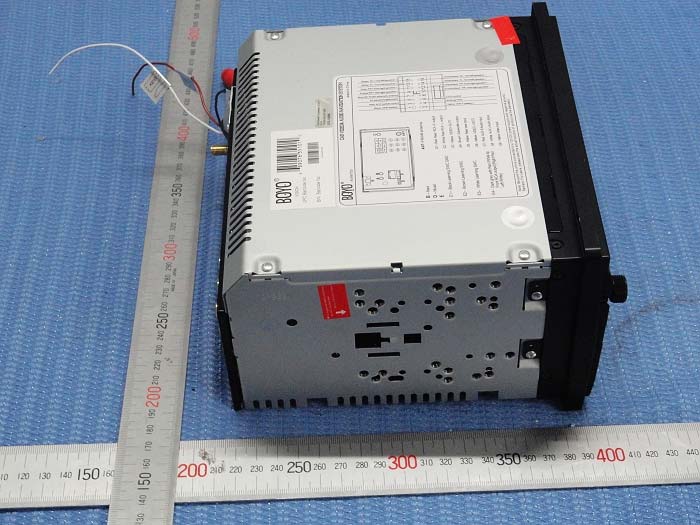

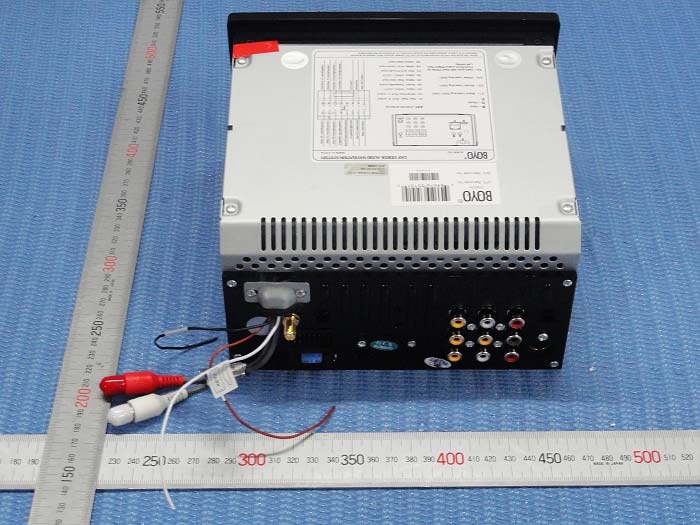

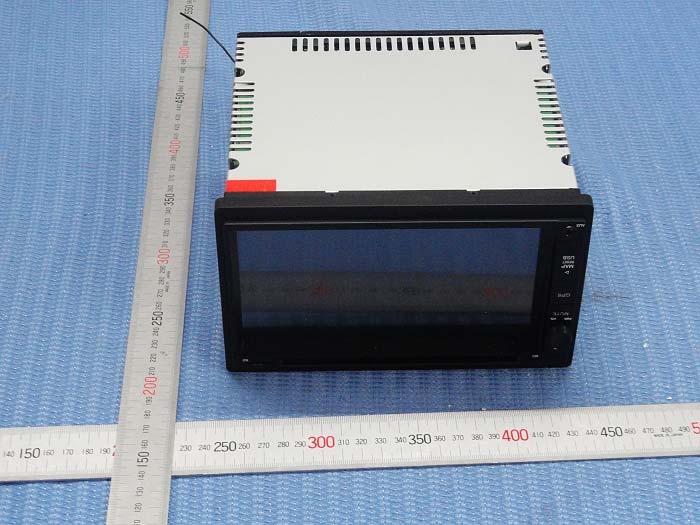

Outside view Outside view Inside view

Mark Location: FCC ID Label Location

Inside view Inside view Inside view Inside view Inside view Inside view Inside view Inside view Inside view Inside view Inside view

Maximum Permissible Exposure Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1 -0.46 0.8995 0.000179 1 Compiles

ISO/IEC17025Accredited Lab. Report No: FCC 1303024 File reference No: 2013-03-13 Applicant: Shenzhen Soling Industrial Co., Ltd Product: Car DVD Player Model No: SL-6701,SL-6702, SL-6703, SL-6704, SL-6705, SL-6706, SL-6707, SL-6708, SL-6709, SL-6710,SL-6711,SL-6712, SL-6713,SL-6714,SL-6715, SL-6716, SL-6717,SL-6718,SL-6719,SL-6720,SL-6721, SL-6722,SL-6723,SL-6724, SL-6725, SL-6726,SL-6727, SL-6728,SL-6729，SL-6730, SL-6731, SL-6732, SL-6733, SL-6734, SL-6735,SL-6736,SL-6737,SL-6738,SL-6739,SL-6740,SL-6741, SL-6742, SL-6743,SL-6744,SL-6745,SL-6746,SL-6747,SL-6748，SL-6749，SL-6750,SL-6751， SL-6752,SL-6753,SL-6754,SL-6755,SL-6756,SL-6757,SL-6758，SL-6759，SL-6760， SL-6761，SL-6762，SL-6763，SL-6764，SL-6765，SL-6766，SL-6767，SL-6768， SL-6769，SL-6770，SL-8171，Sl-8173，SL-8174，Sl-8175，SL-8176，Sl-8177， Sl-8179，SL-8187，SL-8195 ，SL-8196，SL-8197，SL-8198，SL-8199，SL-8186， SL-8188，SL-8189，SL-8190，SL-8191，SL-8192，SL-8193，SL-8194，SL-6200， SL-6201,SL-6202,SL-6203，SL-6204，SL-6205，Sl-6900，Sl-6901，Sl-6902， Sl-6903， Sl-6905，Sl-6906 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: March 13, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1303024 Page 2 of 60 Date: 2013-03-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: 1303024 Page 3 of 60 Date: 2013-03-13 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................4 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results........................…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup:
