Dongguan Newmen Electronics Technology Co.,LTD Re: Request for confidentiality Applicant: Dongguan Newmen Electronics Technology Co.,LTD FCC ID: V4P-MX-225C To whom it may concern, Permanent Confidentiality Request is hereby submitted by Dongguan Newmen Electronics Technology Co.,LTD to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by Dongguan Newmen Electronics Technology Co.,LTD to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization: • Test setup photos • External photos • Internal photos • User manual

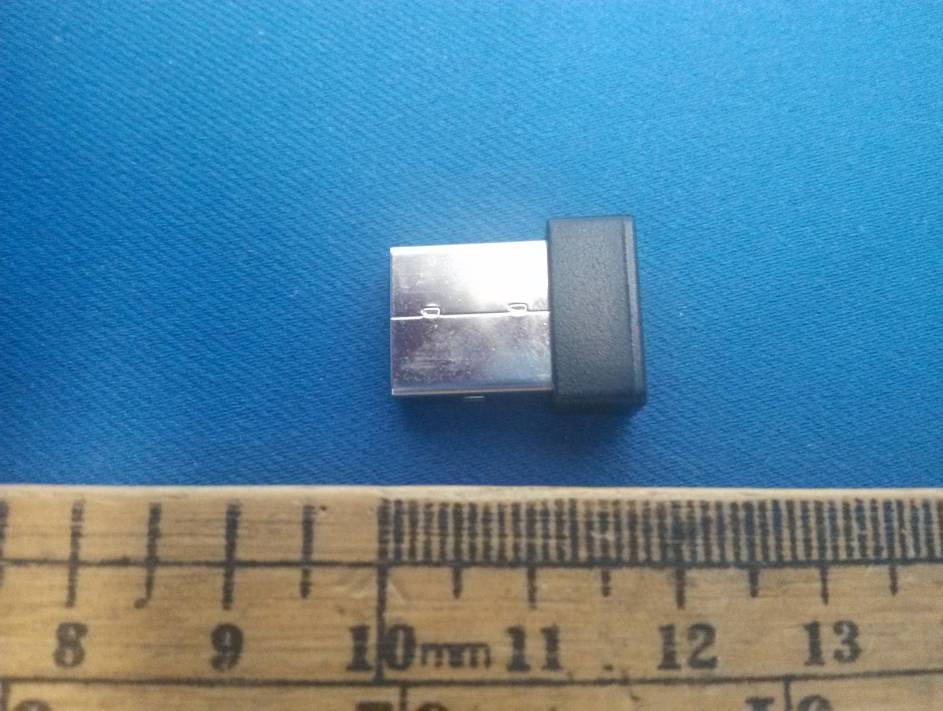

External photos

M/N: MX-225C CMIIT ID:xxxxxxxxxx FCC ID: V4P-MX-225C IC: 124877A-MX225C Dongle Label Size: 13.1mm x 11.4mm

FCC ID: V4P-MX-225C 1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Dongle. The EUT was powered by USB port of PC. For more detail information please refer to the user manual. Modulation Type: GFSK. Antenna Type: Integral antenna Antenna Gain: -4.61dBi. The nominal conducted output power specified: -2.0dBm (Tolerance: +/- 3dB) The nominal radiated output power (EIRP) specified: -6.61dBm (Tolerance: +/- 3dB) According to the KDB 447498: The maximum radiated emission for the EUT is 89.4dBμV/m at 3m in the frequency 2.403GHz = [(FS*D) ^2 / 30] mW = -5.8dBm which is within the production variation. The minimum radiated emission for the EUT is 88.1dBμV/m at 3m in the frequency 2.478GHz = [(FS*D) ^2 / 30] mW = -7.1dBm which is within the production variation. The maximun conducted output power specified is 1.0dBm = 1.3mW The source- based time-averaging conducted output power = 1.3 * Duty cycle mW= 1.3 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.478) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1.
