V4P-MX-640Wireless Keyboard With Integrated Touch Pad

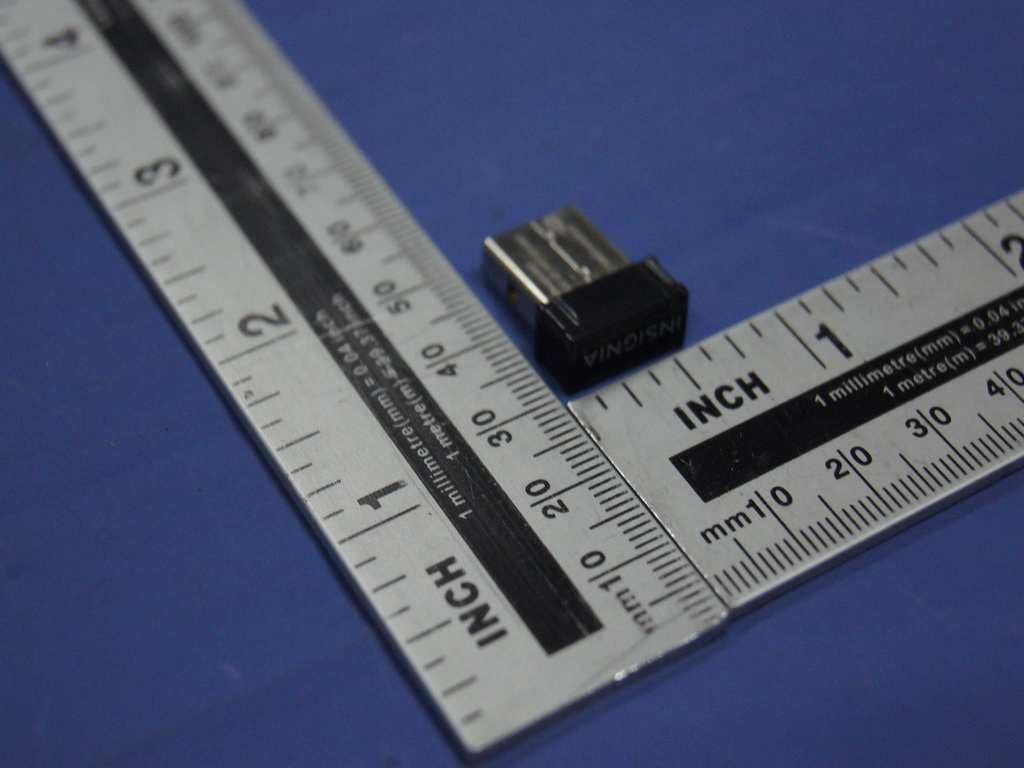

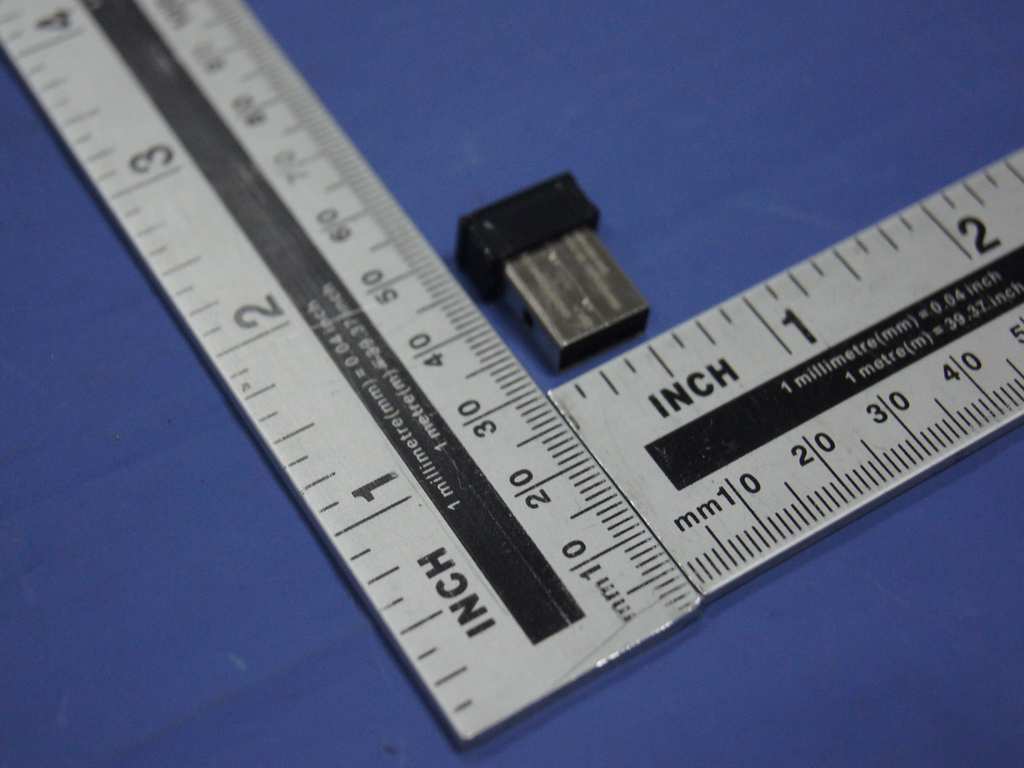

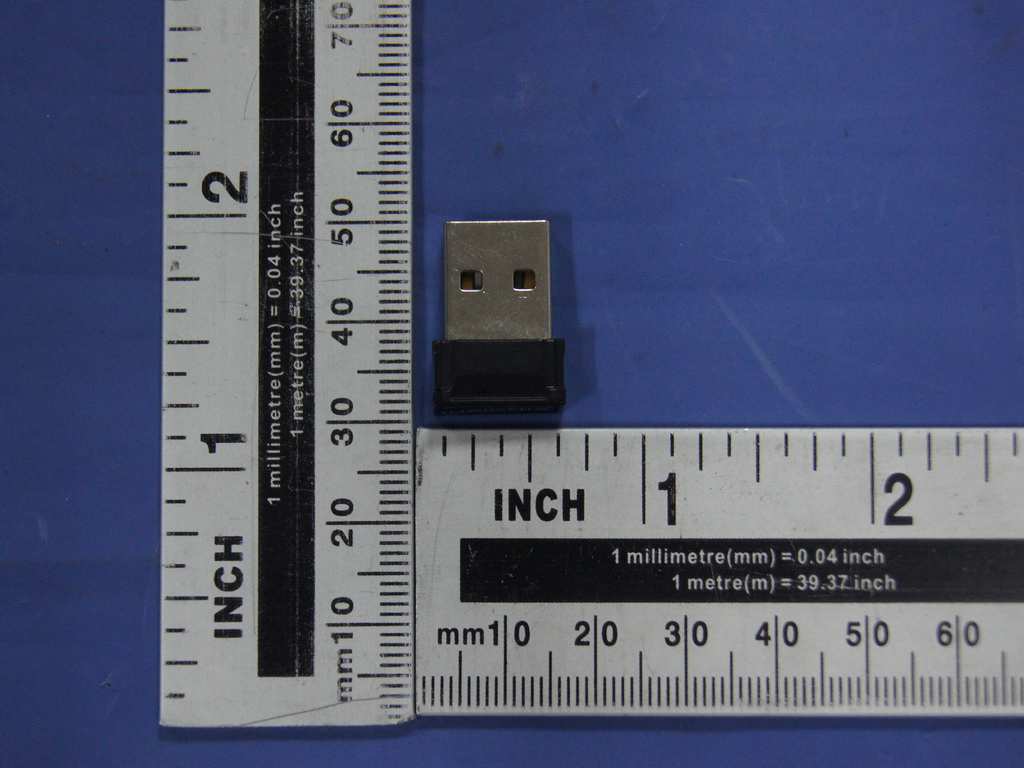

Final flat size: 215.9 × 158.75 mm Final fold size: 107.95 × 158.75 mm INSTALLING THE USB NANO RECEIVER AND BATTERIES 1 Plug the USB nano receiver into an available USB port on your computer. Windows automatically finds and installs the appropriate driver. 2 Turn your keyboard over and open the battery compartment. 3 Insert two AA batteries (included) into the battery compartment. Make sure that you match the + and – symbols on the batteries with the + and – symbols in the battery compartment. The keyboard automatically detects the USB nano receiver. Notes: • If the keyboard and USB nano receiver do not automatically pair, you can force them to pair by pressing the Esc, 1, and = keys simultaneously on the keyboard. The low battery/pairing indicator LED on the keyboard blinks while in pairing mode (10 seconds). • A low battery LED indicator notifies you when you need to change batteries. 4 Close the battery compartment and turn the keyboard over. You can immediately begin using your keyboard. USING THE TOUCH PAD Quick Setup Guide | NS-PNK6811/NS-PNK6811-C Wireless Keyboard with Touch Pad PACKAGE CONTENTS • Wireless keyboard • USB nano receiver • AA batteries (2) • Quick Setup Guide SYSTEM REQUIREMENTS • Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, Windows Vista®, or Mac OS 10.X or higher. • One available USB port FEATURES Before using your new product, please read these instructions to prevent any damage. # FUNCTION 1 Low battery and pair mode indicator LED 2 Touch pad 3 Mouse buttons DESCRIPTION Low battery: The LED will blink if the battery is low. Pair mode: The LED will blink while pairing, then stay on for two seconds once successfully paired. For cursor control Use these buttons just like you would left and right mouse buttons. WINDOWS 8 (OR LATER) GESTURES One finger swipe from left edge towards center One finger swipe from right edge towards center One finger swipe from top edge towards center Two finger click Two finger slide right or left Two finger up or down Two finger spread/pinch Three finger click Three finger slide down Three finger slide up Three finger slide right or left DESCRIPTION Switch application; N/A for Windows 10" Show charm bar Show application bar Right button click; N/A for Windows 10" Horizontal scrolling Up and down scrolling Zoom in and out Middle button click Desktop display/minimize all Start button Forward/backward button NS-PNK6811_NS-PNK6811-C_15-0381_QSG_V1_EN.ai 1 6/9/2015 12:46:21 PMNS-PNK6811_NS-PNK6811-C_15-0381_QSG_V1_EN.ai 1 6/9/2015 12:46:21 PM CLEANING YOUR KEYBOARD • Wipe the keyboard with a damp, lint-free cloth. SPECIFICATIONS Keyboard: • Dimension (L×W×H): 16 × 5.8 × .8 in. (40.6 × 14.9 × 2.1 cm) TROUBLESHOOTING My keyboard is not working. • Move your keyboard closer to your computer. • Make sure that your computer meets the system requirements. • Replace the keyboard batteries. • Try plugging your USB nano receiver into a different USB port on your computer. • Re-plug the USB nano receiver into the USB port on your computer, then press the Esc, 1, and = keys simultaneously on the keyboard to pair the keyboard with the USB nano receiver. After pairing successfully, the LED turns off. • Check the batteries in your keyboard. The low battery/pairing indicator LED blinks for 10 seconds when the batteries are low. LEGAL NOTICES FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-Gen and RSS-210 statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. ONE-YEAR LIMITED WARRANTY For complete warranty, visit www.insigniaproducts.com. CONTACT INSIGNIA 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniap…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 92 von 98 Page 92 of 98 Rev.:1 6. Safety Human Exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : FCC KDB Publication 447498 D01 v05r02 The separation distance of the Keyboard should be 5mm.The measured maximum peak output power of the Keyboard is 94.7dBuV/m ≈-0.53dBm, which is far below the SAR exclusion threshold level 10 mW (Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v05r02. The separation distance of the USB dongle should be 5mm. The measured maximum peak output power of the dongle is 85.72dBuV/m ≈-9.51dBm, which is far below the SAR exclusion threshold level 10mW (Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v05r02.

Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 2 von 98 Page 2 of 98 Rev.:1 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 FUNDAMENTAL & HARMONICS RADIATED EMISSION RESULT: Pass 5.1.3 RADIATED SPURIOUS EMISSIONS OUTSIDE BAND RESULT: Pass 5.1.4 CONDUCTED EMISSION RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 3 von 98 Page 3 of 98 Rev.:1 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 C OMPLEMENTARY MATERIALS ........................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY ........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 S TATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 R ATINGS AND SYSTEM DETAILS ......................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ..................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 S UBMITTED DOCUMENTS ................................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ............................................................................... 9 4.1 P RINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 C OUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. T EST RESULTS ............................................................................................................... 12 5.1 T RANSMITTER REQUIREMENT & TEST SUITES ................................................................... 12 5.1.1 Antenna Requirement ............................................................................................................... 12 5.1.2 Fundamental & Harmonics Radiated Emission ........................................................................ 13 5.1.3 Radiated spurious emissions outside band ............................................................................... 26 5.1.4 Conducted emission .................................................................................................................. 89 6. SAFETY HUMAN EXPOSURE ............................................................................................. 92 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 92 6.1.1 Electromagnetic Fields .............................................................................................................. 92 7. P HOTOGRAPHS OF THE TEST SET-UP .............................................................................. 93 8. LIST OF TABLES .............................................................................................................. 98 9. L IST OF PHOTOGRAPHS ................................................................................................... 98 Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 4 von 98 Page 4 of 98 Rev.:1 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Accurate Technology Co., Ltd. F1, Bldg. A, Changyuan New Material Port Keyuan Rd., Science & Industry Park, Nanshan Shenzhen, P.R. China. FCC Registration No.: 752051 IC OATS Registration No.: 5077A-2 The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 5 von 98 Page 5 of 98 Rev.:1 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Spurious emission and Radiated emission Spectrum Analyzer Rohde&Schwarz FSV40 101495 2016-01-10 Test Receiver Rohde & Schwarz ESCS30 100307 2016-01-10 Bilog Antenna Schwarzbeck VULB9163 9163-323 2016-01-10 Loop Antenna Schwarzbeck FMZB1516 1516131 2016-01-10 Horn Antenna Schwarzbeck BBHA9120D 9120D-655 2016-01-10 Horn Antenna Schwarzbeck BBHA9170 9170-359 2016-01-10 Pre-Amplifier Rohde & Schwarz CBLU1183540- 01 3791 2016-01-10 Radio Test Suite Receiver Rohde & Schwarz FSV40 101495 2016-01-10 Conducted Emission Test Receiver Rohde & Schwarz ESCS30 100307 2016-01-10 L.I.S.N. Schwarzbeck NLSK8126 81…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 93 von 98 Page 93 of 98 Rev.:1 7. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Spurious Emissions of Keyboard, below 30MHz Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 94 von 98 Page 94 of 98 Rev.:1 Photograph 3: Set-up for Spurious Emissions of dongle, below 30MHz Photograph 4: Set-up for Spurious Emissions of Keyboard, 30MHz - 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 95 von 98 Page 95 of 98 Rev.:1 Photograph 5: Set-up for Spurious Emissions of dongle, 30MHz - 1GHz Photograph 6: Set-up for Spurious Emissions of Keyboard, 1GHz – 18GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 96 von 98 Page 96 of 98 Rev.:1 Photograph 7: Set-up for Spurious Emissions of dongle, 1GHz – 18GHz Photograph 8: Set-up for Spurious Emissions of Keyboard, 18GHz – 25GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17050212 001 Seite 97 von 98 Page 97 of 98 Rev.:1 Photograph 9: Set-up for Spurious Emissions of dongle, 18GHz – 25GHz
