V4PKB-629RFWireless Keyboard

Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. 15.21 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Newmen Technology Corp. No.1NewmenRoad,TongShengVilla ge,LongHua,ShenZhen,China FCC Authorization Letter Number: CF304 Version: V01 Date: 08-08-2011 We, (the approval holder) Company name Newmen Technology Corp.，Ltd. Addresss No.1 Newmen Road,TongSheng Village,LongHua,ShenZhen,China City shenzhen Country China declare that the following representative (agent): Name (person) Aven zhou Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless keyboard Type or Model(s) KB-629RF Tradename or Brand(s) NEWMEN We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process (sign and apply) this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen,China AUG 8, 2011 Geroge He Managers

Newmen Technology Corp.，Ltd. No.1 Newmen Road,TongSheng Village,LongHua,ShenZhen,China 2011-8-5 Federal Communications Commission Authorization and Evaluation Division FCC ID：V4PKB-629RF Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram (file: Blk.pdf, showing the systematic building blocks of the EUT) 2. Circuit Diagram (file: Schematics.pdf, showing the components, their values and interconnections) 3. Operational Description (file: OpDes.pdf, explaining the functioning of the block diagram /EUT) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Geroge He / Managers Company Name: Newmen Technology Corp.，Ltd. Address: No.1, Newmen Road, Tongsheng Village, LongHua, Shenzhen, China TEL: +86-755-33669899 FAX: +86-755-33668968 Email: [email protected]

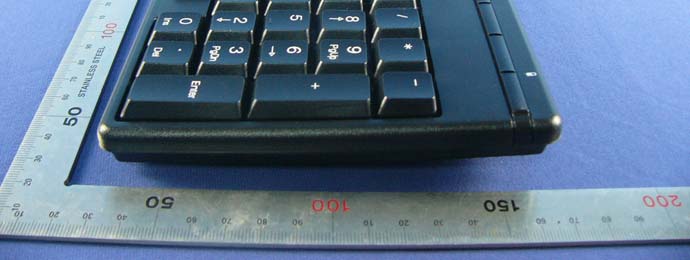

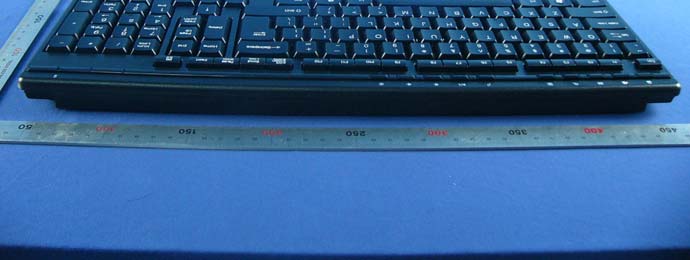

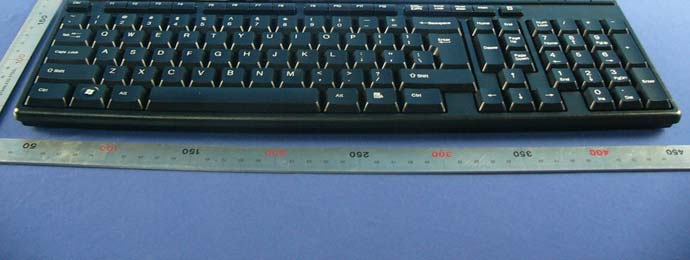

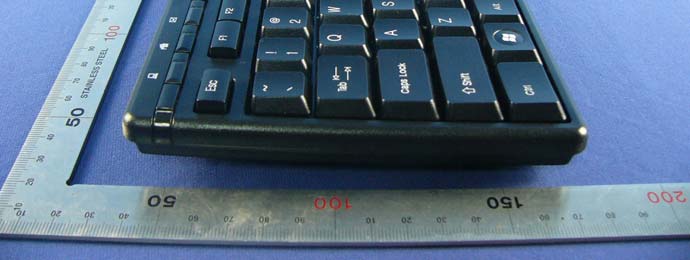

Report No: SZ110720B01-RP Page 1 / 3 Report No: SZ110720B01-RP Page 2 / 3 Report No: SZ110720B01-RP Page 3 / 3

Size: 69mm*34mm Label Location

Report No: SZ110720B01-RP Page 1 / 3 Internal Photos of EUT Report No: SZ110720B01-RP Page 2 / 3 Report No: SZ110720B01-RP Page 3 / 3

Report No: SZ110720B01-RP FCC ID: V4PKB-629RF Page 1 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC TEST REPORT for Wireless keyboard Model: KB-629RF Brand: NEWMEN Test Report Number: SZ110720B01-RP Issued Date: August 2, 2011 Issued for Newmen Technology Corp., Ltd. No.1Newmen Road, Tongsheng Village, LongHua, ShenZhen, China Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 Report No.: SZ110720B01-RP FCC ID : V4PKB-629RF Page 2 Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ110720B01-RP Initial Issue ALL Amay Tang Report No.: SZ110720B01-RP FCC ID : V4PKB-629RF Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION................................................................................................ 5 3 TEST METHODOLOGY .......................................................................................... 6 3.1. DESCRIPTION OF TEST MODES ...................................................................................... 6 4 TEST METHODOLOGY .......................................................................................... 7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 5 INSTRUMENT CALIBRATION ............................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ................................................................ 8 6.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 6.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 7 FACILITIES AND ACCREDITATIONS ................................................................... 9 7.1. FACILITIES .......................................................................................................................... 9 7.2. ACCREDITATIONS ............................................................................................................. 9 7.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 8 FCC PART 15.249 REQUIREMENTS................................................................... 10 8.1. BAND EDGES MEASUREMENT....................................................................................... 10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 16 8.3. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 19 Report No.: SZ110720B01-RP FCC ID : V4PKB-629RF Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Wireless keyboard Model KB-629RF Brand NEWMEN Tested July 21~August 2, 2011 Applicant Newmen Technology Corp., Ltd. No.1Newmen Road, Tongsheng Village, LongHua, ShenZhen, China Manufacturer Newmen Technology Corp., Ltd. No.1Newmen Road, Tongsheng Village, LongHua, ShenZhen, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: SZ110720B01-RP FCC ID : V4PKB-629RF Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Wireless keyboard Trade Name NEWMEN Model Number KB-629RF Model Discrepancy N/A Identify Number SZ110720B01-RP Power Supply DC3V supplied by the battery(AAA*2) Frequency Range 2405-2476MHz Transmit Power Peak: 71.95dBuV/m (Max.) Average: 52.46dBuV/m (Max.) Modulation Technique GFSK Number of Channels 64 Channels Antenna Specification PCB Antenna with 0 dBi gain(Max) Temperature Range -20°C ~ +60°C Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: V4PKB-629RF filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. 3. The device would match a receiver to sale. Report No.: SZ110720B01-RP FCC ID : V4PKB-629RF Page 6 This report shall not be reproduced except in full, without the wr…

Text truncated - open the document above for the full version.

Report No.: SZ110720B01-RP Page 1 / 1 FCC ID:V4PKB-629RF PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz
